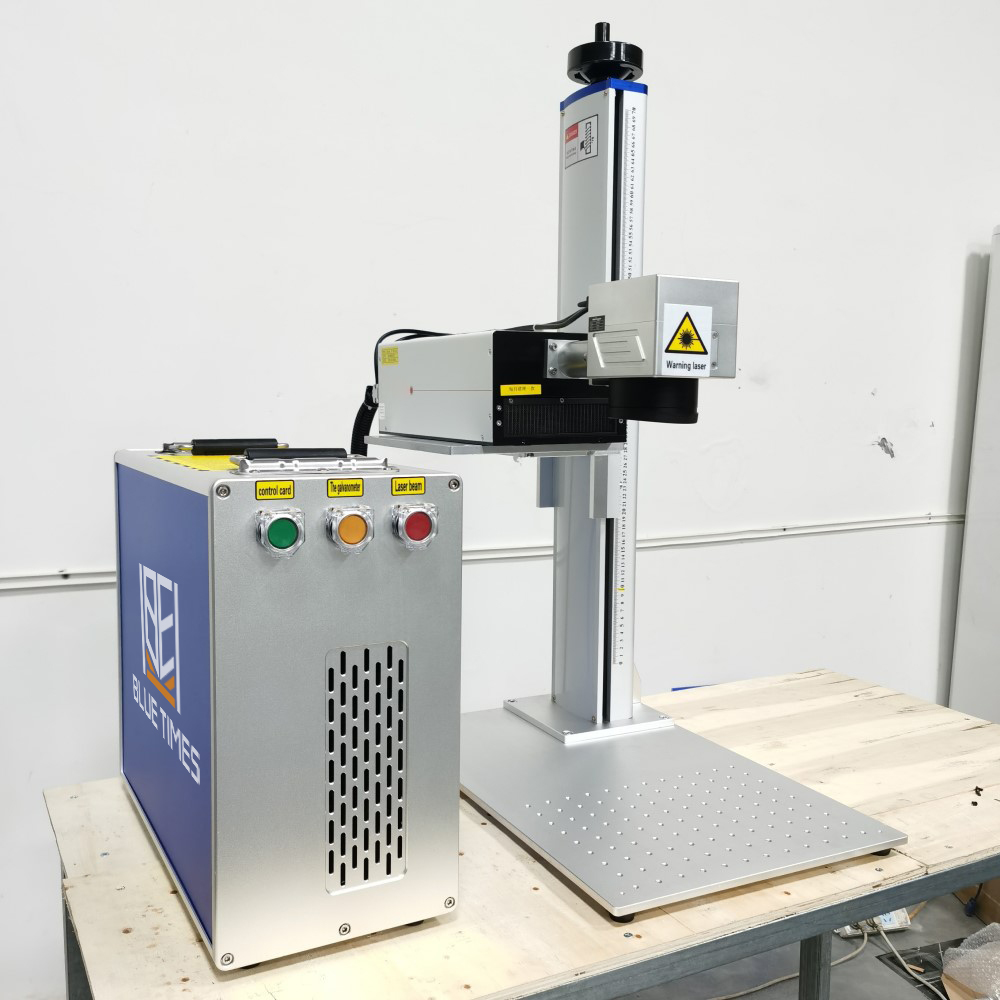

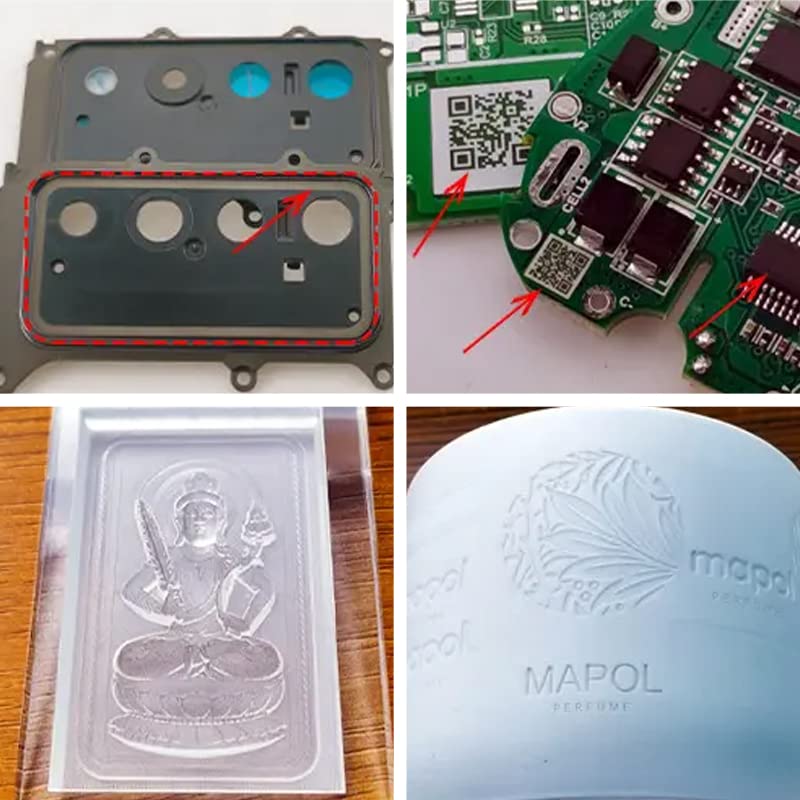

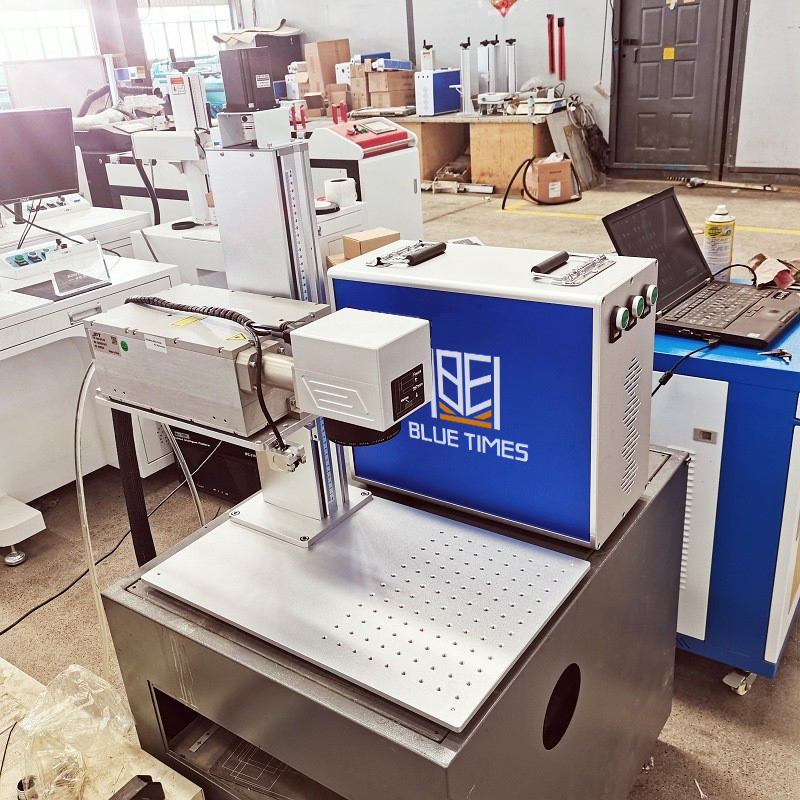

UV laser is known as the 'universal laser', it can mark almost all materials. The thermal effect of UV light source is low, which can achieve non-destructive marking and high-precision marking. It is mostly used for precision electronic products, precision metal materials, plastic packaging, and carton packaging, cosmetics marking, glass crystal and other materials!
Compared with standard laser light (1064 nm) and green laser light (532 nm), UV laser light has a remarkably higher material absorption rate. This means the power does not need to be increased to create highly visible marks.
UV lasers can mark highly reflective materials like gold, silver and copper with minimal heat damage thanks to the high absorption rate of UV light. This minimizes soot and burrs, prevents surface damage and enables corrosion-resistant marking.
Electronic parts are becoming smaller and their sealing resins are becoming thinner. Typical laser markers risk transmitting energy through sealing resins and damaging the internal components. However, UV laser markers have an incredibly high material absorption rate and can mark sealing resins without affecting the internal components.

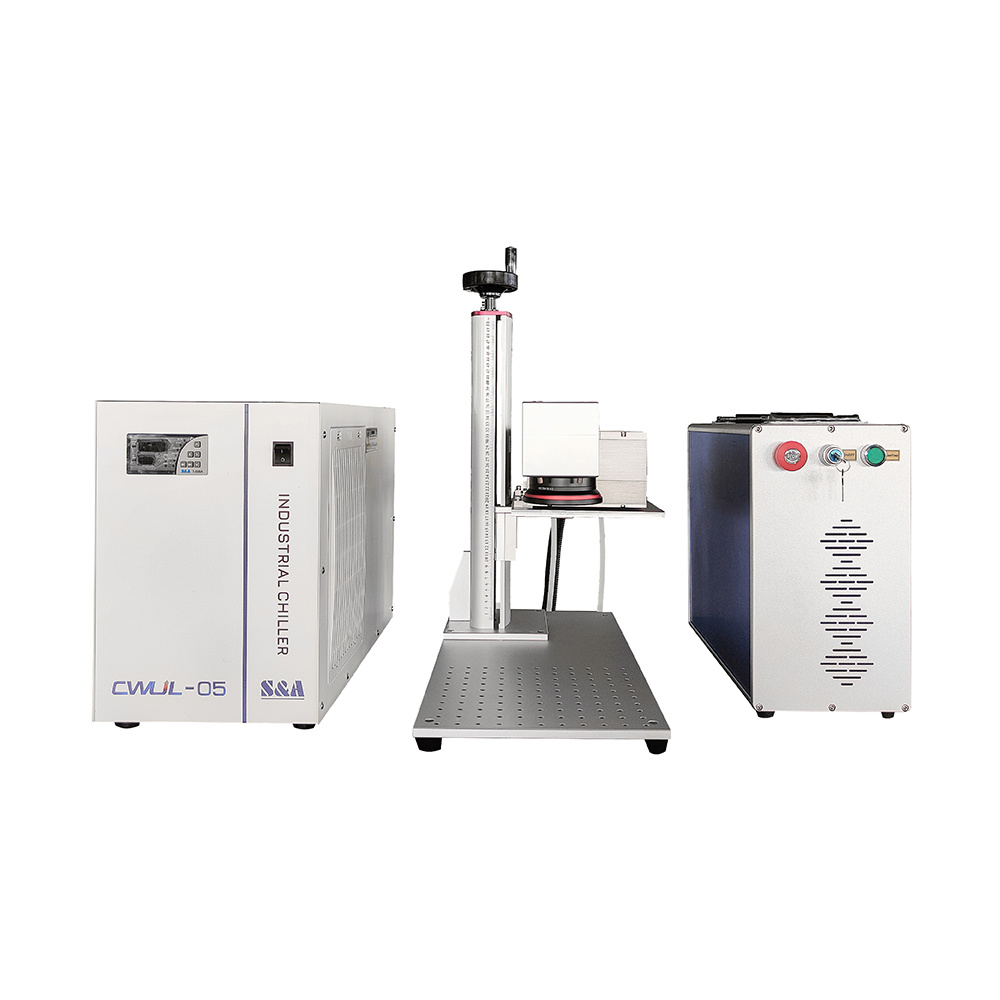

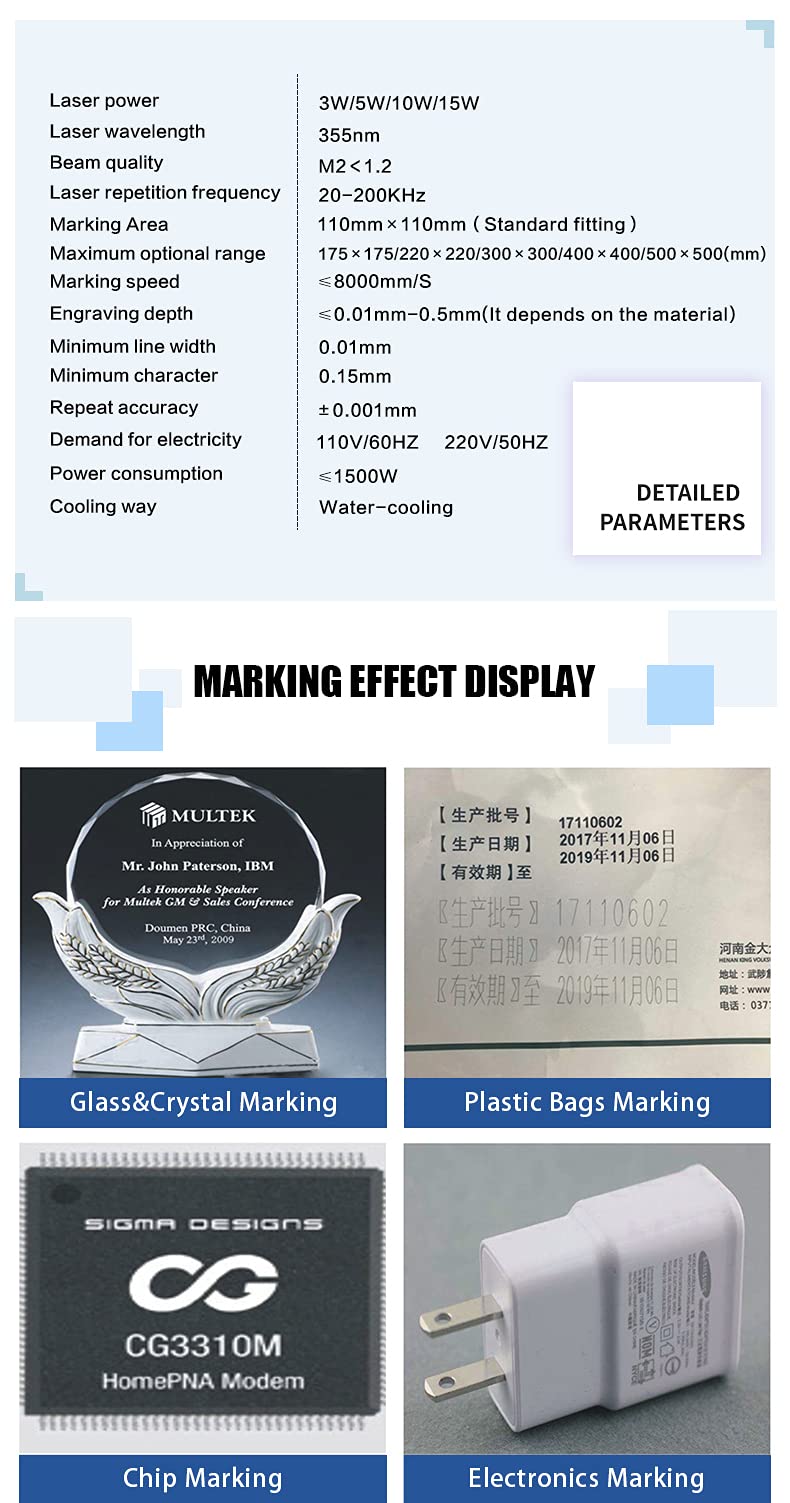

| Model | ULM-MW3/5/10/15-FT |
| Power | 3W / 5W / 10W / 15W |

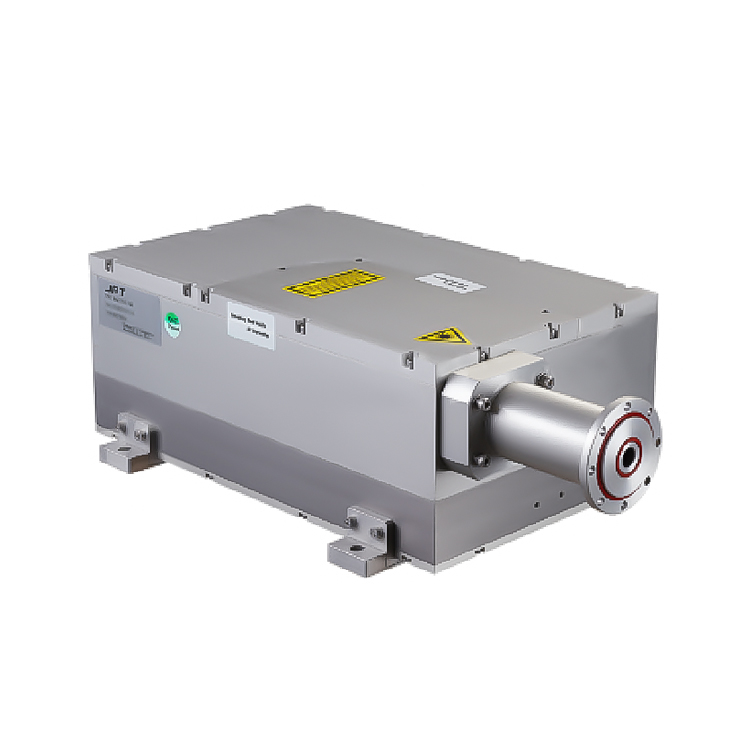

| UV laser source | JPT / Gainlaser (optional) |
| Working area | 110*110 / 150*150 / 175*175 / 200*200 / 250*250 / 300*300 (mm) |
| Wavelength | 355nm |
| Beam Quality | M² < 1.2 |
| Marking Speed | 7000mm/s |
| Repeated Precision | ±0.001mm |
| Working voltage | 220V or 110V |
| Pulse Repetition Rate Range | 20kHz - 150kHz (10W is 40kHz - 300kHz) |
| Beam Full Divergence Angle | ≤2mrad |
| Beam Diameter | 0.6 ± 0.1mm |
| Beam Circularity | >90% |

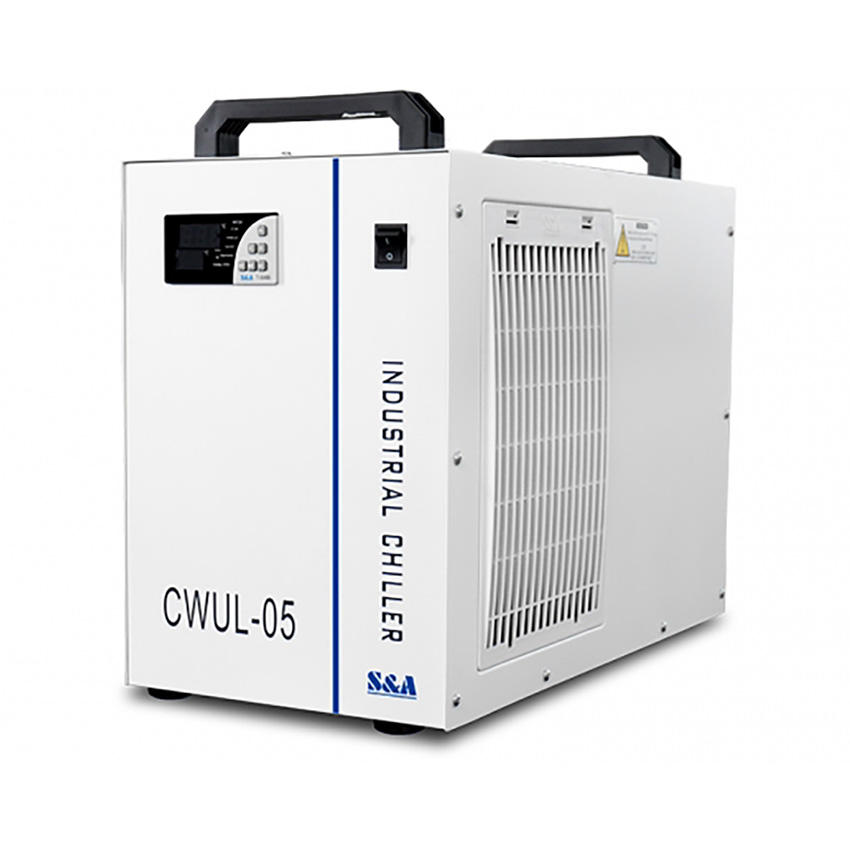

| Cooling way | Water-cooling (S&A MRUL-15 Water Chiller) |
| Ambient temperature | 10-35℃ |

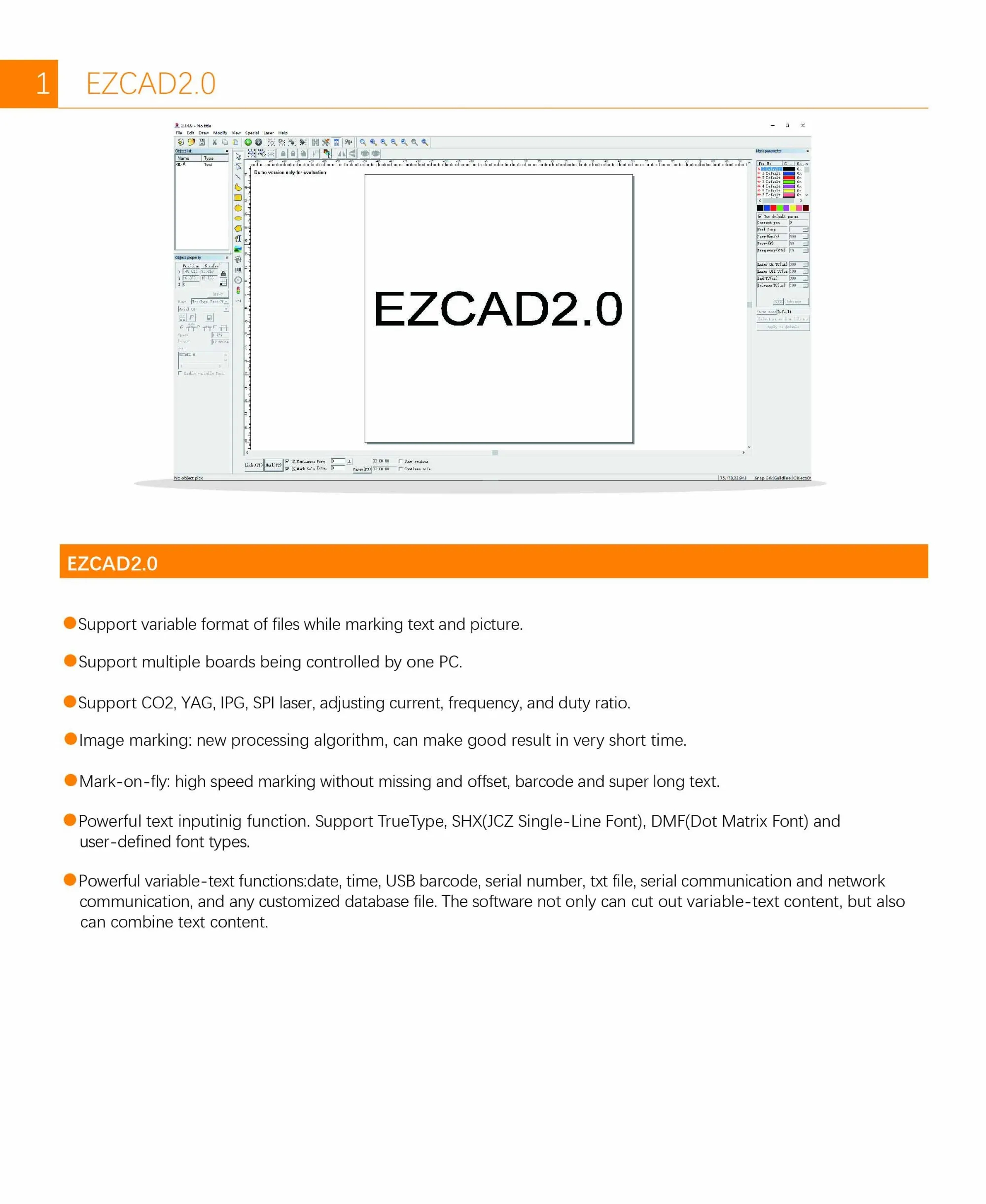

| Supported graphic formats | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |

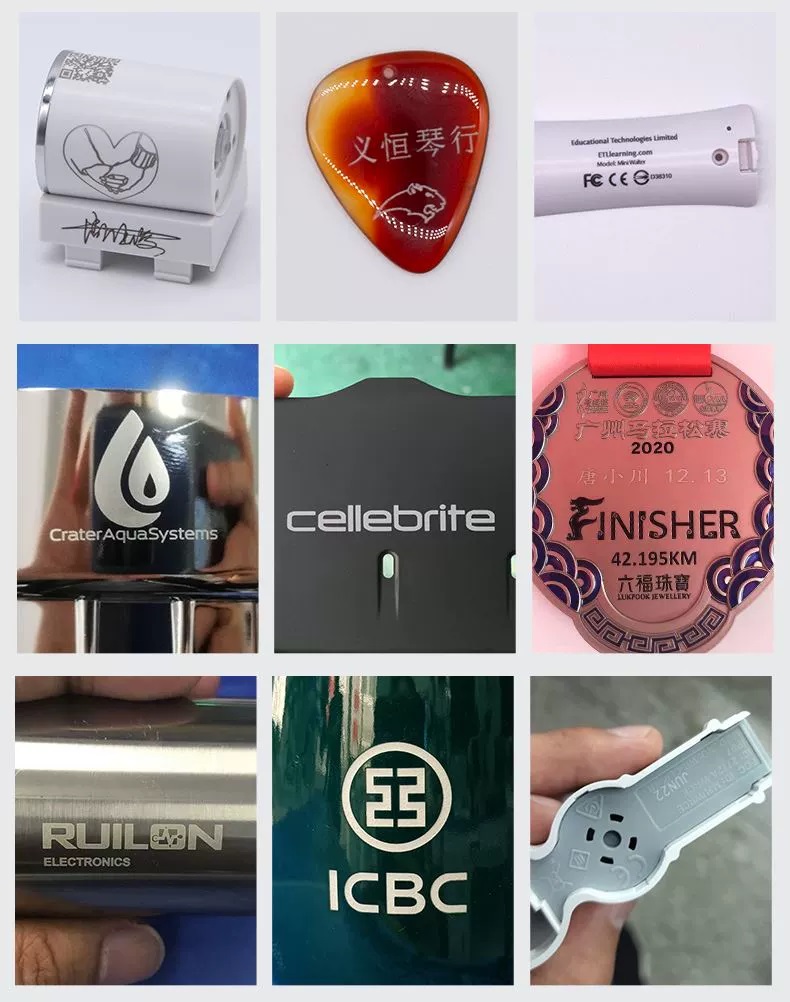

| Application | plastics, crystal, porcelain, PLA, PVC, PET, PE, PP, PS, PTFE, PMMA, glass, silicone, leaves, leather and others |
| Rated power consumption | 500W |
| Packing size | 88*42*80cm |
| Standard equipment weight | 40KG |
| Water cooler weight | 30KG |
| Technical support | Online technical support, professional videos |
Standard export packing or customized packing as per request. We use hard boxes to ensure your cargo will not be affected in any way.
Every UV laser marking machine is packed with great care and tough materials. It is wrapped with cling film first, then protected inside film bags, and finally secured inside a robust wooden case reinforced with iron bars on the top and bottom.
All machines are well-protected during transit. Shipping is available via sea freight, air freight, or express services (DHL, EMS, UPS, etc.) depending on requirements.
