Desktop Fiber Laser Marking Machine New Condition With Good Price

Product Description

Laser Machine Overview
Product Description

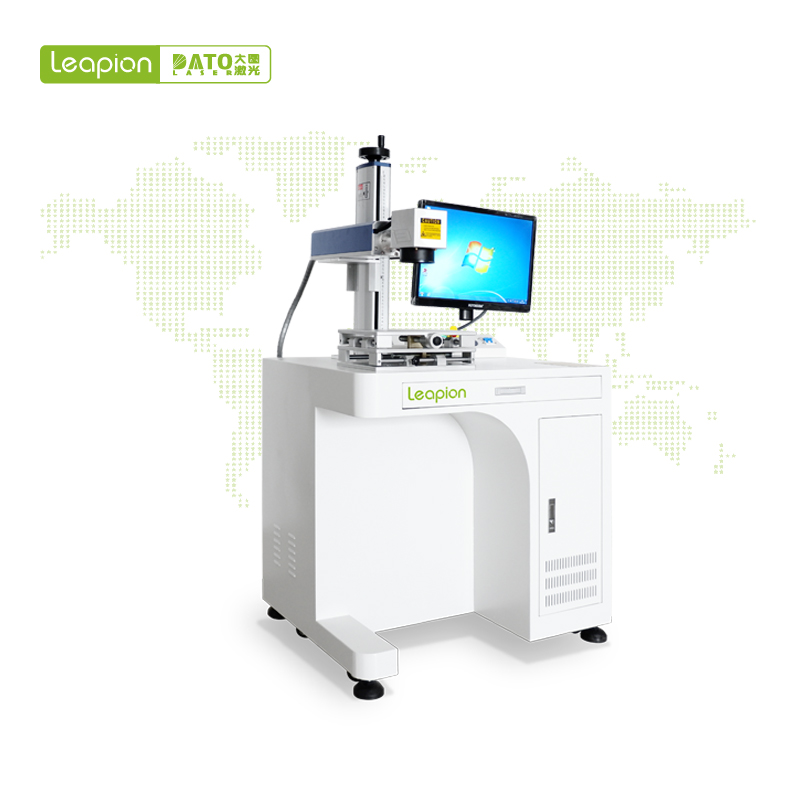

Machine Strong Case View 1
Machine Strong Case

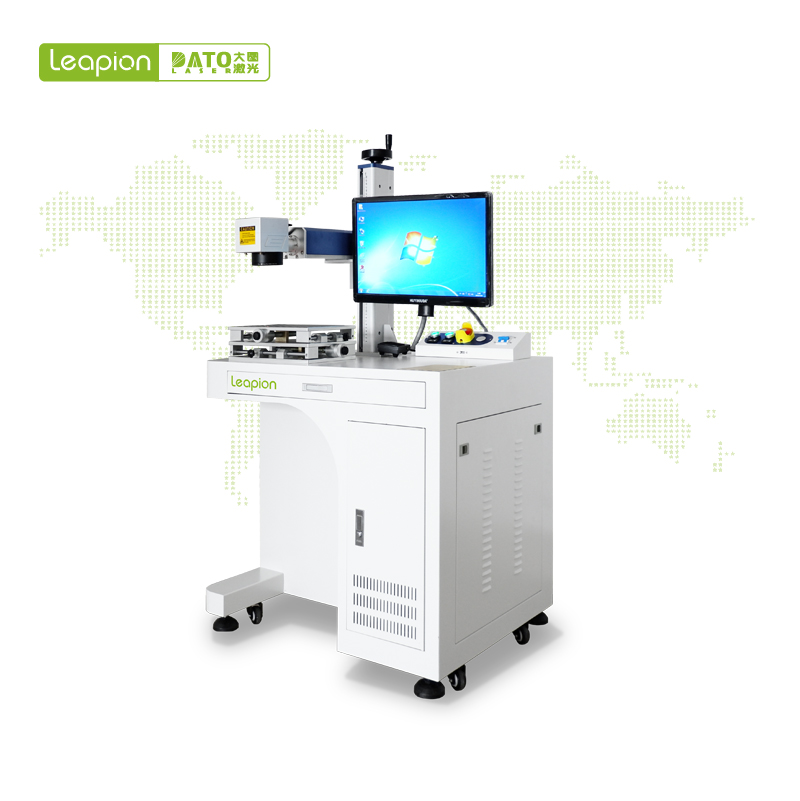

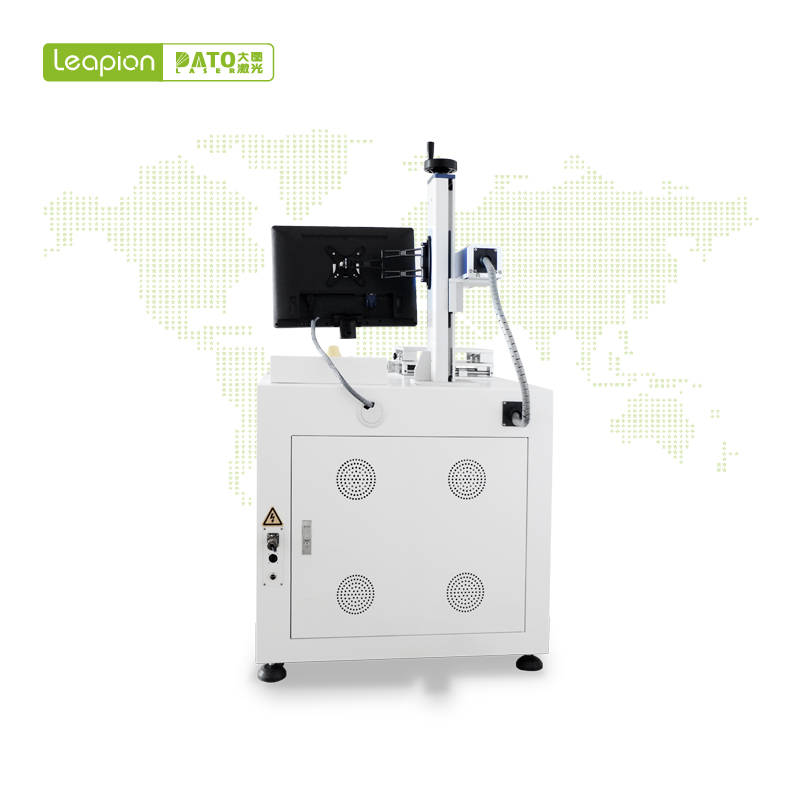

Machine Strong Case View 2
Machine Strong Case
Laser System
Laser System
Control System
Control System
Machine Details
Mode LM-D Desktop Laser Marking Machine
Laser Type Fiber Laser, CO2 Laser, UV Laser, MOPA Fiber, etc.
Fiber Laser Power 20w, 30w, 50w, 60w
Work Area 110*110mm, 200*200mm, 300*300mm, etc.
Table Type 2D table, 3D Table, Cutting Table, etc.
Option Part Rotary, Auto Focus, Custom tooling, etc.
Cooling Type Air Cooled (UV Laser need water cooled)
Fiber Laser Source Brand MAX, IPG, Raycus, etc.
Technical Parameters
Output Central Wavelength 1064nm
Min. Line Width 0.02mm
Engraving Line Speed ≤7000mm/s
Repeat Accuracy ±0.001mm
Min. Character 0.15mm
Fiber Wire Length 5 Meter
Graphic Format Support DXF, PLT, AI, AMP, JPG, etc.
Laser Machine Design Part 1
Laser Machine Design Part 2
Laser Machine Design Part 3

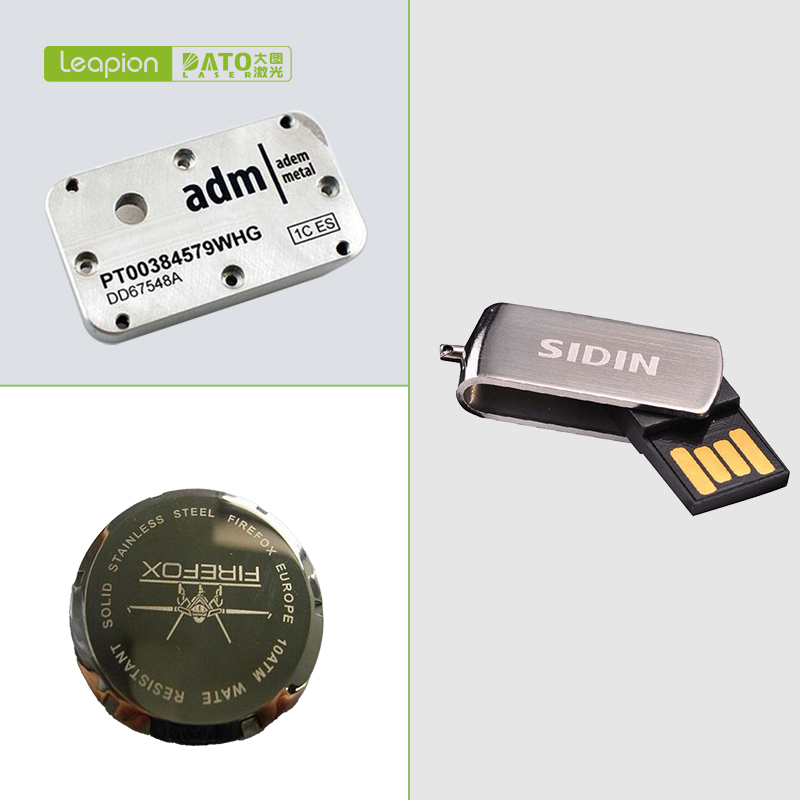

Marking Sample 1

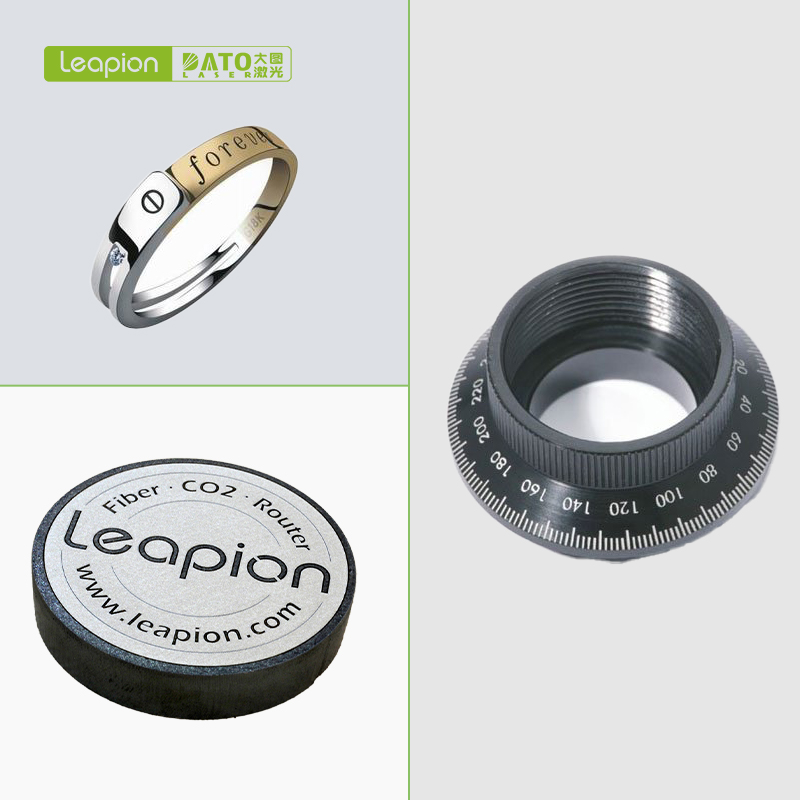

Marking Sample 2
Marking Sample 3
Sample & Application
Laser Type Materials Application
Fiber Laser All kinds of metal: Carbon Steel, Stainless Steel, Brass, Copper, Aluminum, Gold, Silver, kinds of Alloy, etc. Some hard Plastic.
CO2 Laser All kinds of non-metal: Wood, Plywood, Bamboo, MDF, Leather, Fabric, Textile, Paper, Plastic, Acrylic, etc.
UV Laser Metal and nonmetal for high accuracy marking
MOPA Laser Mark Color on Stainless Steel
Green Laser Make 3D Marking on Crystal
Marking Materials Samples
Our Certifications
Certificates
Our Services
Pre-sales Service Sales Service After-sales Service
Super Factory
Factory Building Factory Workshop Factory Equipment
FAQ
Q: What customized services are provided?
A: We are the true manufacturer with our own factory, enabling us to supply full OEM and ODM services.
Q: What payment methods do you accept?
A: We offer Trade Assurance Order, allowing payments via T/T, L/C, Credit Card, and other secure methods.
Q: What shipping methods do you provide?
A: We provide flexible shipping terms including EXW, FOB, CFR, DDP, DDU, and other methods as per your requirements.
Q: How long is the delivery time?
A: It depends on the machine model you require and your destination country. Typically, standard machine production takes about 20 working days, and shipping time varies based on the transport route.
Q: What laser options are available for the marking machine?
A: We offer various laser types including Fiber Laser, CO2 Laser, UV Laser, and MOPA Fiber to suit different application needs.
Q: What graphic formats does the control system support?
A: The system supports multiple graphic formats including DXF, PLT, AI, AMP, and JPG.
