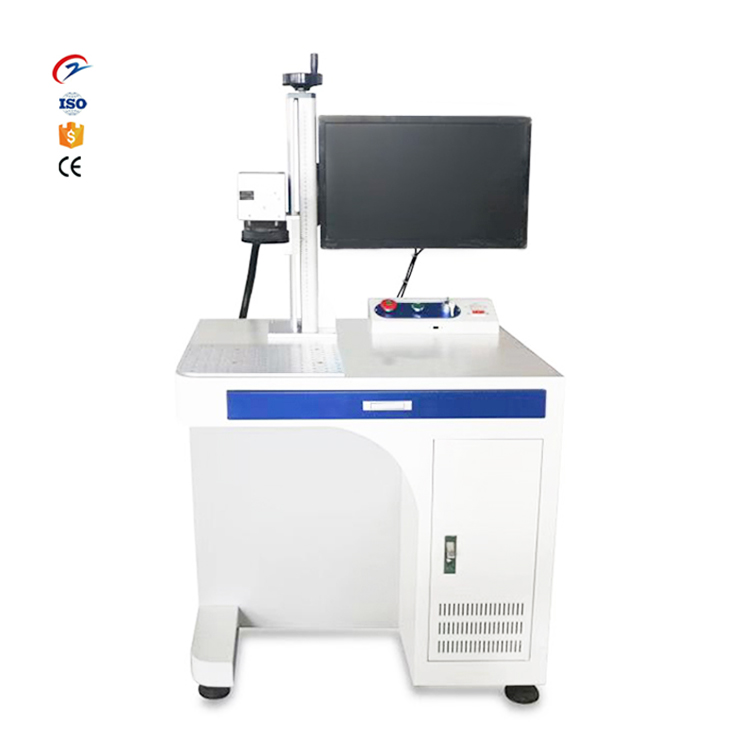

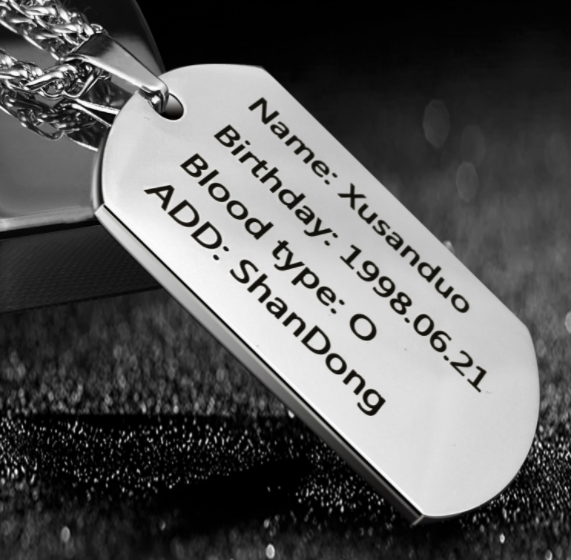

Hot Sale Desktop Fiber Laser Marking Machine 20W 30w 50w Engraver for Marking on Metal Surface Stone

1 / 5

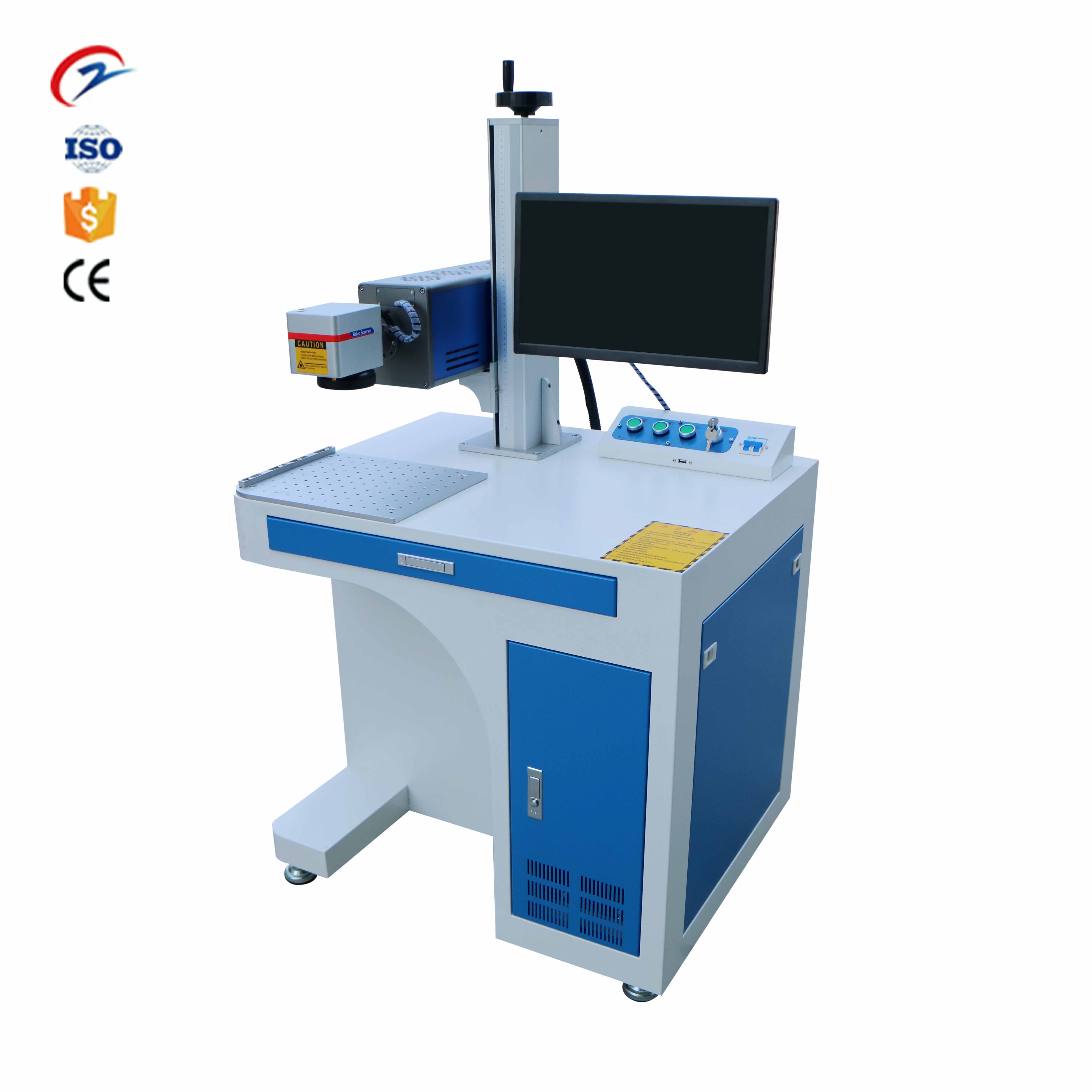

Hot Sale Desktop Fiber Laser Marking Machine 20W 30w 50w Engraver for Marking on Metal Surface Stone

Send Inquiry

Product Description

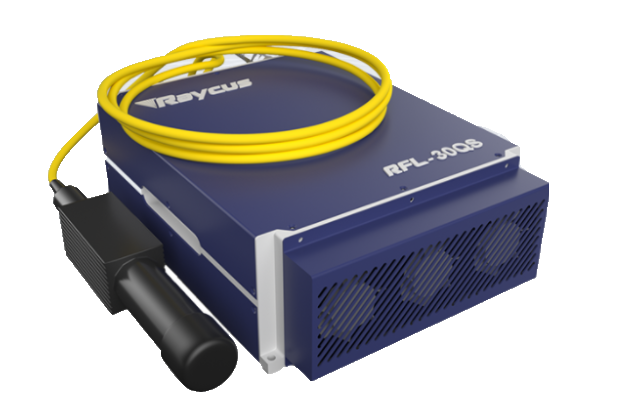

Model	ZC-DB-FB	Laser Source	Raycus/MAX/JPT
Laser Type	Fiber	Positioning Way	Red Light
Laser Power	20W/30W/50W/100W	Laser Module Life	100000h
Weave Length	1064nm	Cooling Style	Air cooling
Marking Area	≤200*200mm	Total Power	Customized
Marking Speed	≤7000mm/s	Operating Voltage	Customized
Marking Depth	≤1mm	Supported Windows	Windows XP,7,8,10
Repetition Precision	0.001mm	Certificate	CE,CCC,ISO
Control Software	EZCAD	Supported Format	BMP/GIF/JPG/PCX/TGA/TIFF/PLT
Machine weight	90kg	Packing weight	110kg
Optional	Rotary Device, Moving Table, other customized Automation	Packing size	92L76W110H (cm)

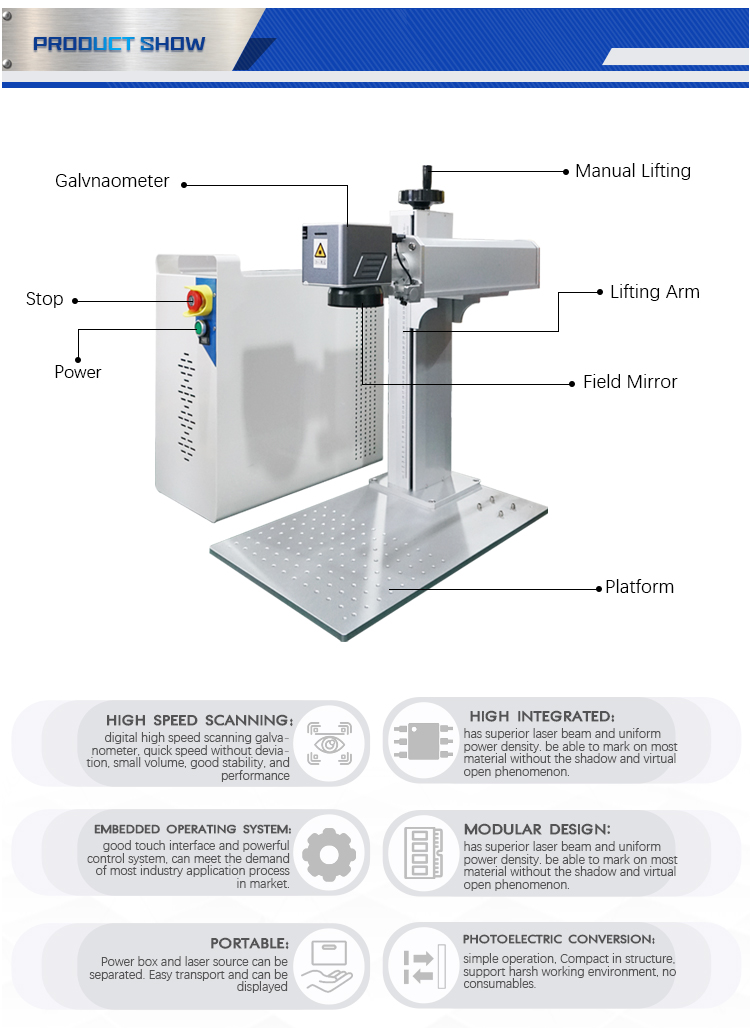

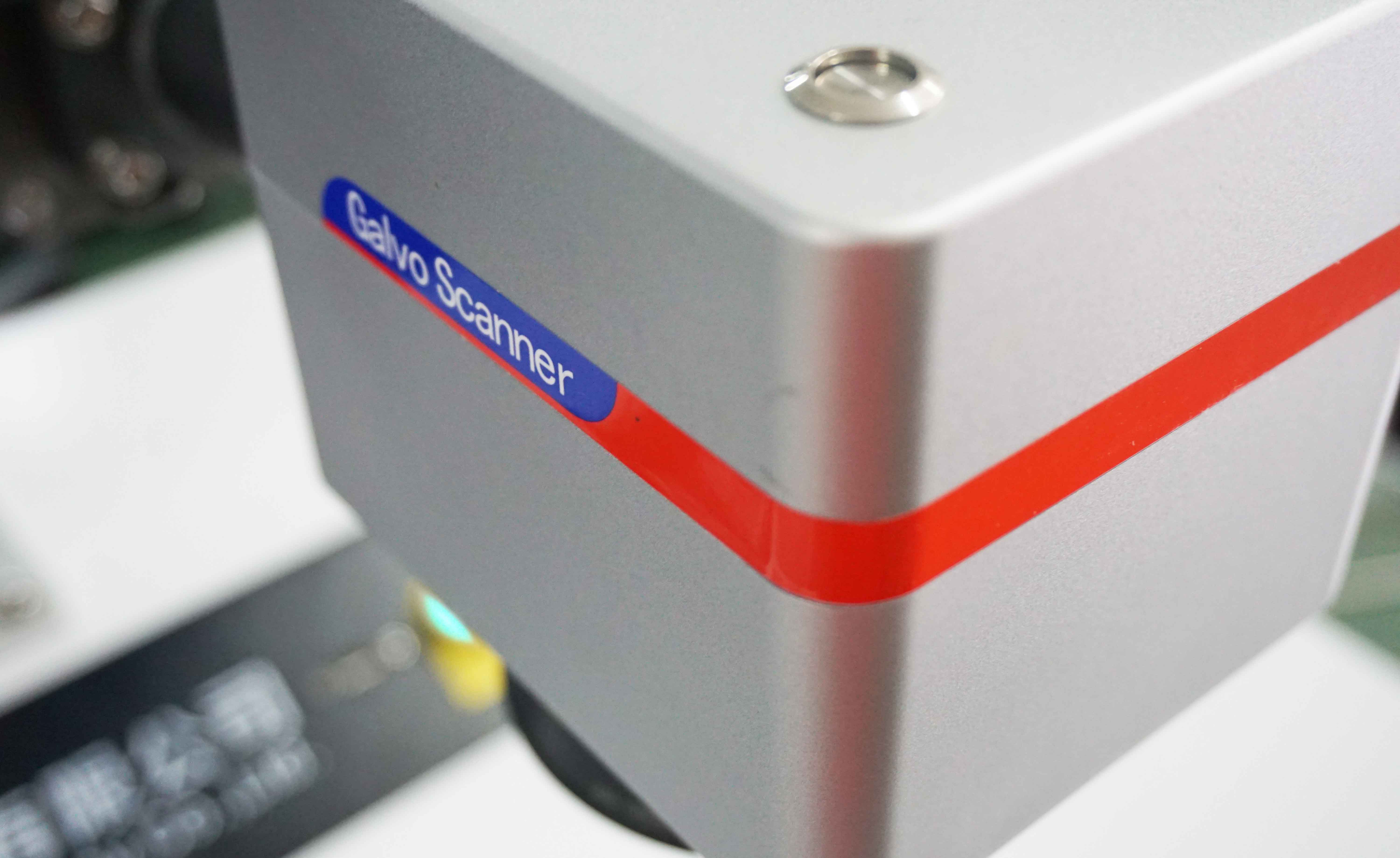

Galvanometer

Scanning galvanometer, full digital signal, super anti-interference ability. High precision, short delay, fast speed, small temperature drift, especially suitable for all kinds of high precision, high speed marking requirements. The fiber wavelength is 1064nm.

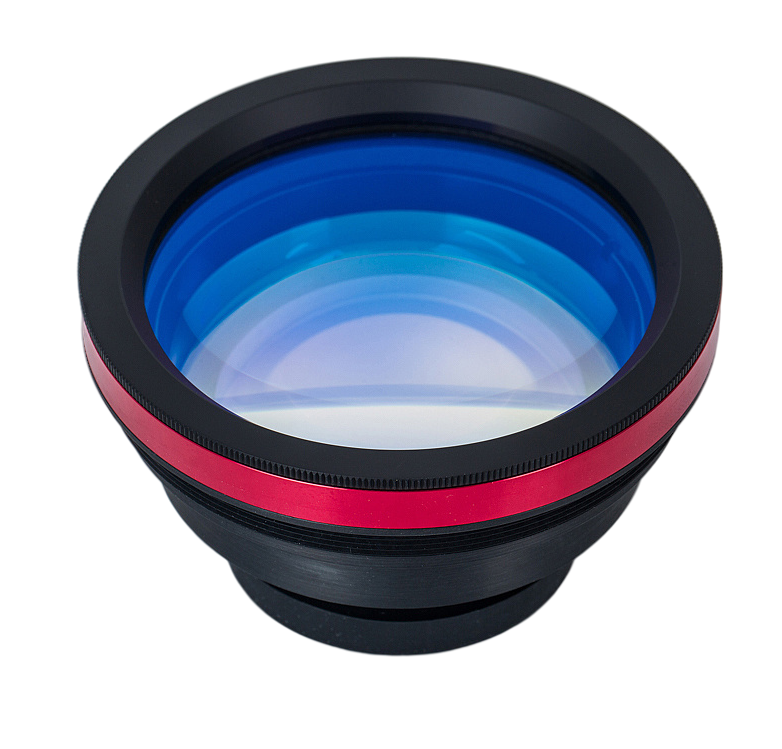

High Quality Field Lens

Famous brand field lens. Higher energy conversion rate, fast speed and long life. Working area options: 75MM*75MM, 100*100MM, 150*150MM, 200*200MM, 300*300MM. With the same power (e.g. 20W), a smaller working area yields a greater single-pass marking depth.

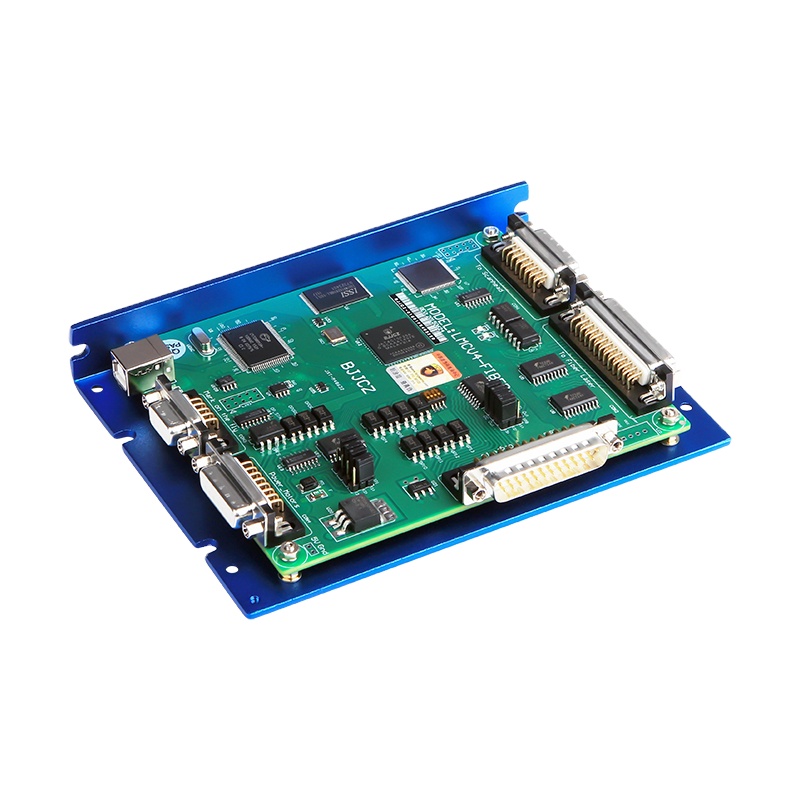

JCZ Main board

Meanwell power supply, configured with high precision stability.

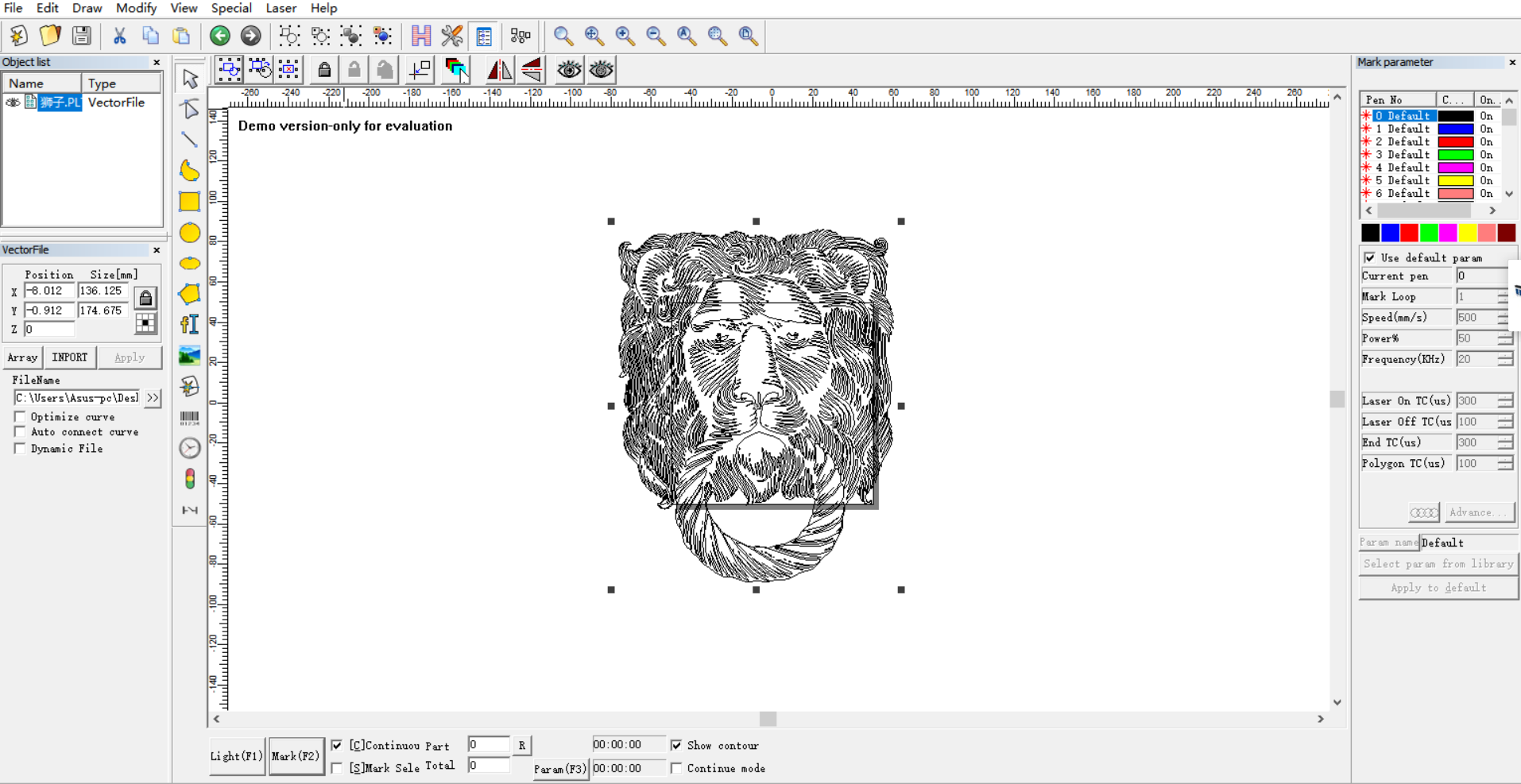

EZCAD Control Software

Control software with a clear interface, powerful functions, detailed adjustable parameters, and simple operation. It can describe any pattern, text, bar code, or two-dimensional code.

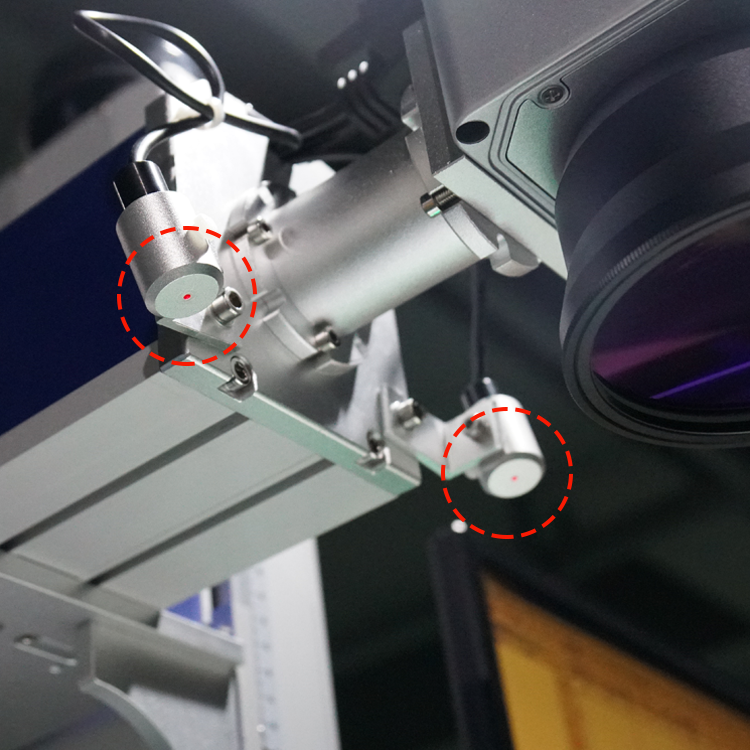

Double Red Light

Configured with double light; easy to find the correct focal length, though this option requires additional cost.

Lifting Handle

High quality and stable height adjustment mechanism. Move up and down for different heights of material marking.

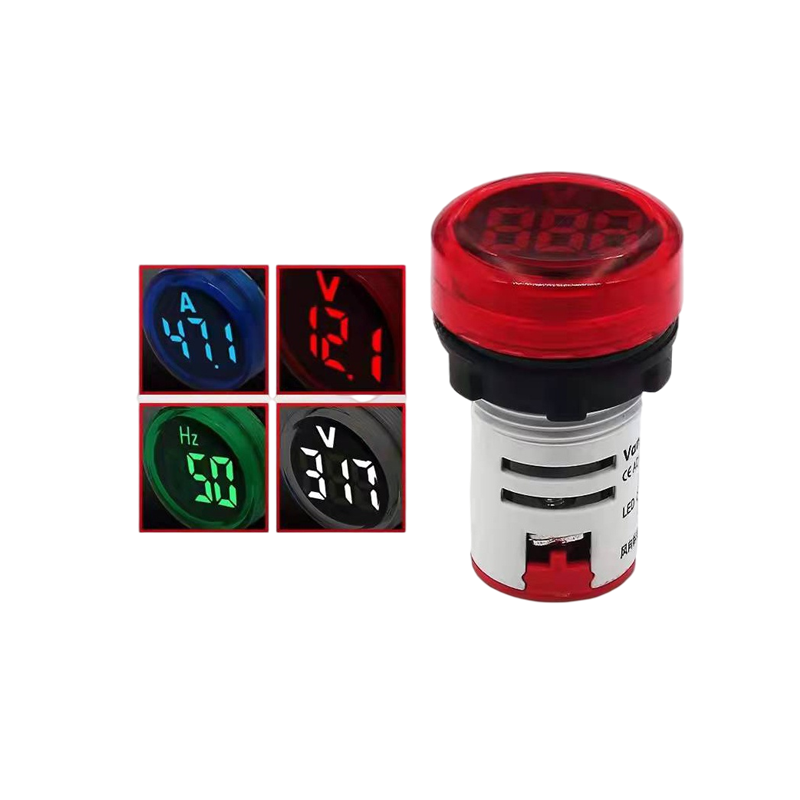

Voltage Test Lamp

The machine is equipped with a voltage test demonstration light. If a voltage issue occurs, it allows for quick diagnostic determination of the machine failure.

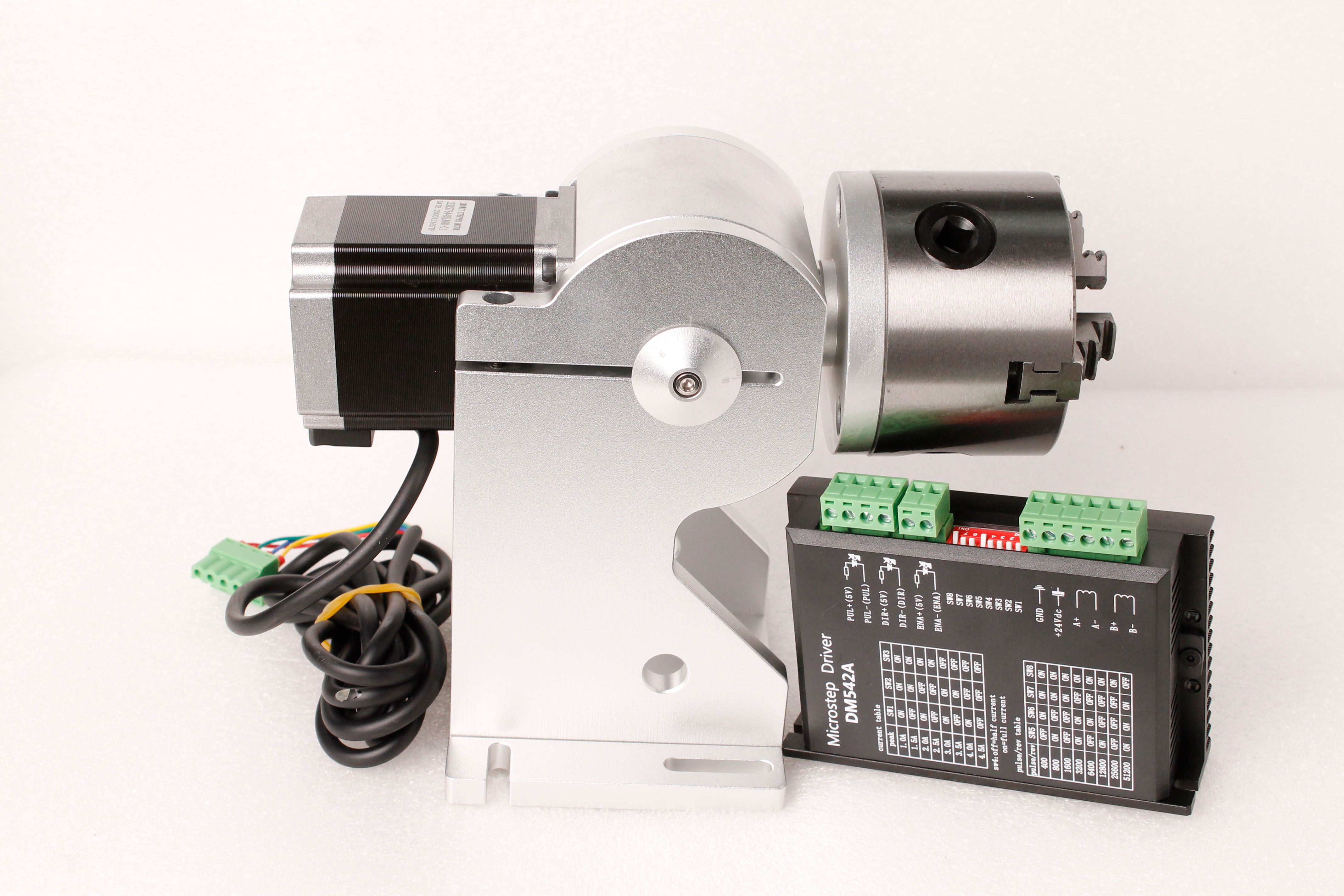

Rotary Device

The rotating device is suitable for various round objects, such as rings, glass bottles, etc. Speed can be controlled flexibly via computer connection.

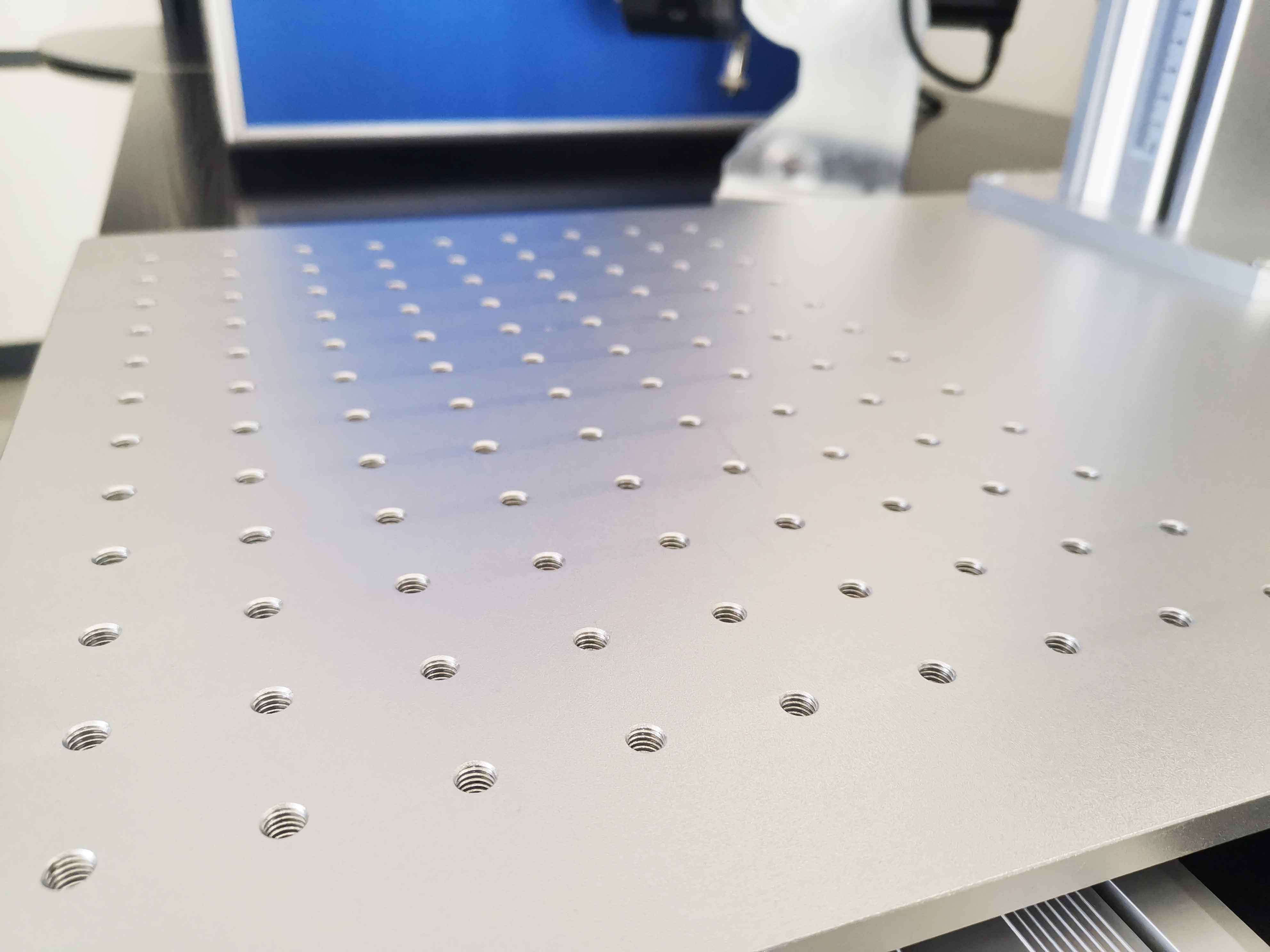

Working Table

Aluminum working table. Flat and smooth, compact structure, with a flexible and adjustable processing direction control.

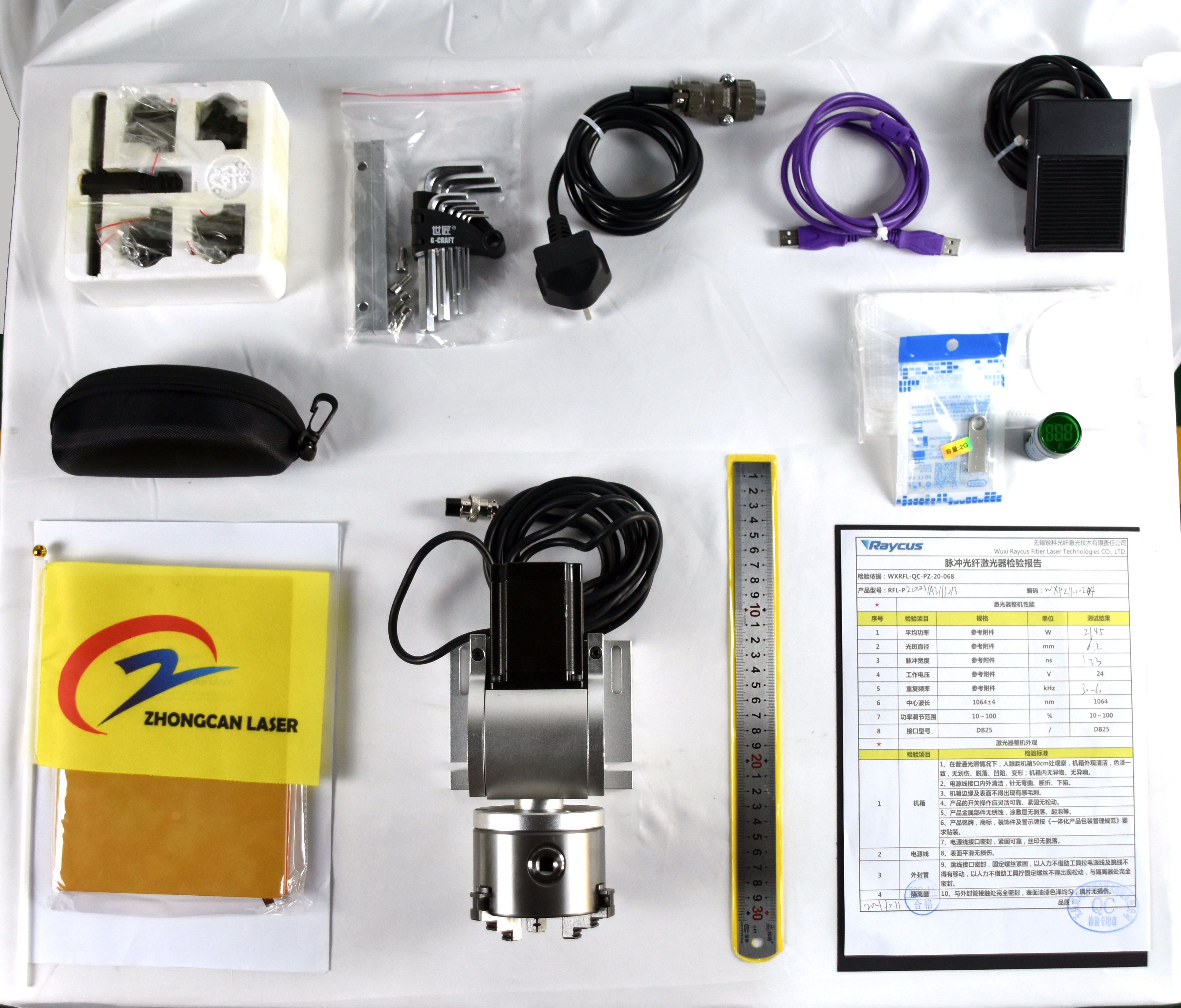

Standard Accessories

Standard accessories set included with the system configuration.

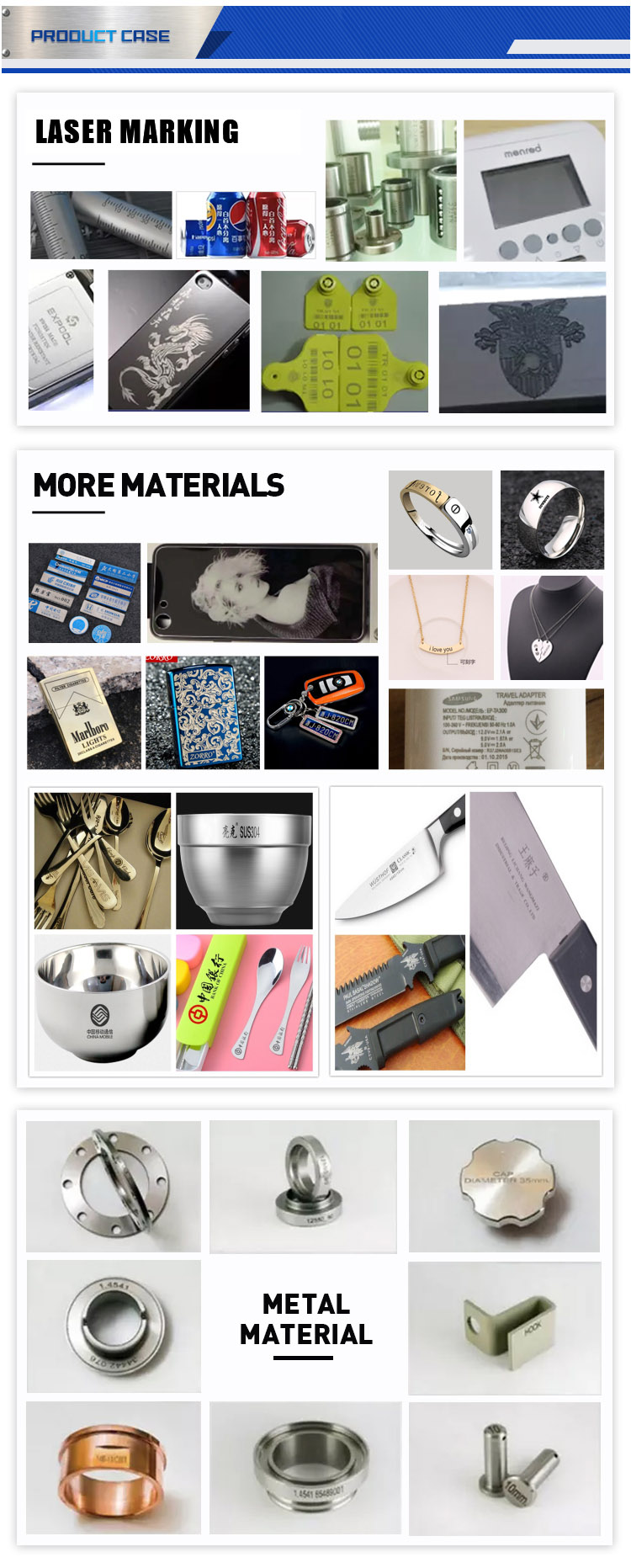

Material	Fiber	CO2	UV
Wooden Product		√	√
Acrylic		√	√
Plastic Products		√	√
Leather Fabric		√	√
Glass Ceramic		√	√
Resin Plastic		√	√
Paper Packaging		√	√
Electronic Components	√		√
Hardwaretool Products	√		√
3C Electronics	√		√
Precision Equipment	√		√
High & Low Voltage Electrical Appliances	√		√
Gem			√

We are a world leading manufacturer of industrial laser machinery. Our company mainly designs, manufactures and sells a comprehensive range of systems including Laser Cutting Machine Series, Laser Marking Machine Series, Laser Engraving Machine Series and Laser Cleaning Machine Series. These systems are widely used in textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.

Frequently Asked Questions

Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking/engraving and the depth of marking/engraving.

Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q4: What’s consumables of laser marking machine?

It does not have consumable. It’s very economical and cost effective.

Q5: How’s the effect of the laser marking?

If you want to know the effect, you can send the sample or drawing to us, we will do the free sample for you and show you in video how to operate it.

Q6: What’s delivery time?

Commonly, the lead time is within 5 working days after receiving the payment.
