Product Description

Basic Info.
Model NO.
Smart HMP
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
Fiber Laser
Laser Classification
UV Laser/Fiber Laser/CO2 Laser/YAG
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Supported File Formats
Ai, .Plt, .Dxf etc
Lifting Height
500mm
Average Lead Time
3-7 Days
Service Life
100000 Hours
Marking Area
Optional
Galvo Head Marking Speed
F=160mm,≤7000 mm/S
Electricity Demand
220V 50/60Hz
Transport Package
Wooden
Specification
Custom
Origin
China
HS Code
8456100090
Production Capacity
50000sets/Year
Product Description

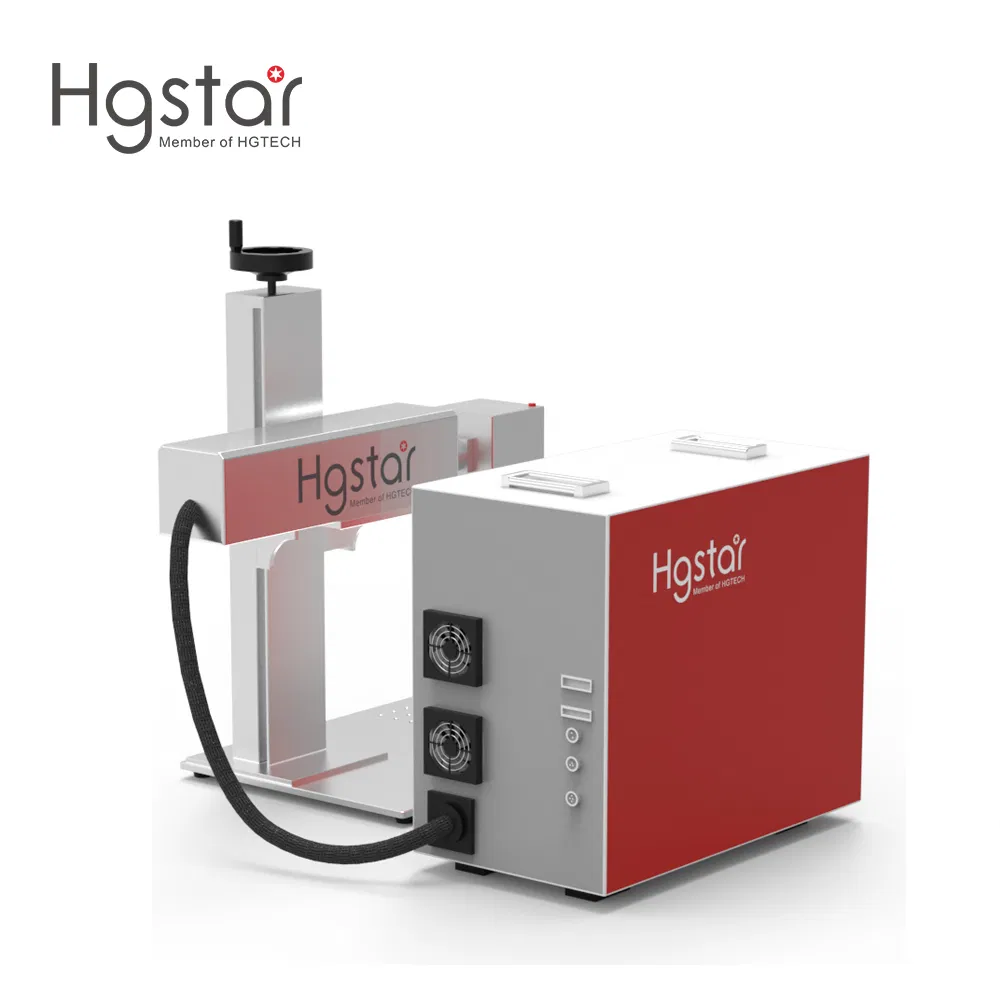

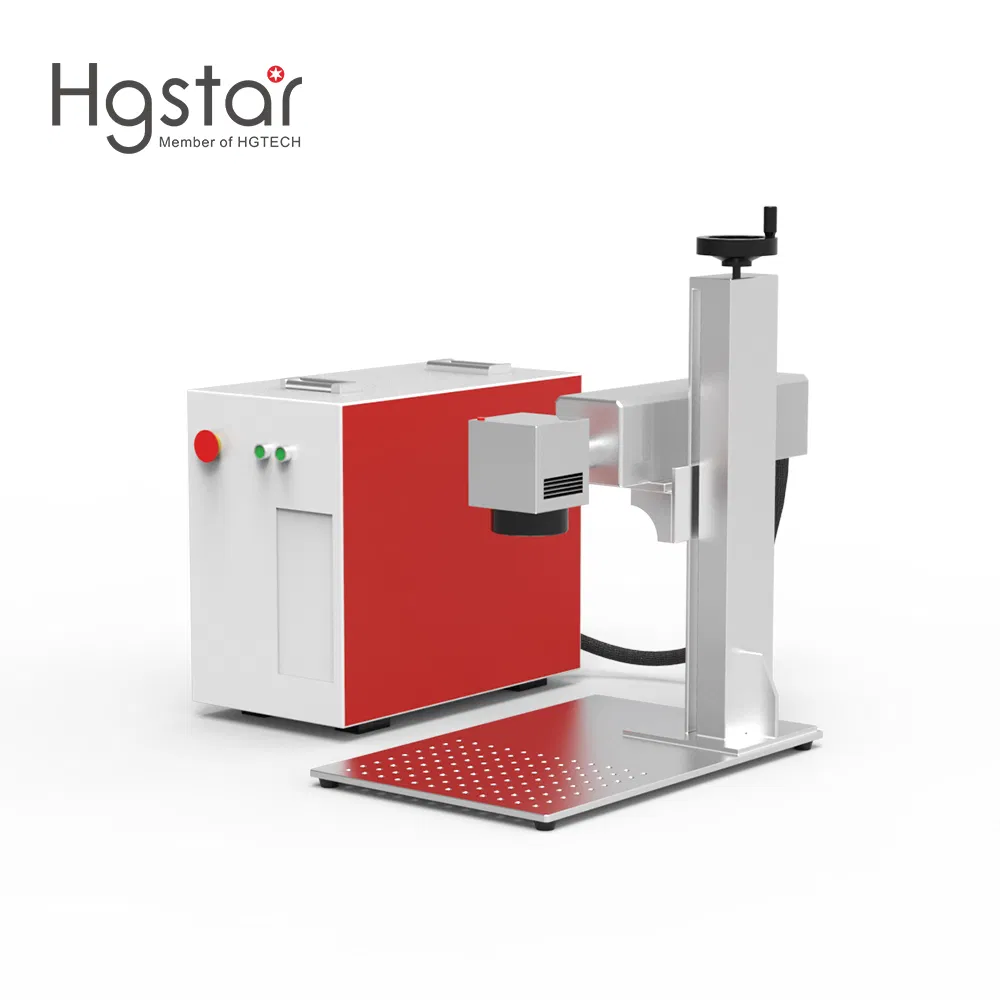

Smart HMP Series CO2/UV/Fiber Laser Marking Machine

  • Fiber laser marking machine adopts high-speed sweep depiction oscillator, wavelength optical focus field mirror, stability good, fast speed.
  • Integrated design, small volume, low power consumption long life, high efficiency, maintenance-free, no consumables. Air-cooled cooling, fiber laser theoretical life 100,000 hours of light.
  • Can be marked with text graphics, two-dimensional code, regular flow No., portrait picture, etc.

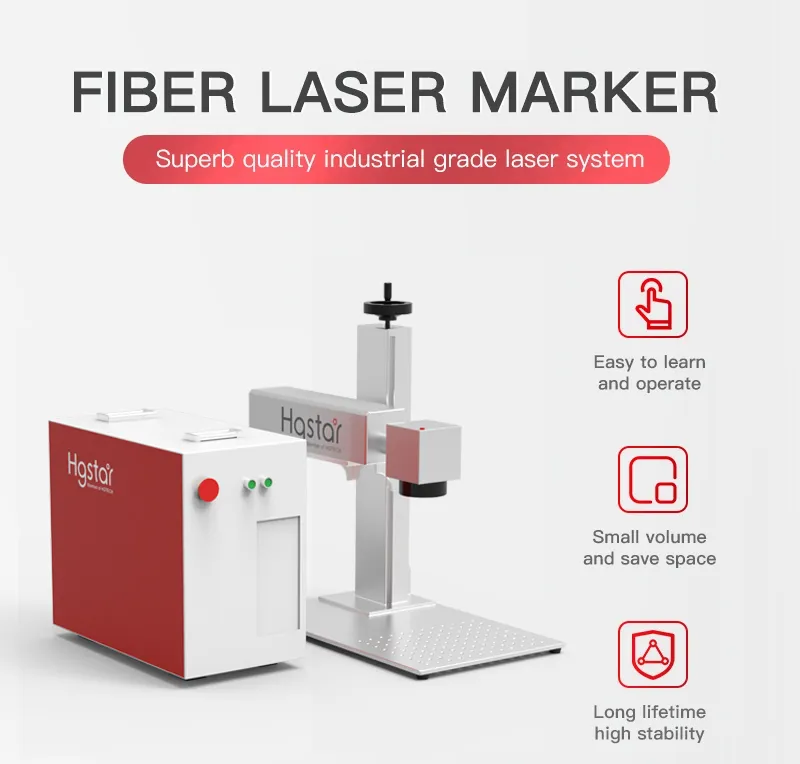

Laser Marking Machine

Working field:

· The field lens determines the laser marking area.
· We have different lens sizes: 70x70mm, 110x110mm, 150x150mm, 175x175mm, 200x200mm, 220x220mm, 300x300mm.
· Small field lens have short focal length with high precision and stronger laser energy, more suitable for deep engraving and cutting.

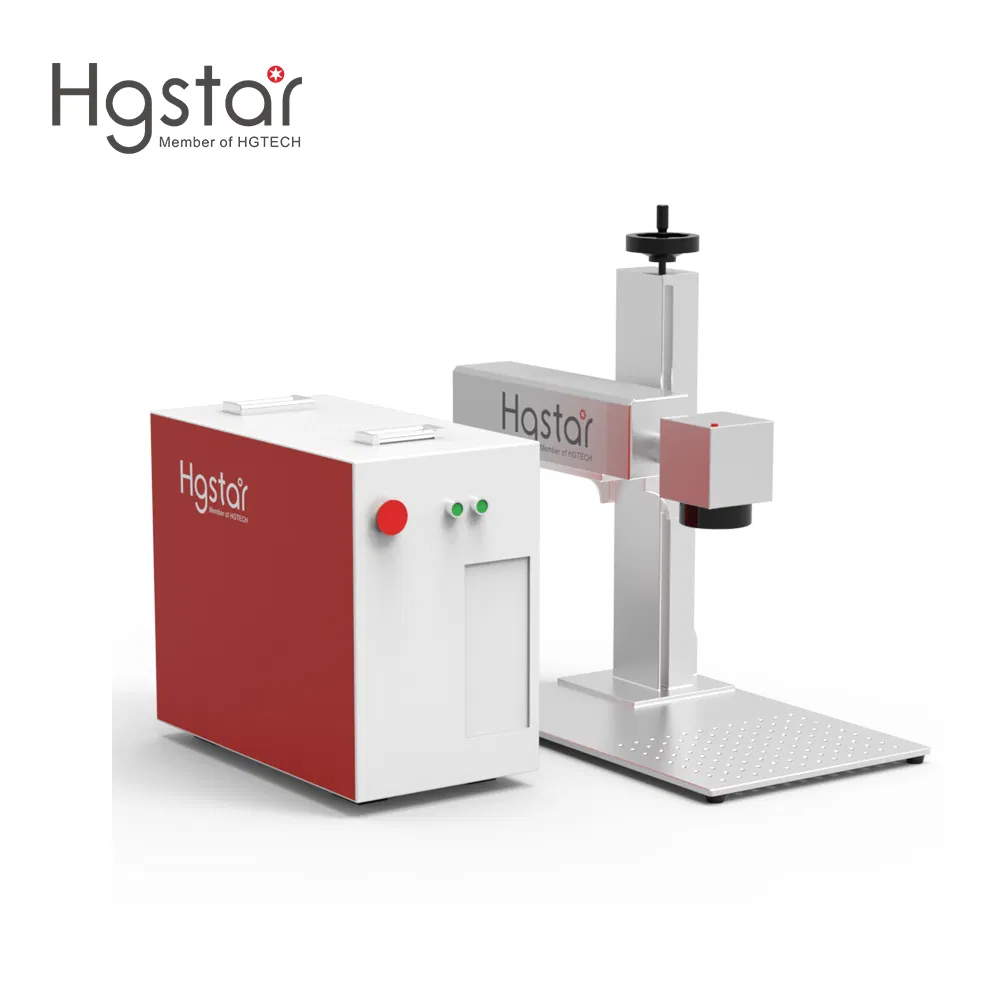

Laser Details 1 Laser Details 2
Product Parameters
Machine name Laser Marking Machine
Laser source JPT (RAYCUS or MAX or IPG)
Laser power 20W 30W 50W 60W 80W 100W 120W (optional)
Laser wavelength 1064nm
Marking depth 0~2.0 mm (Depends on metal material and Marking time)
Marking speed 8000mm/s
Marking minimum character 0.1x0.1mm
Repeatability accuracy ±0.02 mm
Marking content text, logo, pattern, date, bar code, pictures etc
Control software EZCAD 2 lite (support Windows computer)
Software Format Supported BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc.
Machine unit power ≤500W
Machine cooling type Air cooling
Machine power supply AC110V 60HZ / AC220V 50HZ
Machine weight 40~45KG
Machine warranty 24 months
Application

Laser marking machine for a variety of materials, It has a very wide range of applications. (such as jewelry, gold, silver, copper, aluminum, stainless steel, carbon steel, alloy, titanium, aluminum), mark on some plastic (such as ABS, PVC).

  • Metal plastic surface marking
  • Metal deep engraving and drilling
  • Metal surface cleaning
  • Metal thin sheet cutting

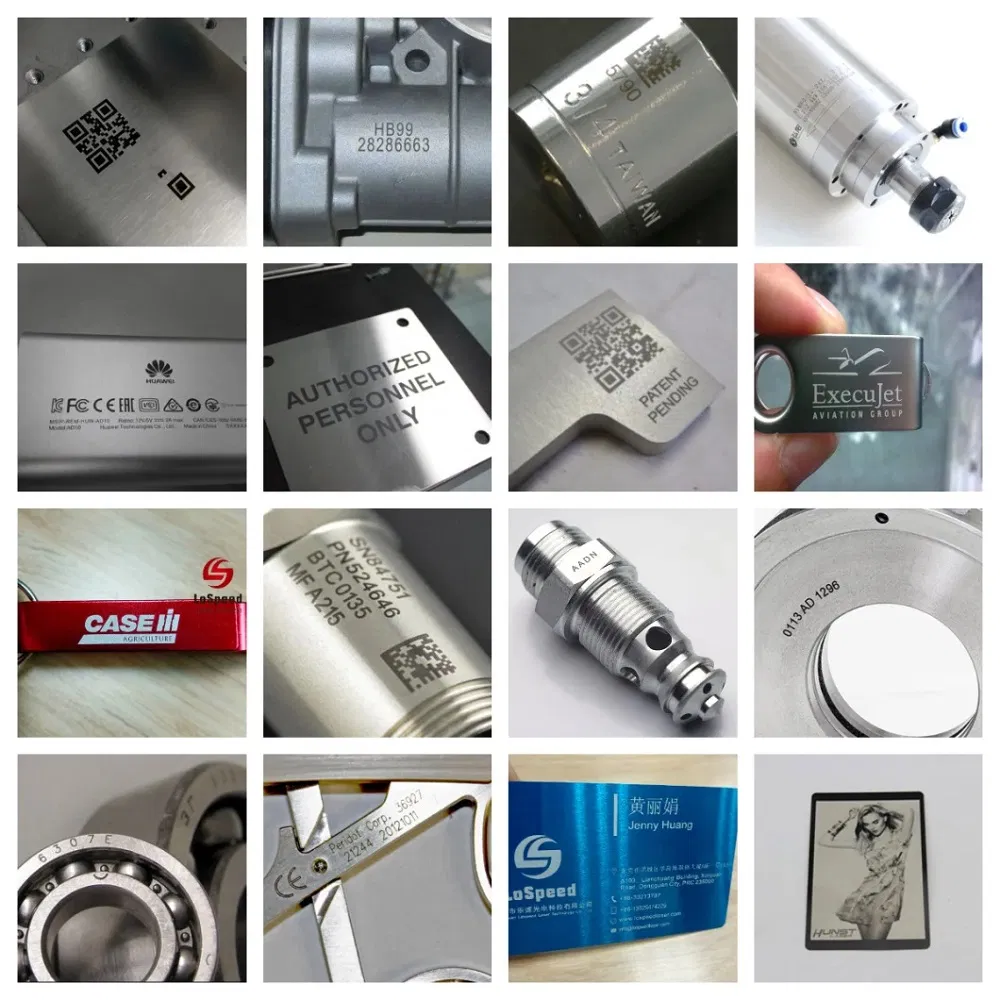

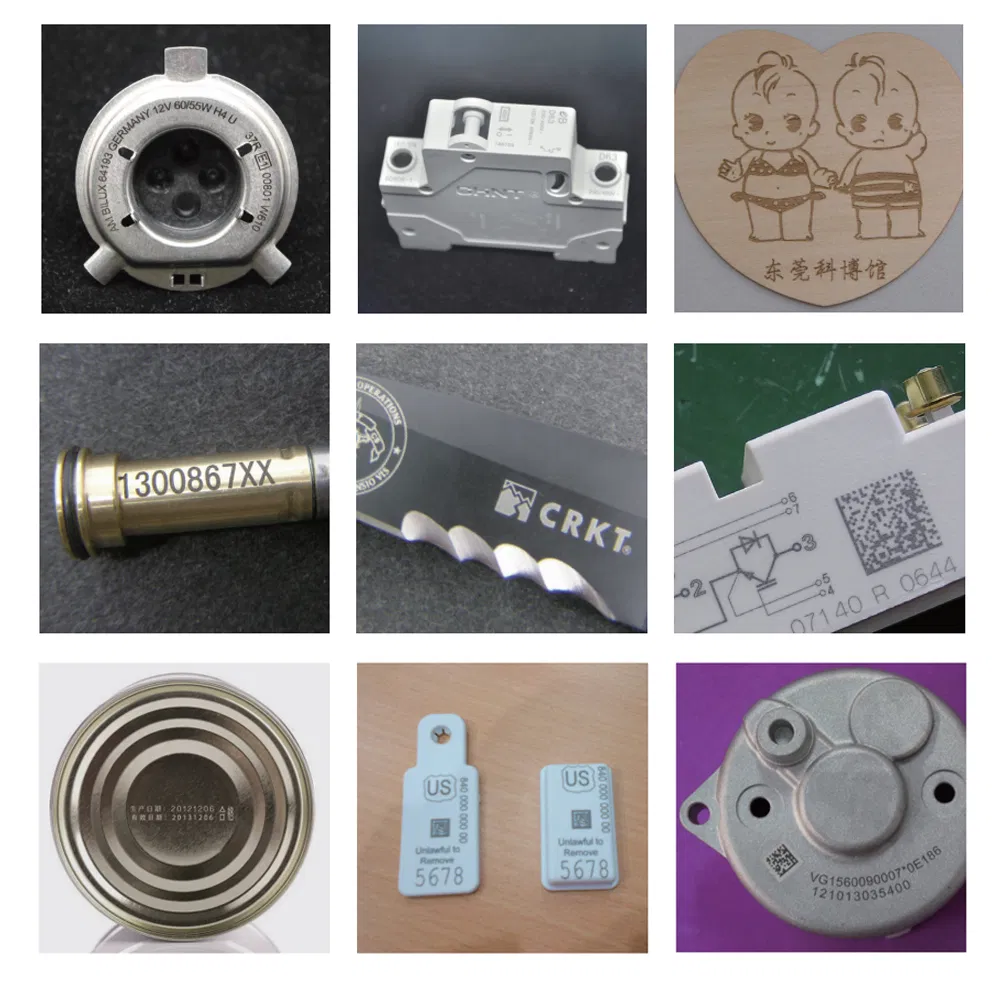

Application Sample 1 Application Sample 2
After Sales Service
  • One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
  • Lifetime maintenance free of charge.
  • Free training course at our plant.
  • 24 hours on line service each day, free technical support.
  • Machine has been adjusted before delivery.
Production Base & Capabilities

We provide you with professional and timely services to fully meet your production needs by relying on forward-thinking process research, a full range of product systems, efficient delivery response, and a perfect after-sales system.

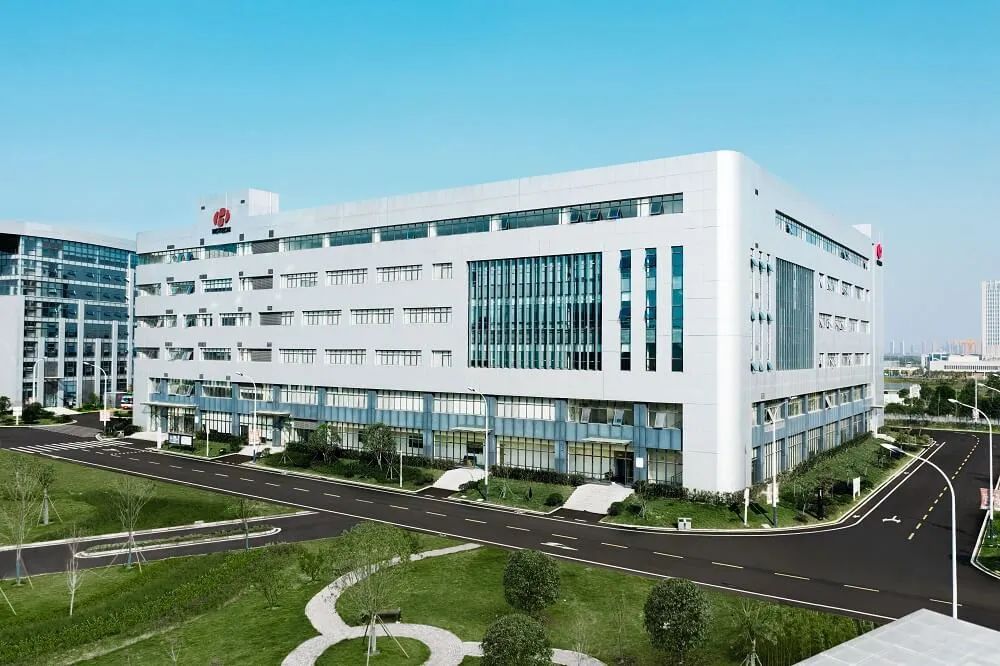

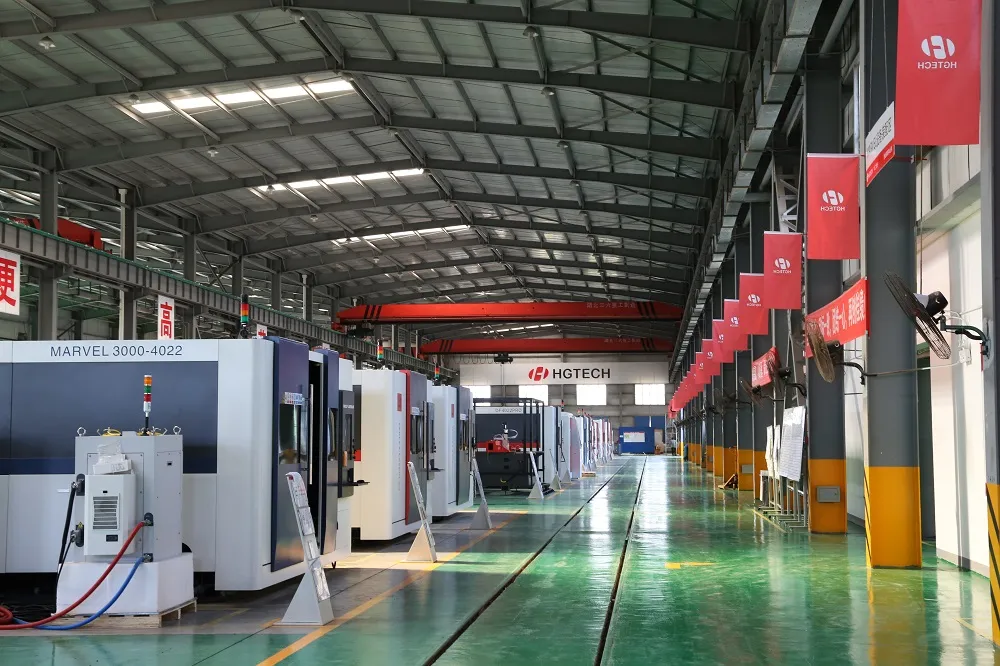

Production Facility 1 Production Facility 2

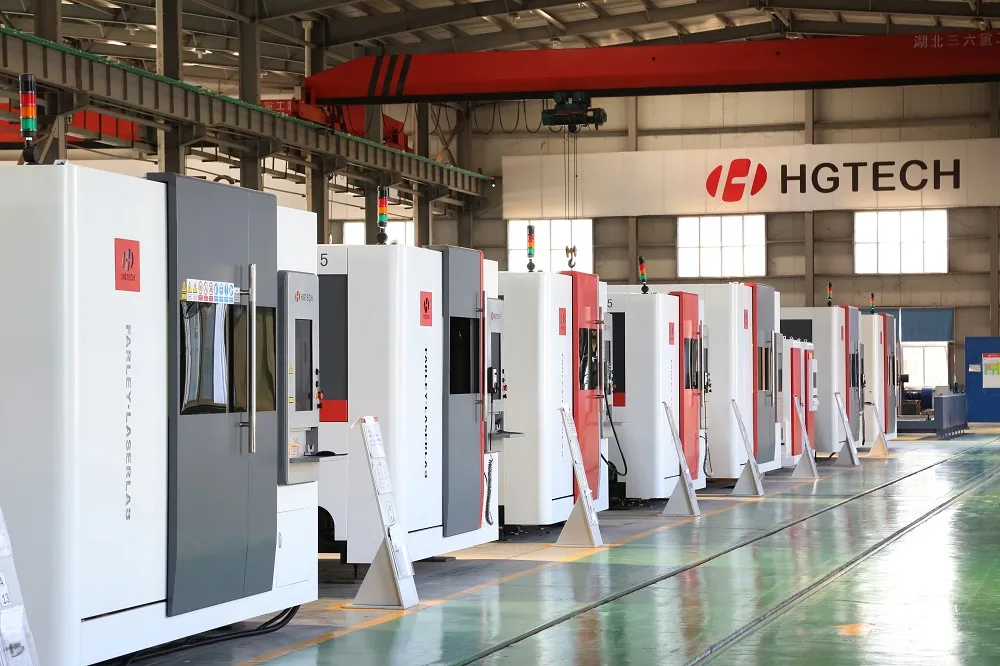

Testing Facility R&D Base

R&D and pilot test base: It has an R&D and pilot test base in China of more than 60,000 square meters, and six regional technology centers provide professional and timely process services.

Test Base Overview

Production base: A smart manufacturing production base of more than 100,000 square meters in China, open 24 hours a day, 365 days a year to meet batch delivery demand.

Production Base Overview
FAQ
What's the package?
We have a 3-layer package. For the outside, we adopt a wood craft case. In the middle, the machine is covered by foam to protect it from shaking. For the inside layer, the machine is covered by a thickening plastic bag for waterproofing.
Will the package be damaged during transportation?
Our package considers all potential damage factors to ensure safety, and our shipping agents are fully experienced in safe transportation. The machinery has been successfully exported to 180 countries worldwide. You can expect to receive the parcel in good condition.
How do I install and run the machine?
Our technicians install the machine before shipping. For minor parts installation, we send a detailed training video and a user manual along with the machine. 95% of our customers can easily learn how to set up and run it by themselves.
What should I do if the machine goes wrong?
If you confront any problems, please contact us immediately and do not try to fix the machine yourself or have someone else try to do so. We will respond within 24 hours to help resolve the issue as quickly as possible.
What materials can the laser marking machine work on?
This marking machine is suitable for a variety of metals including gold, silver, copper, aluminum, stainless steel, carbon steel, titanium, and alloys. It is also compatible with plastics such as ABS and PVC.
What is the estimated service life and warranty?
The fiber laser source has a theoretical life of 100,000 hours of light. Additionally, the machine comes with a 24-month warranty and lifetime maintenance support.
