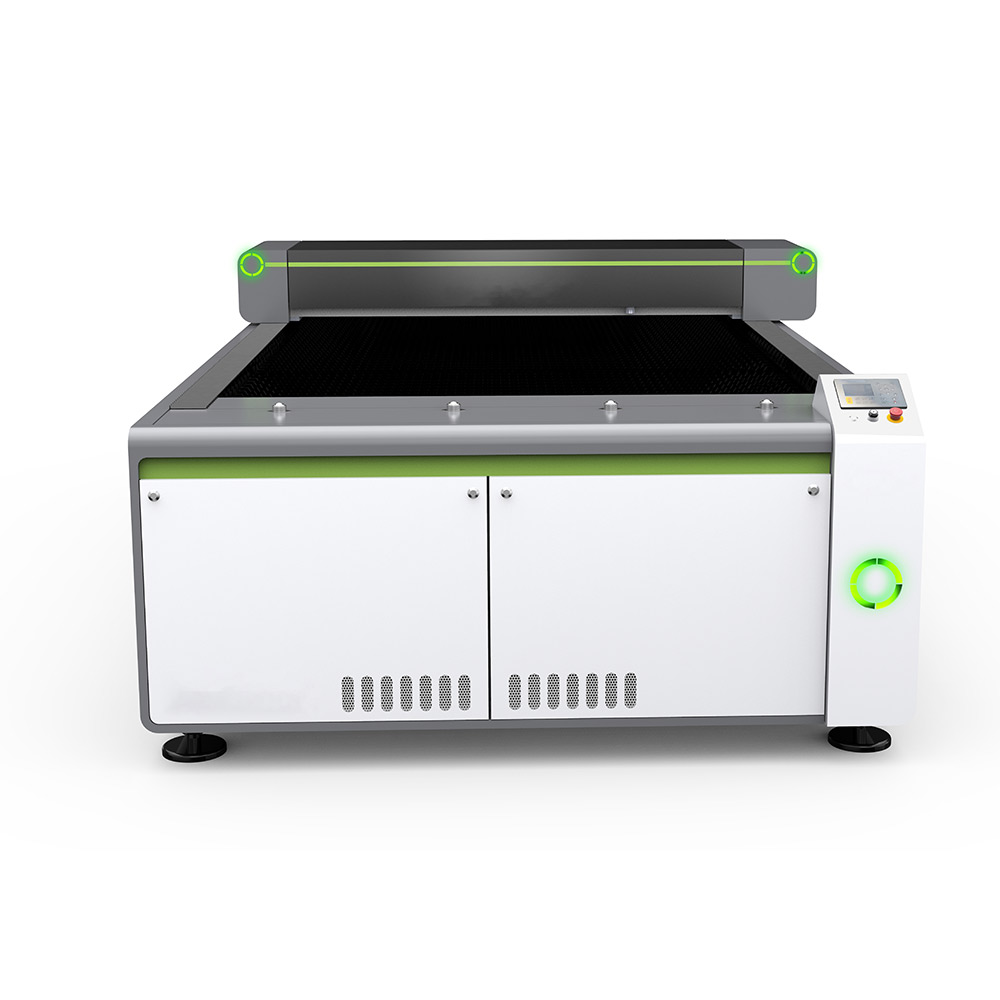

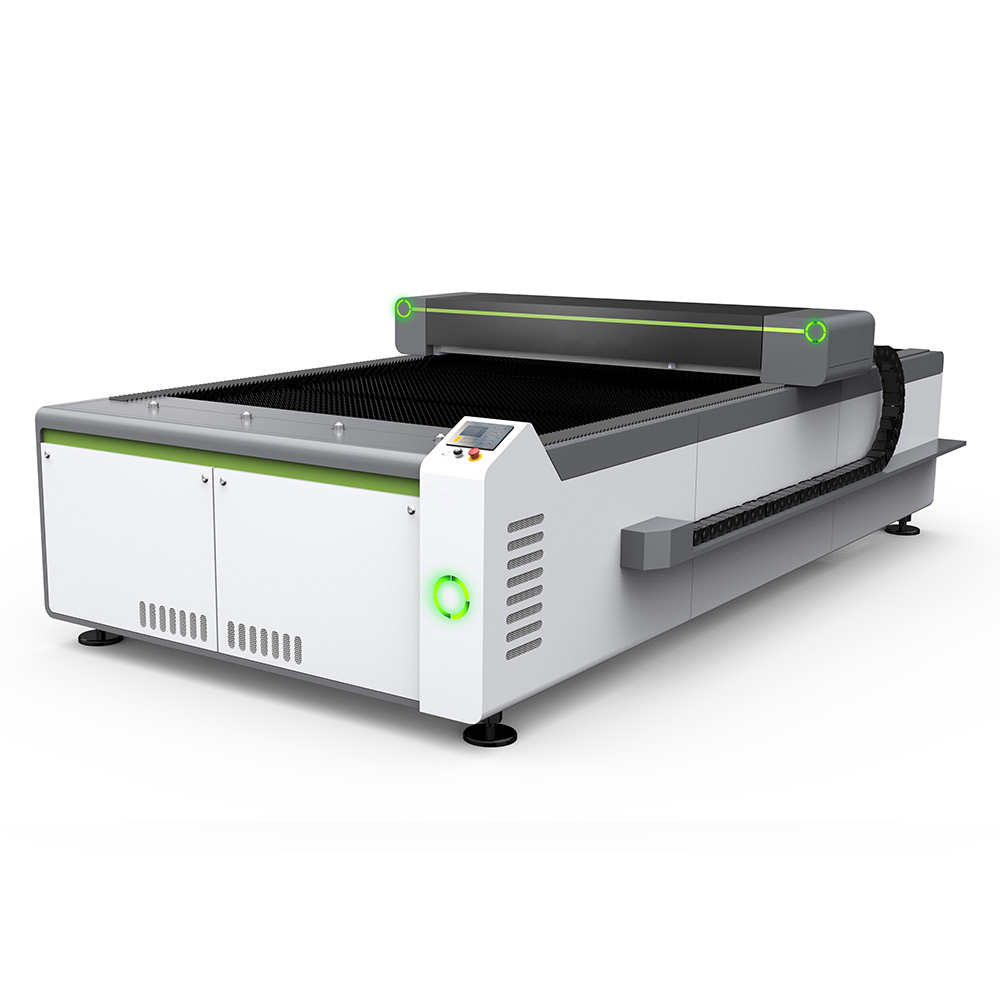

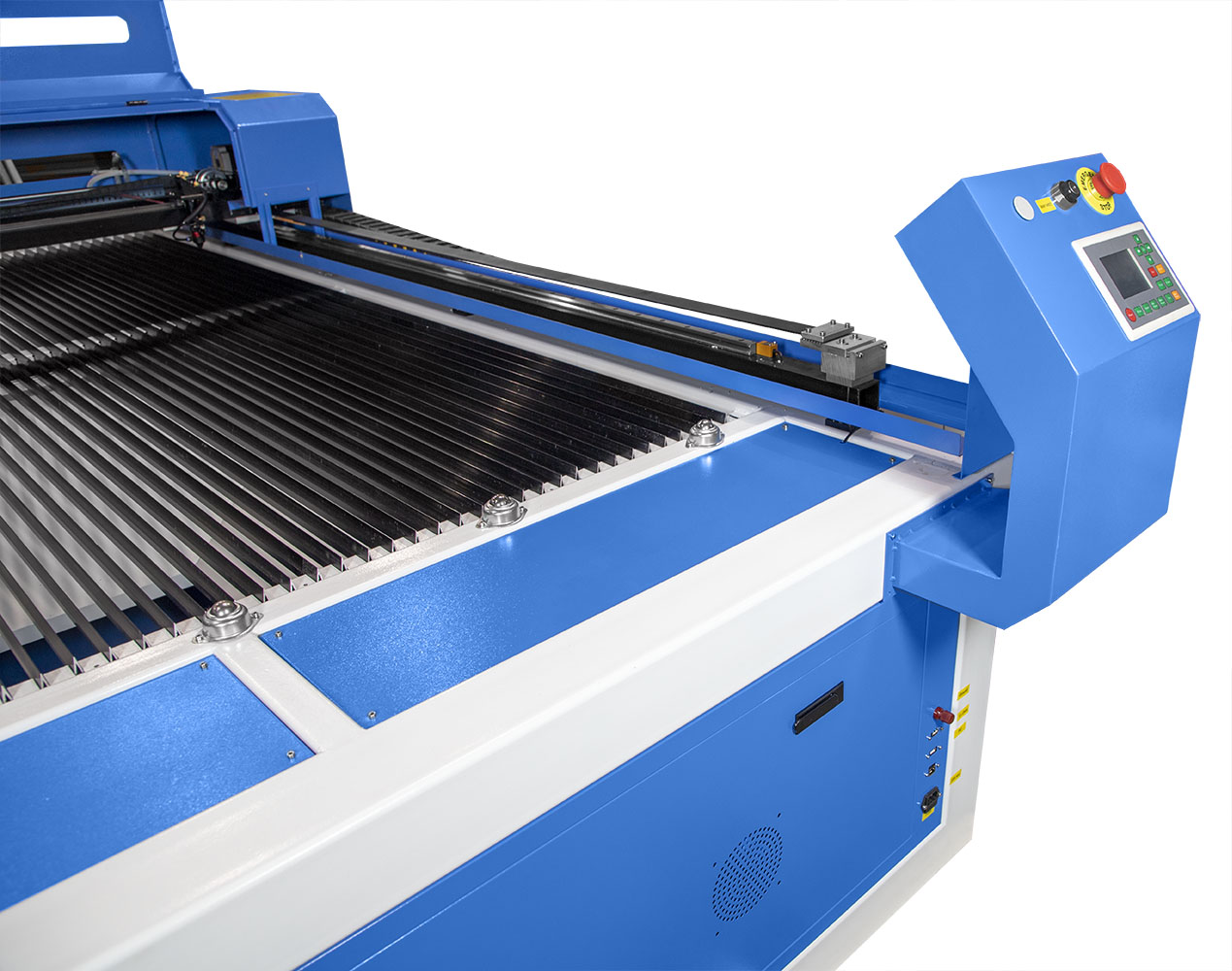

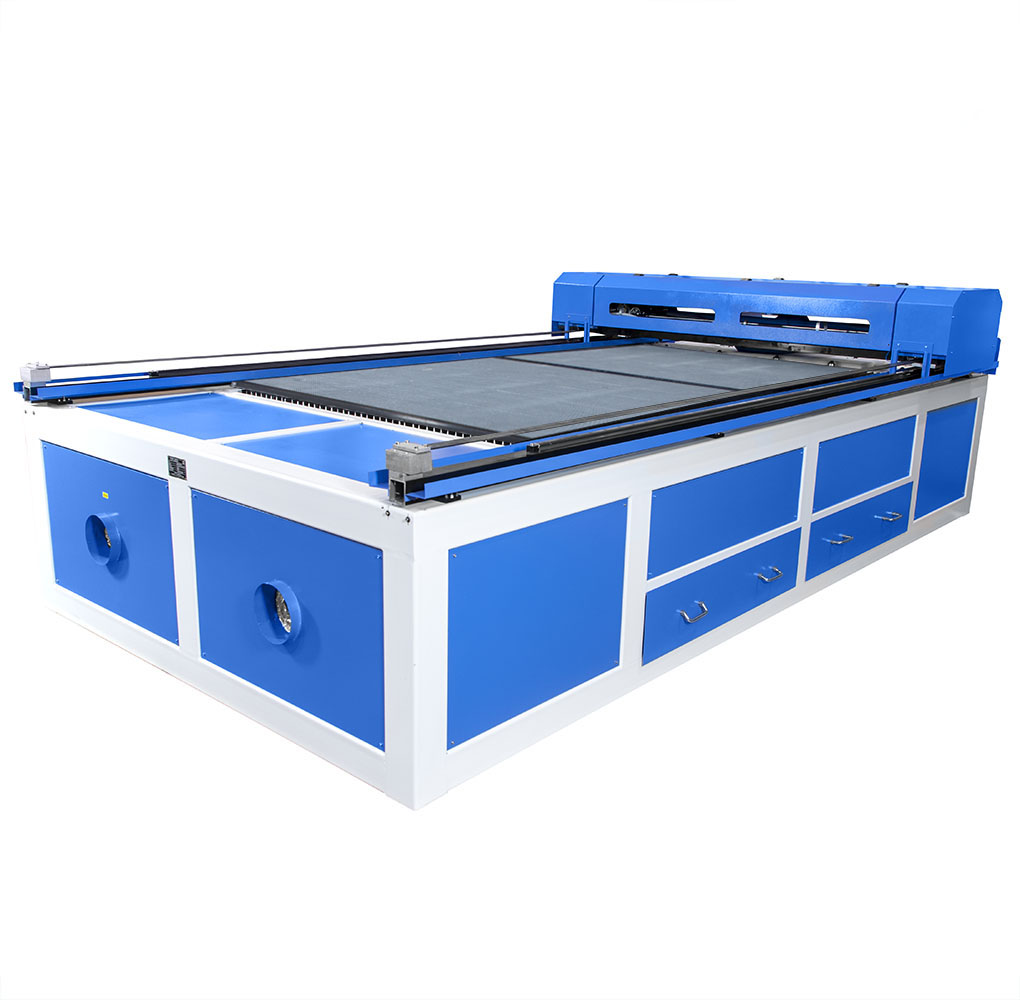

1325 CO2 Laser Cutting Machine 100W-300W for Wood Acrylic Leather MDF Engraving

Product Description

CO2 Laser Cutting & Engraving Machine for Non-Metal

CO2 lasers are used across multiple industries. They have been designed to offer users a higher degree of precision and perfection, specifically when making smaller cuts. Our product is the best choice if you're creating custom products for yourself or your customers.

CO2 Laser Cutting Engraving Machine

We are a laser equipment manufacturer with 16 years of experience. There are different kinds of lasers that are commonly used for cutting and engraving with different working areas. Which laser is optimally suited depends on the material, the kind of product, your cutting requirements, and your needs.

To make sure you choose an appropriate machine, before placing an order, it is better to confirm some details with us, such as the main usage of the machine, working material thickness, working effect, voltage of your country, and any special needs.
Product Specification Details
Product name CO2 laser cutting and engraving machine
Material Non-metal wood / plastic / leather / fabric / acrylic / paper
Power 100W / 130W / 150W / 180W / 300W (Optional)
Working area 130 * 250cm

Features at a Glance

  • HIGH PRECISION AND QUALITY
  • SAFETY FRAME
  • SIMPLE CONTROL
  • EASY MAINTENANCE
  • VERSATILITY
  • CUSTOMIZATION AND FLEXIBILITY

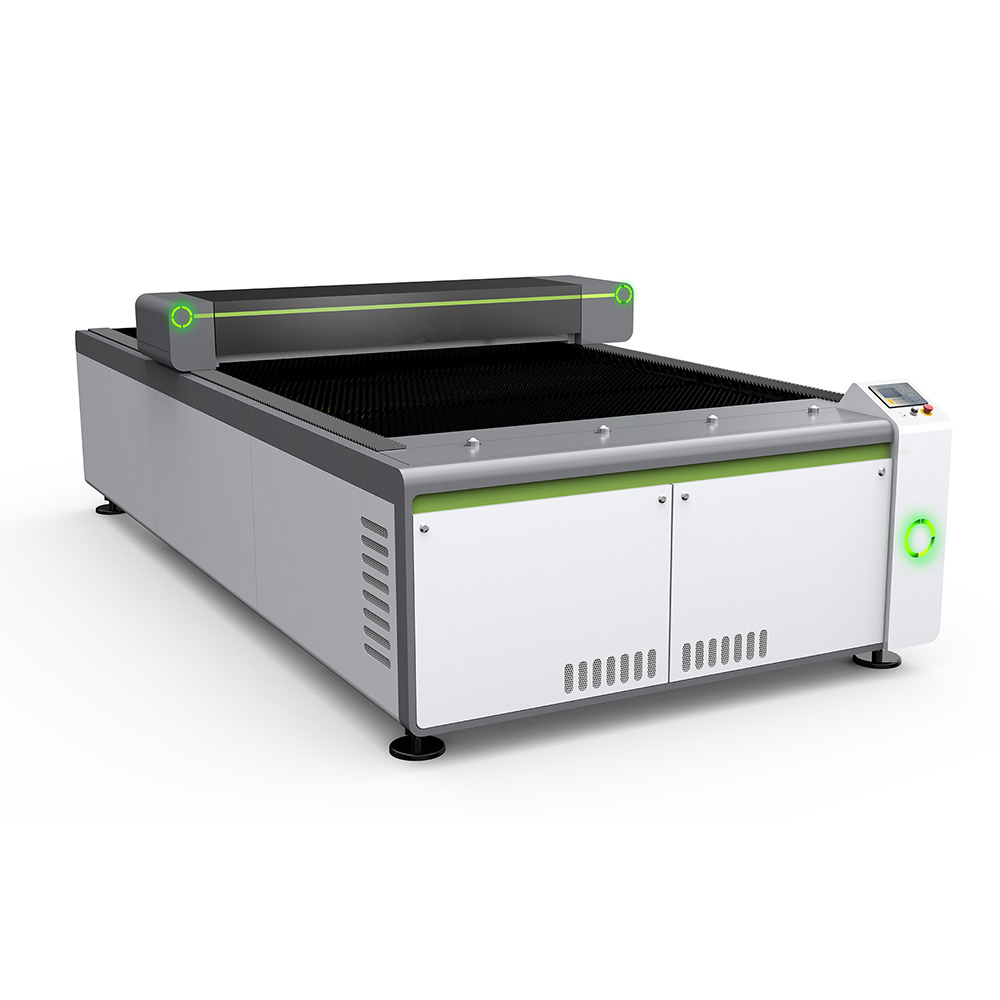

Features view

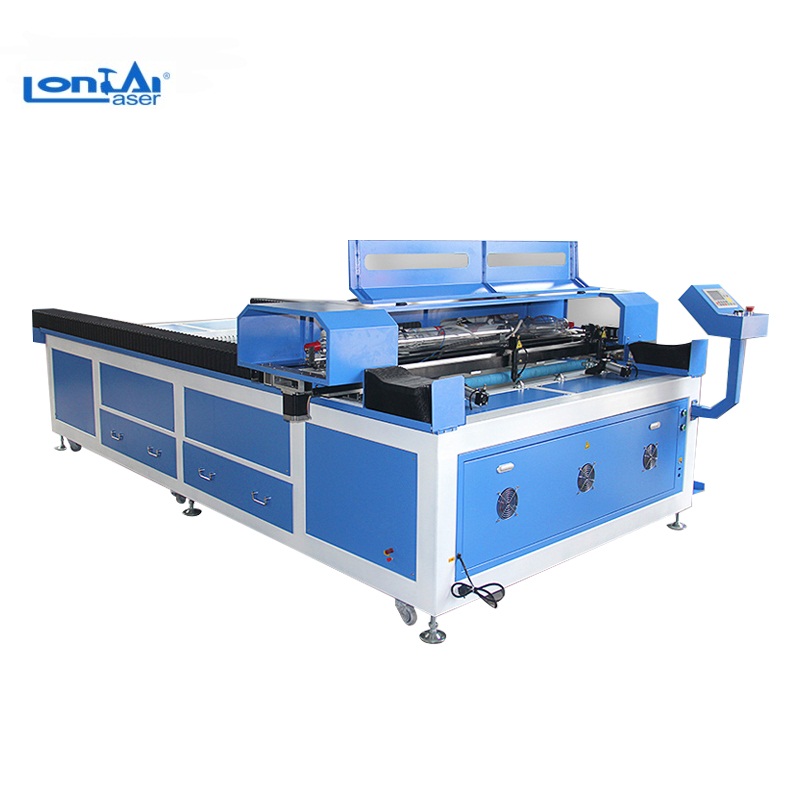

Right elevation
Right elevation

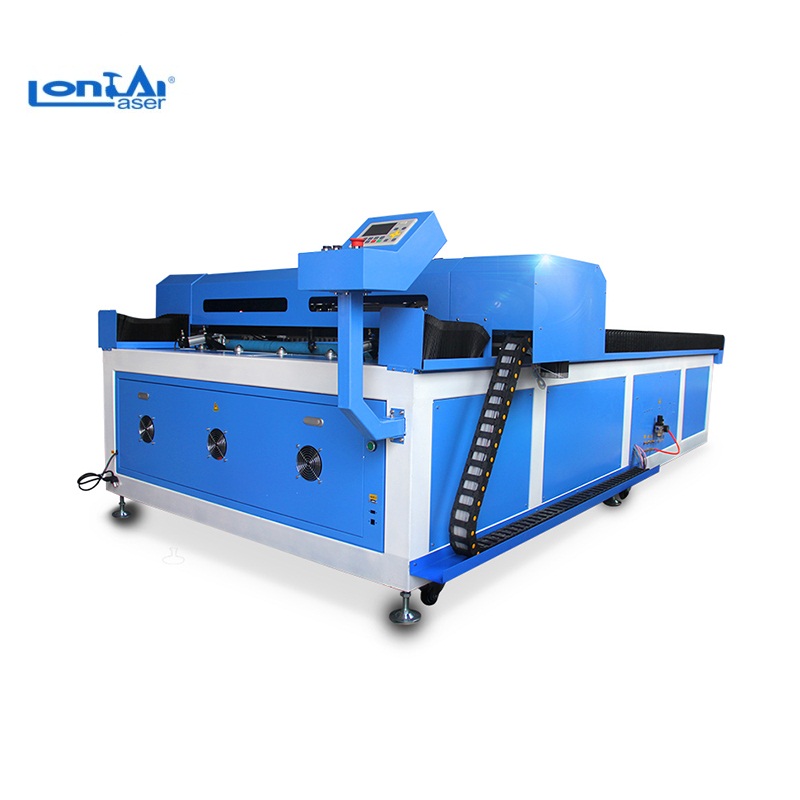

Left elevation
Left elevation

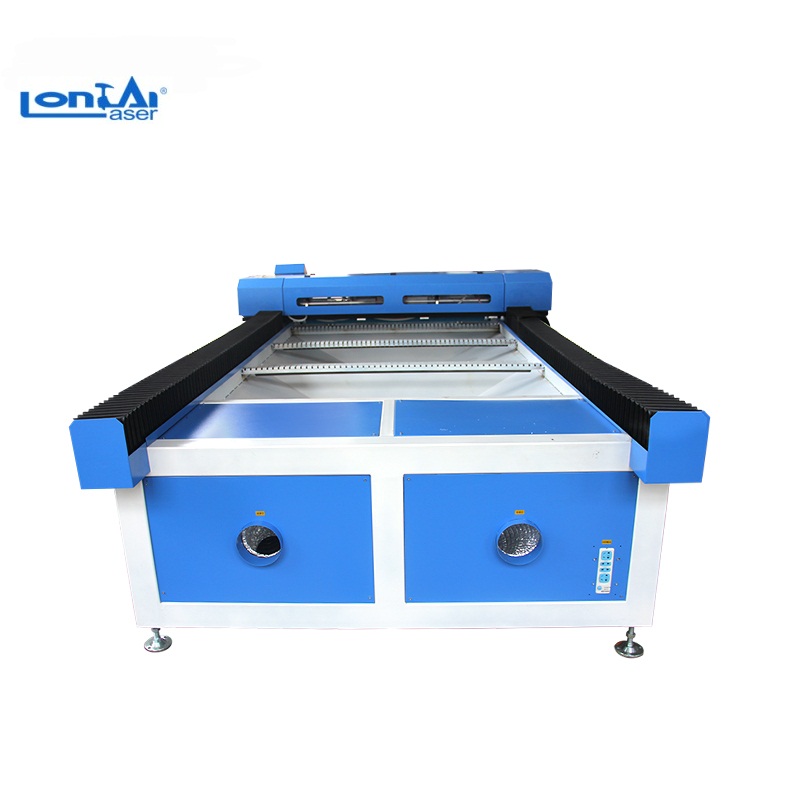

Front elevation
Front elevation

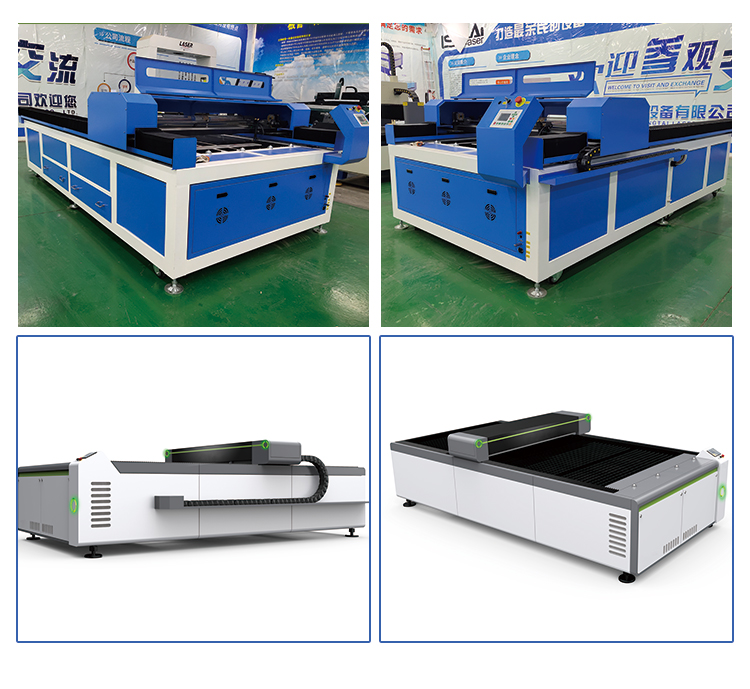

Configuration diagram
  • 1 Aluminum knife or honeycomb table: Two kinds of tables are available for different materials.
  • 2 CO2 Glass sealed laser tube: China famous brand (EFR, RECI), good beam mode stability, long service time.
  • 3 Imported lens and mirrors: High transmittance, good focusing, and reflection effect.
  • 4 Ruida Controller system: Supports online/offline working, English language system, adjustable cutting speed and power.
  • 5 High accuracy stepper motors and drivers: Belt transmission.
  • 6 Taiwan Hiwin / PMI Linear square guide rails: Higher precision. Rack-lead drive is also available, along with Leiser/servo stepper motors.
  • 7 CCD CAMERA SYSTEM (Optional): It can perform Auto Nesting + Auto Scanning + Auto position recognition.

Product Specifications

No. Item Data
1 Laser Power 80W / 100W / 130W / 150W / 180W / 300W (Optional)
2 Laser Tube EFR / RECI (Optional)
3 Maximum Speed Cutting speed: 600mm/s | Engraving speed: 1000mm/s
4 Working Size 1300 * 2500mm
5 Cutting Thickness 0 - 20mm
6 Support Format PLT / DXF / BMP / DST / DWG / LAS / DXP / ECT
7 Cooling Mode Water cooling
8 Working Voltage AC 220V/50HZ | 110V/60HZ

Product Configuration

Config 1

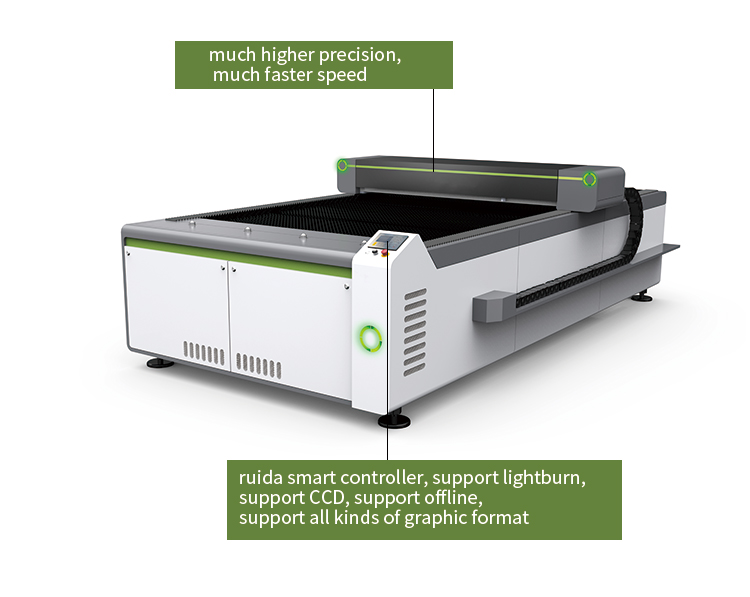

Config 2

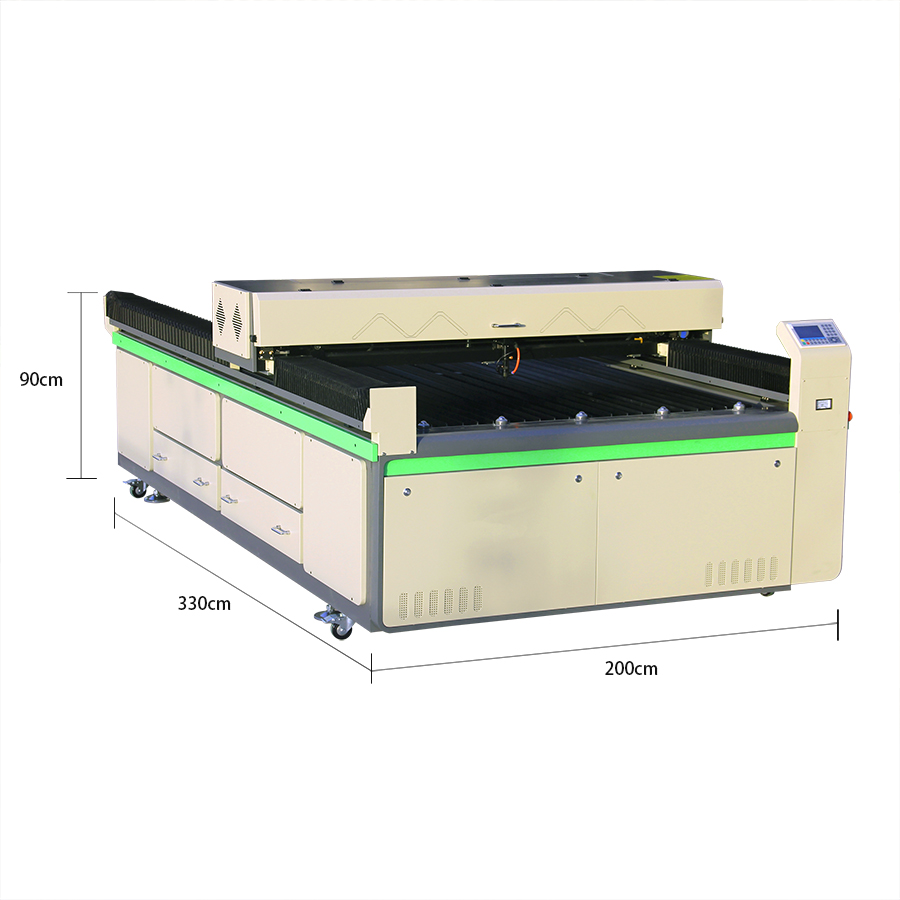

Config 3

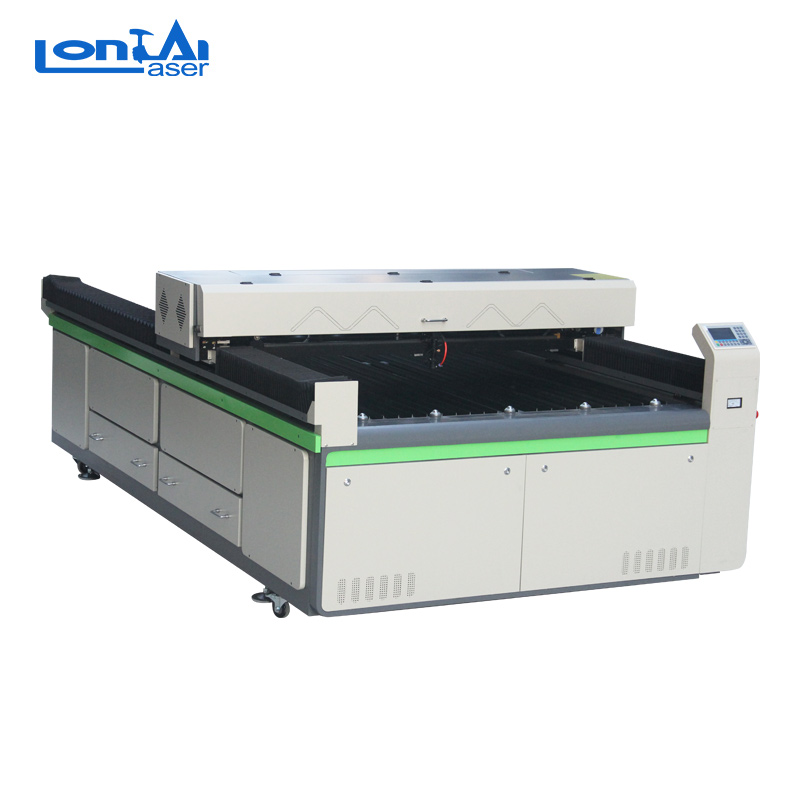

Config 4

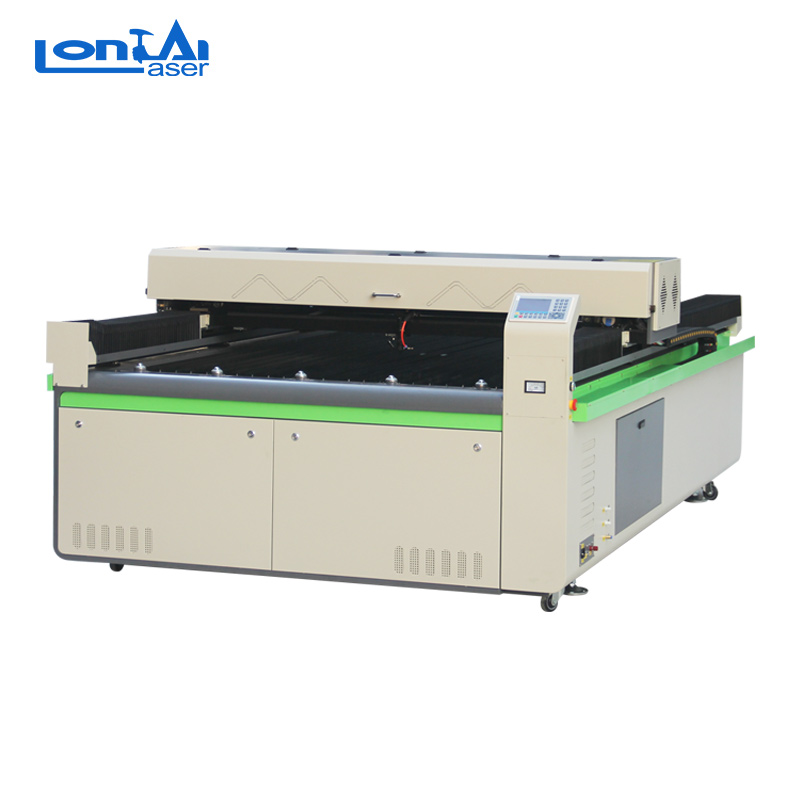

Config 5

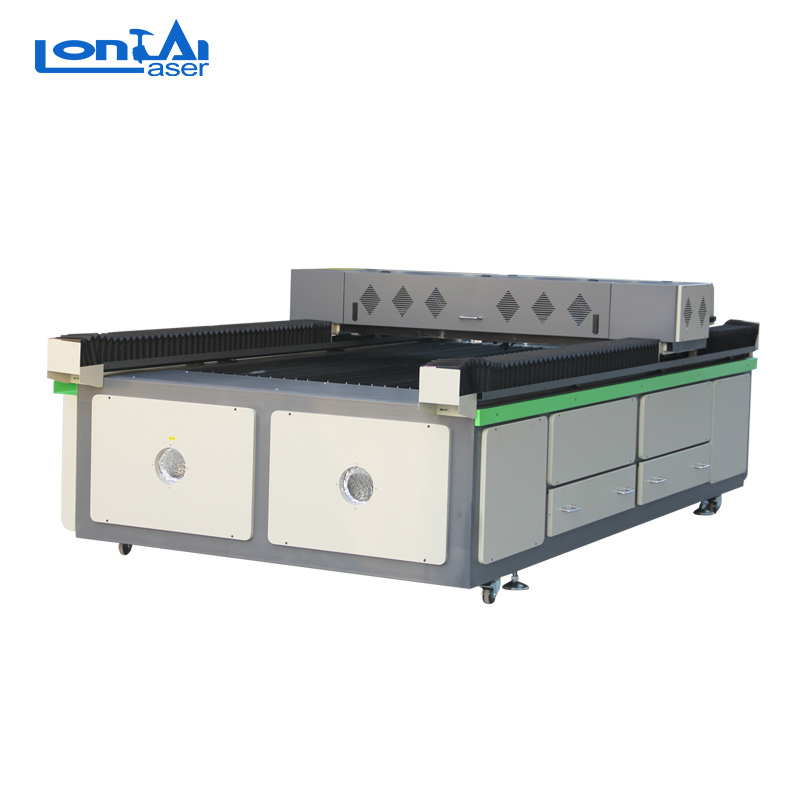

Config 6

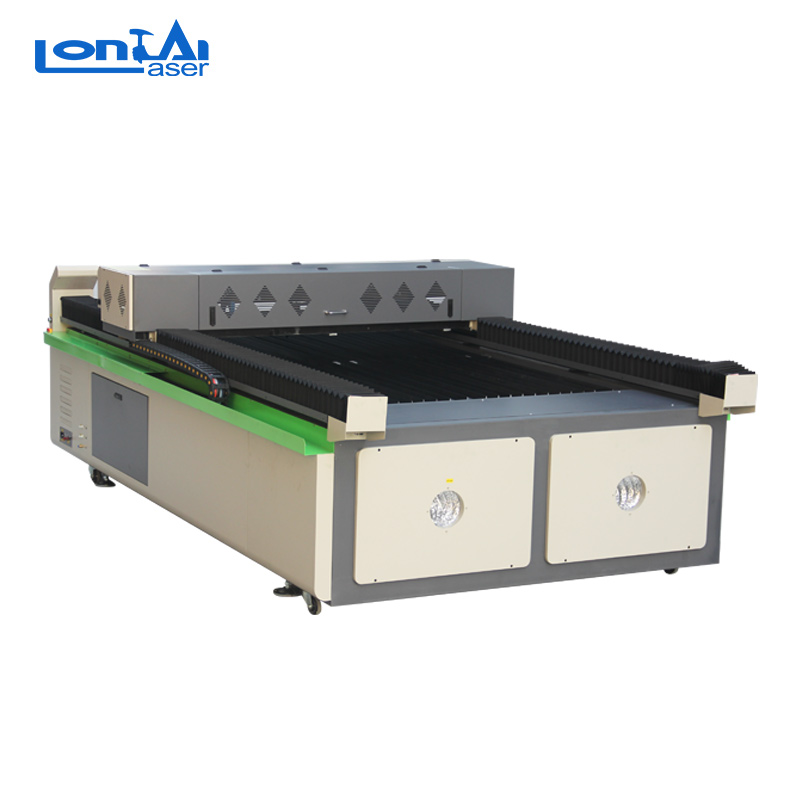

Config 7

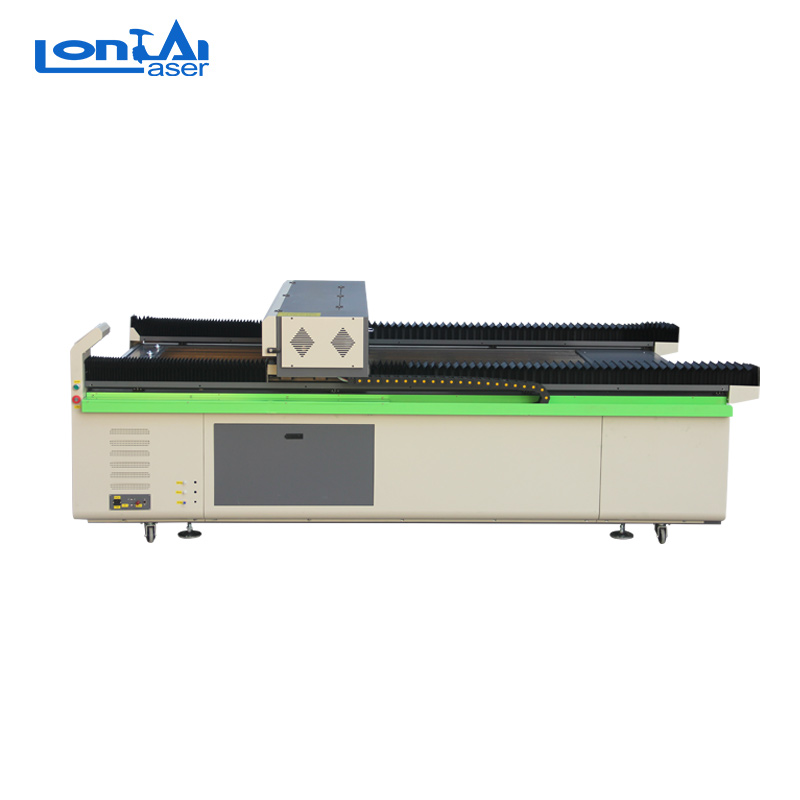

Config 8

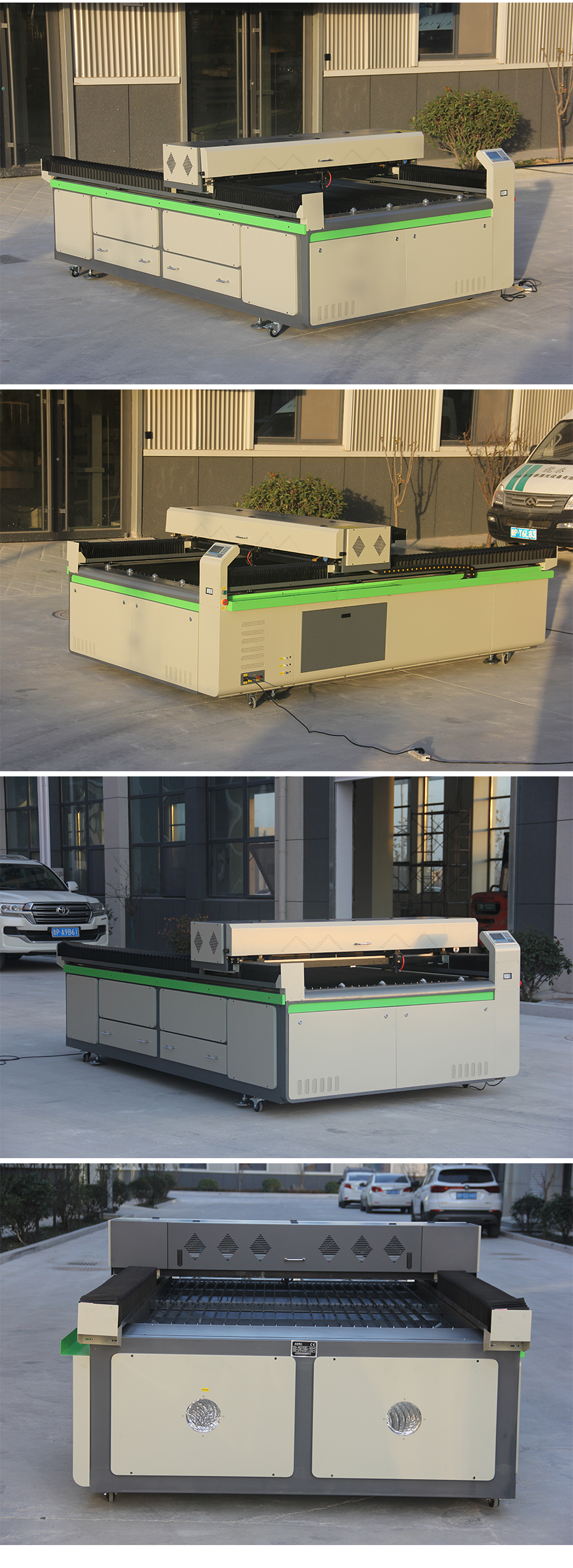

Config 9

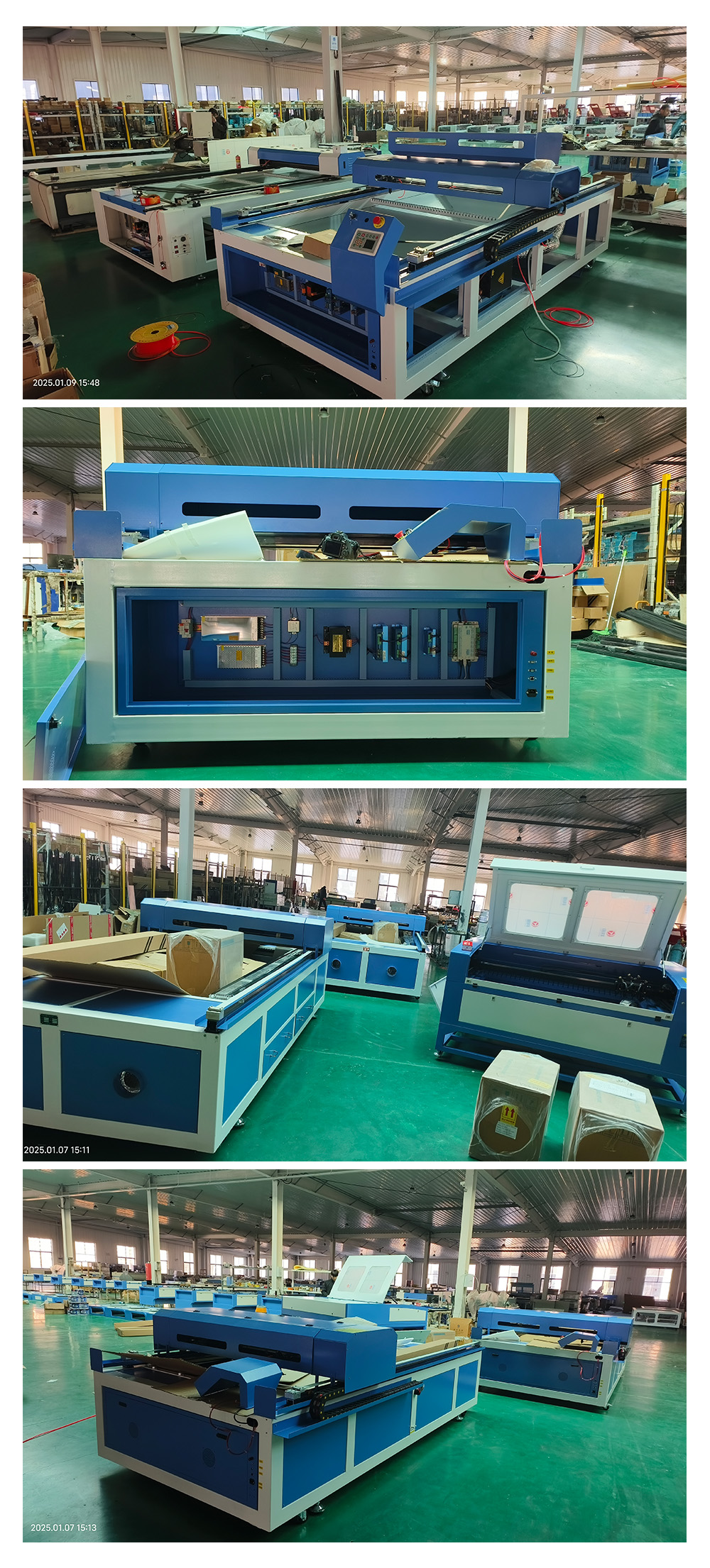

Config 10

Samples

Sample 1

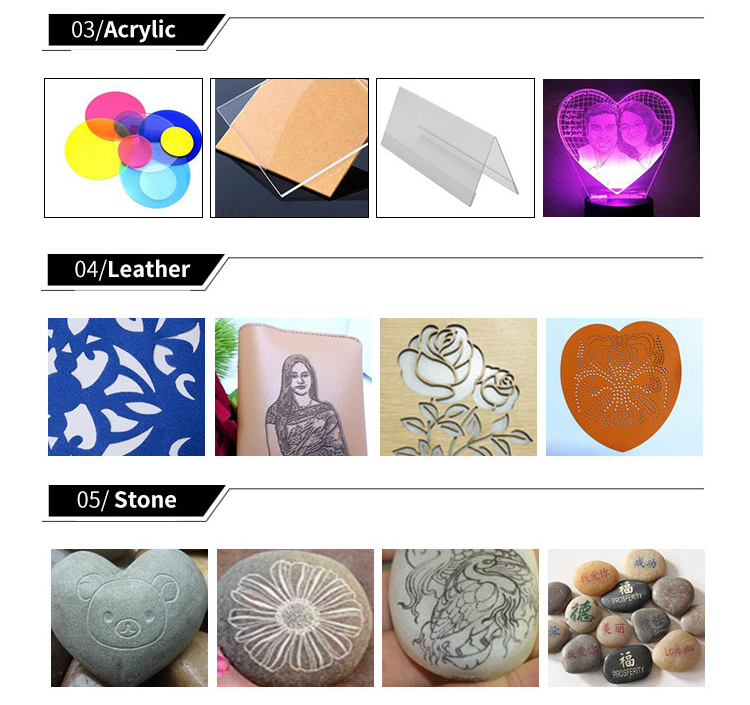

Sample 2

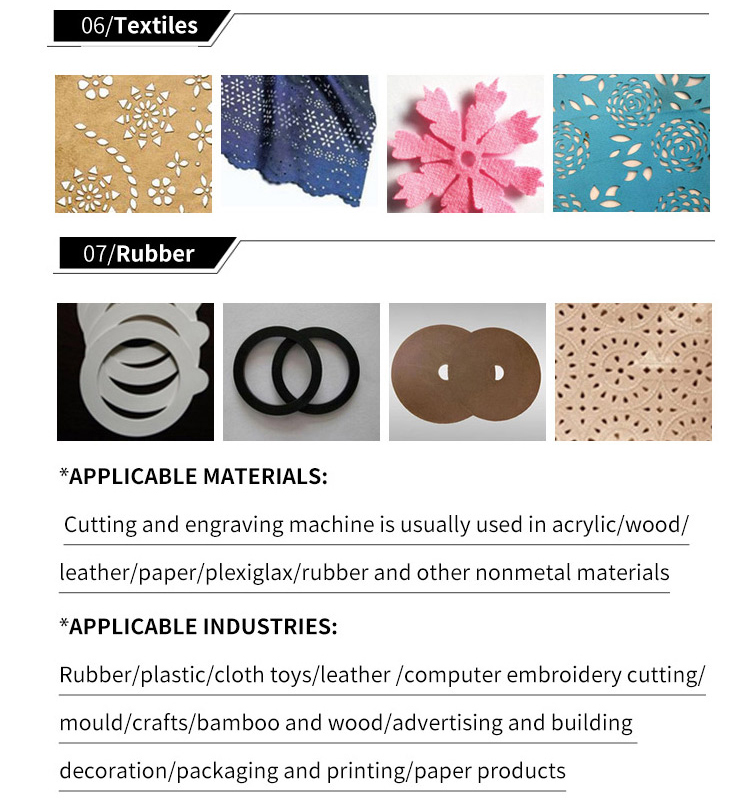

Sample 3

Product Packaging

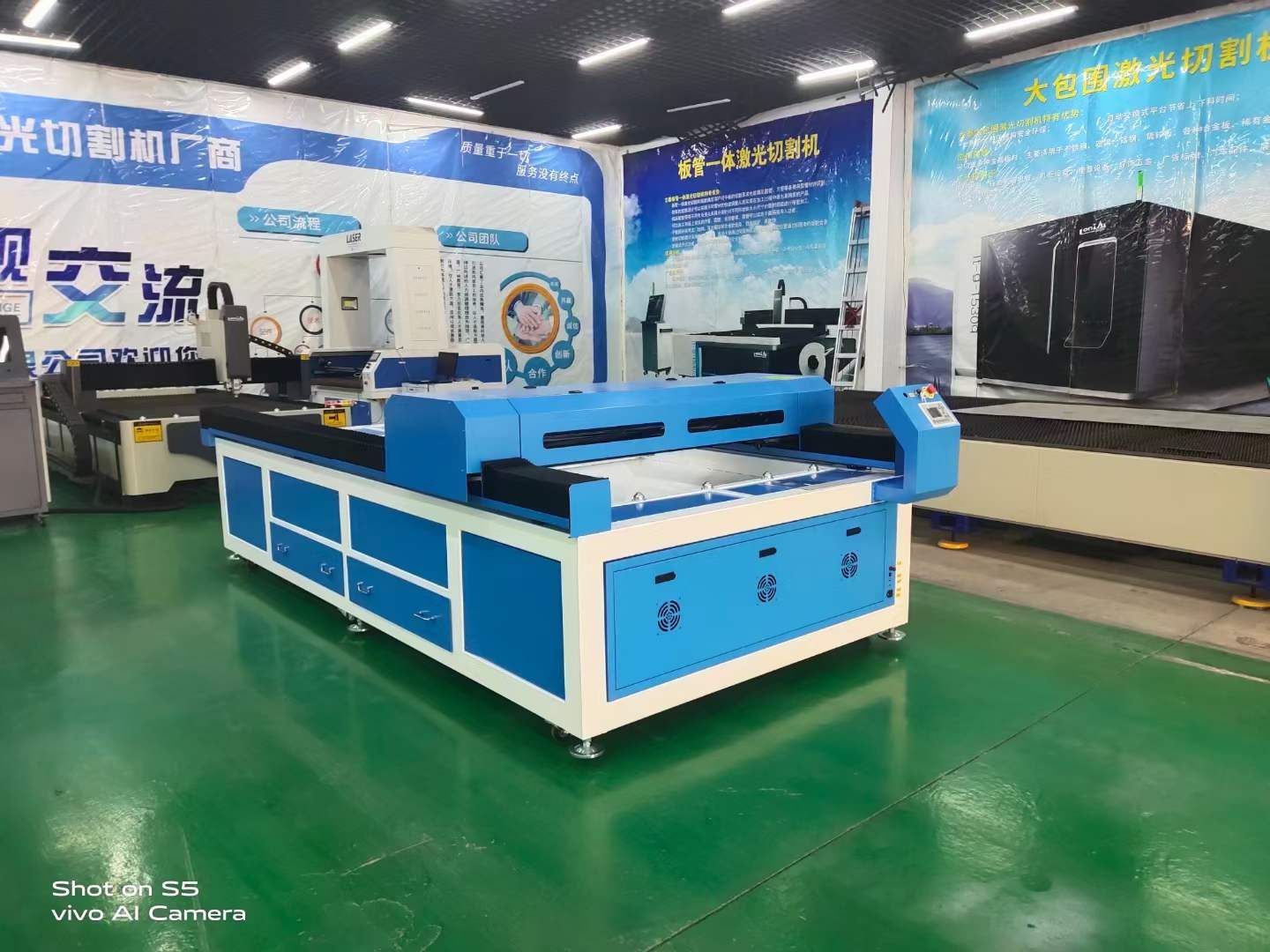

Machine quality inspection
Machine quality inspection

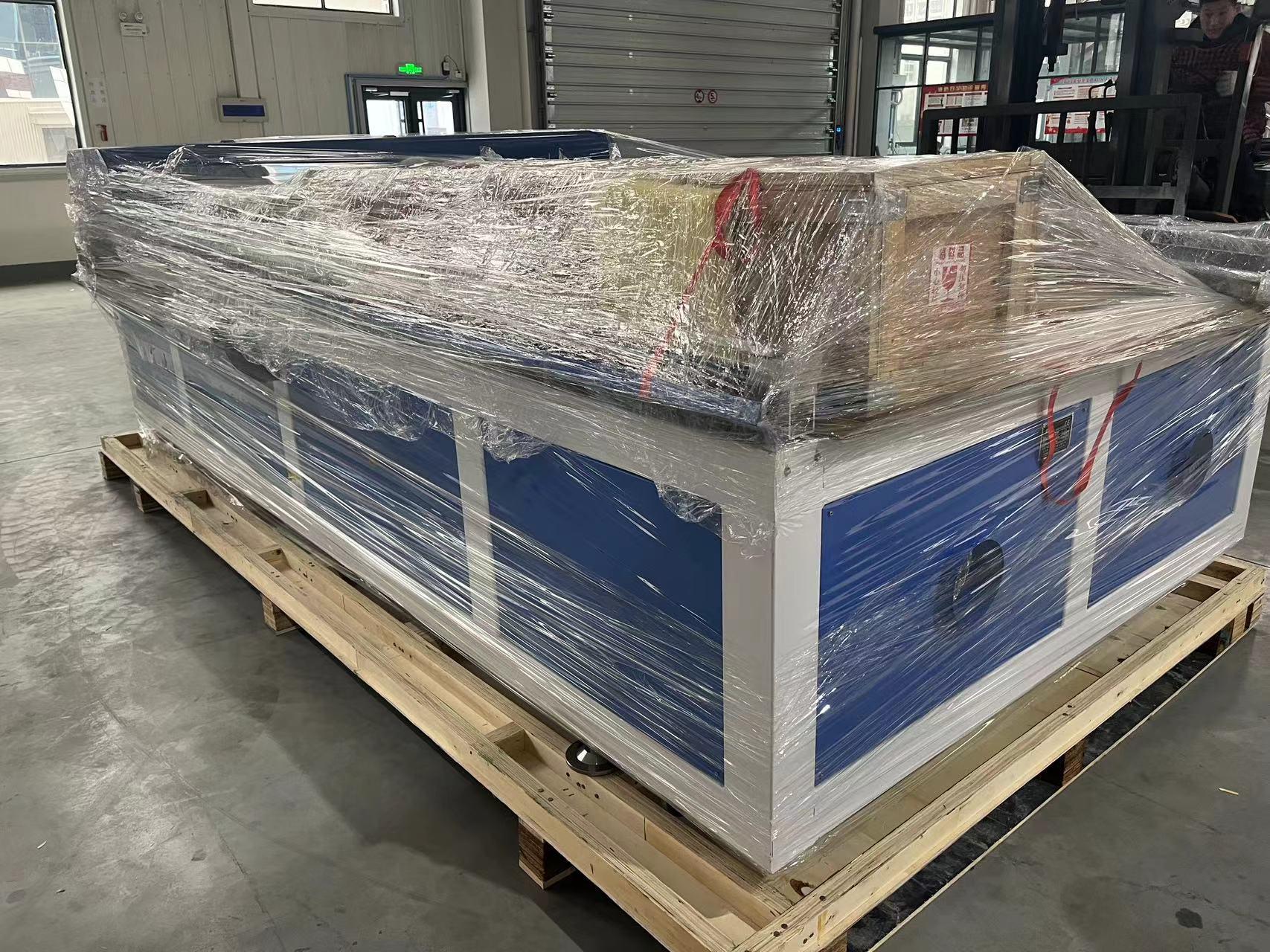

Wooden box packing
Wooden box packing

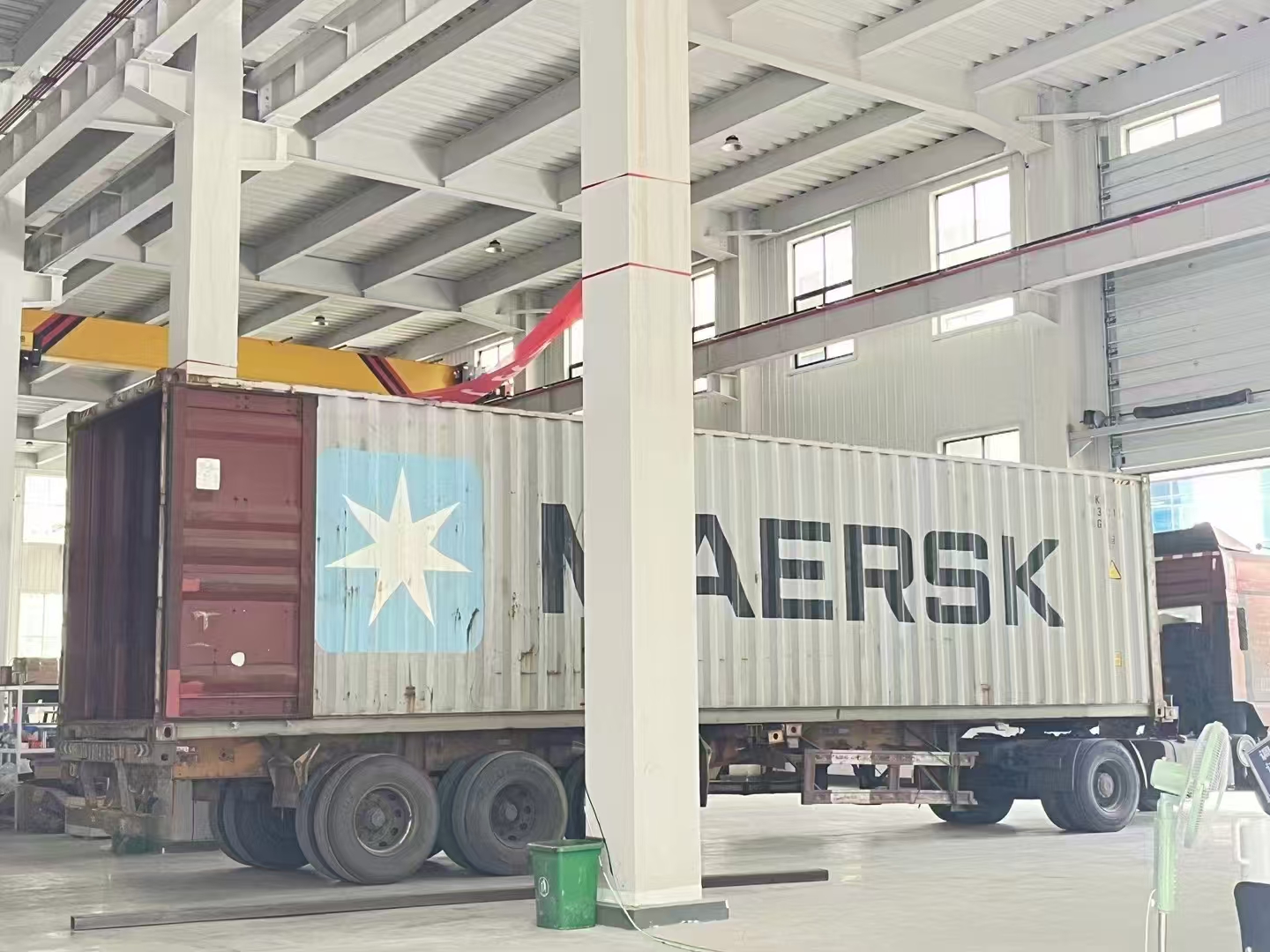

Transport
Transport

Our Factory

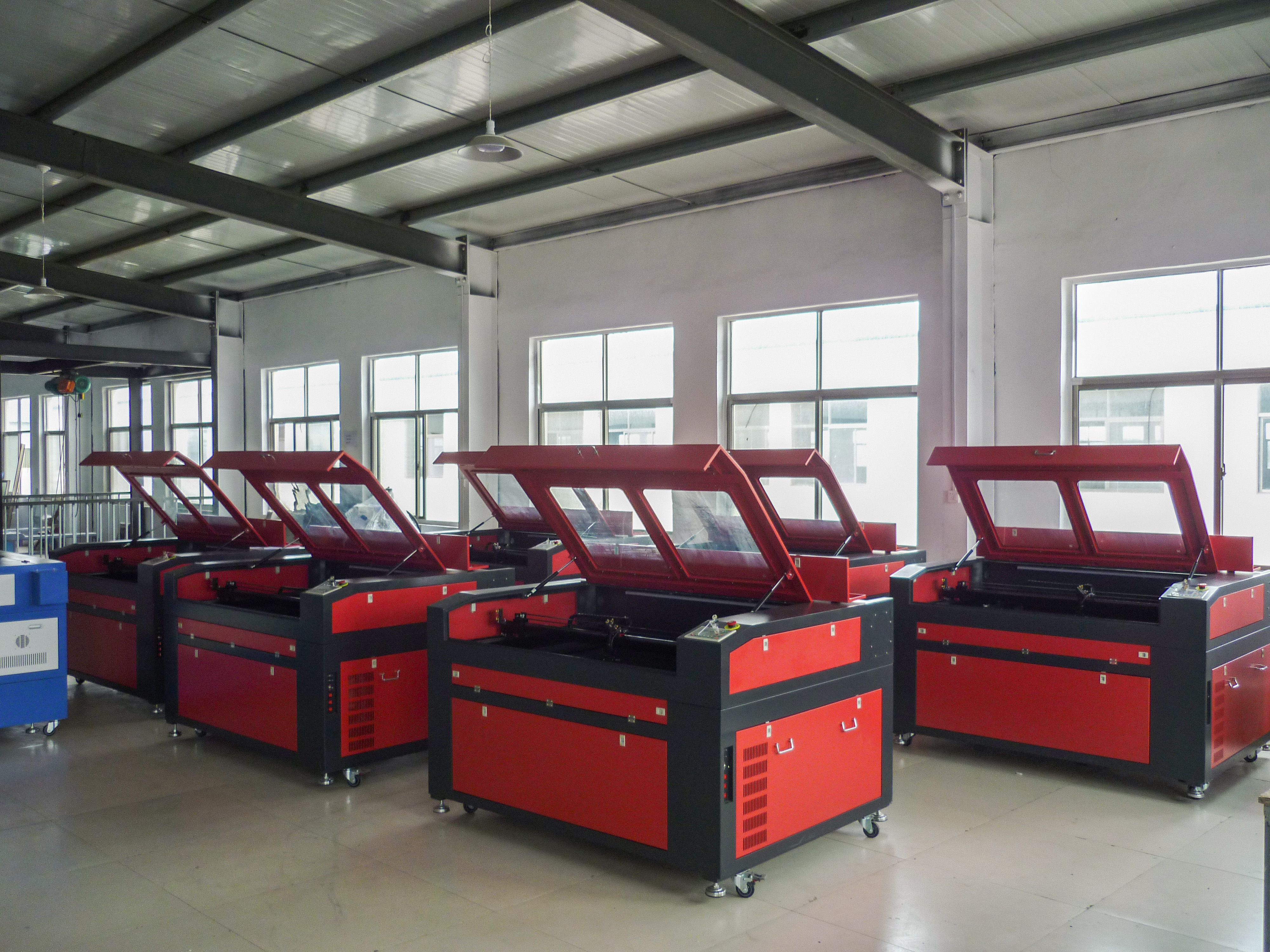

Factory image 1

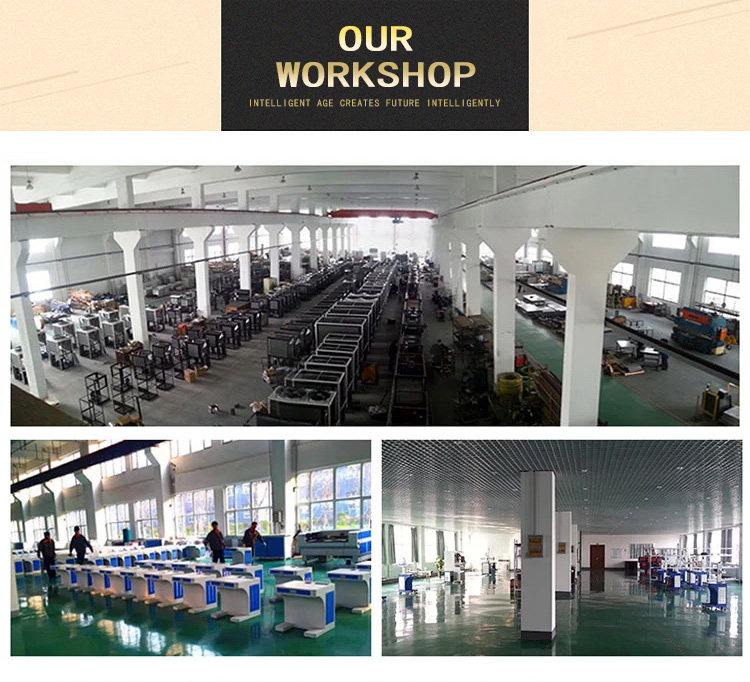

Factory image 2

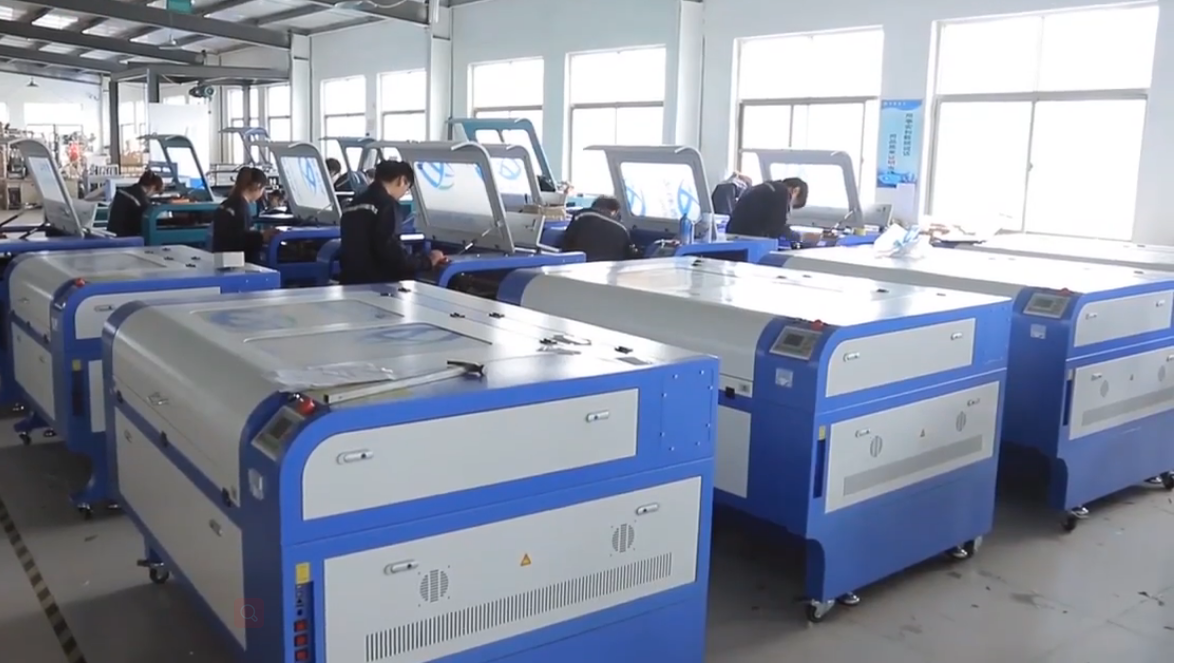

Factory image 3

With 16 years of manufacturing experience, our factory has established a complete system of laser marking, cutting, welding and engraving technology development and manufacturing. We are the source manufacturer of various laser equipment and CNC equipment.

Main production of various laser engraving machines, laser cutting machines, fiber laser marking machines, CO2 laser marking machines, UV laser marking machines, crystal engraving machines, laser welding machines, and other laser equipment. Reliable quality, favorable price, best-sell in more than 50 countries and regions around the world. Global partner search, wholesale and retail are available.

Factory certificate/hallmark
Factory inside view

Similar Products

Similar Product

Frequently Asked Questions

Q1 Before sending an inquiry on our CNC laser, what information is it better for you to provide?
1) Your metal or non-metal material size (as we have different models according to the working area).
2) Your materials (Acrylic, Plywood, MDF, etc.).
3) Whether you want to engrave or cut. If cutting, please provide your cutting thickness, as different thicknesses require different laser tube powers and laser power supplies.
Q2 If we don't know how to use the machine, can you teach us?
Yes. We will send you an English manual and guide video to teach you how to operate the machine. If you still need help, we can assist you online via remote assistance software, email, phone, or messaging applications.
Q3 How long is the delivery time?
For standard machines, it is 3-5 days. For non-standard and customized machines built according to clients' specific requirements, it is 7 to 10 days.
Q4 How is the quality control managed?
The entire production procedure is under regular inspection and strict quality control. The complete machine is tested to ensure it works properly before leaving the factory. Our machines have passed the CE Certificate, meet European and American standards, and have been exported to more than 100 countries.
Q5 Do you arrange shipment for the machines?
Yes. For FOB or CIF pricing, we will arrange the shipment for you. For EXW pricing, clients need to arrange the shipment themselves or via their designated agents.
Q6 What materials can this CO2 laser machine cut and engrave?
This machine is highly optimized for various non-metal materials, such as wood, plastic, leather, fabric, acrylic, paper, and other similar organic materials.
