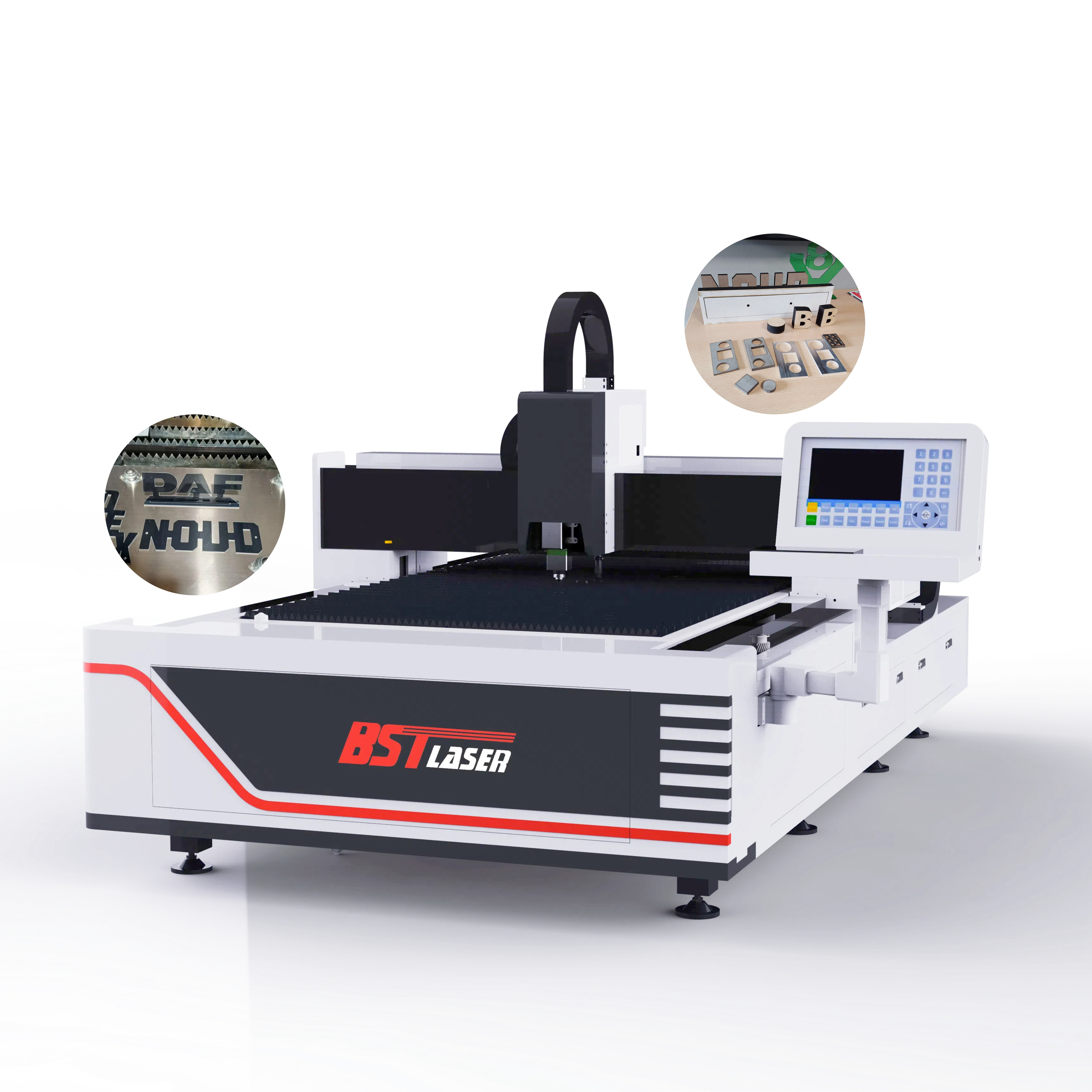

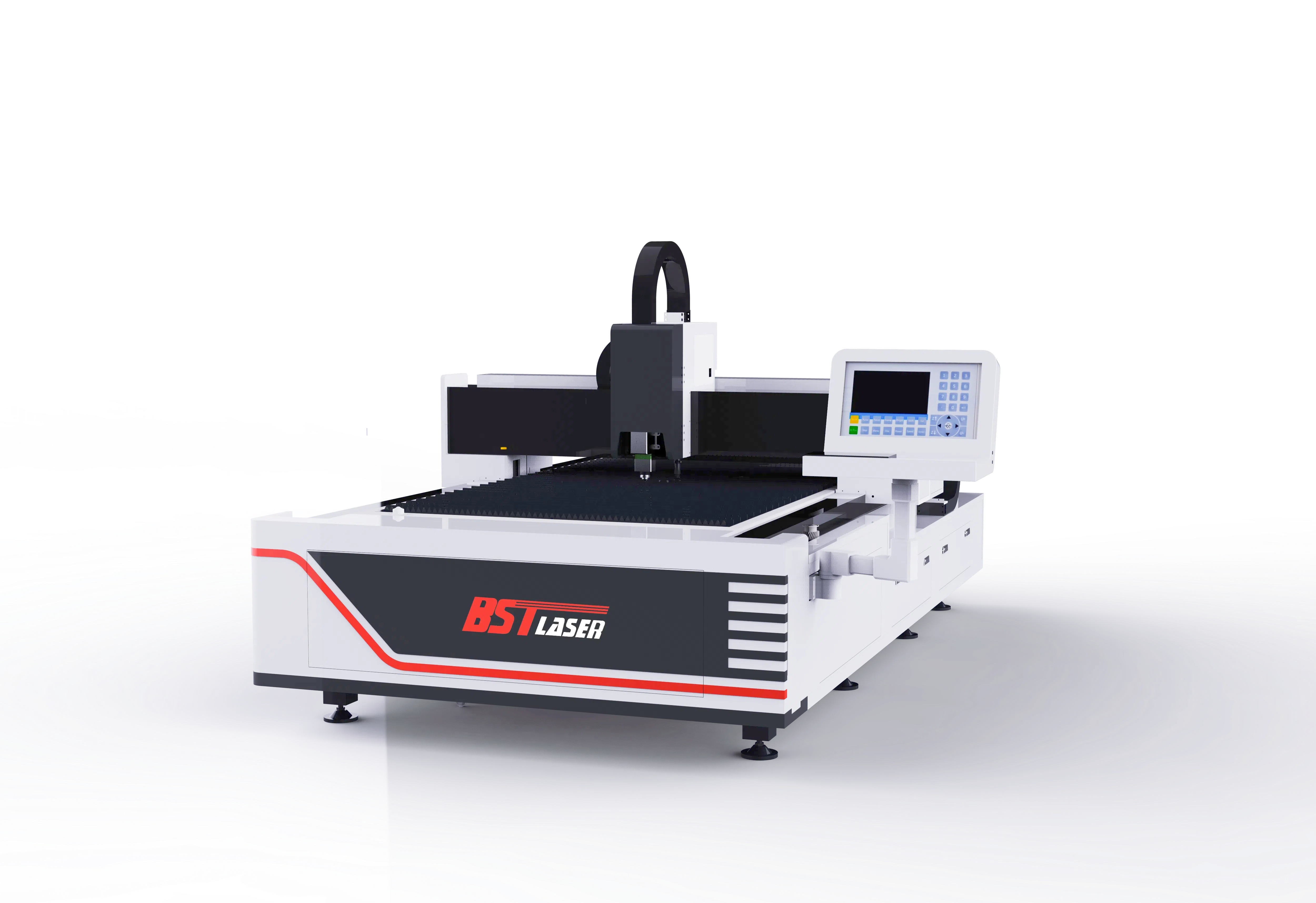

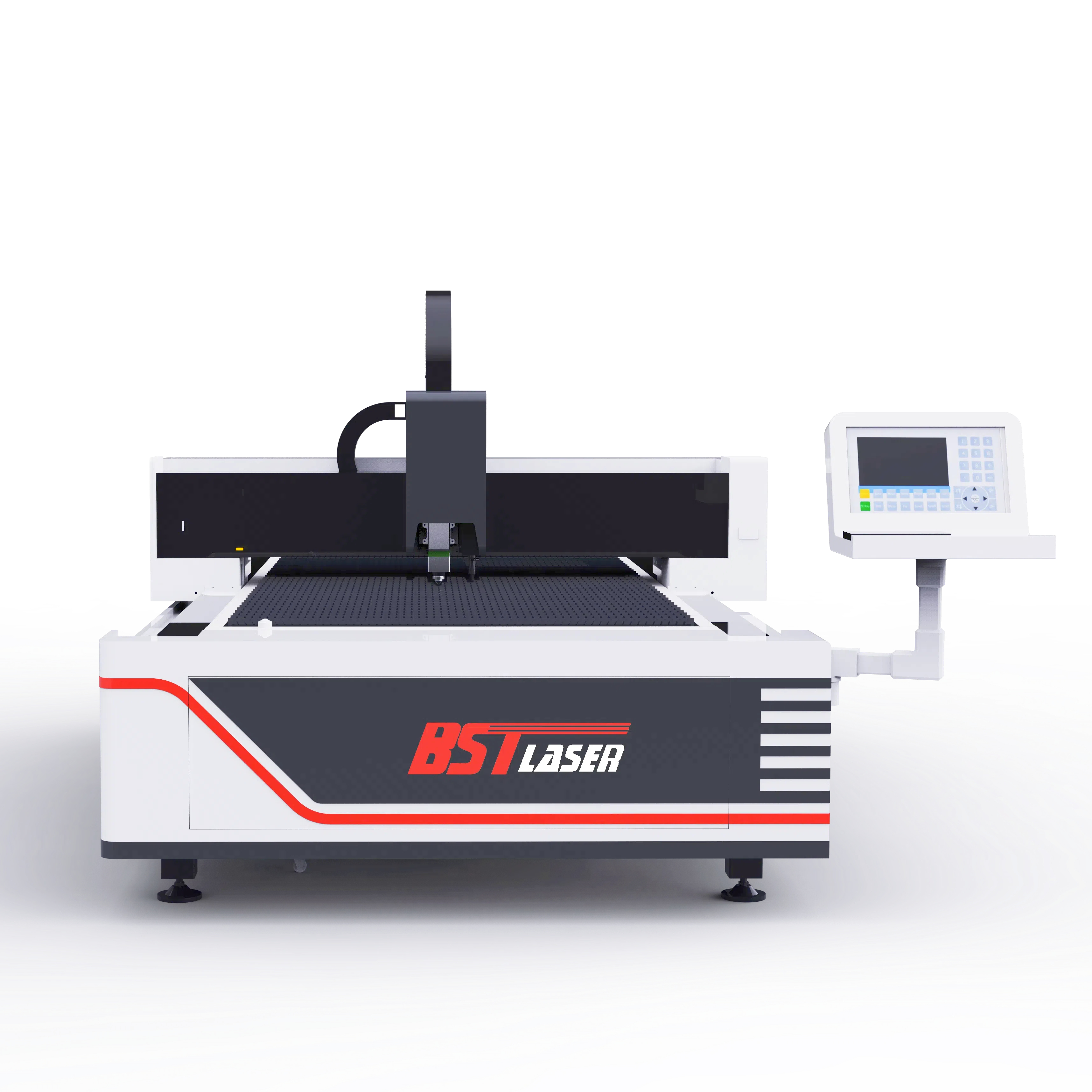

CO2 Fiber Laser Cutting Machine 1325 8x4 for Wood Acrylic Metal CNC Laser Engraver Cutter for Nonmetal & Steel
Are you looking for a real multi-functional laser cutting machine? Have you been annoyed by frequently changing machines?
We launched the latest All in One Fiber Co2 Laser Cutting Machine, a real multi-functional machine, saving 50% cost, reducing freight and space, 1 multifunctional machine = two traditional machines!
Cutting Materials: stainless steel, carbon steel, iron, aluminum, brass, copper, galvanized sheet, Titanium, acrylic, wood, plexiglass, MDF, plastic, bamboo, rubber...materials.
Size: 1300*2500mm (8 feet by 4 feet), 3000*1500mm (10 feet by 5 feet)
Fiber Laser: 1500W (Optional 2000W, 3000W)
Co2 Laser: 180W (Optional 300W)
>>> With double laser source and double laser head, this machine can realize metal nonmetal high precision cutting on only 1 machine!
>>> Two laser heads with auto focusing function, with different focus lens inside, no need frequent changing focus lens, avoiding inconvenience.
>>> With advanced intelligent software controlling system, metal and nonmetal cutting can switch freely with non-interference. It brings high precision, fast speed and high efficiency.

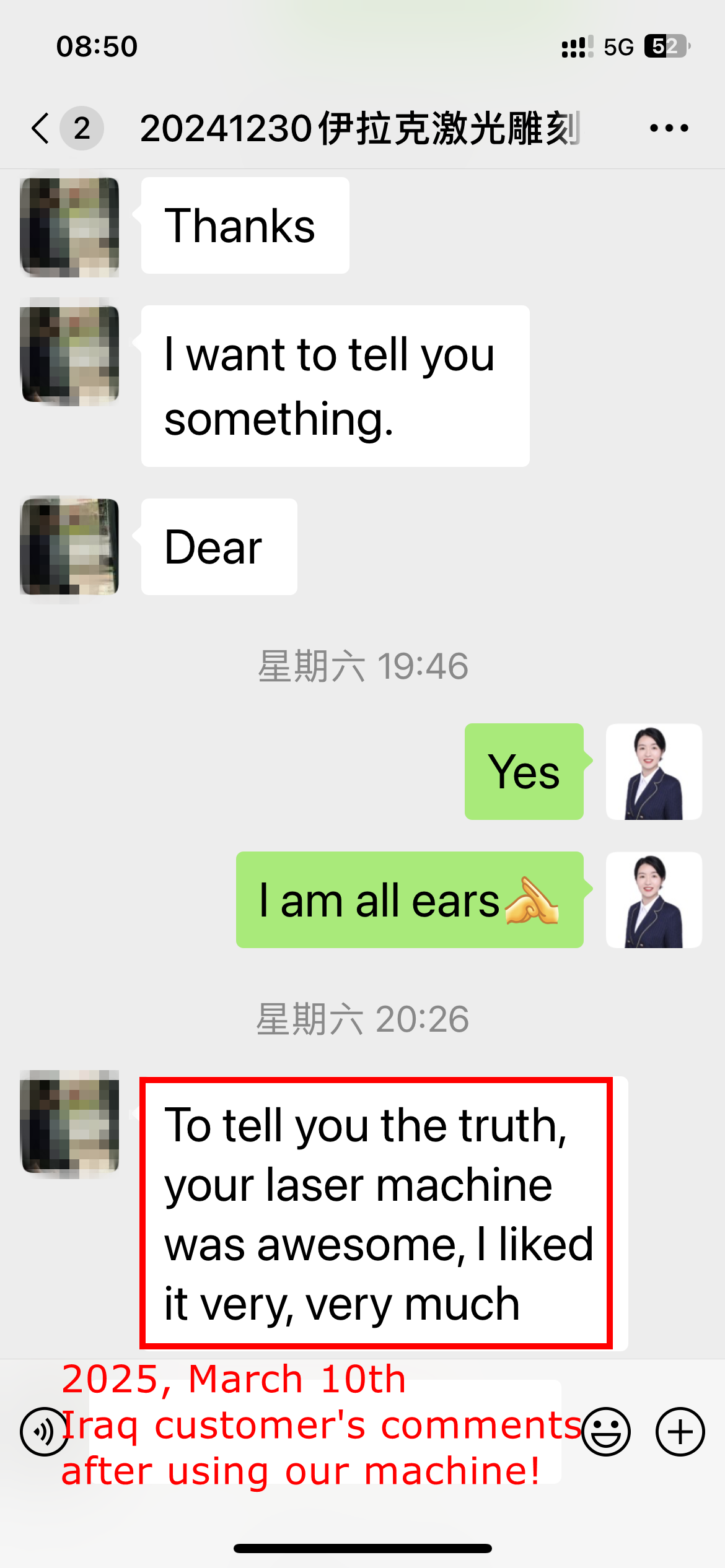

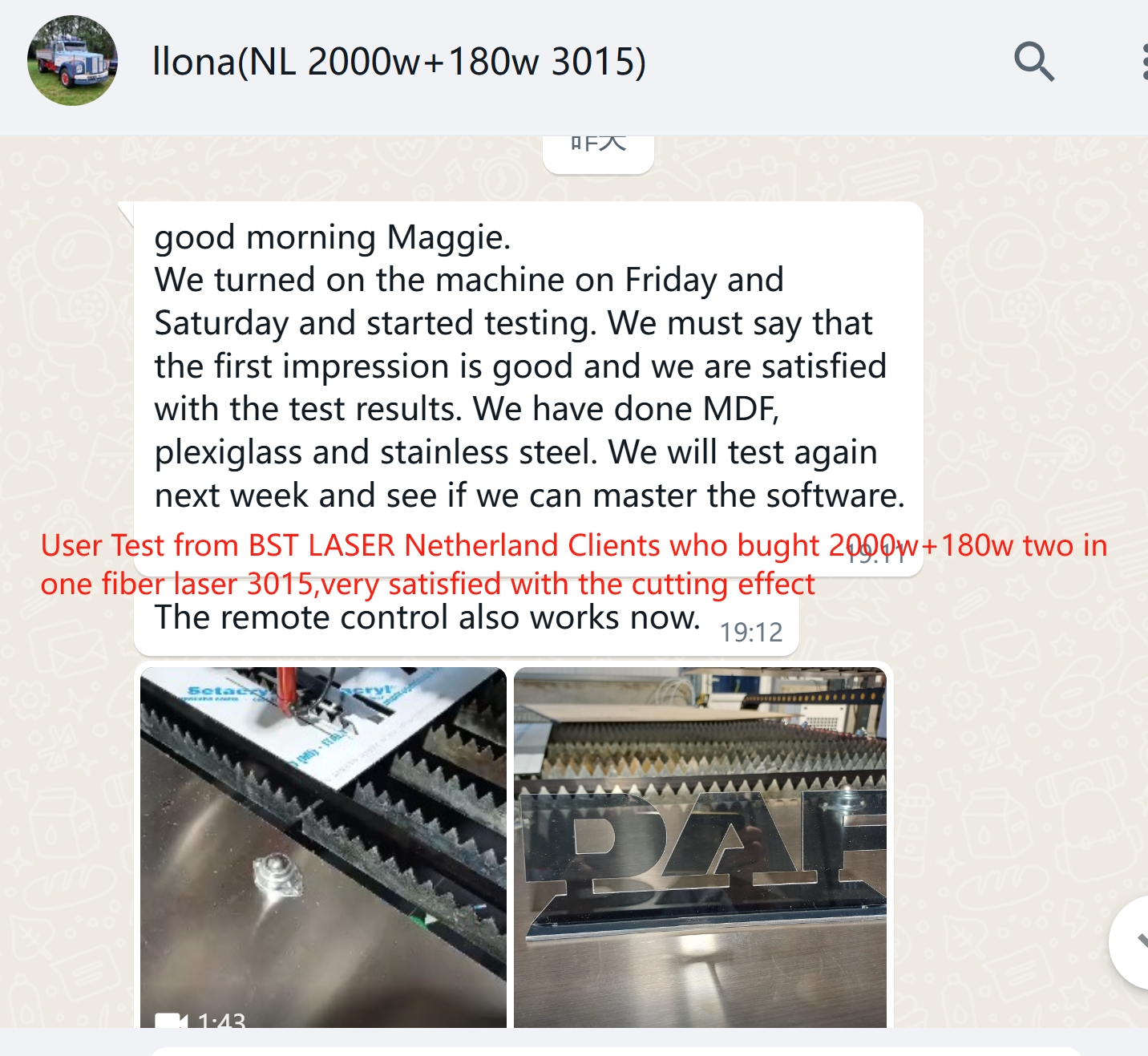

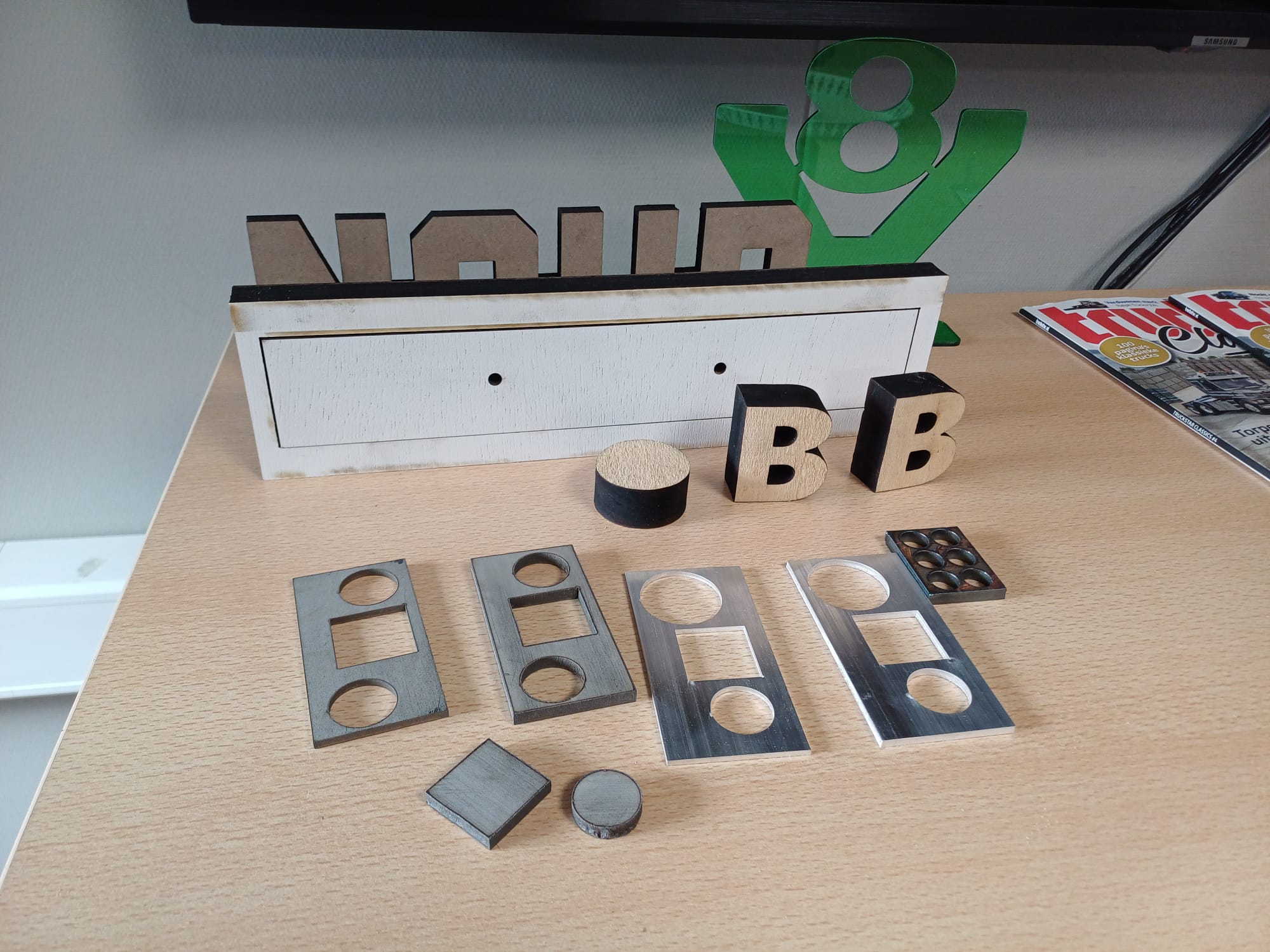

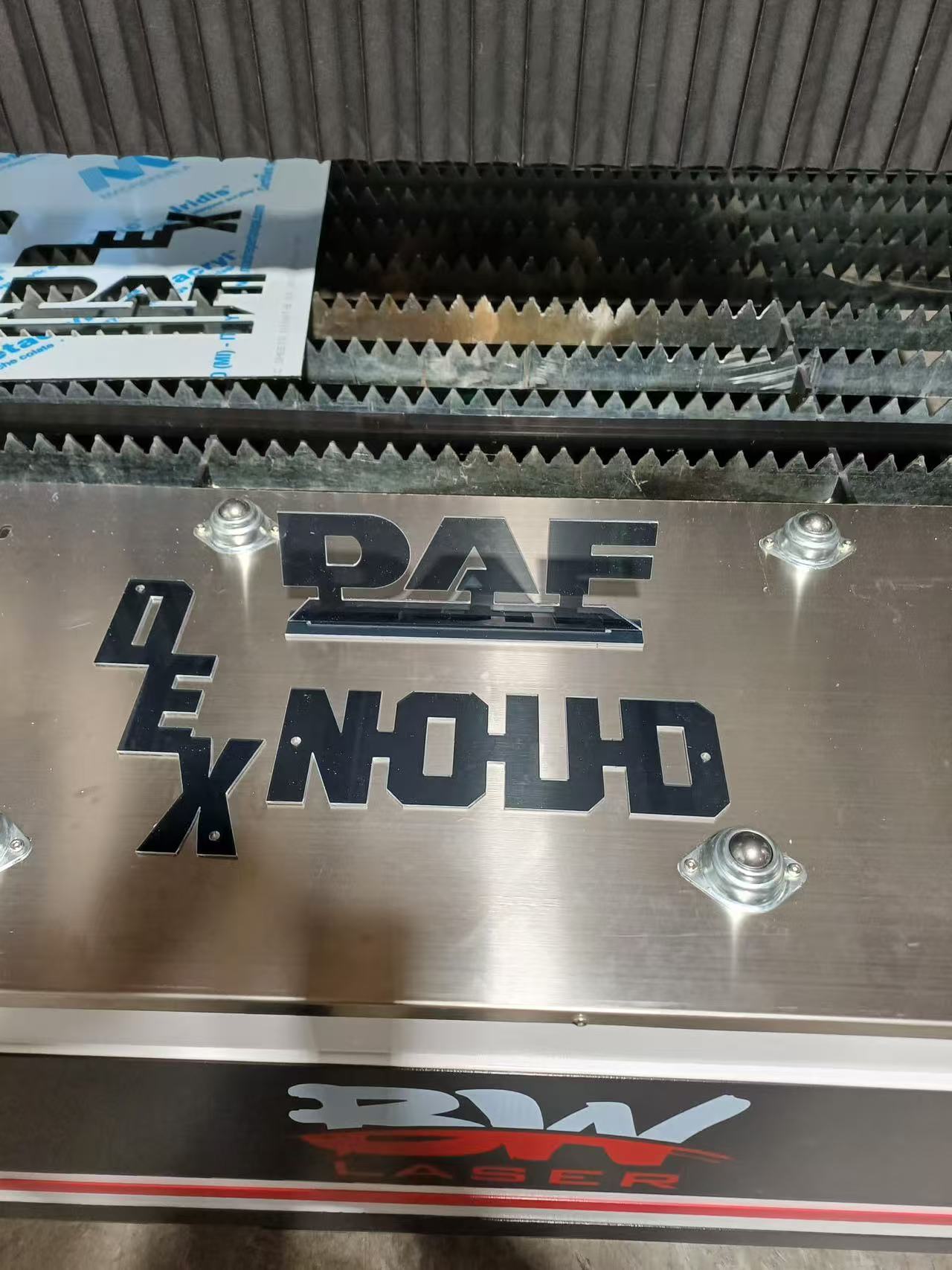

Client Success Cases
Below please check the cases shared from our global clients, how good we say you may not believe but client's personal purchasing experience can verify it.
Key Machine Features
- Dual Laser Sources: Equipped with two laser sources: fiber laser device + CO2 sealed glass laser tube, equivalent to two machines.
- Professional Software: Metal and nonmetal multifunctional cutting software.
- Robust Structure: Heavy loading plate and pipe welding machine body structure, holding surfaces are processed by digital gantry.
- Precision Transmission: Grinding precision gear rack, servo motor, Hiwin Linear Guide Rail, Taiwan ball screws, and precision reducer transmission system to ensure no vibration.
- Independent Cutting Heads: Separate metal fiber laser cutting head and nonmetal CO2 laser cutting head, with auto-focusing to avoid interference.
- Dust Protection: Dustproof reliable CO2 optional laser path structure to prevent smoke and scrap entry.
- Power Efficiency: Home use two-phase electricity with 220V/1 phase, reducing operation costs.

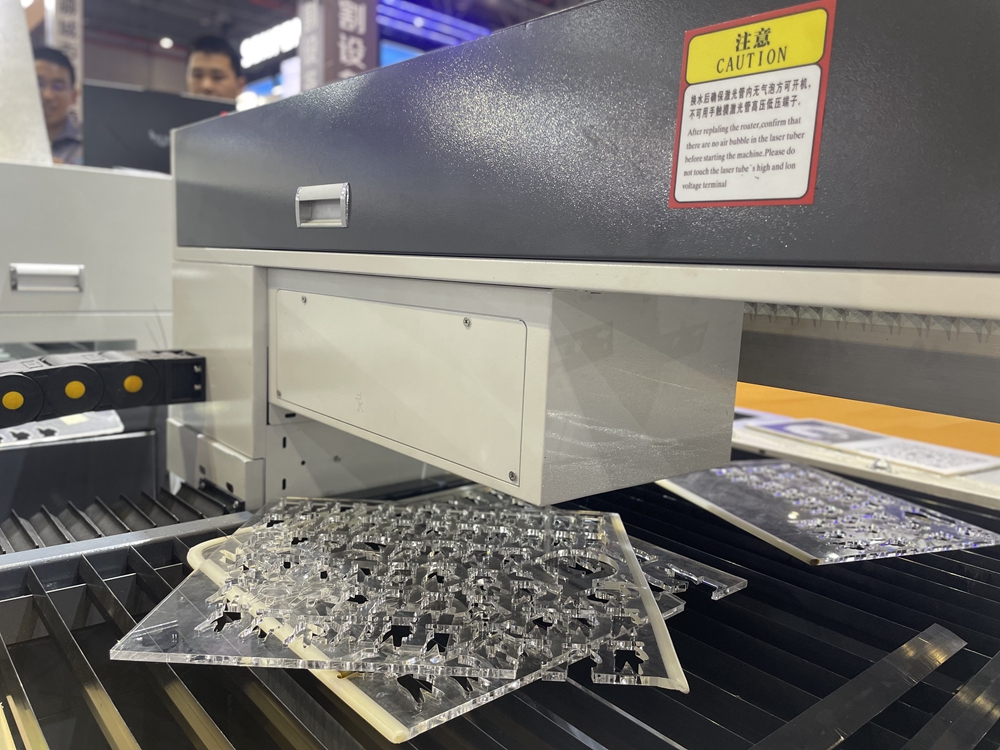

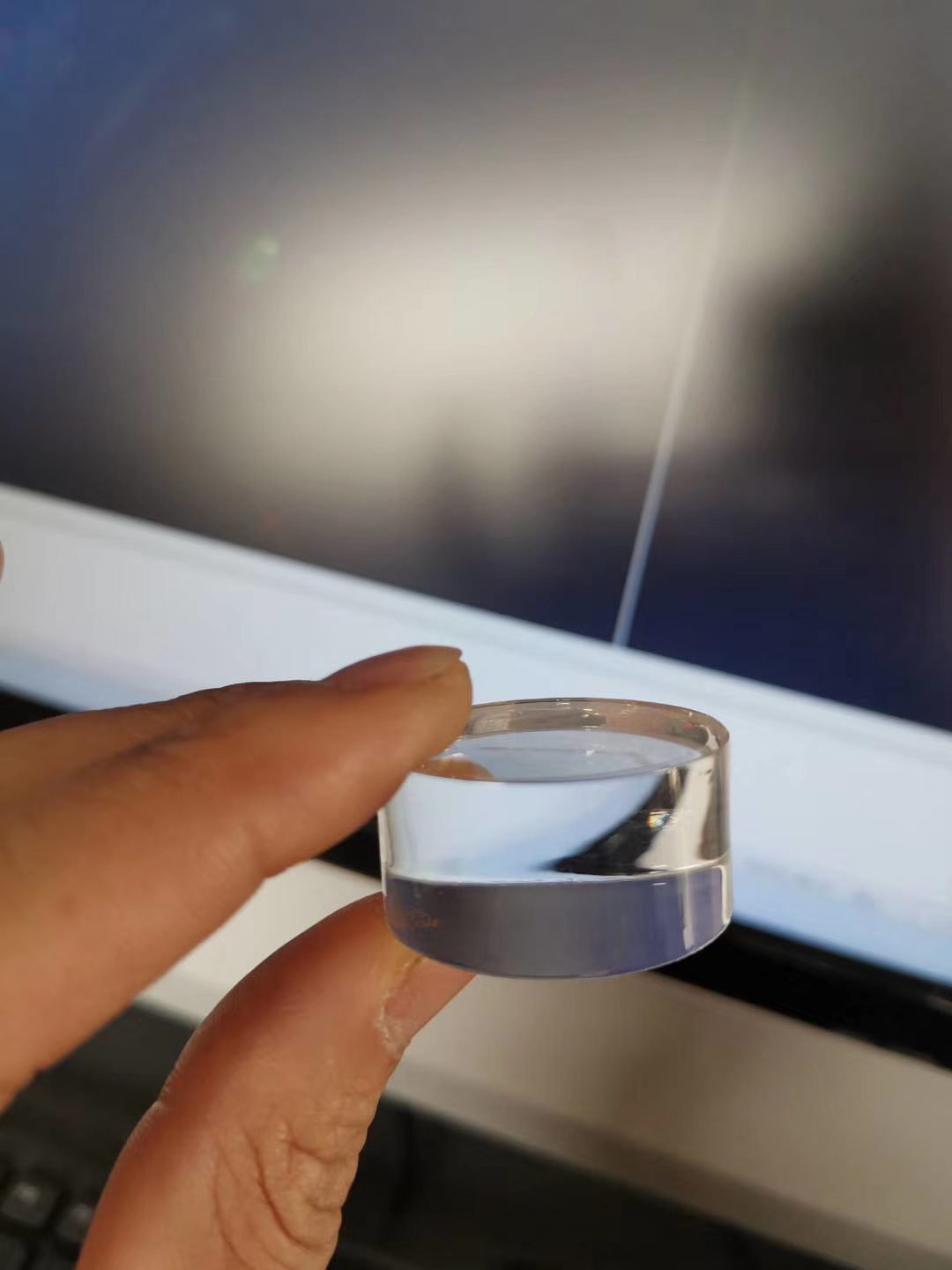

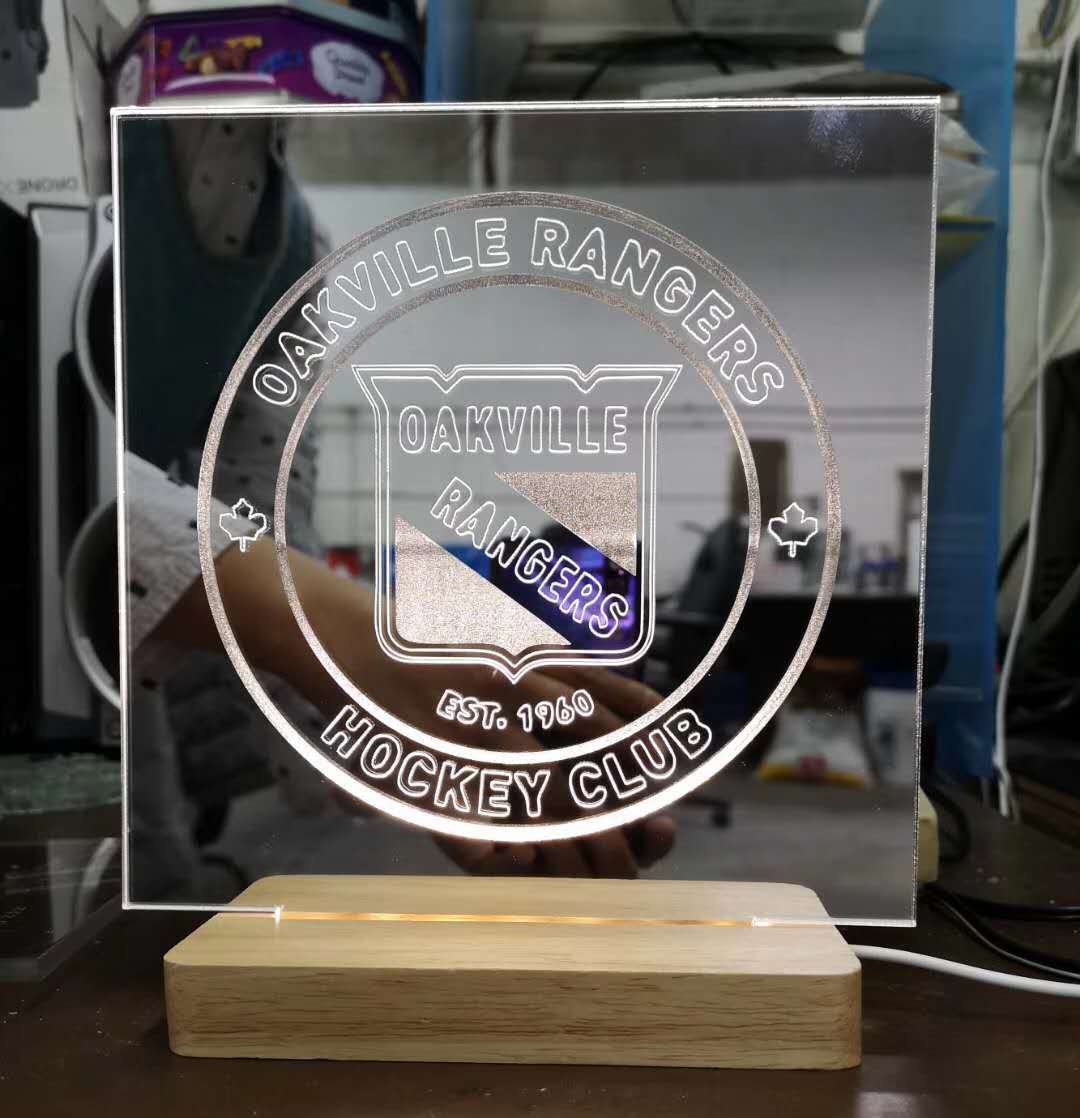

10mm Acrylic Sheets Cutting by Metal Nonmetal 1500W Fiber Metal Laser

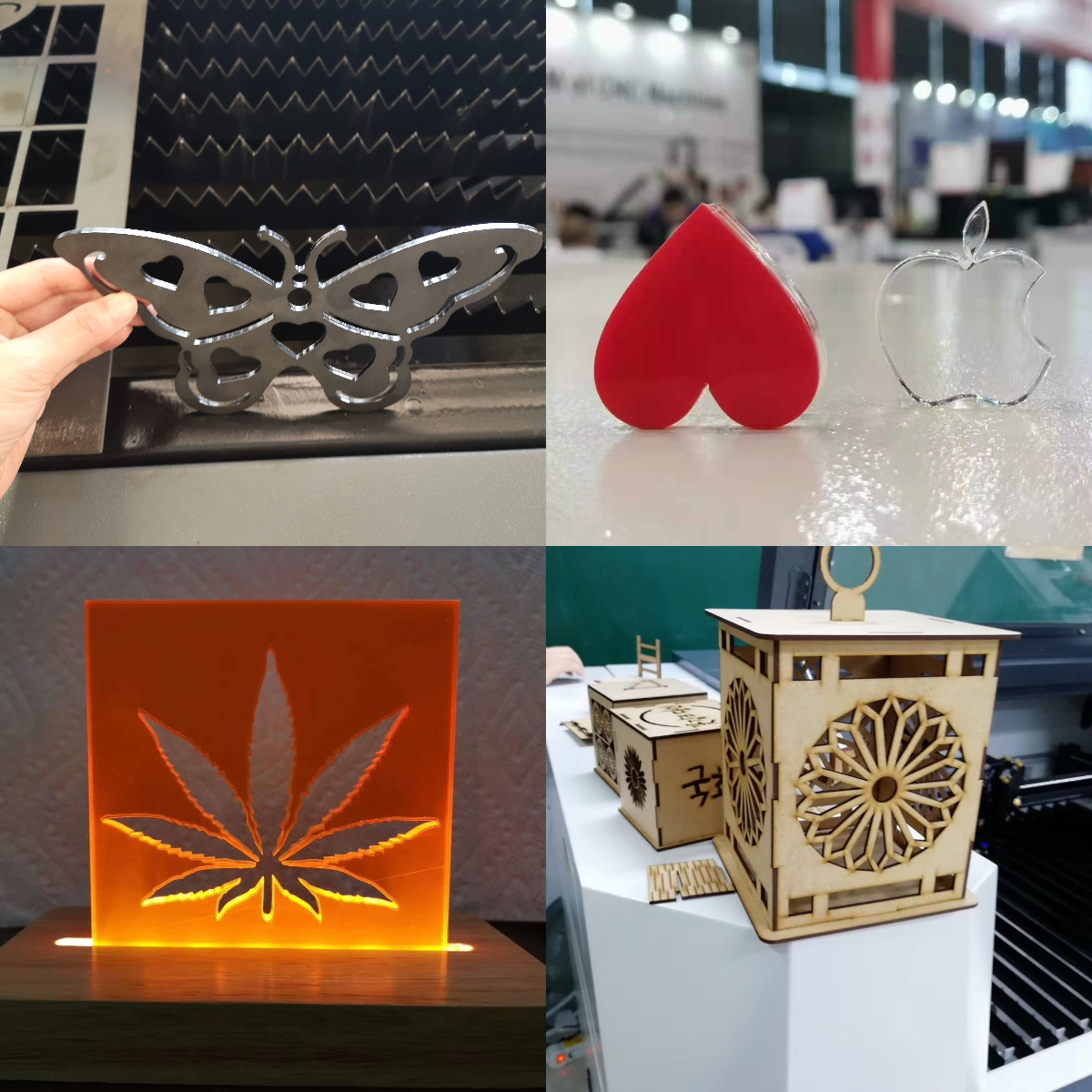

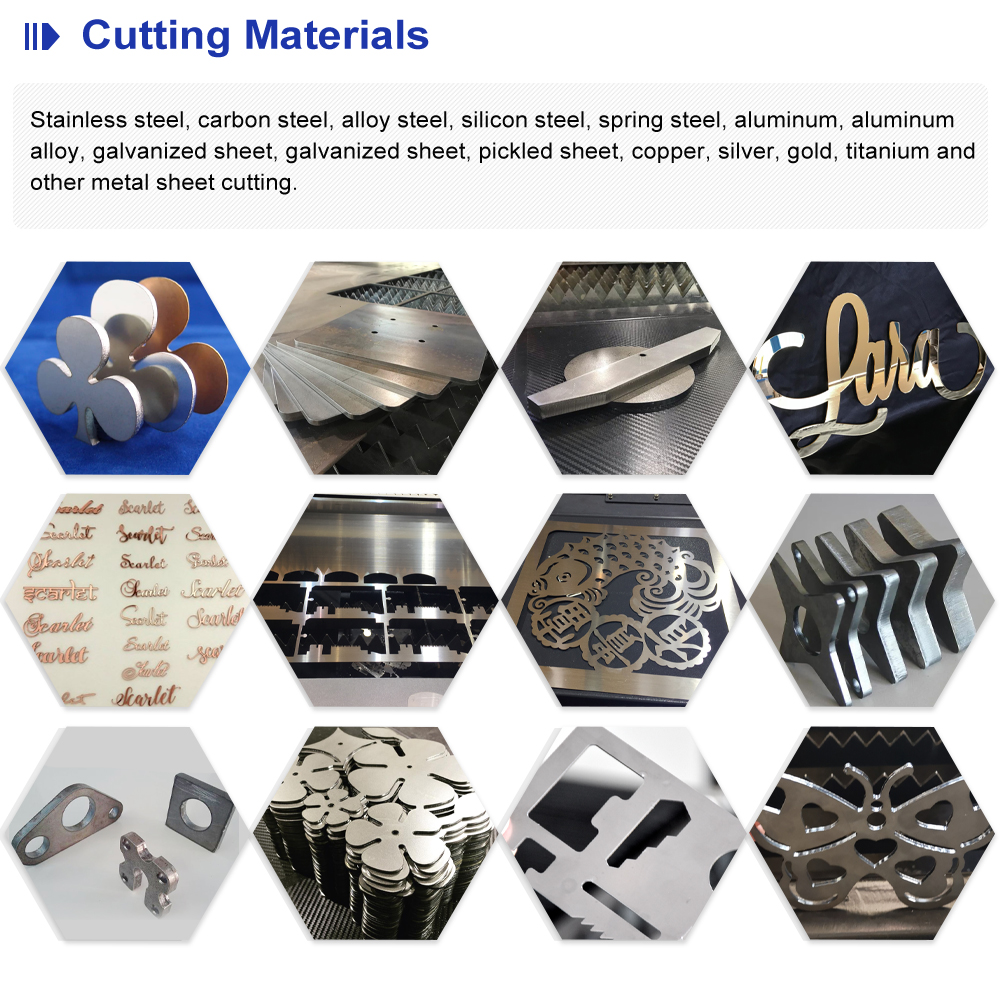

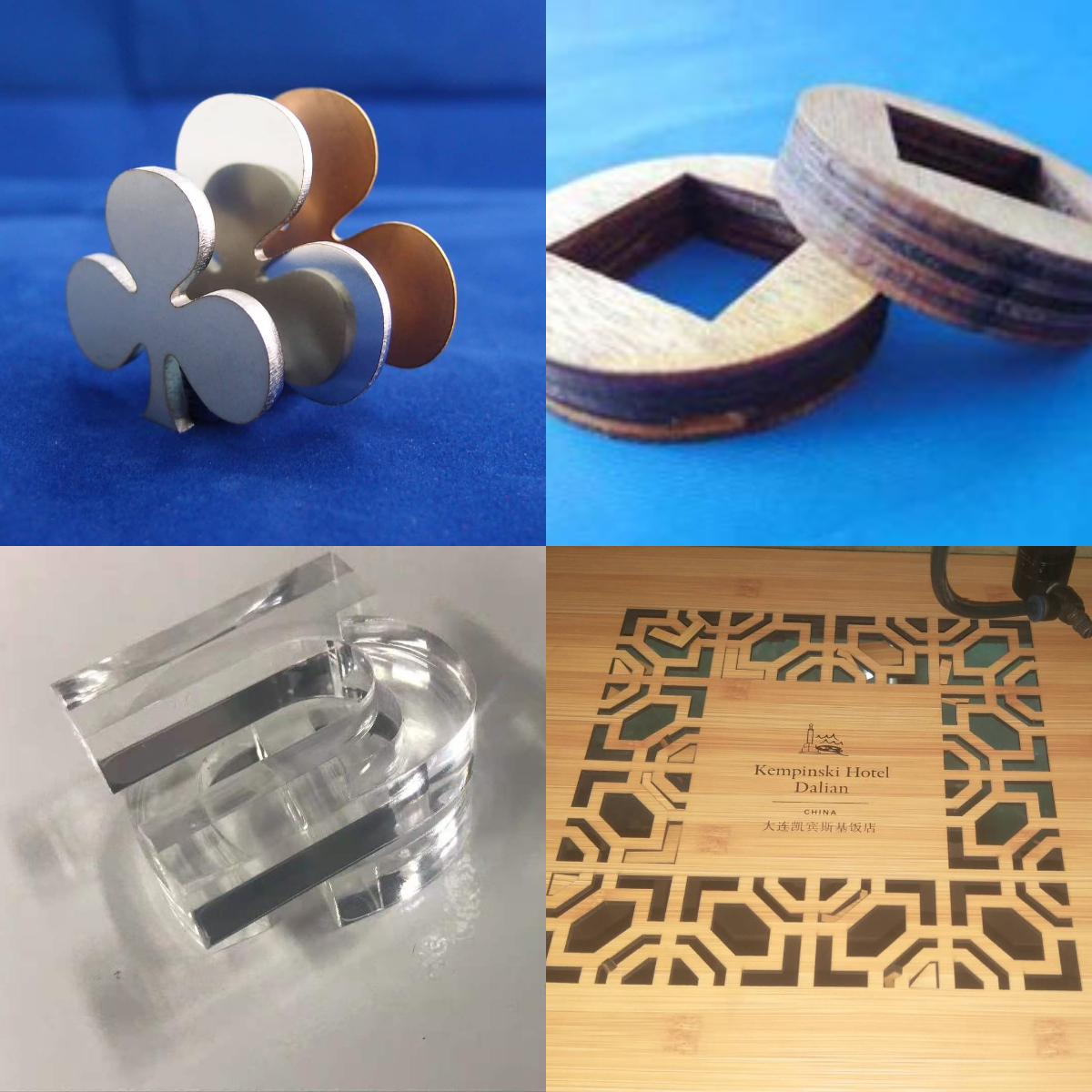

Applications & Materials
The Metal Nonmetal Fiber Laser Cutting Machine is widely used in signage, advertisement, and metal processing industries. Key sectors include fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, etc. It is the perfect laser cutting machine for metal plates (stainless steel, carbon steel, aluminum, copper, brass, etc.) and nonmetals (wood, acrylic, plastic, plexiglass, organic glass, etc.).
Technical Parameters
| Model |
BE-FM-1325FCG / BE-FM-3015FCG |
| Working Size |
1300×2500mm / 1500×3000mm |
| Laser Type |
Fiber Laser + CO2 Laser Device |
| Fiber Laser Power |
1500W, 2000W, 3000W |
| CO2 Laser Power |
180W, 300W |
| Laser Source |
Raycus (Optional: Max/Reci/BWT/IPG) |
| Laser Wavelength |
Fiber: 1070-1080nm, CO2: 10.6um |
| Max Running Speed |
60000mm/min |
| Max. Cutting Speed |
30-50 Meters/Min (depends on materials) |
| Location Precision |
±0.03mm |
| Re-location Precision |
±0.03mm |
| Max Acceleration |
0.6G |
| Supporting Format |
Auto CAD, Corel Draw, PLT, DXF, BMP, AI, DST, DWG, etc. |

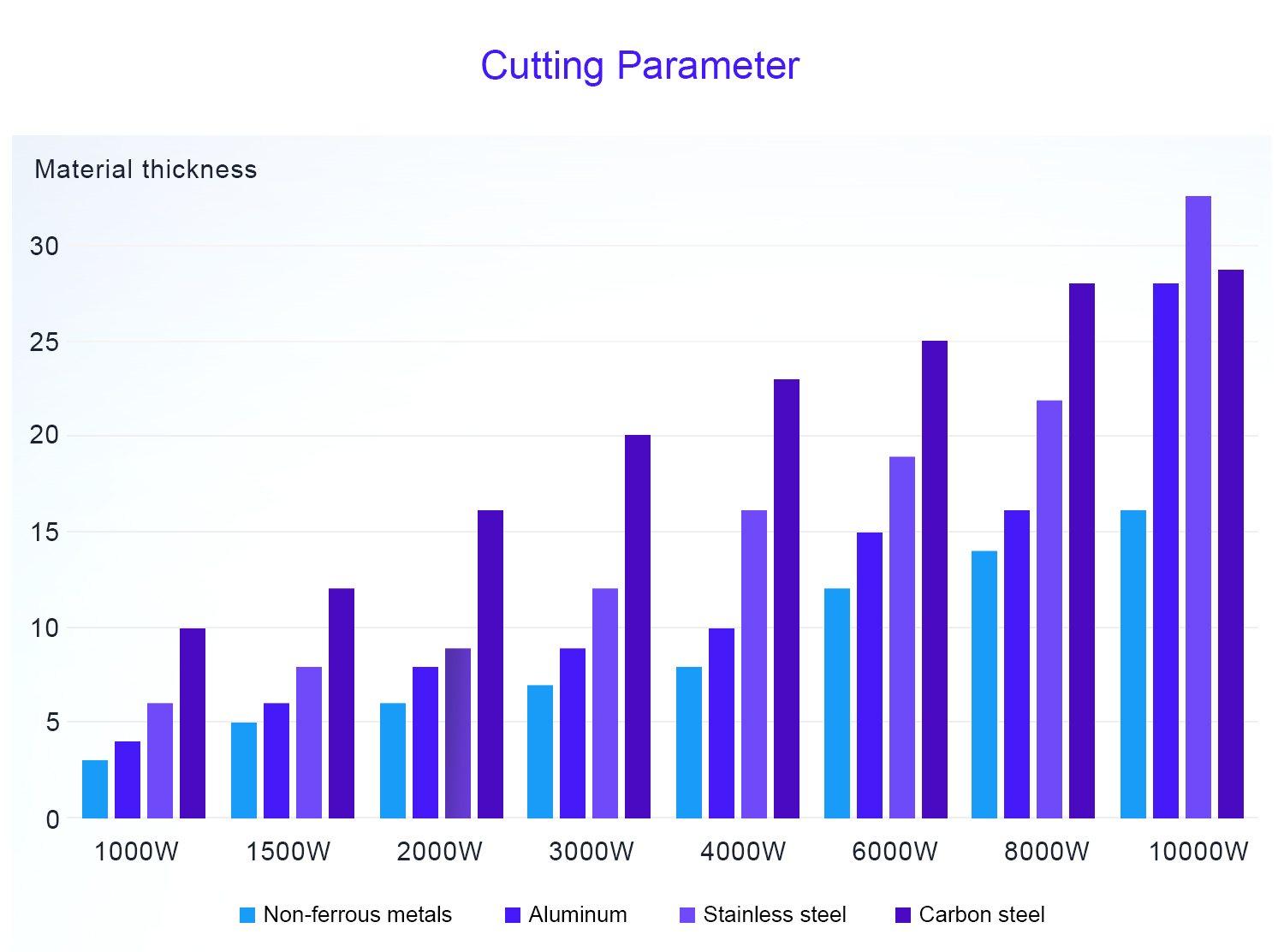

| Max Cutting Thickness |
1500W: 6mm Stainless Steel | 180W: 20mm Acrylic |
| Transmission Method |
Gantry type double rack servo drive |
| Table-driven System |
Japanese Imported Servo Motor & Driving System |
| Focus Method |
Following and Automatic Adjust Focus |
| Running Temperature |
0℃～45℃, 5%～95% non-condensing |
| Control Software |
Cypcut / Au3tech |
Detailed Components & Modules

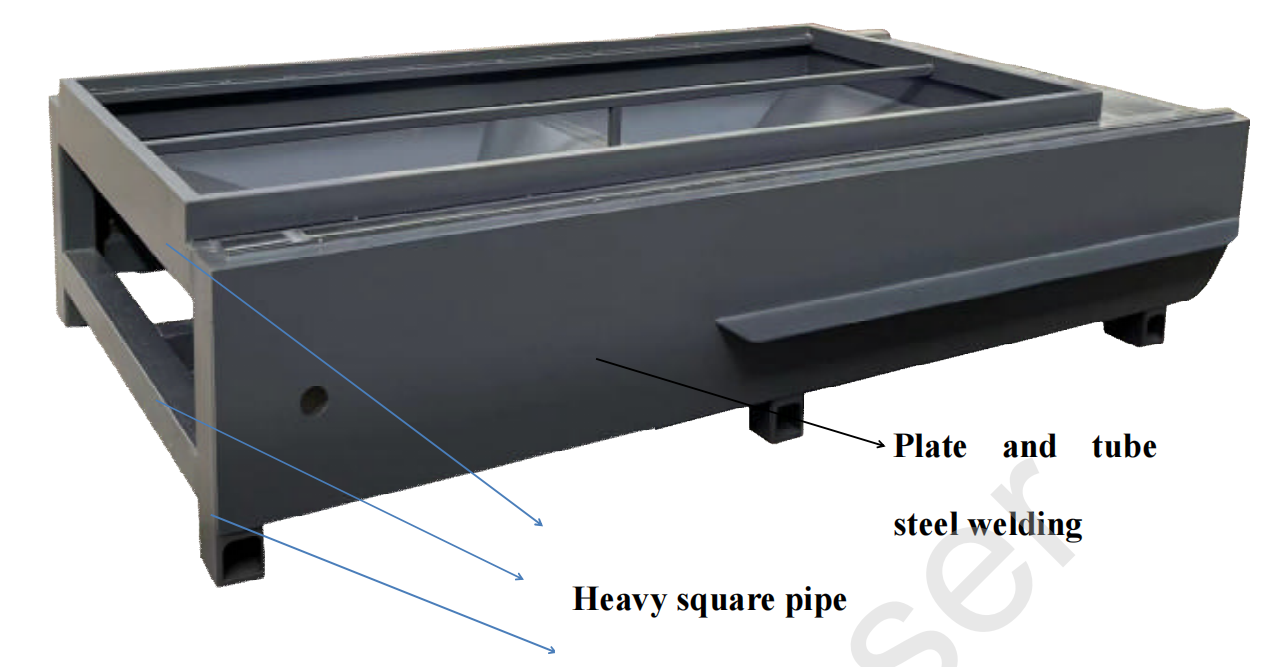

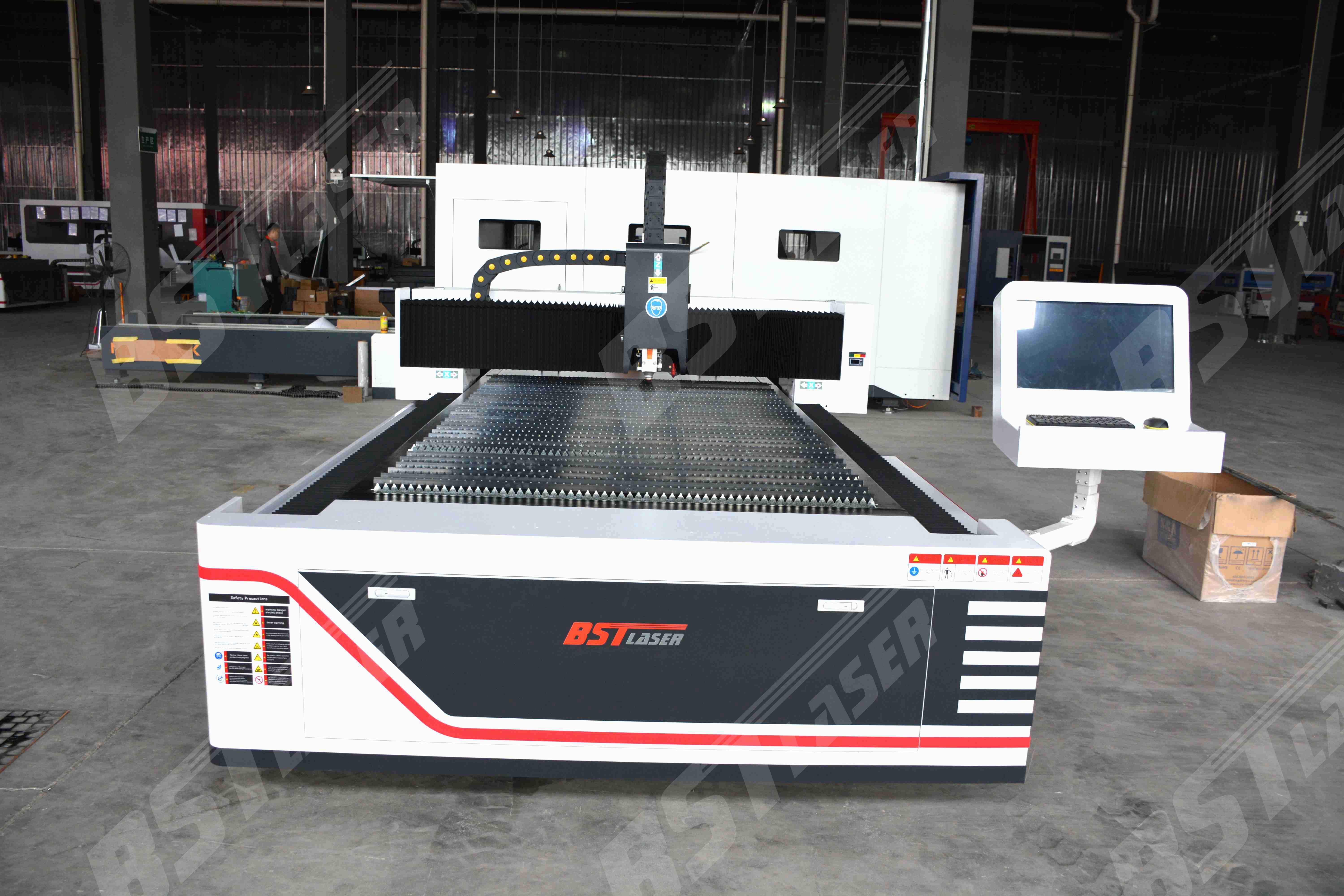

Gantry Type Heavy-duty Steel Structure
Solid and heavy foundation with 3 times CNC precision gantry milling. Whole weight is over 3500kgs, ensuring non-deformation for over 50 years.

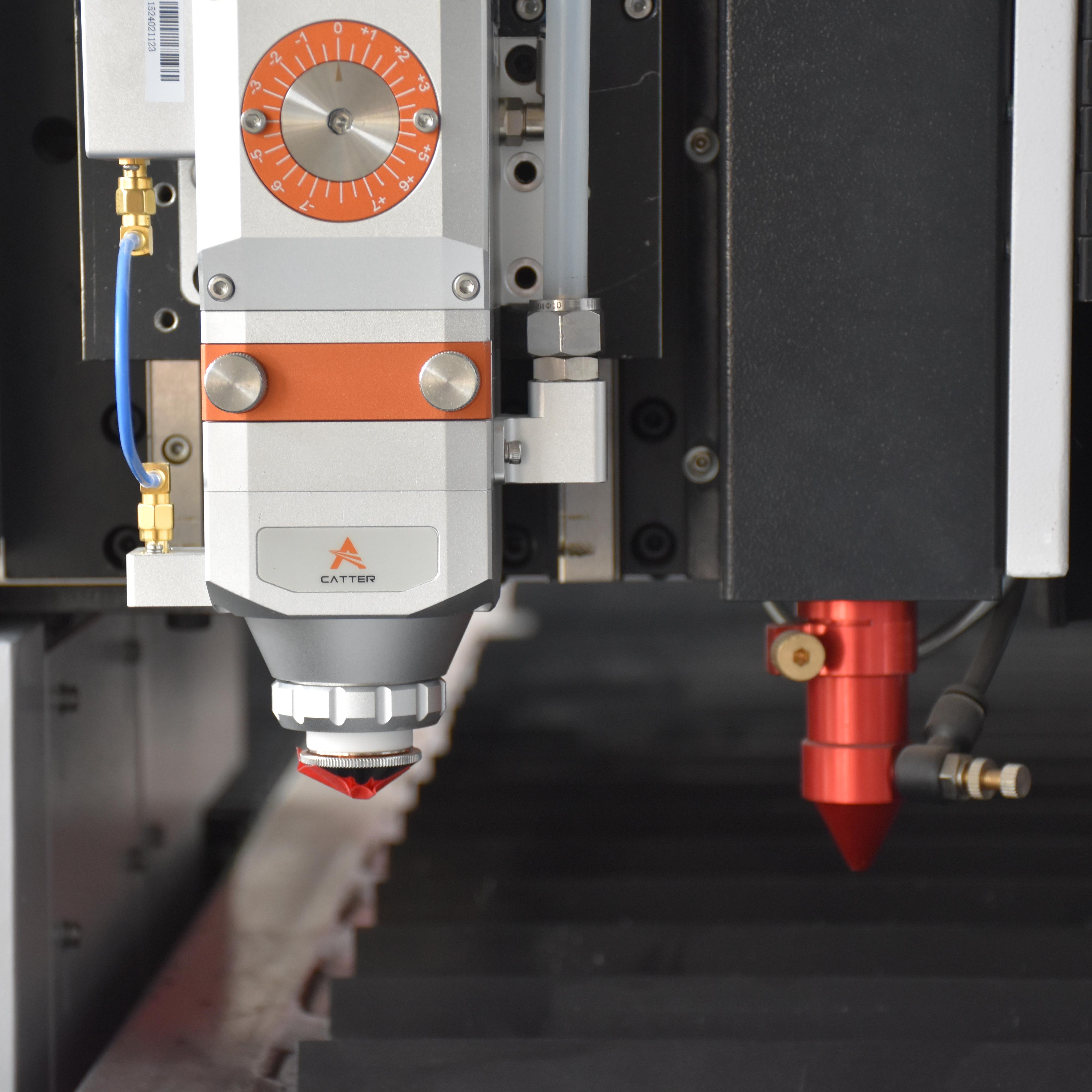

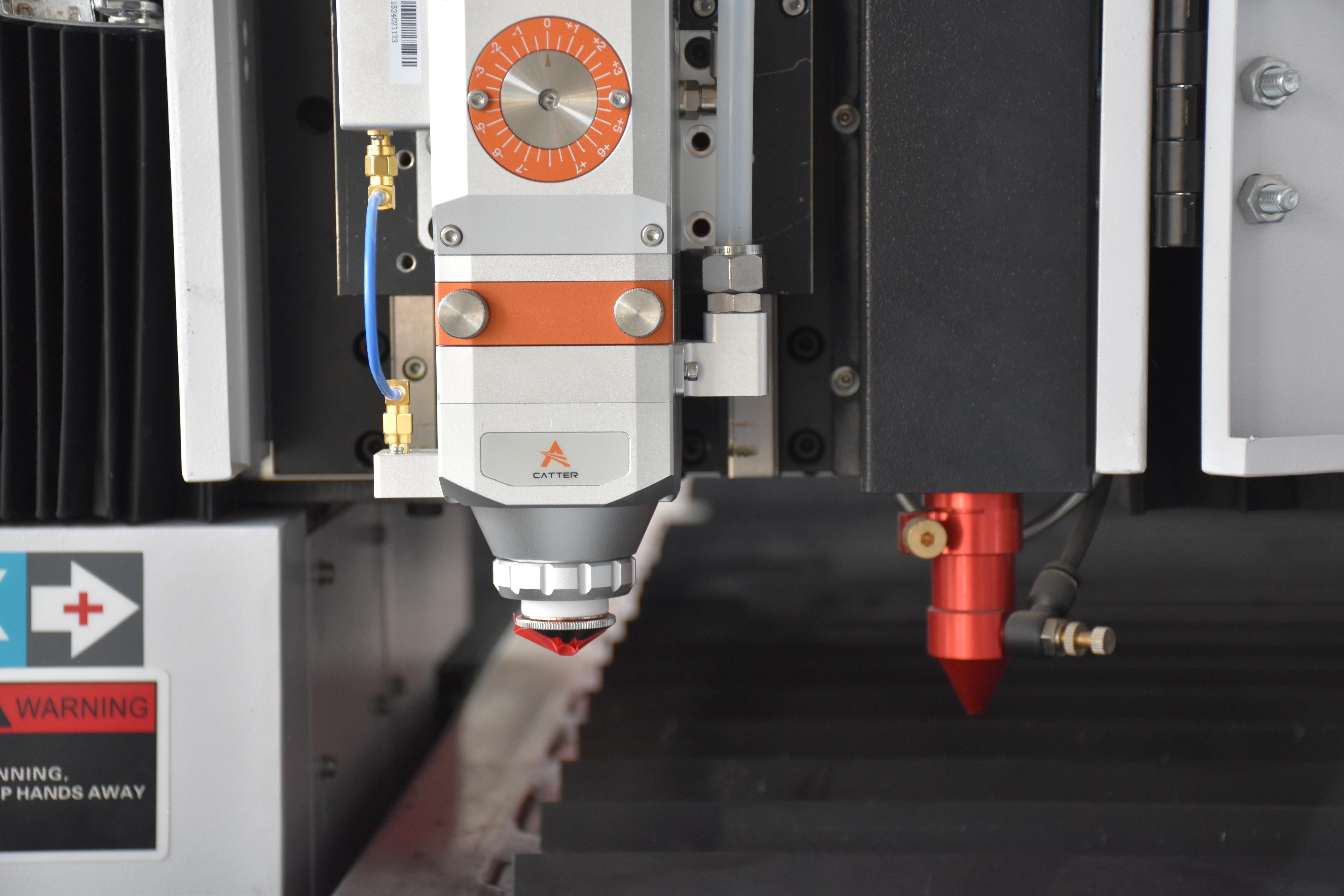

Auto-focusing Laser Cutting Head
Metal cutting head features dynamic auto-following. Nonmetal head includes a patented double blowing design for thick acrylic and wood.

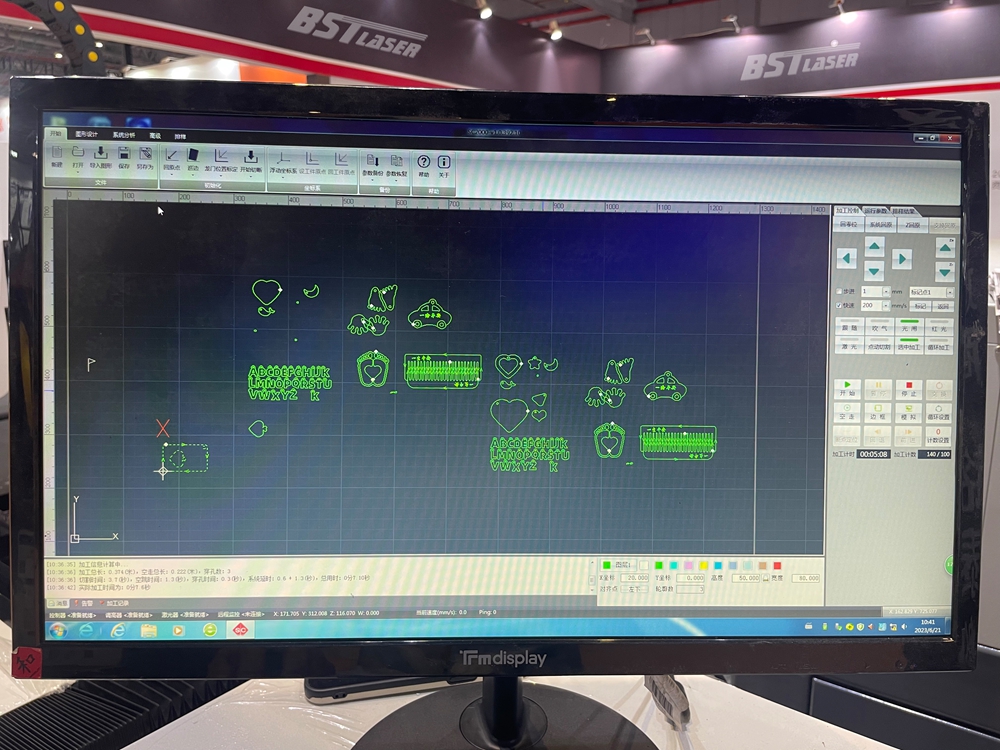

Dual Control System
Special dual-source control software with powerful performance. Supports multiple languages: English, Spanish, Portuguese, Polish, German, etc.

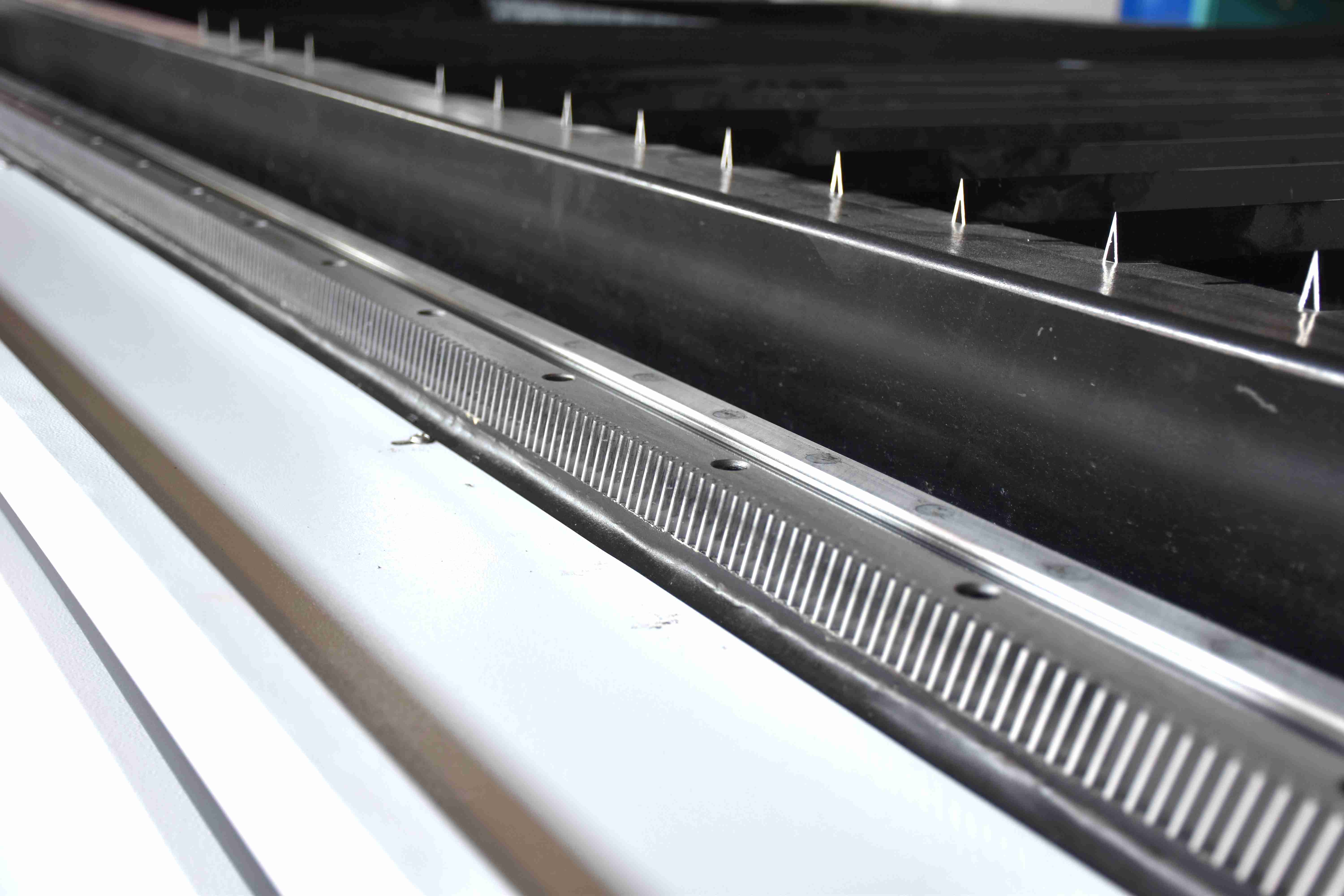

Precision Transmission System
Equipped with HIWIN linear guides and YYC grinding gear racks. Reaches maximum travel speed of 80m/min and 1.5G acceleration.

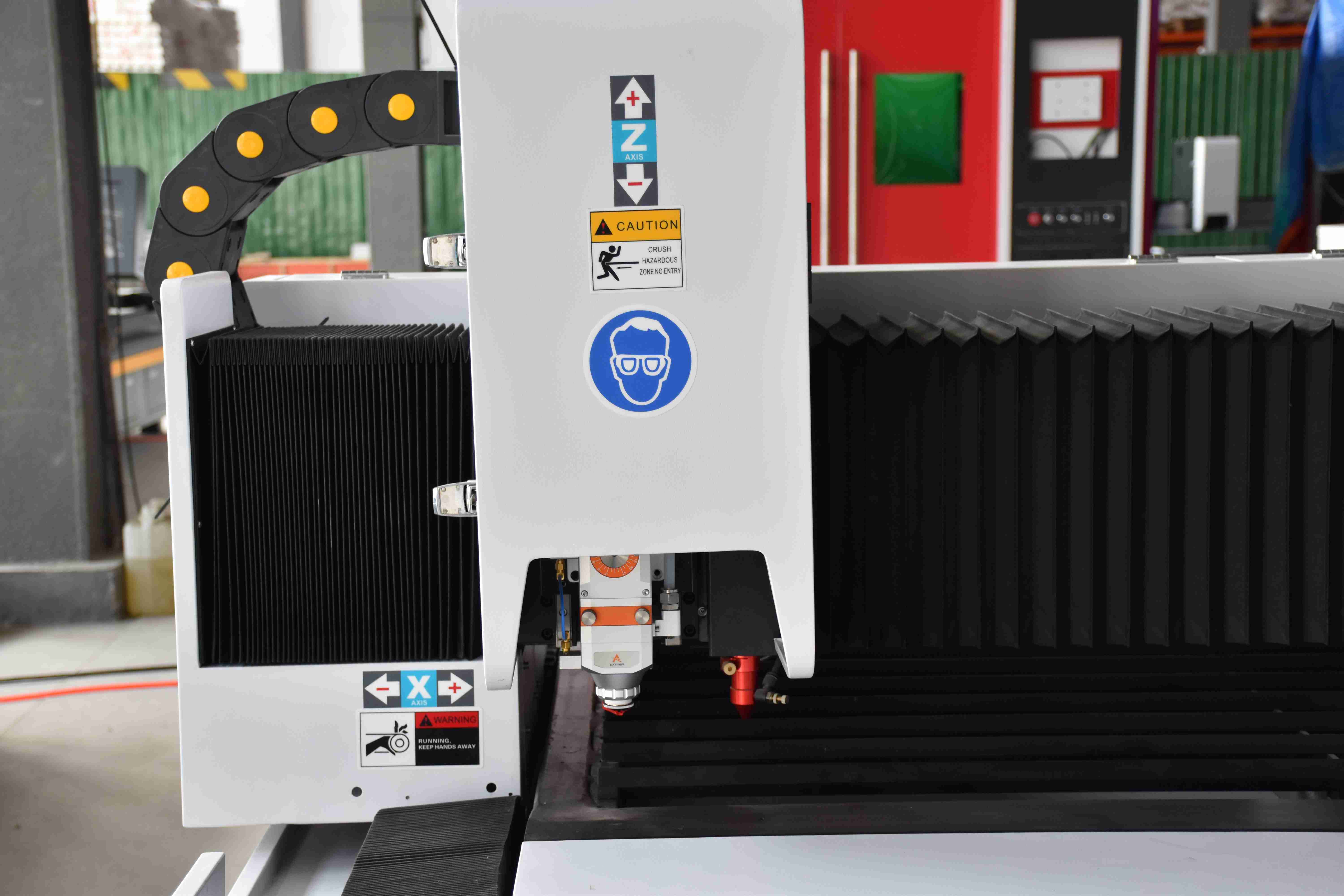

Au3tech Auto-focusing Head
Modular design for easy maintenance. Featuring dual water cooling circuits to improve piercing and cutting efficiency.

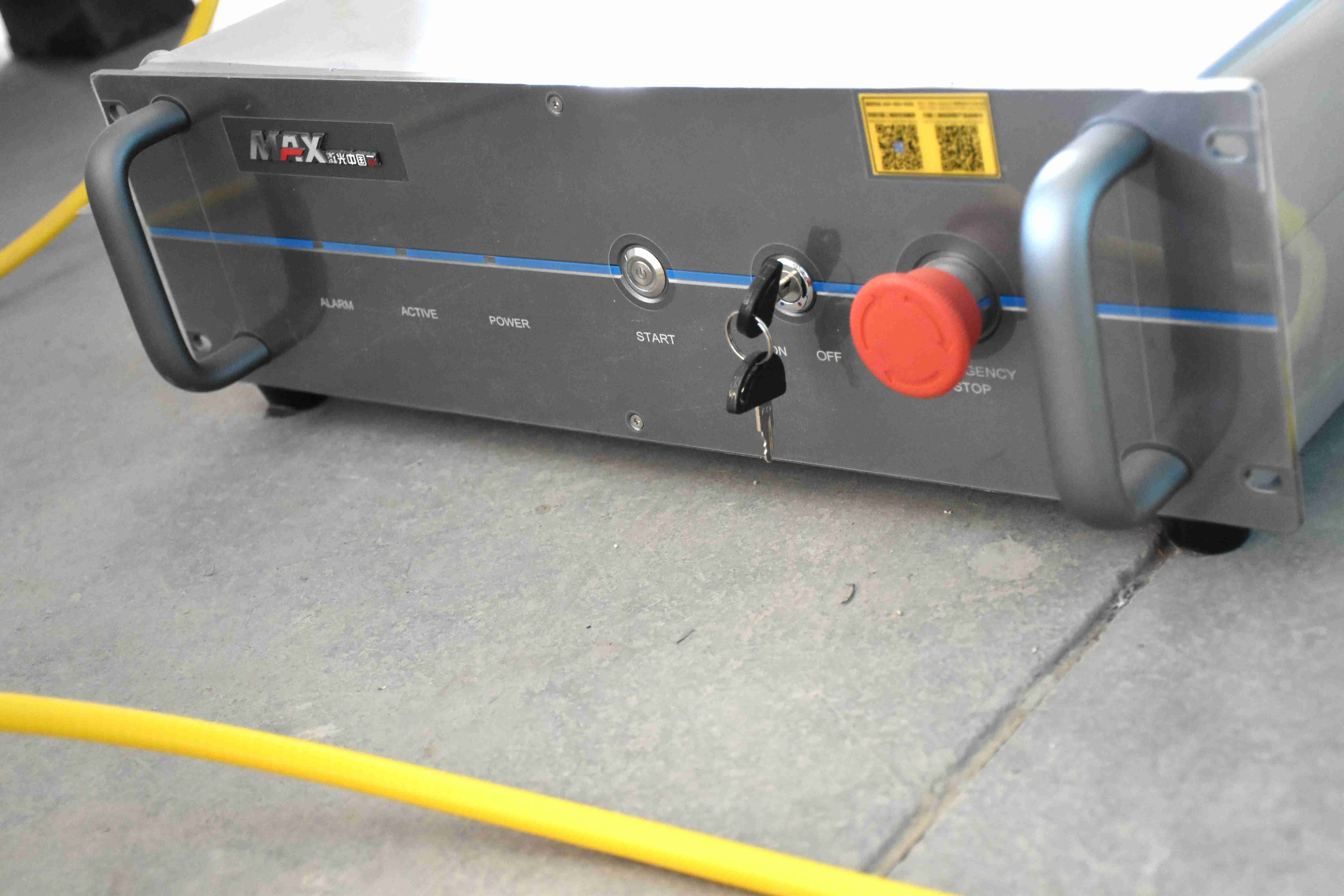

Top Grade Fiber Laser Device
Equipped with genuine Raycus or Max brand fiber laser devices, featuring a lifetime of up to 100,000 hours.

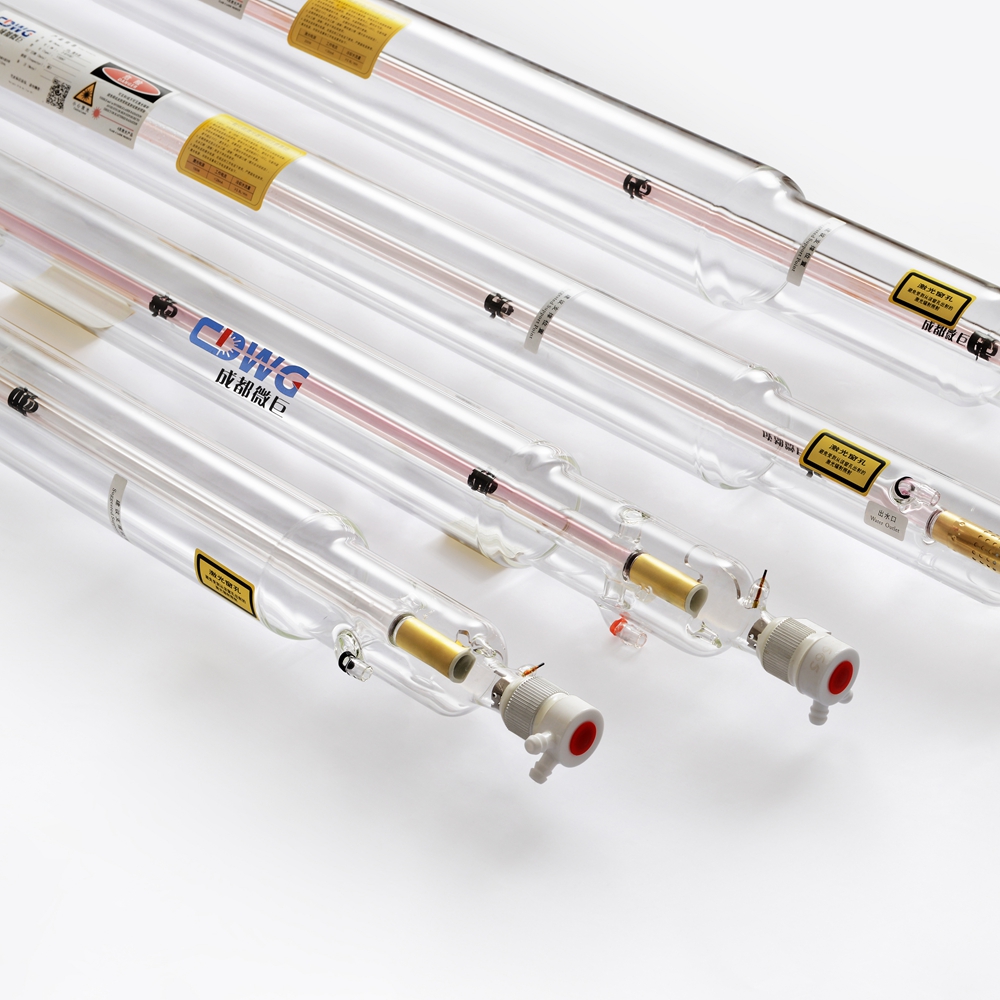

CO2 Sealed Glass Device
Top brand CDWG tube with a 10,000-hour lifetime (Reci, EFR, and Yongli are also available options).

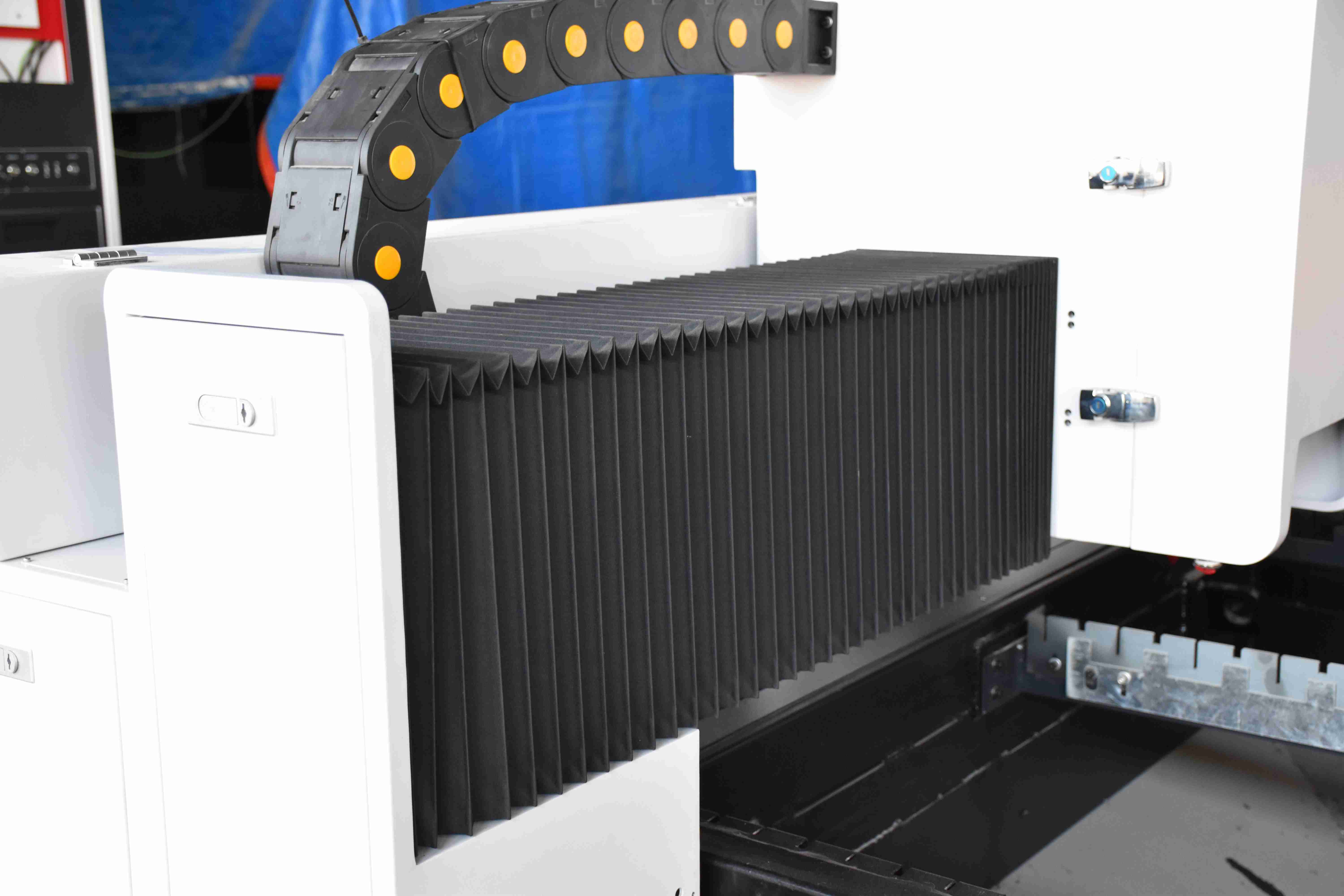

Protection Design for Laser Path
Optical path is shielded to prevent smoke and slag from metal cutting from affecting lenses and paths.

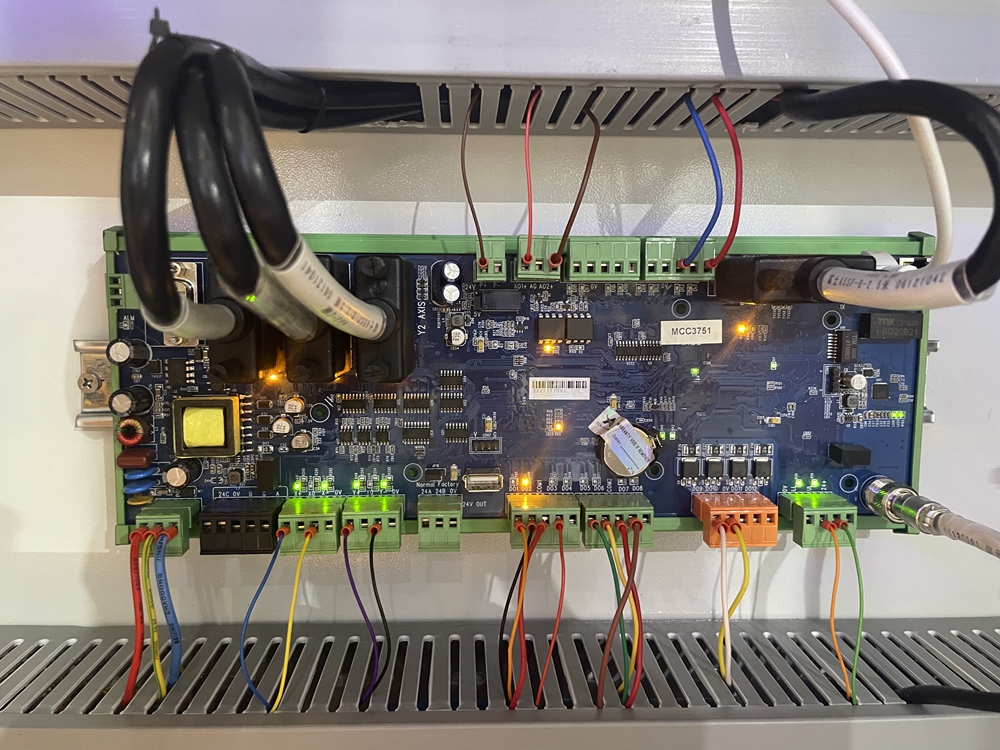

Clear Electronic Layout
Modularized circuit board separating strong and weak electricity paths to eliminate interference and ensure stability.

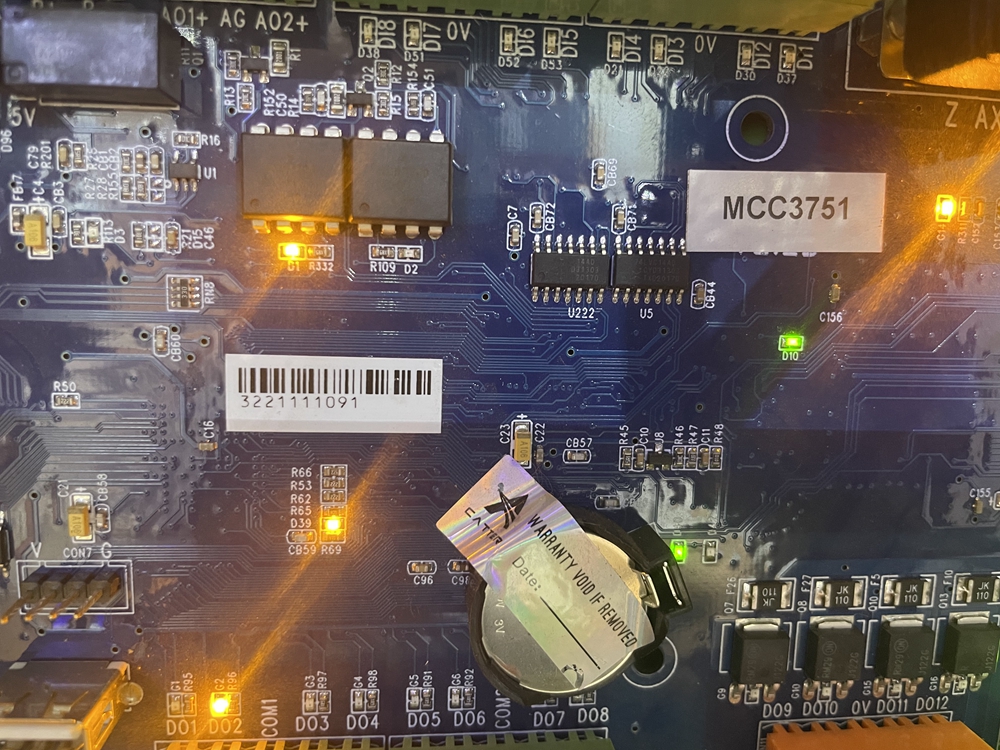

Laser Machine Control Board
Specialized control card designed specifically for cutting both metal and nonmetal materials reliably.

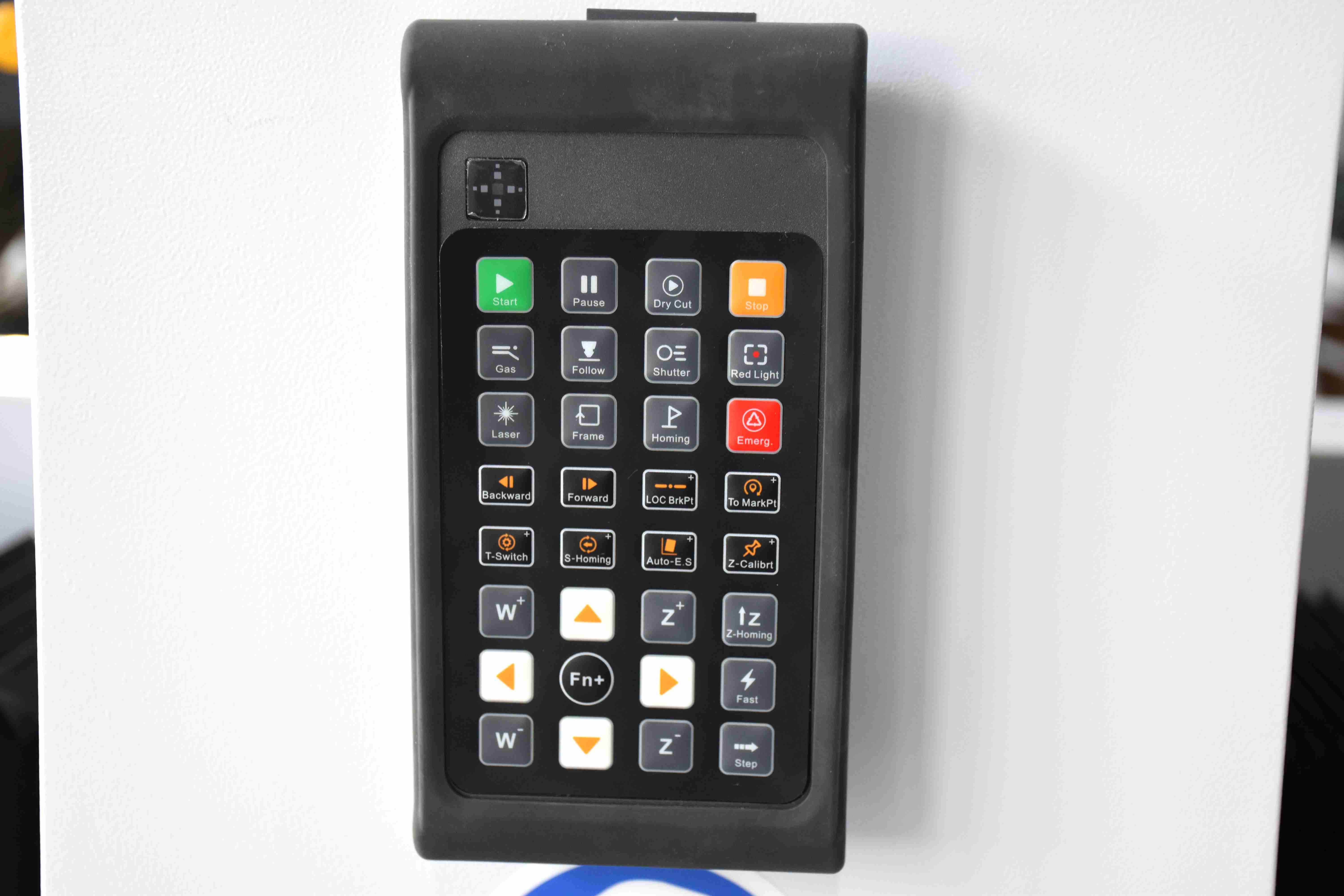

DSP Remote Controller
Wireless remote control enabling operators to manage operations offline from any convenient and safe spot.

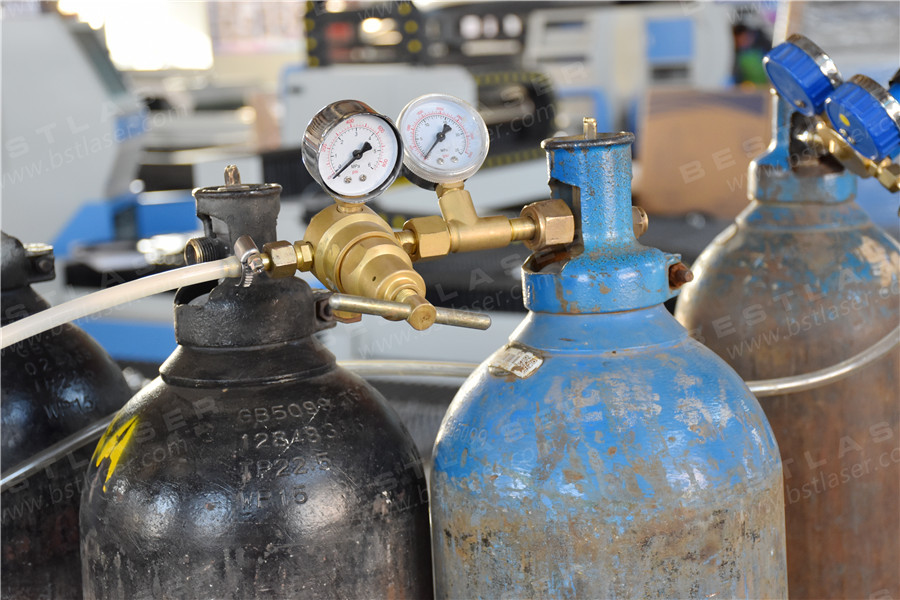

Gas Supply System
Clears cutting dust to keep the working area clean. Supports Air, Oxygen, Nitrogen, Argon, and other gases.
Technical Support & Service
Service Process
Pre-Sales Service:
• Inquiry and consulting support.
• Sample testing support.
• View our Factory.
Before Delivery:
• Check and test laser welding machine at least 10 times to ensure performance quality.
• Sending testing reports and saving historical technical information for trace support.
After-Sales Service:
• Training on machine installation.
• Training on operation and welding techniques.
• Engineers available to service machinery overseas.
• Lifetime technical support and service provided free of charge.

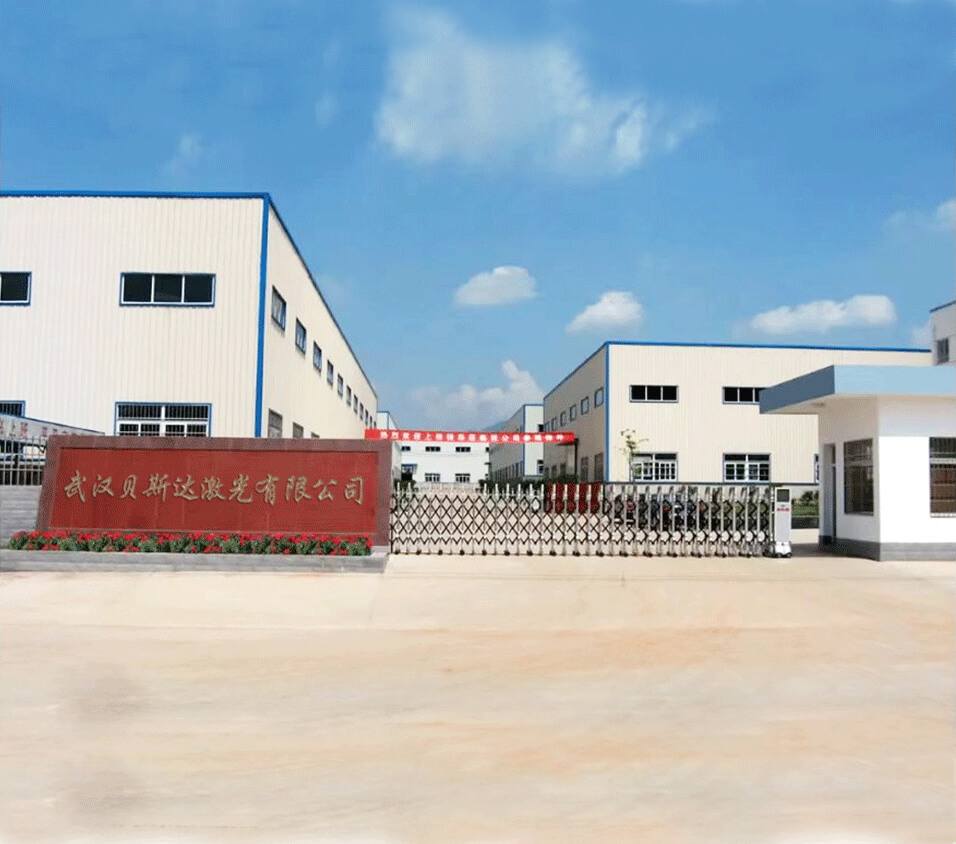

About Our Manufacturing
As a professional 15-year fiber laser cutting machine manufacturer, we are committed to providing customers with high-quality, reliable laser machines. As a result of our quality control measures, our laser welding machines, laser cutting machines, laser marking machines, and laser engraving machines have all achieved CE certification. High precision, low energy consumption, automatic processing, and minimal environmental pollution allow our products to play an important role across various industries.
To recommend you the most suitable fiber laser cutting machine, please consider:
1. What cutting thickness do you demand for different materials? (e.g., 2mm stainless steel, 3mm carbon steel...)
2. What is the max cutting width by length? Our standard models are 1325 (8x4 feet) and 1530 (10x5 feet).
3. What is the application sector? (electronics, kitchenware, metal processing, advertising...)
4. Are you purchasing the machine for resale or personal industrial use?
Frequently Asked Questions
What materials can this hybrid fiber & CO2 laser machine cut?
This dual-system machine cuts both metal and non-metal materials. It cuts metals like stainless steel, carbon steel, iron, aluminum, brass, copper, and titanium using the fiber laser source. It cuts non-metals like wood, acrylic, MDF, plastics, bamboo, and rubber using the CO2 laser source.
What are the advantages of combining a fiber and a CO2 laser in one machine?
By integrating two laser sources and two separate cutting heads, you save approximately 50% on machinery costs, reduce floor space requirements, and lower shipping costs. It functions as two traditional standalone machines combined into a single system.
Does the laser cutting head require manual lens changes for focus adjustment?
No, the machine features auto-focusing cutting heads. The auto-focus mechanism dynamically adjusts based on material specifications, eliminating the need to manually swap focus lenses frequently and preventing human errors.
What control software does the machine use, and does it support different languages?
The system runs on professional controlling software such as Cypcut or Au3tech. It natively supports multiple operating languages including English, Spanish, Portuguese, Polish, German, and others for seamless international workflow.
Can this machine run on a standard home power grid?
Yes, the machine is designed to be compatible with typical single-phase/two-phase home electricity grids running on 220V/1-phase. This keeps operation costs low and installation setups highly flexible.
What technical support and training services are provided after purchase?
We offer detailed guidance and training on machine installation and operations. Additionally, engineers are available to service machinery overseas, and we provide lifetime free technical support to all clients.
