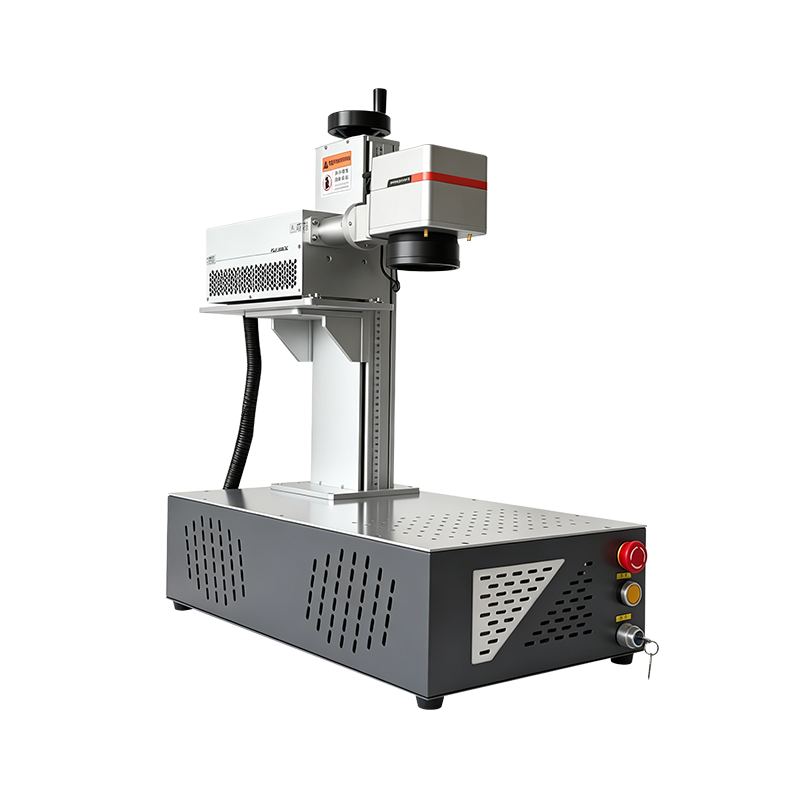

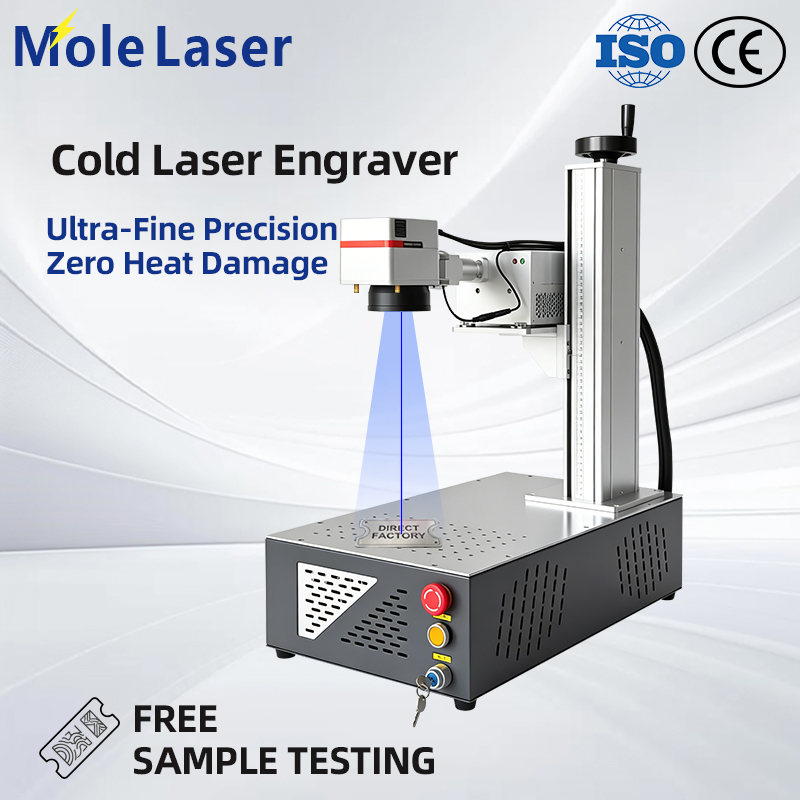

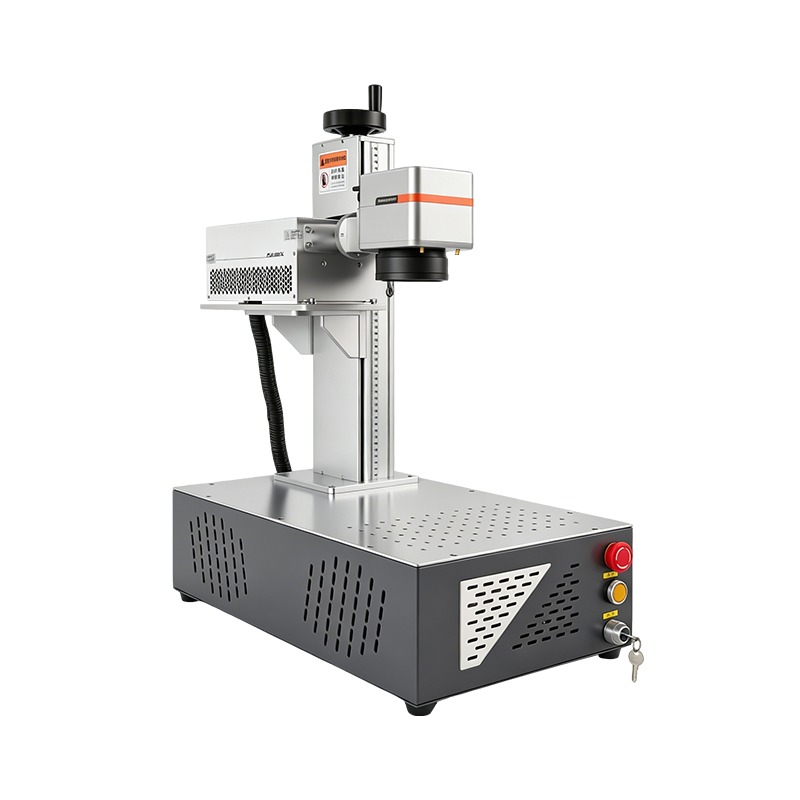

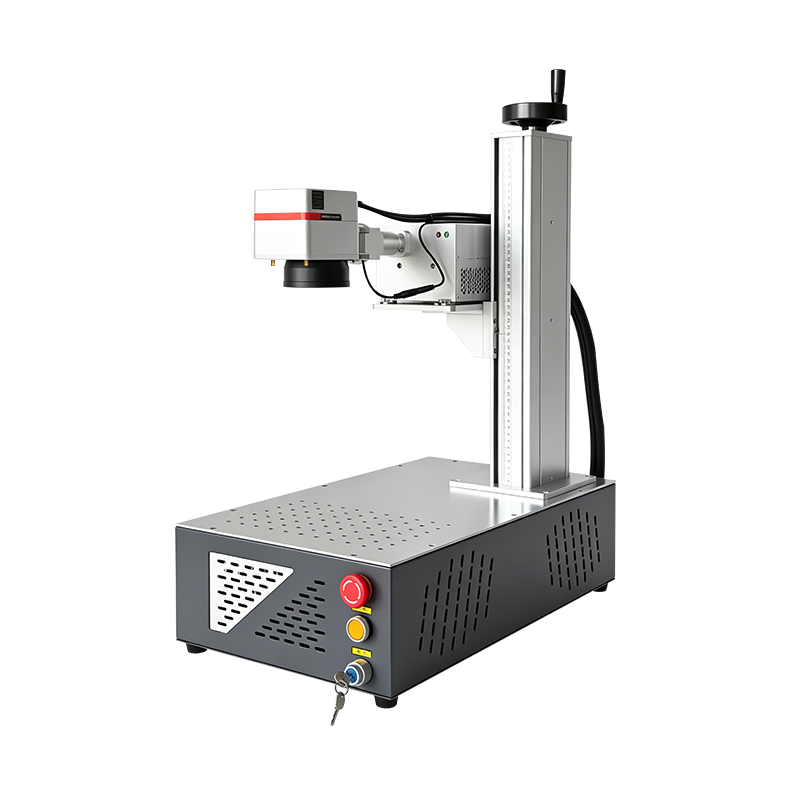

Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
1 / 5
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving
Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving

Air-Cooled UV Laser Marking Machine for Small Business Crystal Glass Plastic Custom Engraving

Send Inquiry

Product Description

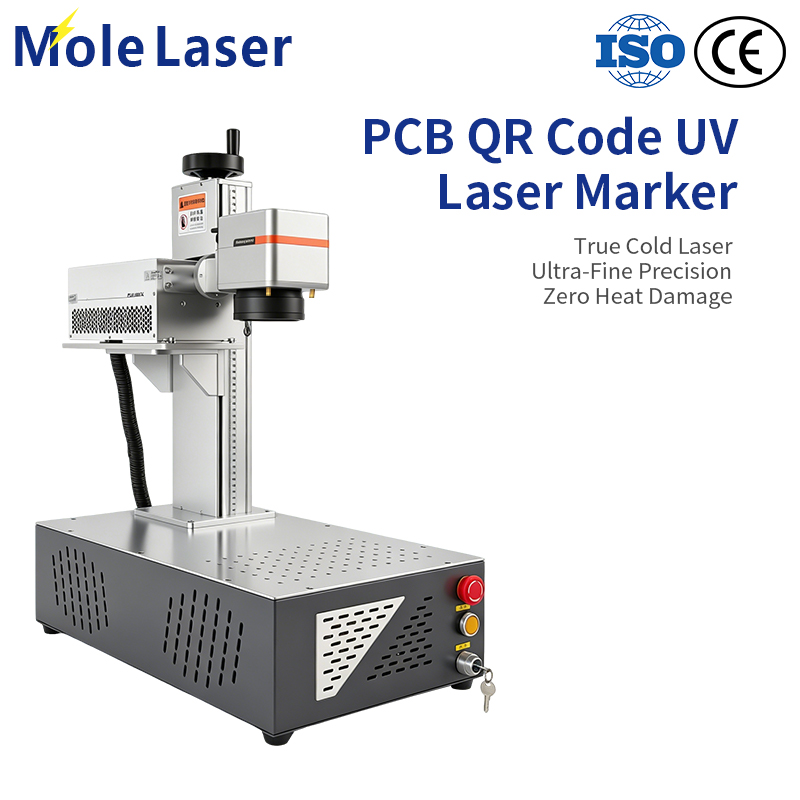

Products Description
Products Description

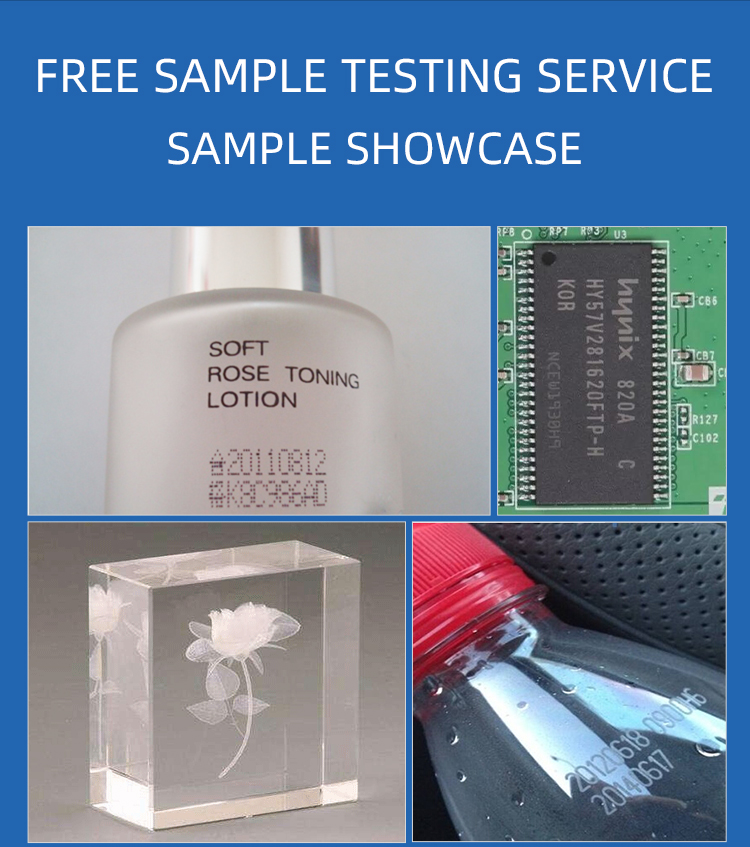

Sample Display
Sample Display 1
Sample Display 2
Details Images

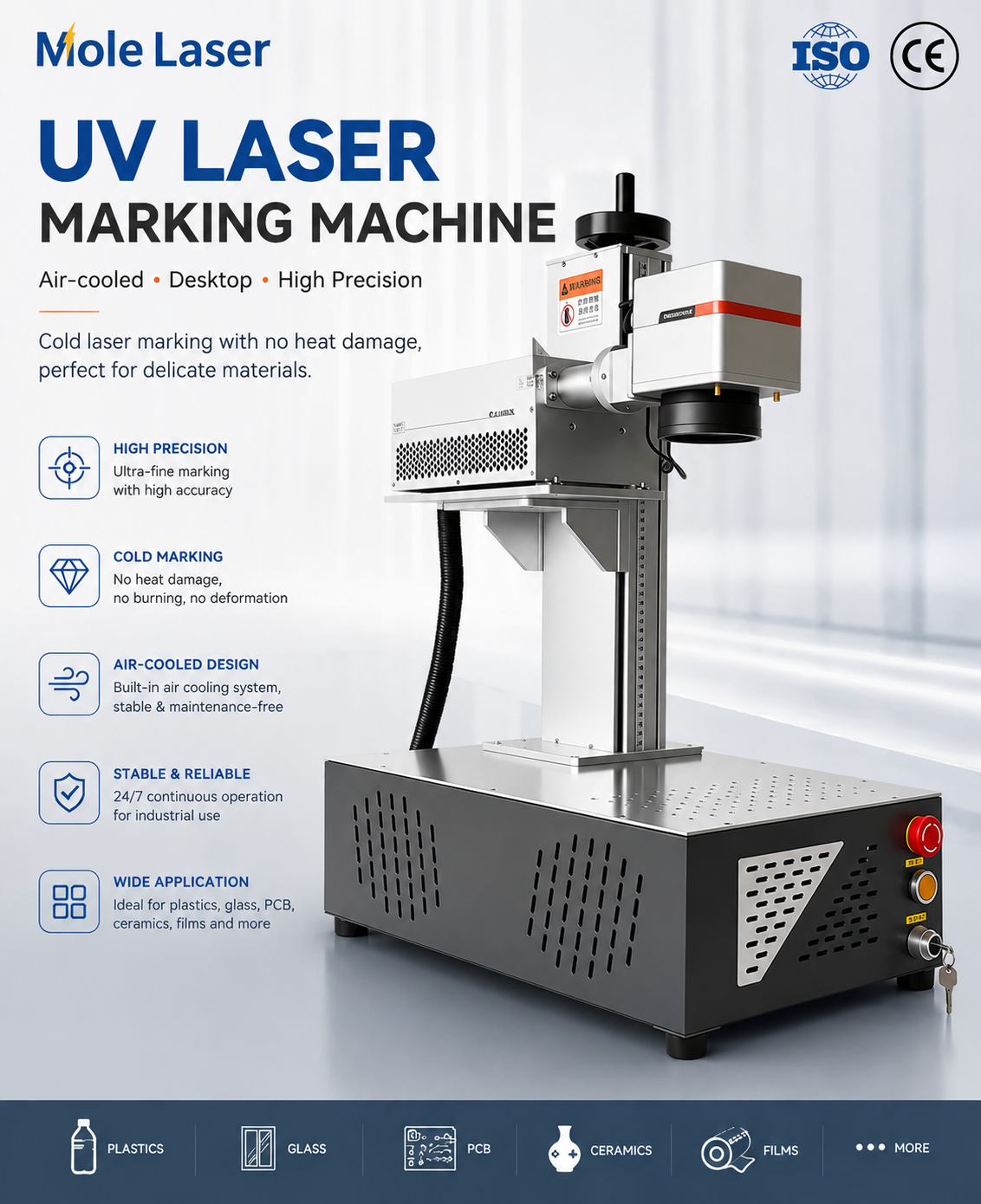

Detail 1

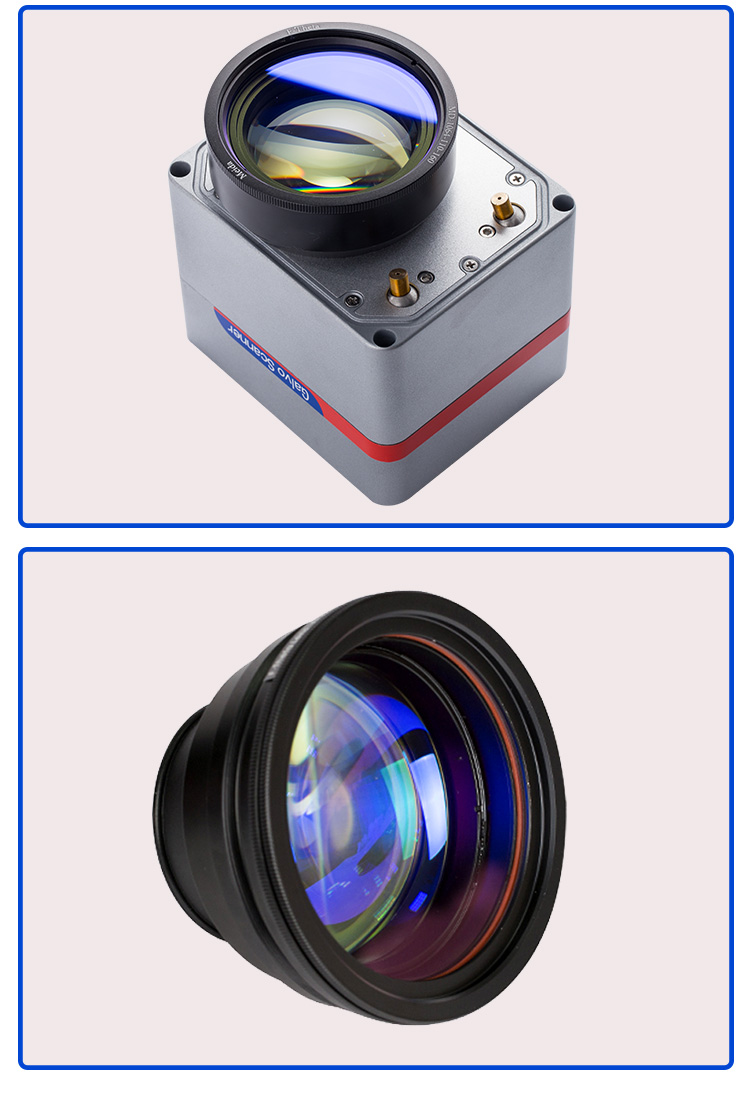

Detail 2

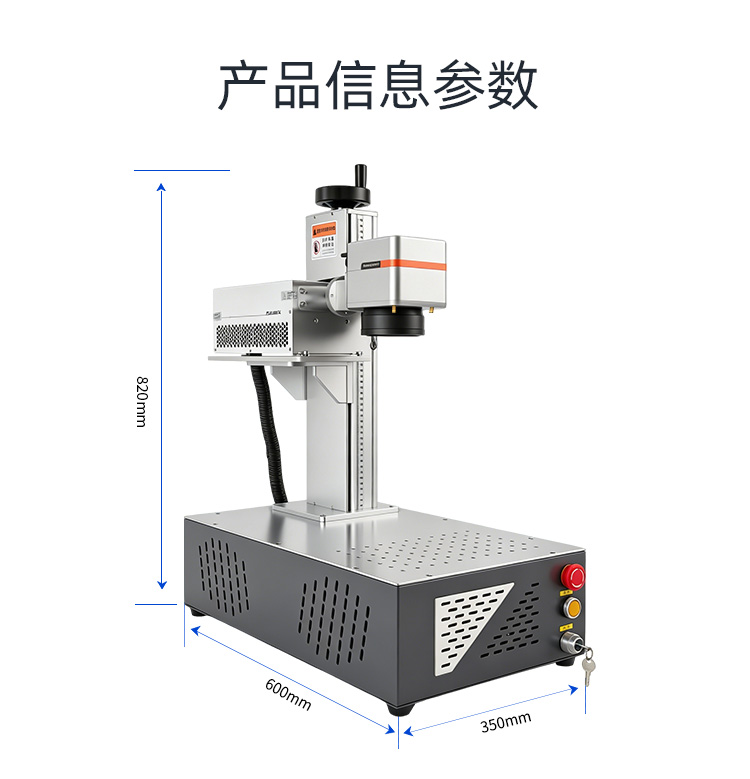

Detail 3

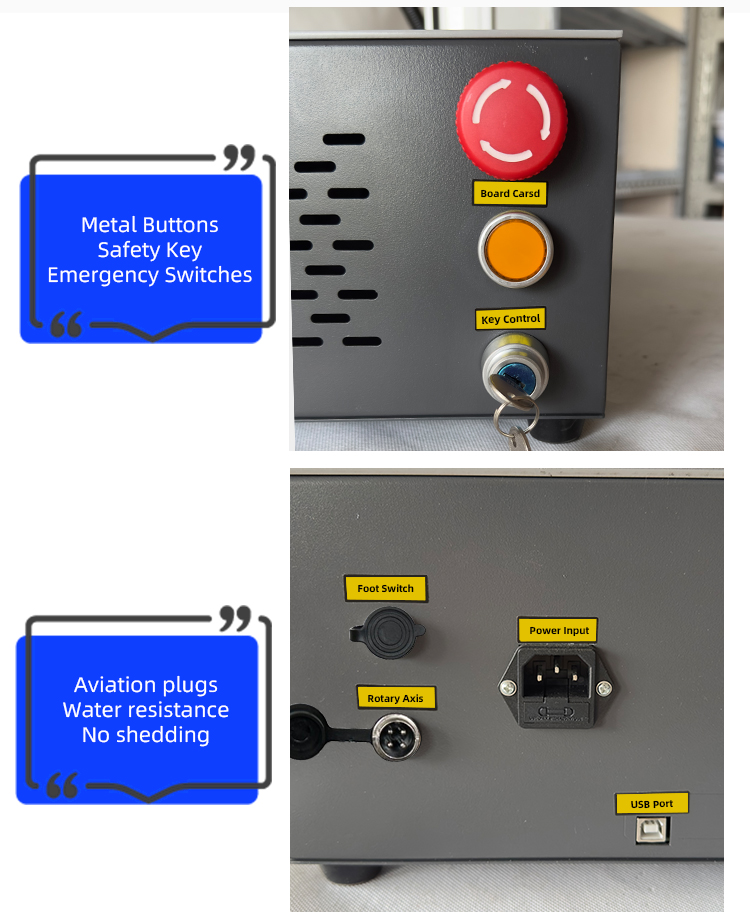

Detail 4

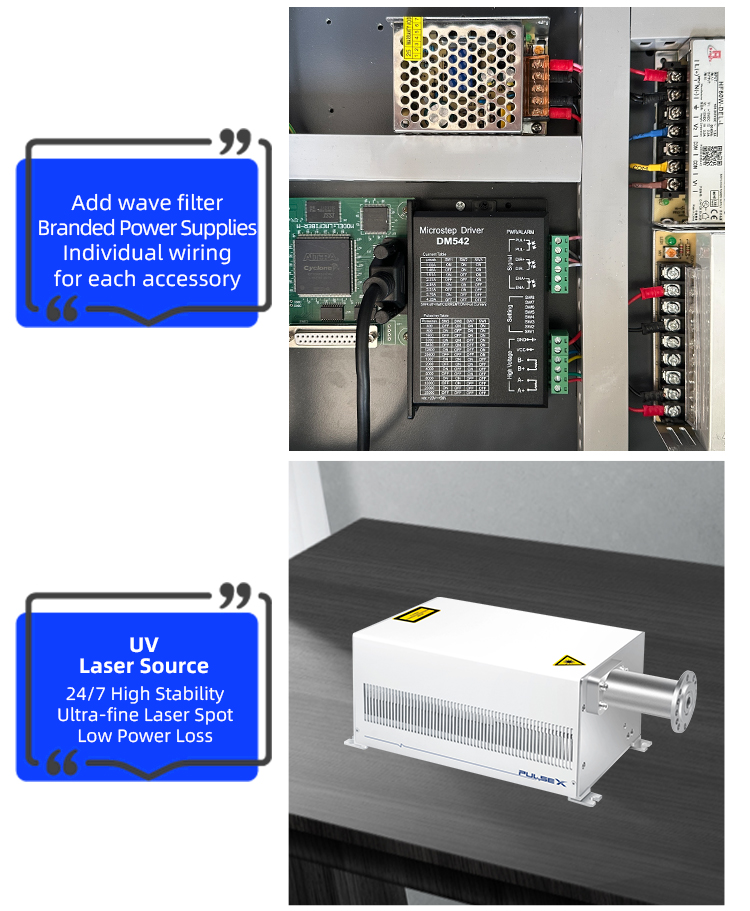

Detail 5

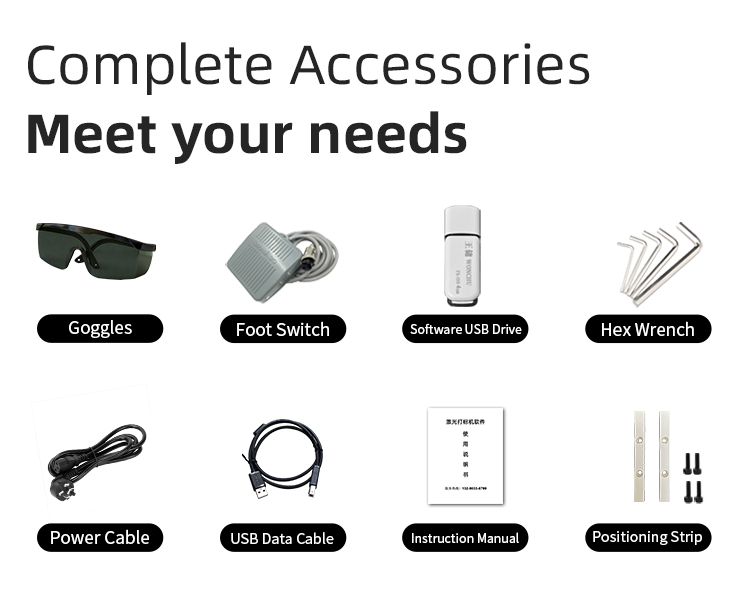

Detail 6
Detail 7
Trusted by Customers Worldwide
Trust Image 1
Trust Image 2
Product Parameters
Category Parameter Specification
Hardware Configuration Listings 5W/10W/15W Customizable
Laser Source JPT/CRS/PulseX
Galvo Scanner SINO-GALVO / (Mole customization)
Marking Area 70/110 / 150 / 200 / 300mm（Customizable）
Control Board Genuine EZCAD Control Board/ Genuine BSL Control Board
Marking Software Genuine EZCAD Software
Cooling Method Built-in Air Cooling, Silent Heat Dissipation Fan
Red Light Pointer Leituo
Laser Properties Beam Quality \(M^{2}\) <1.2
Output Fiber Cable Length 3m
Average Output Power 5W/10W/15W
Maximum Pulse Energy 2 / 1.5 / 1mJ
Tunable Frequency Range 1-4000kHz
Pulse Width 2-500ns
Output Power Instability <5%
Power Adjustment Range 0-100%
Spectral Width @3dB <15
Polarization Direction Random
High Reflection Resistance Yes
Beam Diameter 7.0 ± 0.5mm
Laser Wavelength 355nm
Operating Temperature Range 10-35℃
Software Info OS Compatibility Windows 7 / 8 / 10 / 11 / MAC(Lightburn)
Supported Languages English, Chinese, German, Russian, Korean, Japanese, Italian, French
Management Permissions Multi-user Management Permissions
Supported Formats Fonts Standard fonts (English, Chinese, Numbers, etc.)
File Formats PLT, DXF, JPG, PNG, DWG, PSD, EPS, etc
Machine Parameters Total Power Consumption 800W
Input Voltage 110V–240V, 50/60Hz
Dimensions 500×370×637mm
Company Profile

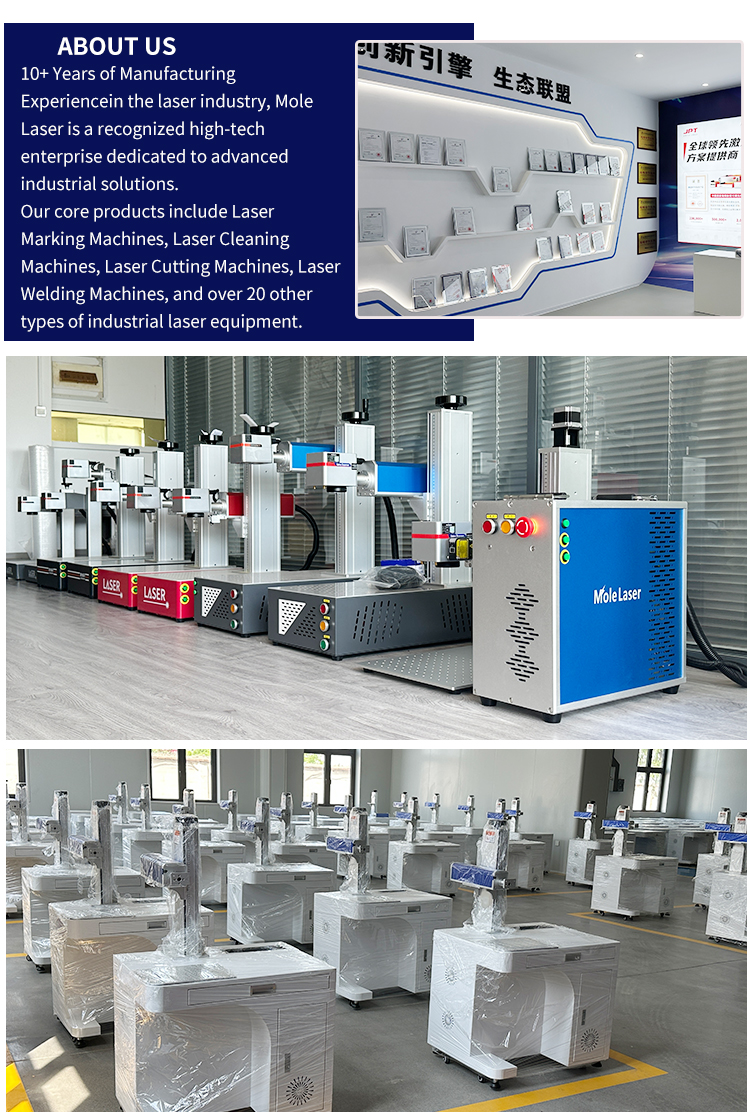

Company Image 1

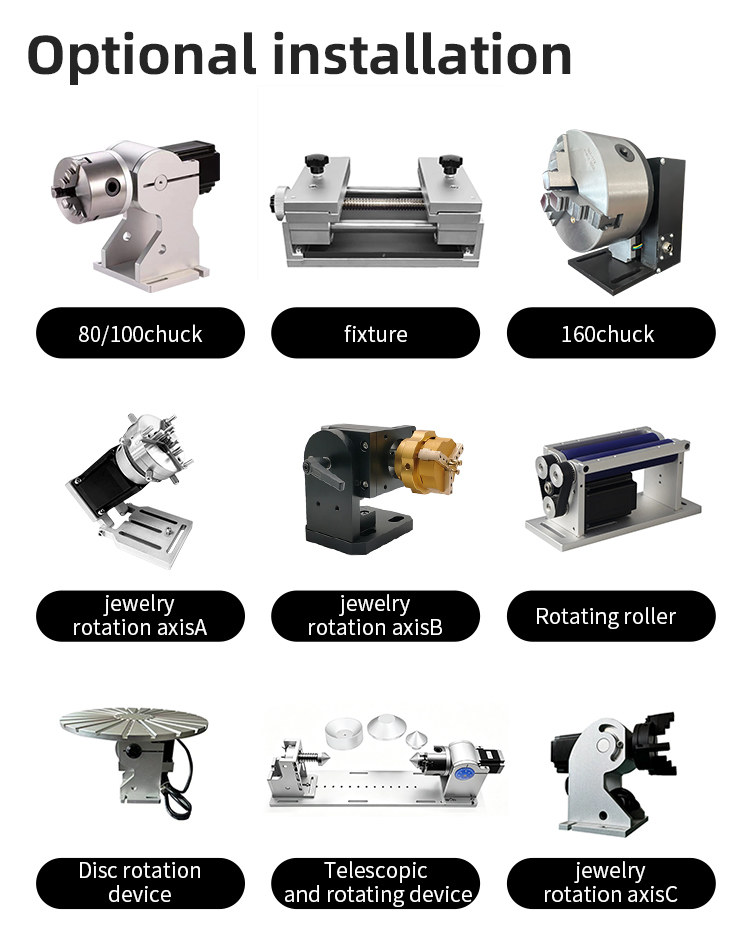

Company Image 2
Product Packaging

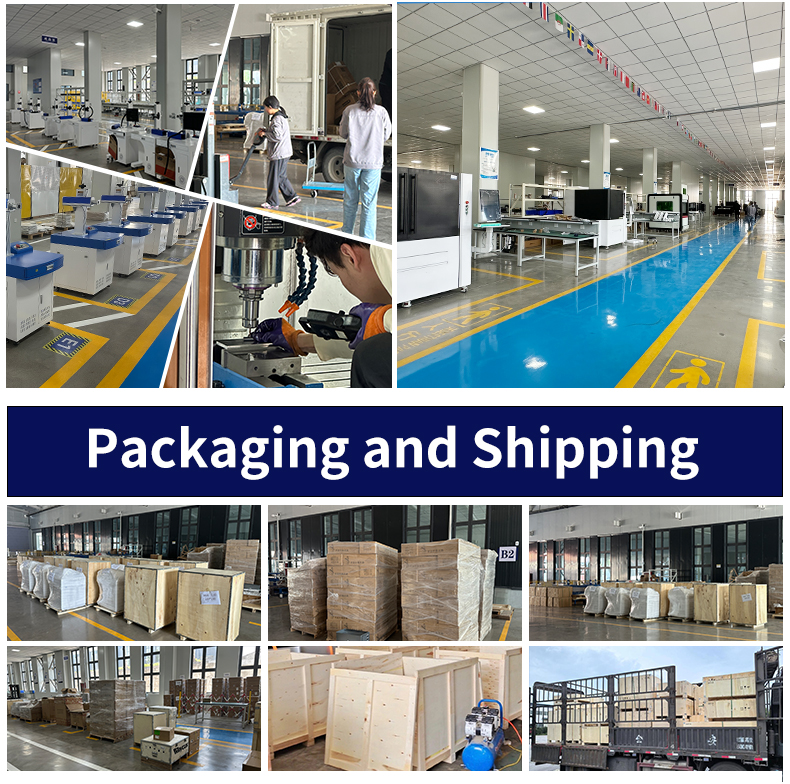

Packaging Image 1
Packaging Image 2
Packaging Image 3
Why Choose Us

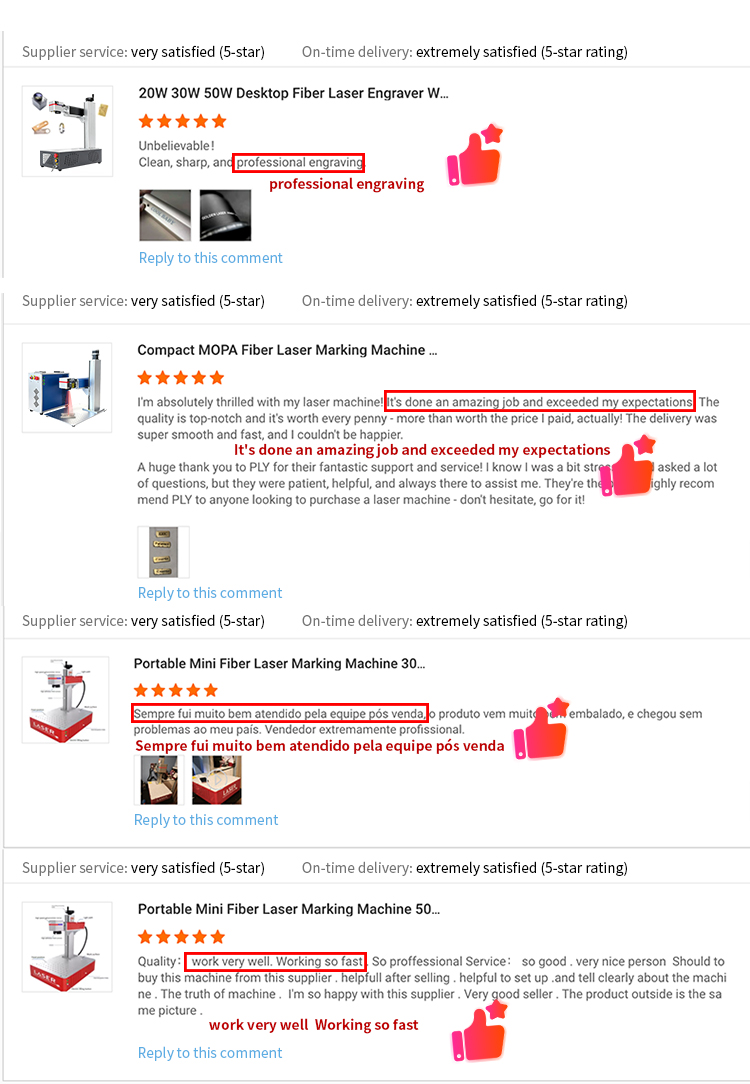

Why Choose Us
Frequently Asked Questions
🔷Q1: Are you a manufacturer or a trading company?
A: We are a direct manufacturer with a core team boasting over 10 years of professional experience. For a decade, we have been dedicated to providing high-quality and cost-effective laser equipment to users worldwide. You are warmly welcome to visit our factory for an on-site inspection!
🔷Q2: Is the laser machine easy to learn and operate?
A: Yes, it is very user-friendly. We provide detailed tutorial videos and online technical support. It usually takes just a few hours to grasp the basic operations. To save you time on trial and error, we provide a comprehensive Parameter Guide with recommended speed and power settings for various materials.
🔷Q3: Will the machine be safe during transportation?
A: Absolutely. We use a strict 3-layer packaging system to ensure safety:
1. Inner: Waterproof stretch film and thick EPE foam.
2. Middle: Wooden blocks and screws to securely fix the machine.
3. Outer: Standard export plywood wooden case. In the rare event of shipping damage, please contact us immediately, and we will swiftly arrange a replacement to ensure your production is not delayed.
🔷Q4: What happens if there is a problem with the machine?
A: We provide a 2-year warranty and lifetime technical support. During the warranty period, we provide replacement parts free of charge. After the warranty expires, we still offer maintenance services and parts at factory cost.
🔷Q5: How deep can this machine engrave on metal?
A: All metals can be engraved to a certain depth, but it depends on the material hardness and the laser power (our 100W/200W models are highly recommended for deep engraving). Softer metals like aluminum only need a few passes to achieve depth. The best way to verify the result is to use our Free Sample Testing Service—just send us your material, and our application lab will test it for you!
🔷Q6: How can I get spare parts for the machine?
A: There are two ways. Firstly, you can order common spare parts (like extra lenses or foot switches) together with the machine to save on shipping costs. Secondly, if you need parts in the future, you can contact us at any time. We keep them in stock and will ship them directly to you via fast international express (such as DHL/FedEx/UPS).
