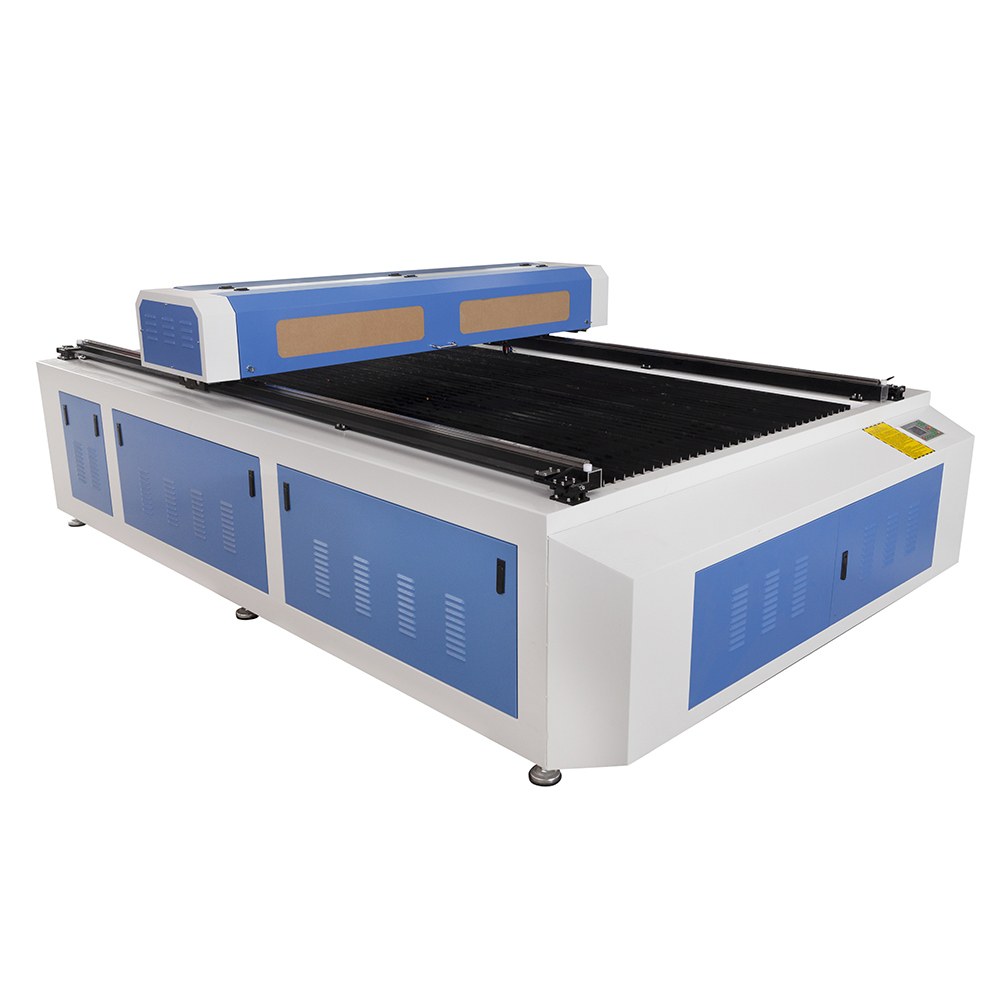

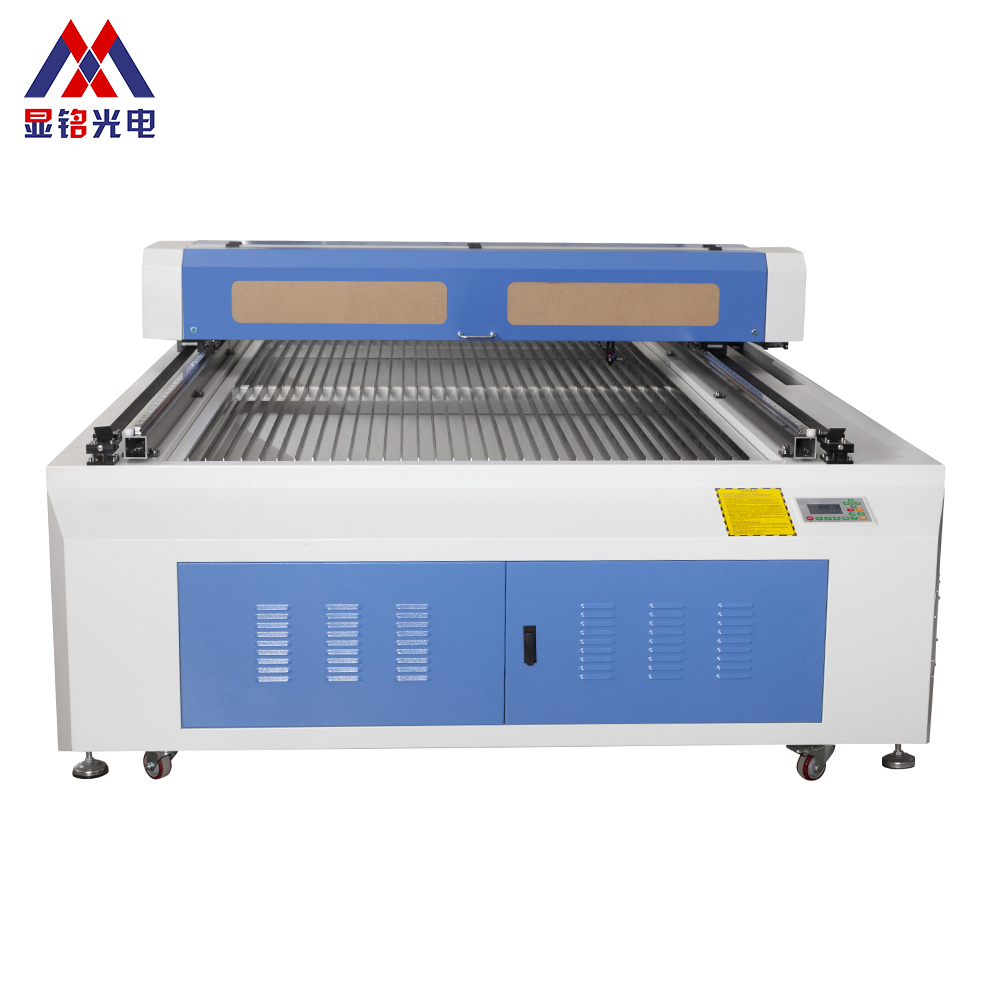

Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
1 / 5
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines
Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines

Acrylic and Wood CO2 Laser Cutting Machine Non-Metal Material Processing for Laser Cutting Machines

Send Inquiry

Product Description

1325 LASER CUTTING MACHINE
— MULTIFUNCTIONAL —
1325 Laser Cutting Machine
Our Advantages

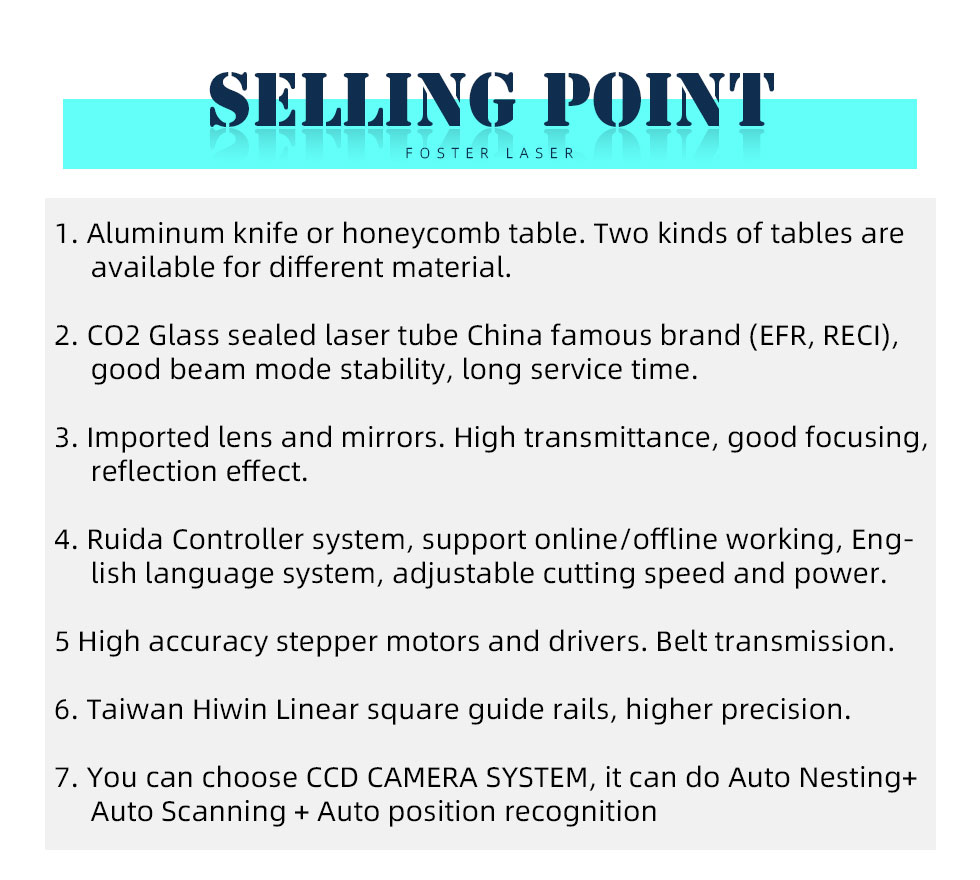

Laser Machine Advantages
  • Aluminum knife or honeycomb table. Two kinds of tables are available for different material.
  • CO2 Glass sealed laser tube China famous brand (EFR, RECI), good beam mode stability, long service time.
  • Imported lens and mirrors. High transmittance, good focusing, reflection effect.
  • Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
  • High accuracy stepper motors and drivers. Belt transmission.
  • Taiwan Hiwin Linear square guide rails, higher precision.
  • You can choose CCD CAMERA SYSTEM, it can do Auto Nesting + Auto Scanning + Auto position recognition.

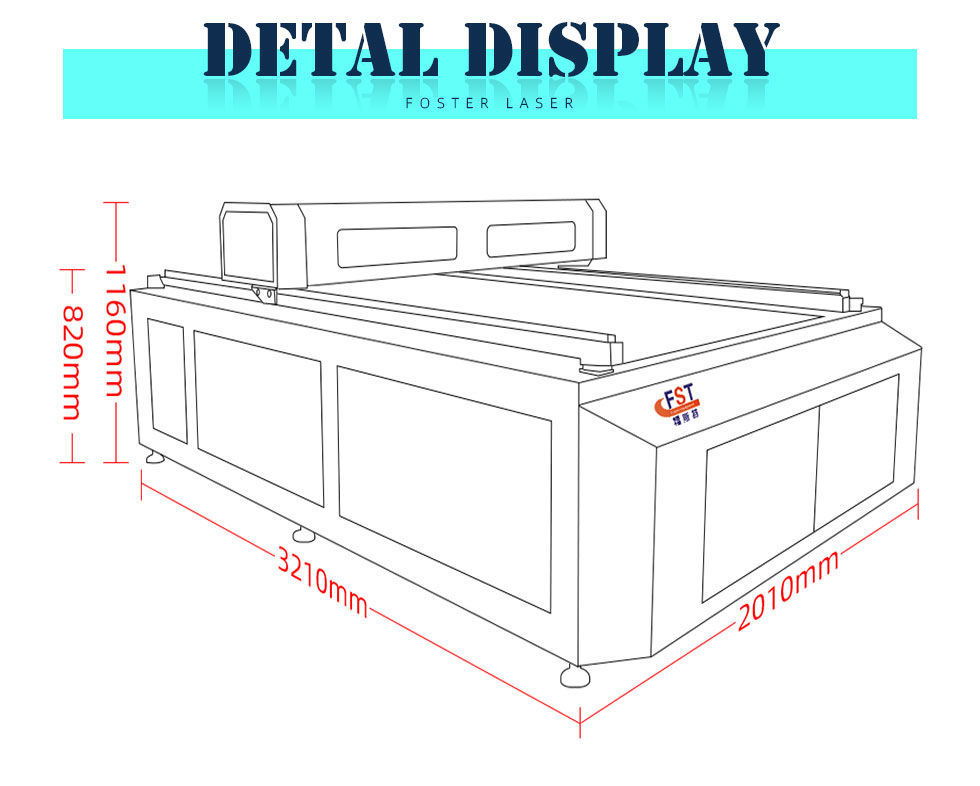

Machine Configuration
Product Parameters
Model FST-1325
Worktable Honeycomb or Aluminum knife
Engraving area 2500*1300mm
Laser Power 60W/80W/100W/150W/180W/200W/300W
Engraving Speed 0-1200mm/s
Cutting Speed 0-500mm/s
Cutting Depth (Acrylic) 0-30mm
Resetting positioning accuracy <0.01mm
Minimum Shaping Character 1*1mm
Power Supply 220V(or110V)+/-10% 50Hz
Software (Indirect output) ArtCut, Photoshop
Software (Direct output) CorelDraw, AutoCAD, Lasercut, Laserwork, LaserCAD, RDworks
Operation System Windows XP/VISTA/Win 7/Win 10
Cooling System Water Cooling and protection system
Control system DSP System
Operating Temperature 0-45°C
Operating Humidity 35-70%
Machine Dimension 3200*2010*1150(mm)
Packing Dimension 3360*2120*1400(mm)
Gross Weight 1100kg

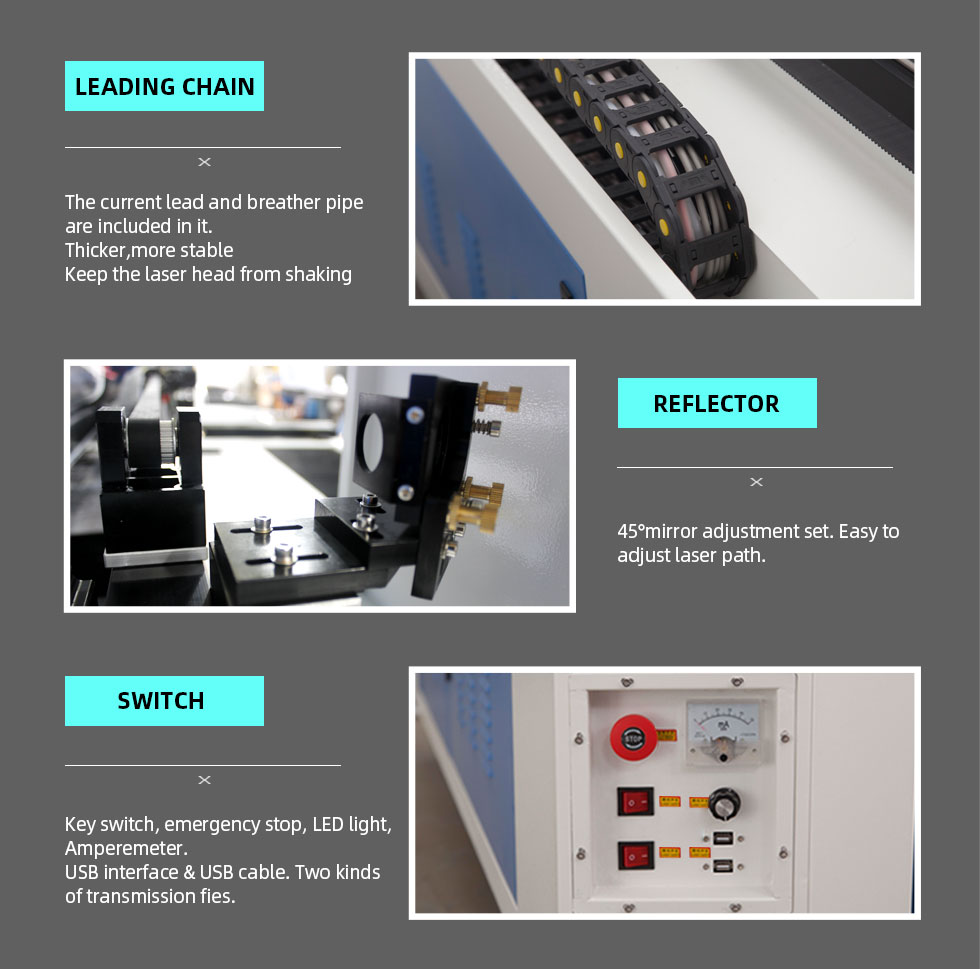

Details Images

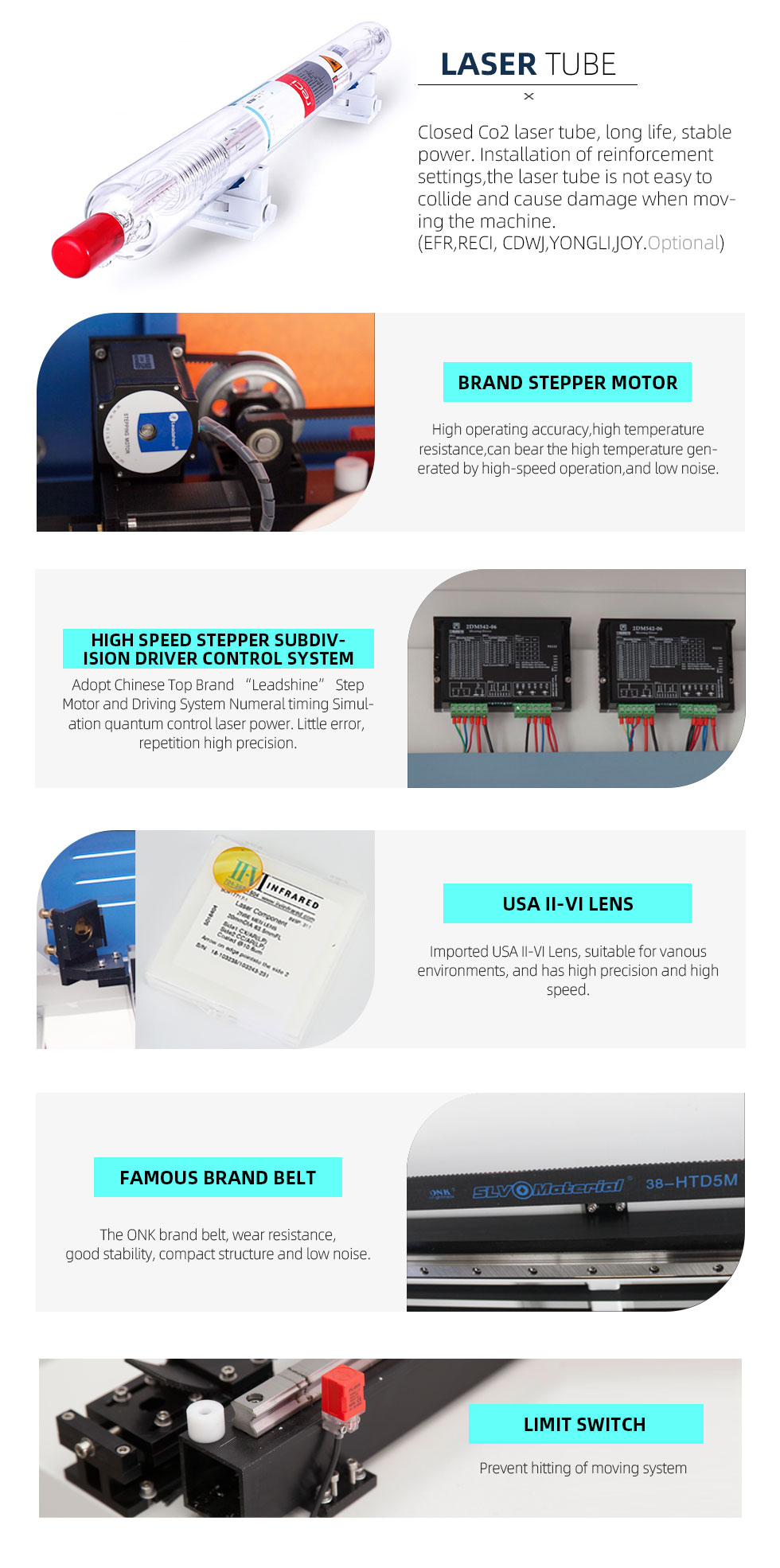

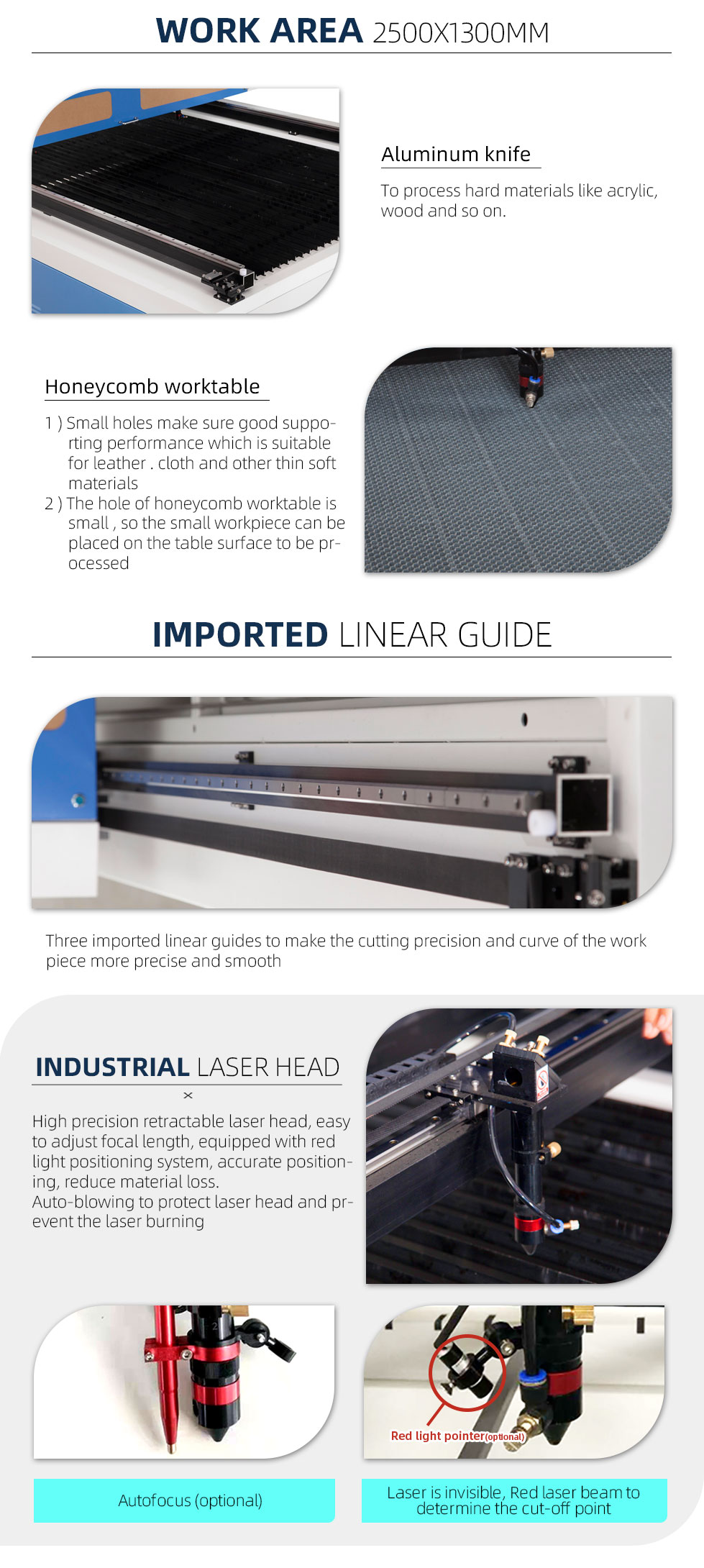

Machine Detail 1 Machine Detail 2 Machine Detail 3

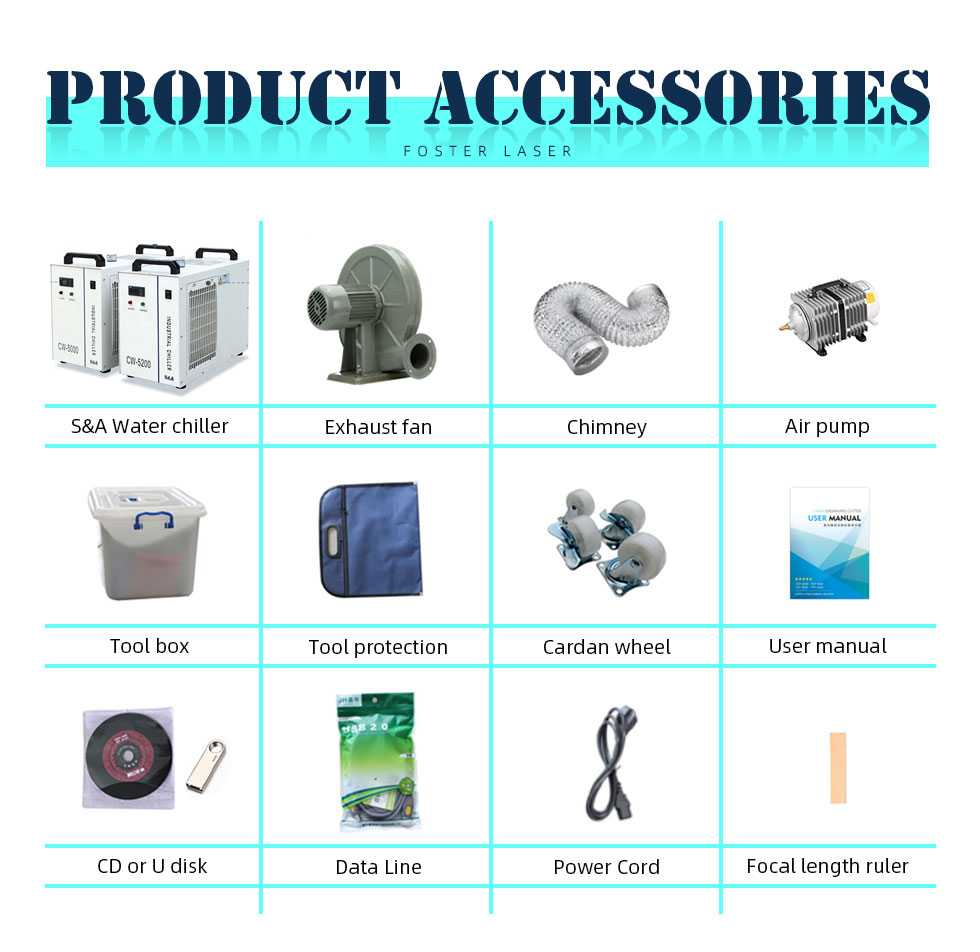

Product Accessories
Product Accessories
Application
Working Materials

Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.

Applicable Industries

Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.

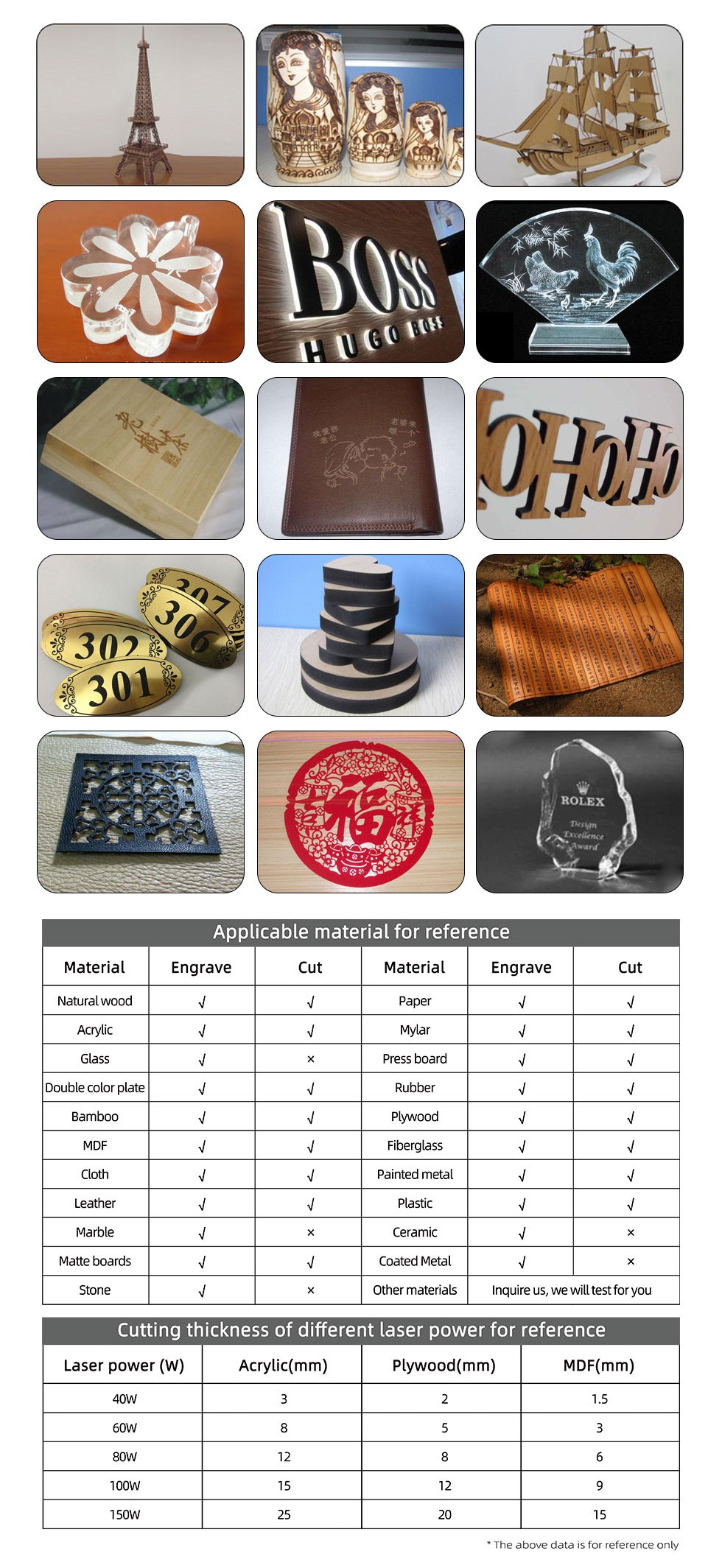

Application Samples
Product Packaging
Product Packaging
Our Reviews
Customer Review 1 Customer Review 2
FAQ
How can I choose the most suitable machine?
Please tell us three questions, our customer service staff will recommend the most suitable product for you:
1) Which material is mainly used for? Cutting, engraving or marking?
2) What is the max thickness of the cut?
3) How big working area do you need?
How long can deliver the machine?
Common machine can be delivered within 3~7 days. Custom-made machine needs 12~14 days.
Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support to our customers. Our technicians can assist you to install the machine and give you free training after you receive the machine.
What materials are suitable for cutting and engraving?
It is designed for nonmetal materials such as acrylic, MDF, wood planks, bamboo, double color sheets, paper, leather, shells, resin, ABS boards, and similar items.
What software programs does the machine support?
It supports indirect output software like ArtCut and Photoshop, as well as direct output software like CorelDraw, AutoCAD, Lasercut, Laserwork, LaserCAD, and RDworks.
What types of worktables are available for this model?
Two types of worktables are available: Aluminum knife or Honeycomb table, depending on the materials you need to process.
