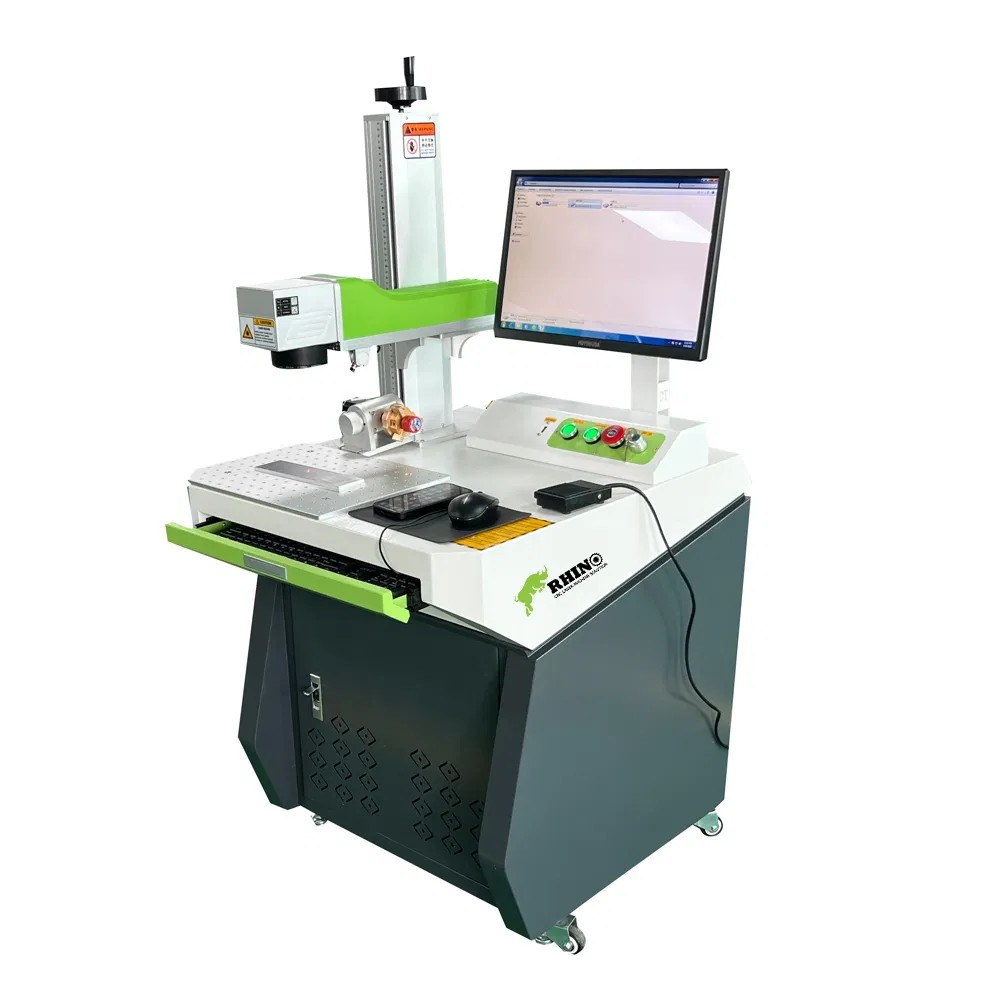

2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
1 / 5
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief

2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief

Customization: Available
After-sales Service: Global Service
Warranty: 3 Years
Send Inquiry

Product Description

Basic Info
Model NO.
RF-30/RF-50/RF-100
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Engraving Line Speed
7000mm/S
Net Weight
110kg
Minimum Line Width
0.001mm
Control System
PC+Ezcad Software Controller
Power(W)
10W/20W/30W/50W60W/80W/100W
Control Software
Ezcad Software
Marking Size
200mmx200mm
Fiber Laser Source
Raycus/Max/Jpt/Ipg
Class 1
Fiber Laser
Computer
Included
Air Cleaner
Included

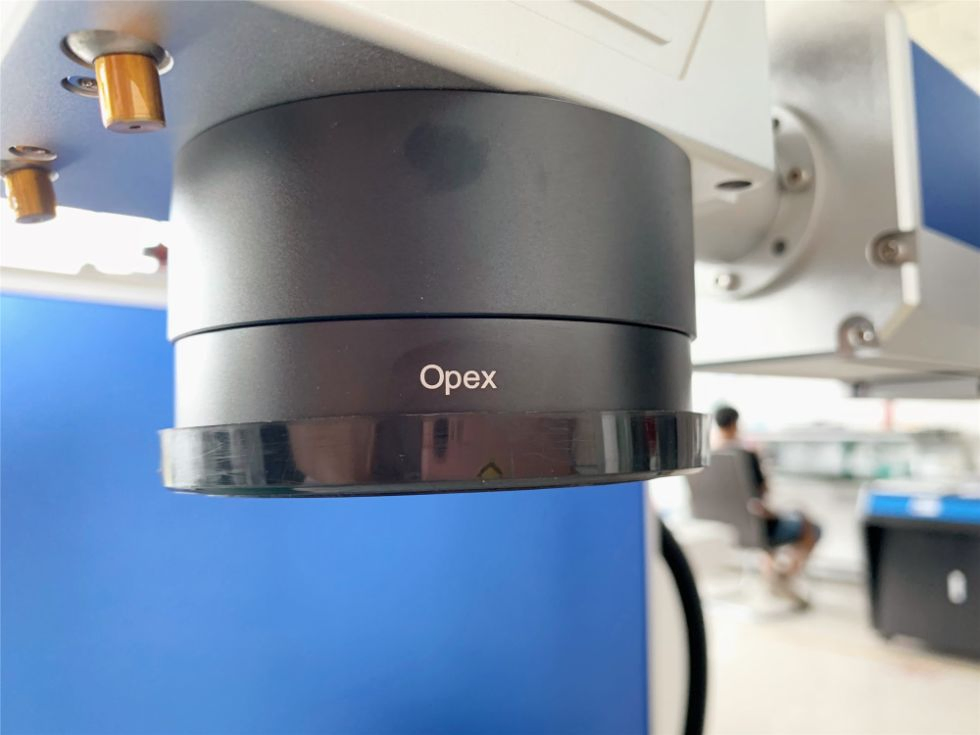

Laser Lens
Sino 1064
Laser Head
7110/6442 Model
Driver
Stepper
Voltage
220V/110W for Option
Transport Package
Plywood Case
Specification
package size 1.5cbm
HS Code
84569900
Production Capacity
500 Per Month
Product Description
Best Quality Class1 CE Economic 2.5D 3D 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Machine for Metal Aluminum Stainless Steel Jewellery

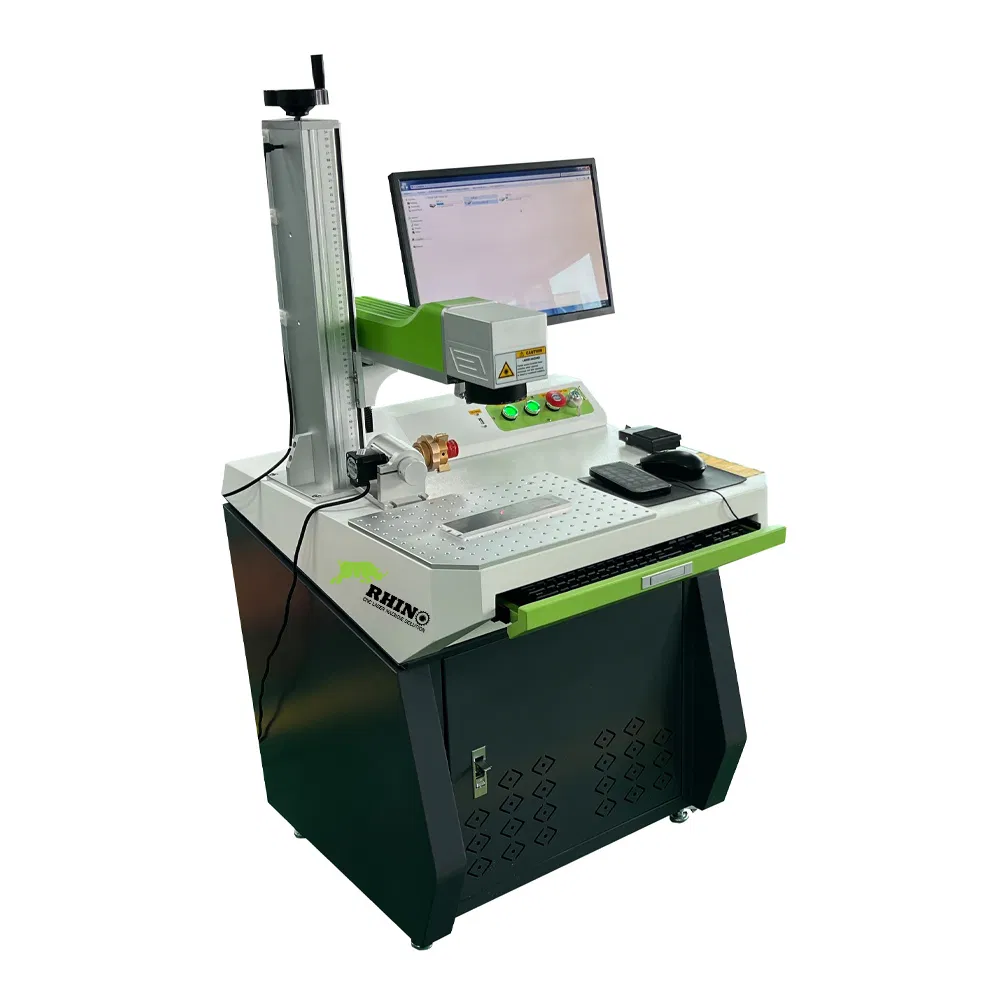

Desktop Fiber Laser Marking Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief
Desktop Fiber Laser Marking Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief

Fiber laser marking machine is specially developed for metals marking industry. This machine is equipped with American RF technology and high-speed galvanometer, achieving extremely fast processing speeds and highly precise output. The overall performance is stable, supporting up to 12 hours of continuous operation. Its optical system is completely sealed to prevent dust from entering the laser body, significantly reducing equipment maintenance rates.

With advanced system upgrades, this machine delivers perfect 2.5D and 3D relief engraving results when running on EZCAD3.0 software!

Product Parameters
Items (Fiber Laser Marking Machine) RF- 30 RF-50
Laser Generator Wavelength (μm) 1.06
Light Spot Quality (M2) <1.2
Power(W) 20 10
Impulse Frequency (KHz) 20~80
Type of Cooling Air cooling
Work Index Marking Area (mmxmm) 110X110/200x200/300mx300mm 150X150/200x200/300mmx300mm
Focal Length (mm) 163 254
Working Distance (mm) 184 288
minimum linewidth (mm) 0.02
Minimum Character (mm) 0.2
Marking Line Speed (mm/s) 0~7000
Graphic Format Supported BMP,PLT,AI,DXF etc.
Power Supply Voltage AC220V±10%
Frequency (Hz) 50/60
Size Main Machine (mmxmmxmm) 750 x 600 x 1270
Weight Main Machine (kg) 80 (estimation)
Work environment Environment Clean, no dust or less dust
Temperature(°C) 10~35
Humidity  ≤75% (Non-condensate)
Others Total Power(kW) 1
Safety Protection Level IP54
Laser Safety Level Class 1
Our Advantages
1
3rd-Generation Technology: Upgraded system build optimized for delicate and fine markings.
2
Superior Beam Quality: Delivers TEM00 fundamental transverse mode output, bringing the M2 value close to 1. The beam divergence angle is just 1/4 of a diode laser, keeping the focus dot diameter under 20 um.
3
High Precision Control: High pulse repetition rates combined with stable output power ensure rapid marking speed. Unit pulse power surge is controlled below 1% for fine configuration of dot size, thickness, and shape.
4
Outstanding Speed: Achieves speeds 2 to 3 times faster compared to traditional diode-pumped systems.
5
Smart & Compact Layout: Highly integrated air-cooling setup reduces machine volume and keeps it desktop-friendly.
6
Long Lifetime & High Efficiency: Ultra-low system power consumption of only 0.5 kW, with an energy conversion efficiency surpassing 30%.
7
Optional Color Marking: Supports settings for multi-color marking configurations on supported materials.
Material & Application
🔨 Applicable Materials

Leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, dual-color board, organic glass, paper, jade, agate, stainless steel, aluminum, and other metal surface marking.

🏭 Applicable Industries

Widely applied in food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, electronics, and other related industries. Offers low consumption, non-toxic, and pollution-free processing.

Marking Samples

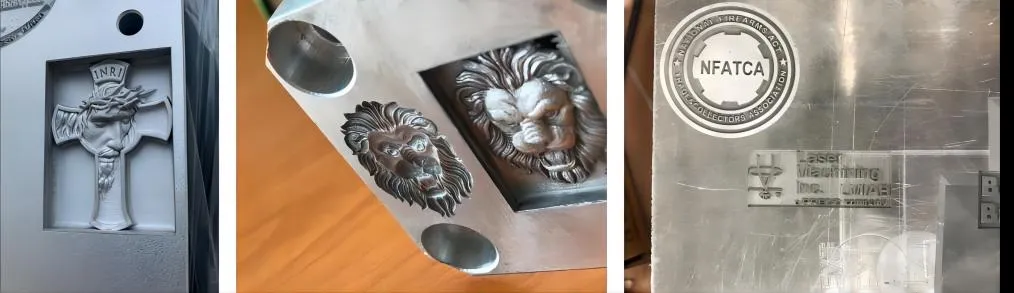

Laser marking sample metal relief engraving

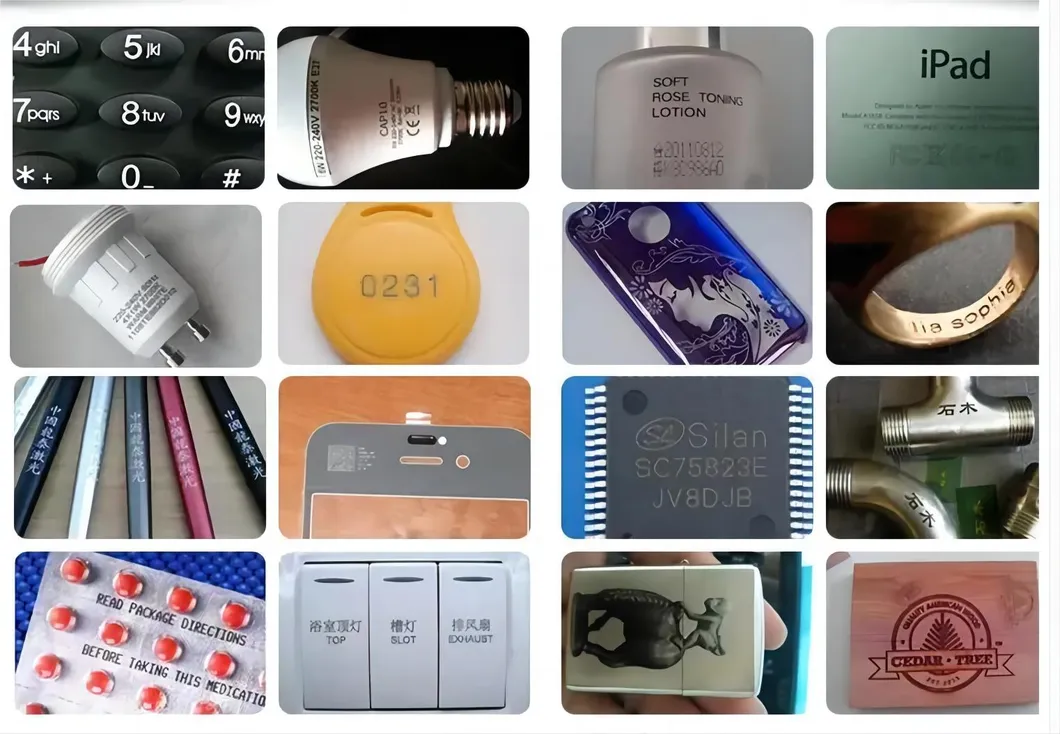

Laser marking samples color metal engraving

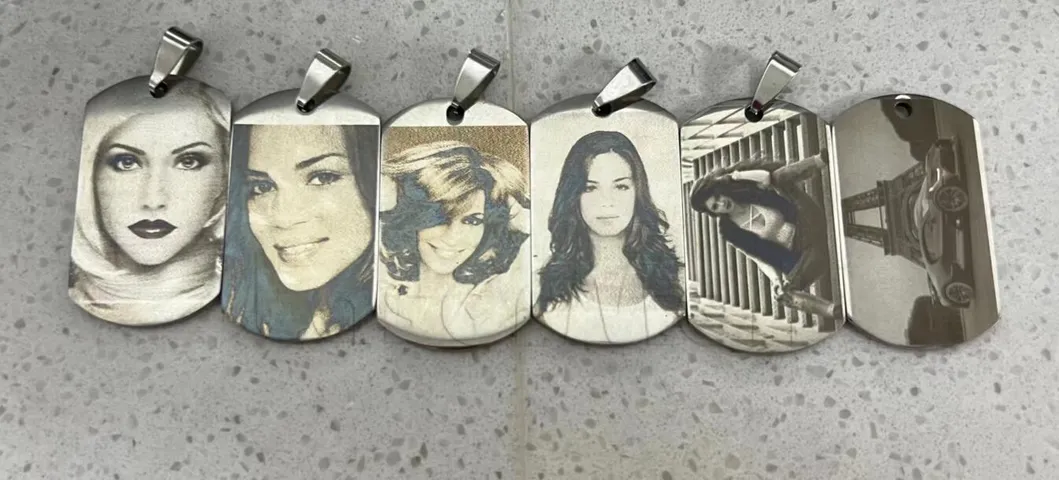

Desktop Fiber Laser marking machine sample display
Frequently Asked Questions (FAQ)
Q1: What materials can this desktop fiber laser marking machine process?
A1: It is highly effective for marking metals (such as stainless steel, aluminum, brass, gold, and silver) as well as non-metals including leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, paper, jade, and agate.
Q2: Can the machine produce 2.5D and 3D relief engraving?
A2: Yes. Supported by updated software (EZCAD3.0) and high-speed galvanometers, this machine executes 2.5D and 3D relief marking and deep engraving accurately on metal surfaces.
Q3: What are the main benefits of the 3rd-generation laser upgrade?
A3: The upgrade offers a highly refined laser path with an M2 factor close to 1.2, reducing the focal dot diameter under 20 um. It improves speed by 2 to 3 times compared to traditional diode-pumped systems and provides stable output power with minor pulse surges (<1%).
Q4: Does the desktop marking machine require a water cooling system?
A4: No, this machine uses a built-in air cooling system, which allows it to maintain a compact, space-saving desktop size while supporting long hours of continuous work.
Q5: What are the available power options, and what is the overall power consumption?
A5: The laser generator is available in multiple power options, including 10W, 20W, 30W, 50W, 60W, 80W, and 100W. The overall power consumption of the setup is low (around 0.5 kW to 1 kW) with a high conversion efficiency exceeding 30%.
Q6: What graphic formats are compatible with the controller?
A6: The system supports standard formats such as BMP, PLT, AI, DXF, and other design formats, making it easy to import files from standard graphic software.
