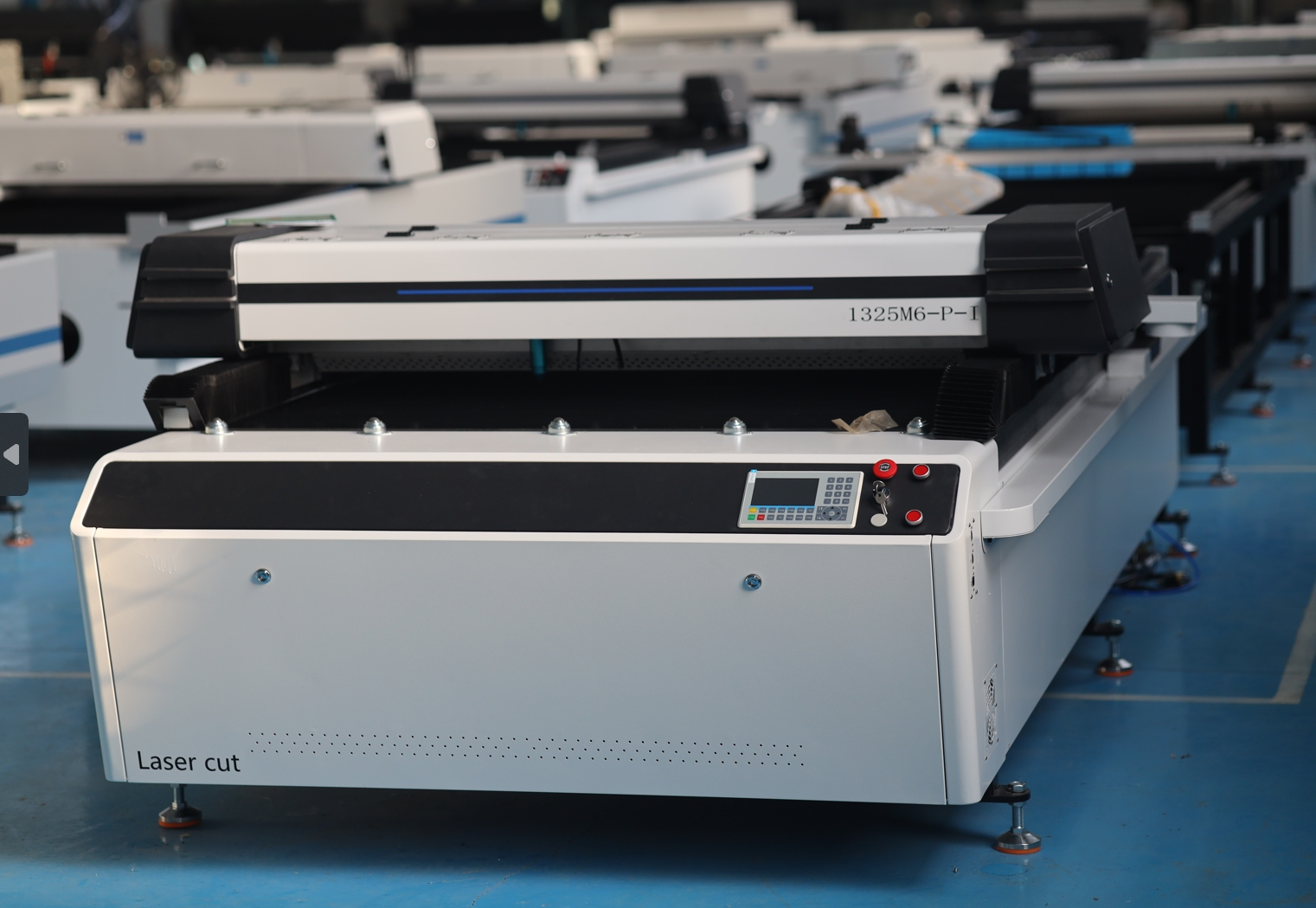

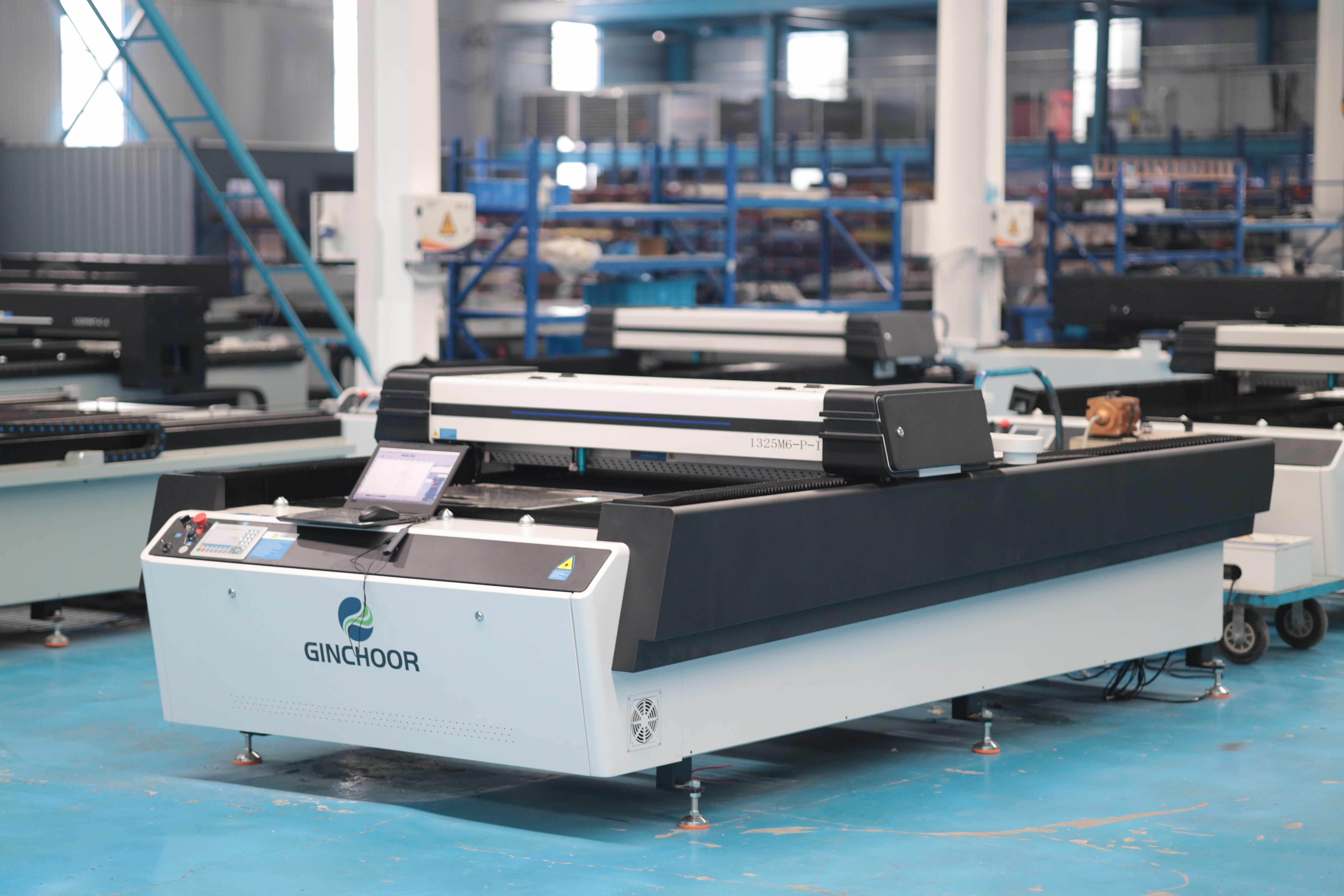

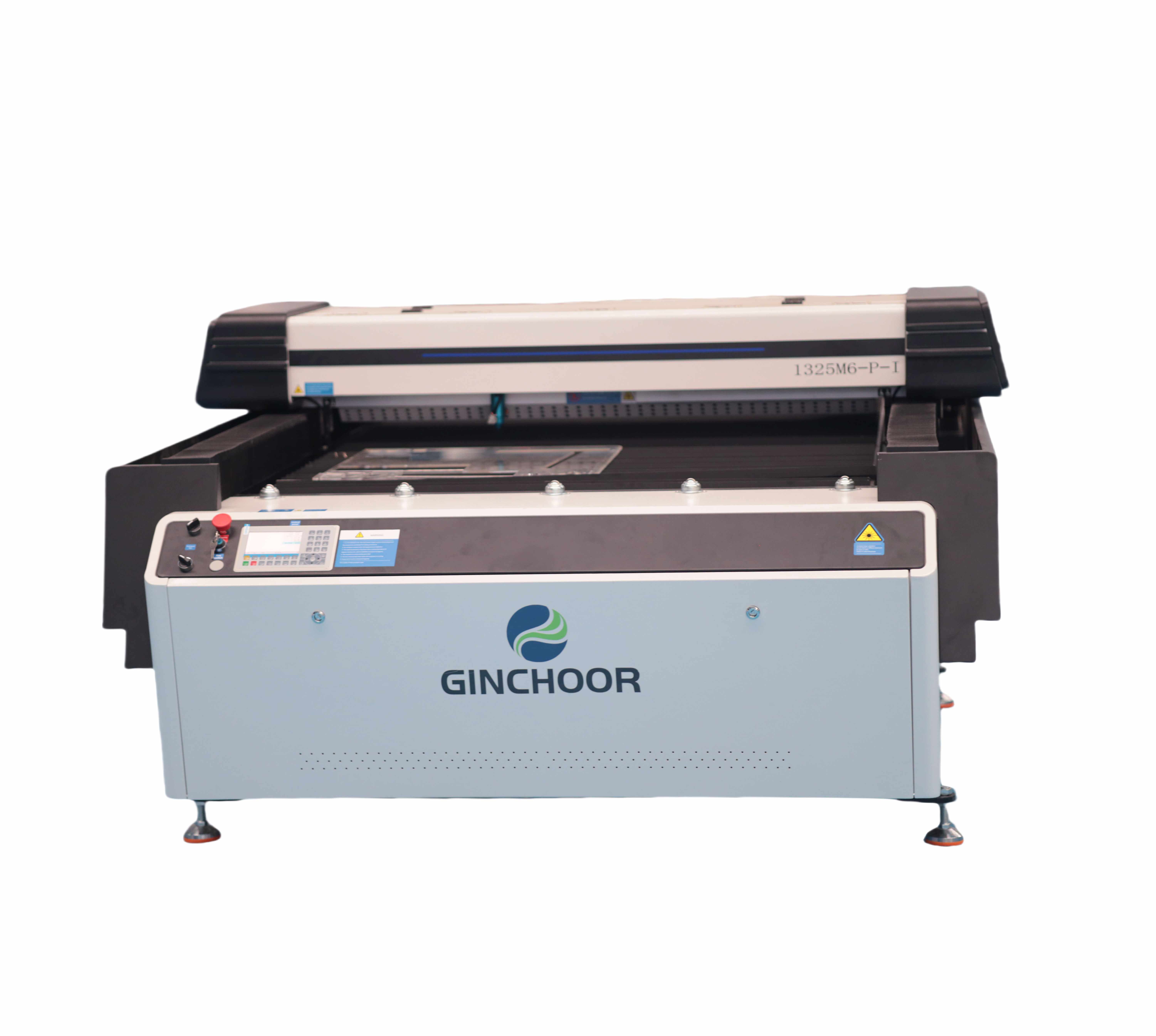

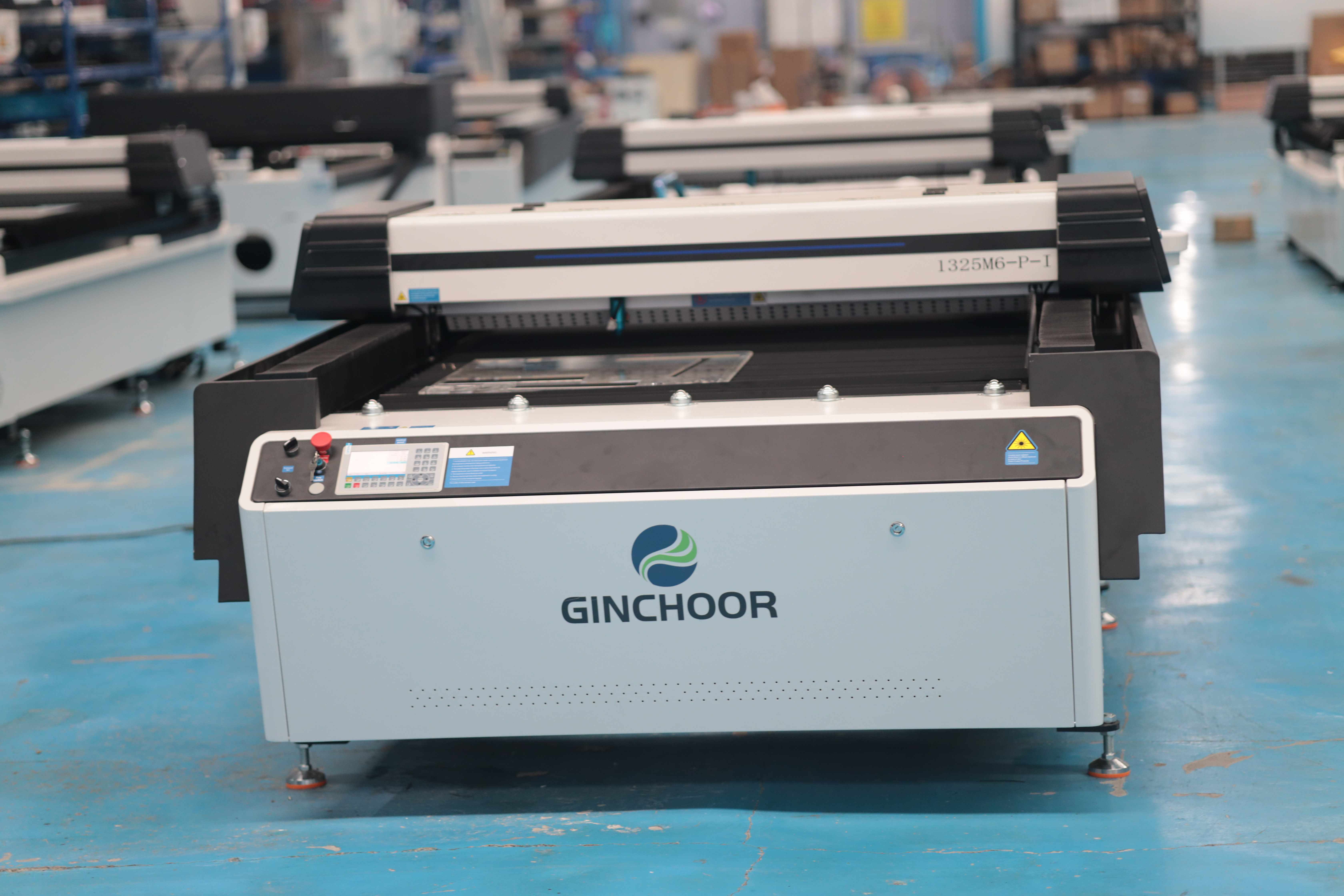

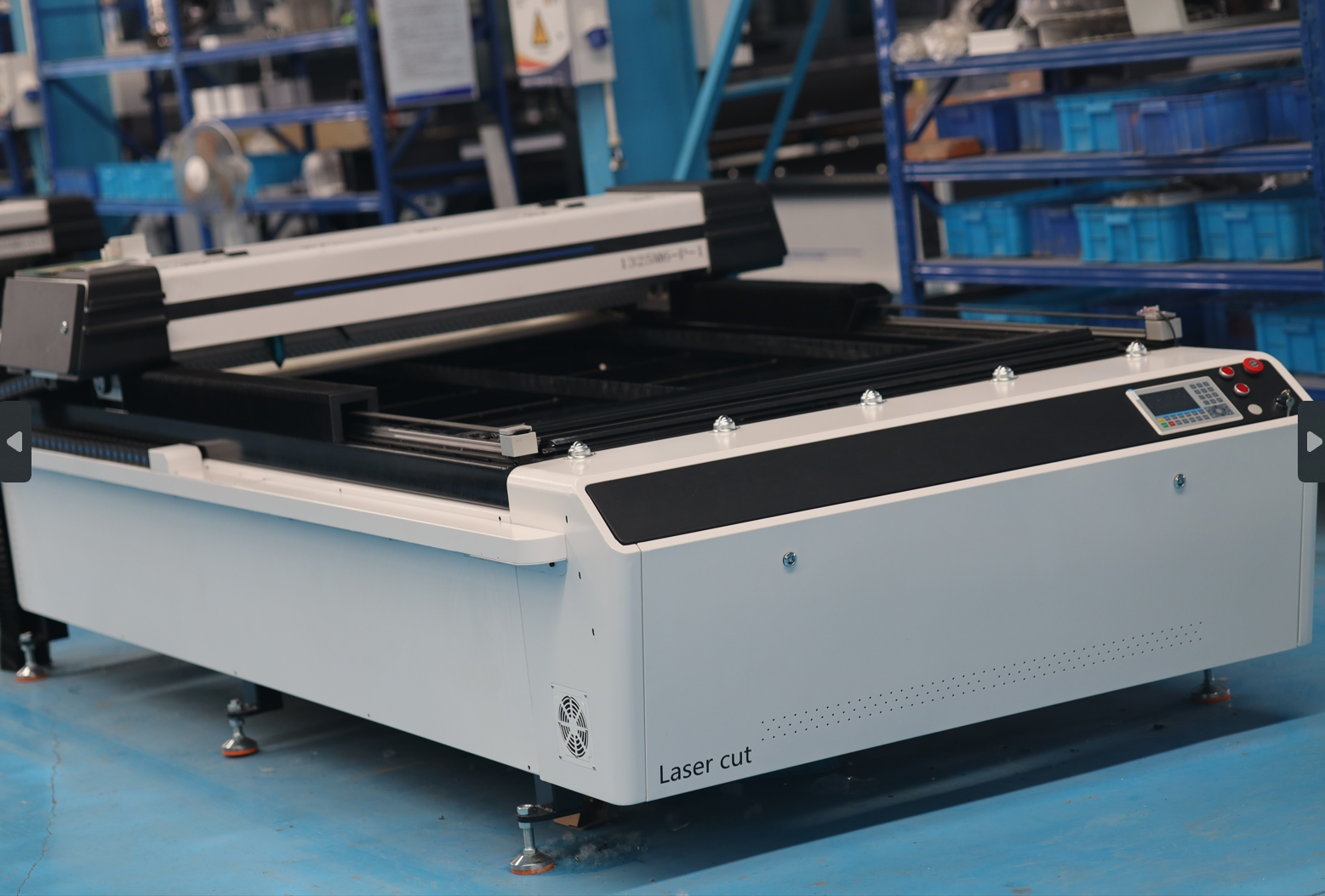

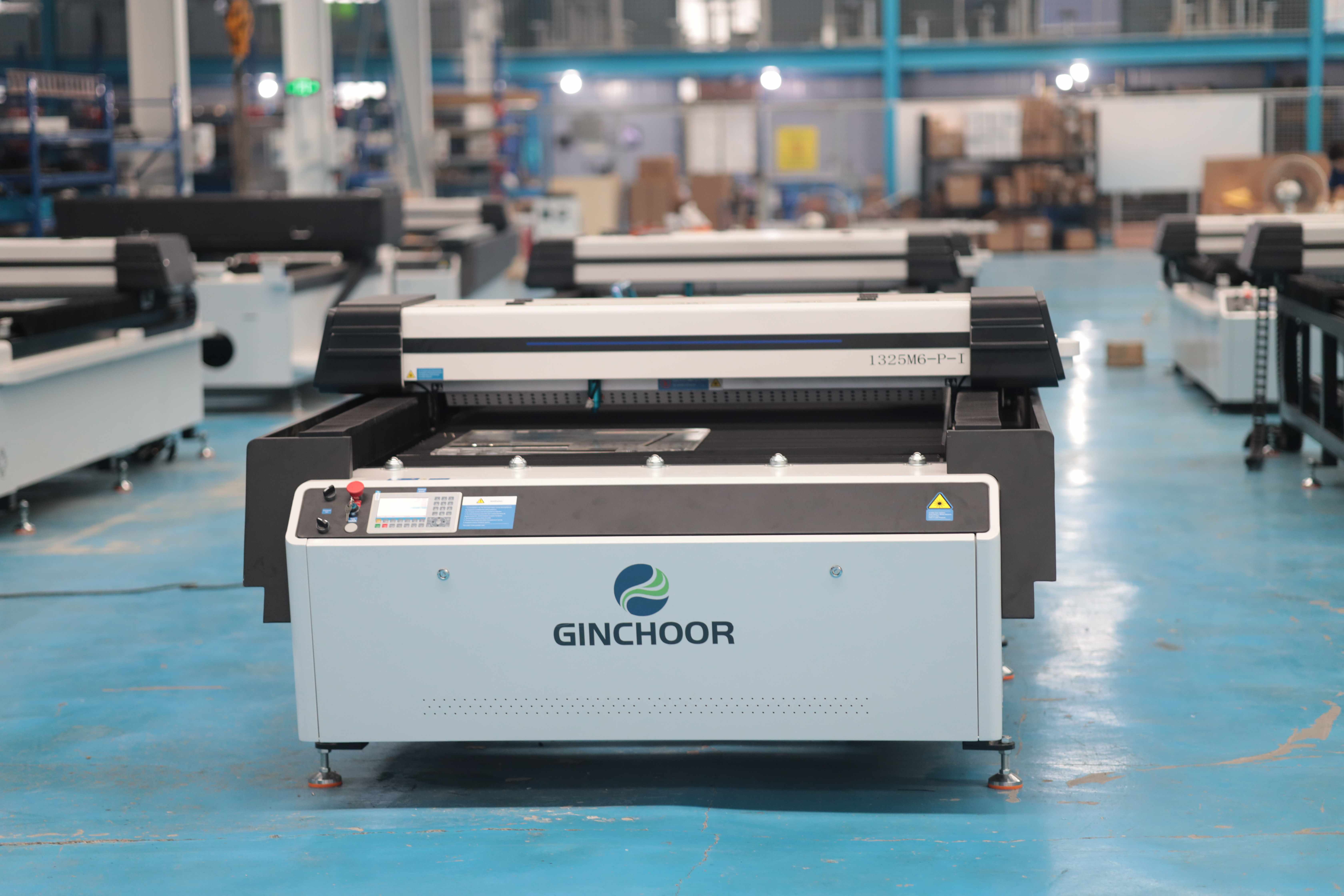

130W Co2 Laser Cutting Engraving Machine CCD Camera 1325 Ruida Control CNC Laser Source Laser Head Chiller for Engraving Cutting
CO2 Laser Cutting Machines Laser Engraving Machine 100W with CCD Camera 1325
Product Description
Parameter Specifications
Model
JC-L1325
Laser medium
CO2
Working area
1300*2500mm
Working table
honeycomb table
Laser power
100W
Power Supply
220V/50Hz, 110V/60Hz
Min line width
≤0.15mm
Position accuracy
0.01mm
Repetition accuracy
0.02mm
Cutting speed
150mm/s (According to the materials)
Guide rail
Taiwan Hiwin
Transmission method
Shanghai Fulong Belt Transmission
Drive system
Leadshine driving system and stepper motor
Cooling system
Water-cooling: water chiller (cw 5000)
Control system
Ruida control system off-line
Control software
Coreldraw, Photoshop, AutoCAD, Tajima
Graphic format support
PLT, DXF, BMP, JPG, AI, etc
Working environment
0-45°C
Operating Humidity
5-95%
Optional
Rotary, up-down table, auto focus, honeycomb table

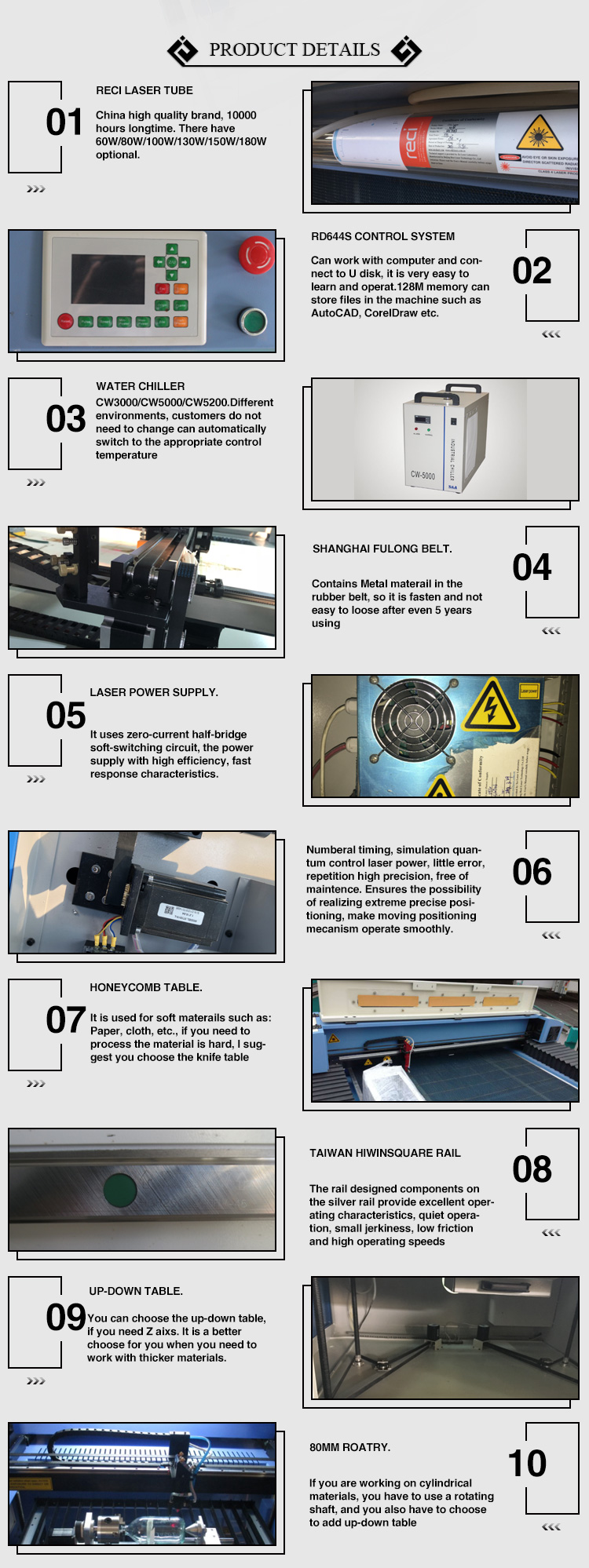

Configuration
Working area: 1300x2500mm
80W/100W/130W/150W reci laser tube (best in China)
RD-6442S Control system
Singapore lens and mirror
Leadshine drive system
Shanghai Fulong belt
Exhaust fan, air pump, water chiller
Advantages
Adopt CO2 Laser as its working lamp-sources, high technical product composed by proprietary software of laser engraving.
Automatic control system and precisely controlled working table.
With simple operation, agile and convenient edition, compatible of various software: AutoCAD, CorelDraw, etc.
Revolutionary structural design, end the old seal machine deformation.
Low noise, steady and reliable, maintenance free.
Related Products & Advantages
Loading and unloading: Engraving machines generally do not have loading and unloading features. The feeding machine provides the most basic feeding capabilities.
Positioning: Engraving machines do not require a flap, so positioning is not needed. Boring machines require secondary positioning during opening punch procedures.
Processing speed: Engraving machines do not require wide-range cutting, whereas feeding machines require wide-range cutting. Engraving machines are designed for lace knife shaping, while boring machines handle opening and punching.
Product Display
This type of machine is a CO2 laser engraving system designed to engrave on various nonmetal materials including acrylic, PVC, rubber sheet, plastic, wood, bamboo, oxhorn, figuline, marble, leather, cloth, double-color board, and more.
Packaging & Shipping
Wooden case packing is fumigated, saving shipping and timber inspection time.
All spare parts are covered with protective soft materials to avoid transit damage. Plastic wrap is applied tightly to ensure waterproof and rustproof delivery.
Outmost packing utilizes a robust wooden case with fixed formwork.
The bottom of the wooden case features a solid iron jack layout for convenient handling and transport.
Frequently Asked Questions
Q
Can we visit your facility?
We welcome our new and regular partners to visit. We can arrange pick-up services at the airport or train station for your convenience.
Q
If we do not know how to use the machine, can you teach us?
Yes, we will. We offer training support to ensure you can operate the machine freely and efficiently.
Q
How about your after-sales service?
We offer professional 24-hour online technical support and customer service.
Q
How long is the guarantee period?
We offer a one-year guarantee period. During this time, any questions or issues will be resolved for free.
Q
How do you maintain the CNC Router?
Always cut the power during machine maintenance. If live inspection is required, it must be performed by a professional electrician.
Before repairing or replacing parts, confirm the technical specifications.
Regularly clean the cooling system.
Continuously monitor the voltage and power grid of the CNC Router.
Prevent dust from entering the machine.
Q
What is your payment term?
We require a 30% advance payment, with the remaining balance paid before delivery after inspection.
