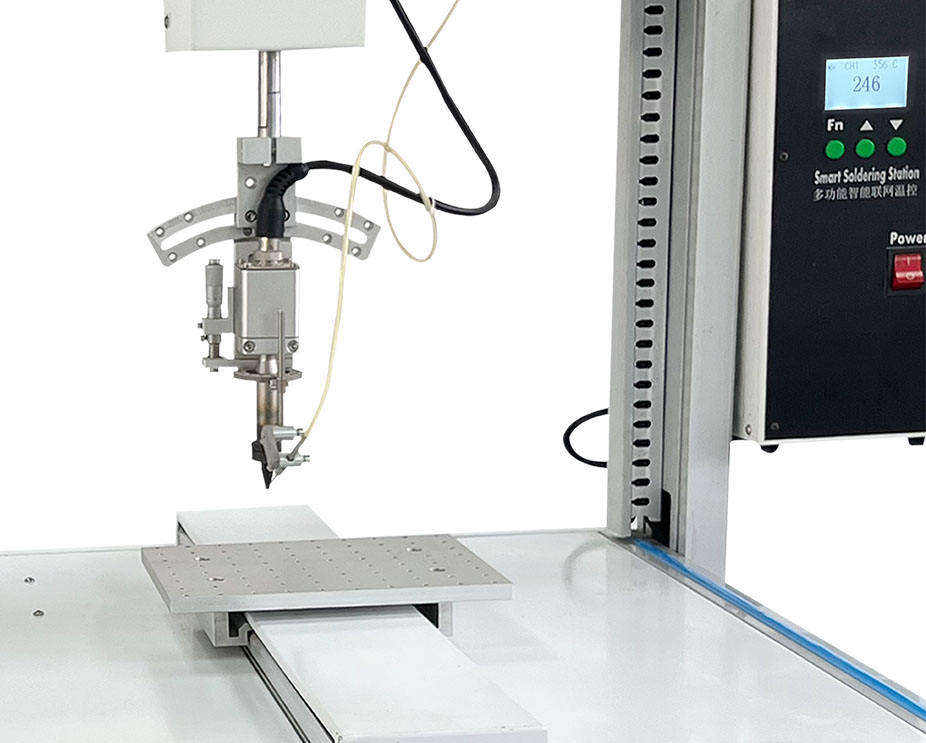

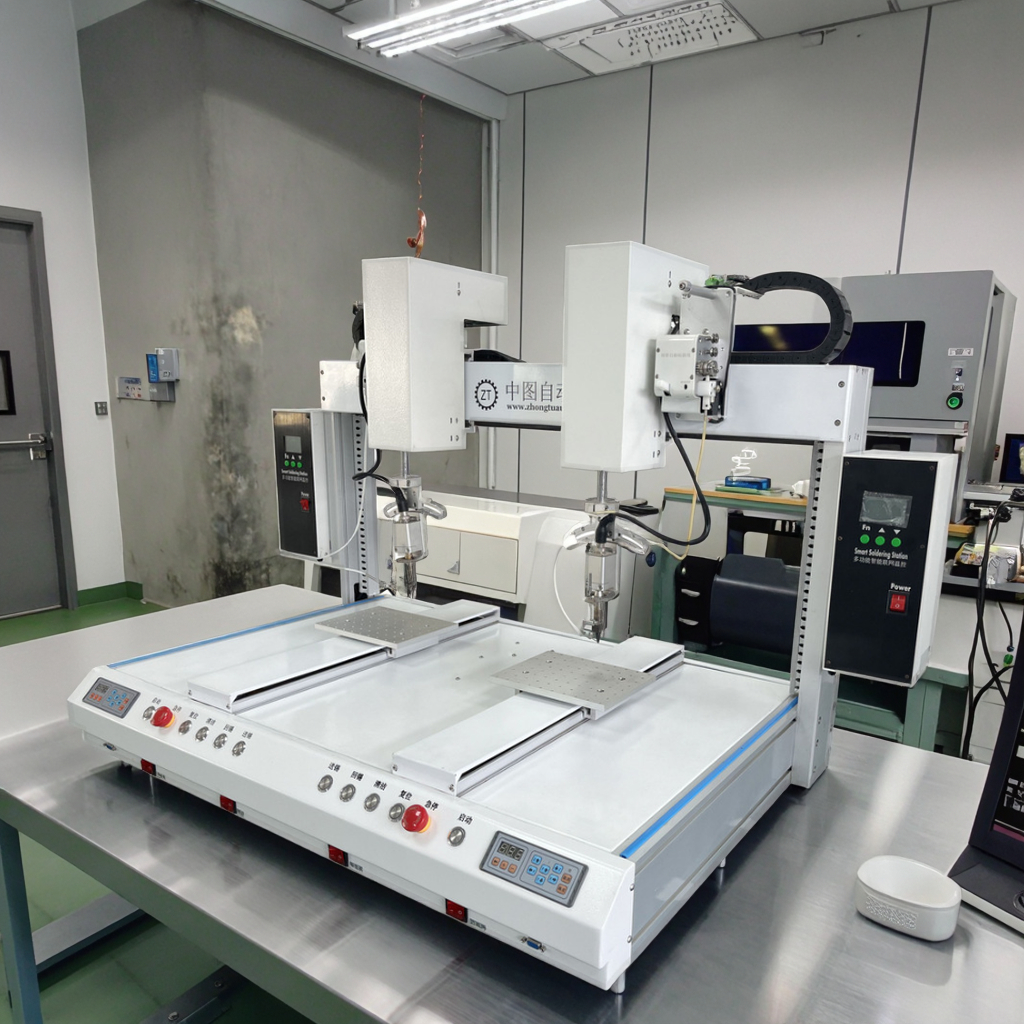

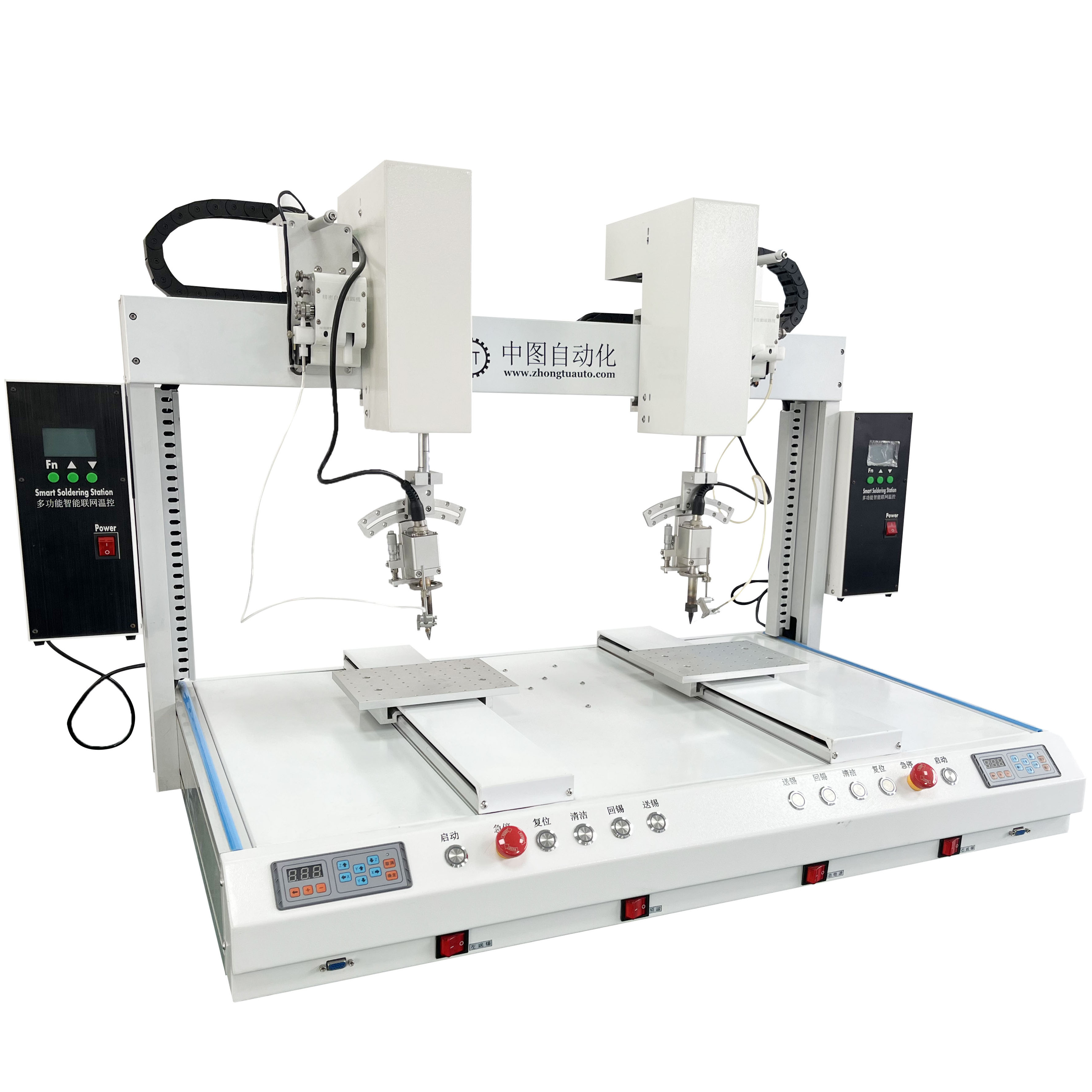

XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
1 / 5
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant
XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant

XYZ 5 Axis Robotic Soldering Robot Machine For SMD LED Component Welding In Manufacturing Plant

Send Inquiry

Product Description

Key Attributes

Condition New
Applicable Industries Manufacturing Plant, SMT, DIP
Video outgoing-inspection Provided
Marketing Type New Product 2023
Warranty Period 1 Year
Warranty of Core Components 3 Years
Core Components PLC
Power 680W
Name Automatic Soldering Robot
Key Selling Points Automatic
Weight (KG) 65Kg
Voltage 220/110V 50~60Hz
Dimensions 850*750*850mm
Solder Wire 0.6~1.5mm solder wire
Temperature Accuracy ±3°
Solder Feeding Speed 1~50mm/s
Repeat Accuracy ±0.02mm

Specification

Model ZT-HXJ041R ZT-HXJ441-R ZT-HXJ4411-02 ZT-HXJ4411-02R Fixture Customization
Solder Power 200W 200/400w 600W 200/400W 200/400/600W Need
Heating Temp Range 0-550°C
Machine Axis Number 4axis 4axis 4axis 5axis Max moving speed
X Axis 400mm 400mm 400mm 400mm/2X 600mm/s
Y Axis 300mm 300mm/2Y 300mm/2Y 300mm/2Y 600mm/s
Z Axis 100mm 100mm 100mm 100mm 400mm/s
R Axis 360° 360° 0 360° ±0.05° Error
Temperature Errors ±2°
Tin Wire Diameter φ0.6mm-1.5mm
Teaching File Capacity 256MB, up to 999 files, single file up to 1000 points
Air Pressure 4-5kg/cm²
Weight(Kg) 58Kg 68Kg 75Kg 85Kg Customized
Size(mm) 600*750*850 800*750*850 850*750*850 1000*750*850 To order

Features

  • Contains BASIC interpreter, simple programming, direct handle teaching. You can directly enter the welding point coordinates or teach welding position to reproduce the welding position coordinates.
  • Uses multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.
  • The program features built-in multi-dimension soldering methods, supporting both spot welding and drag welding. All process parameters can be set by the user to simulate various difficult and micro soldering processes of human hands.

Product Description

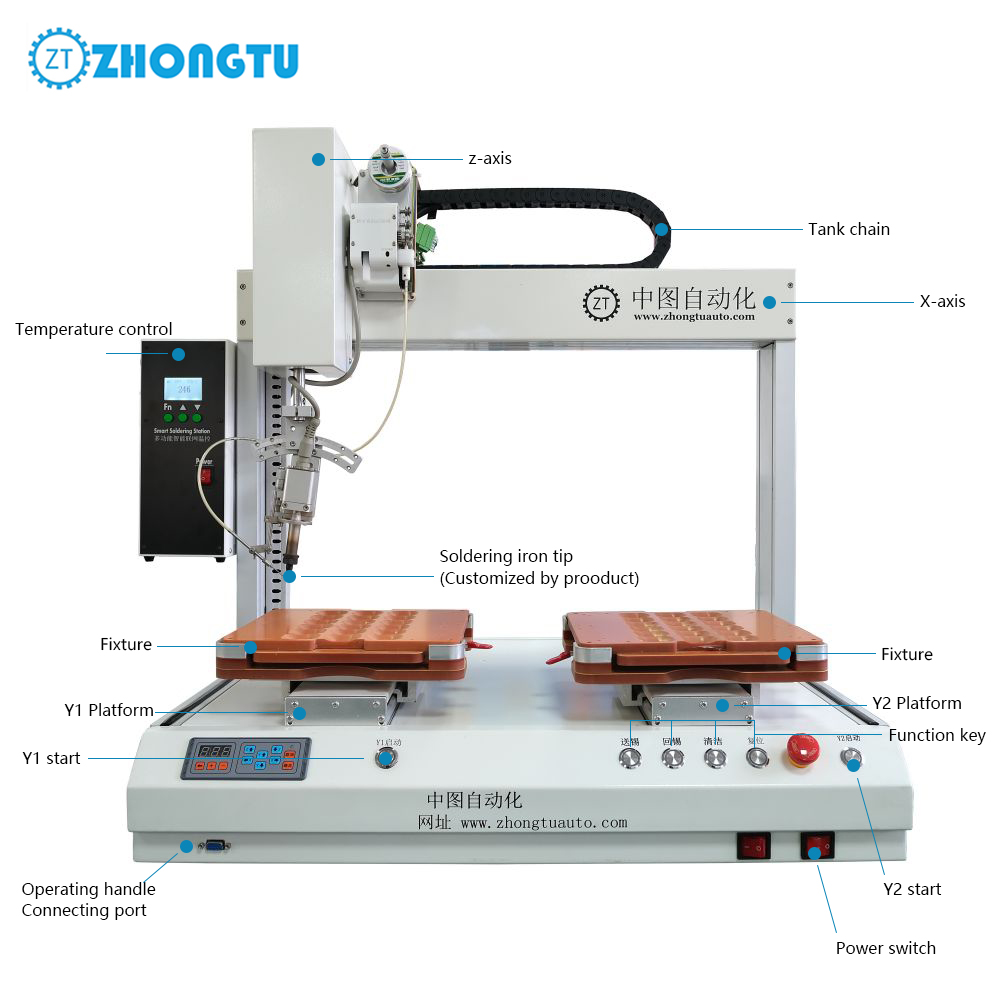

Soldering Robot Detail 1

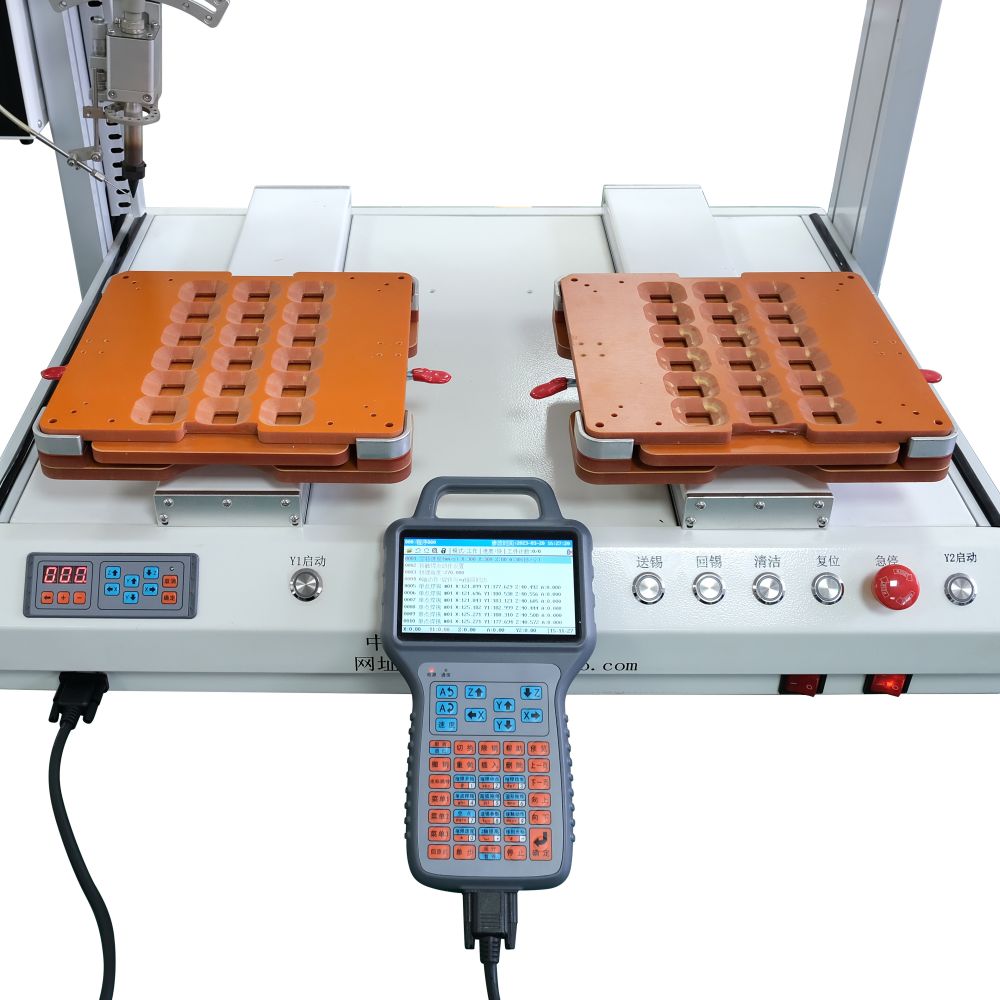

Soldering Robot Detail 2
Soldering Robot Detail 3

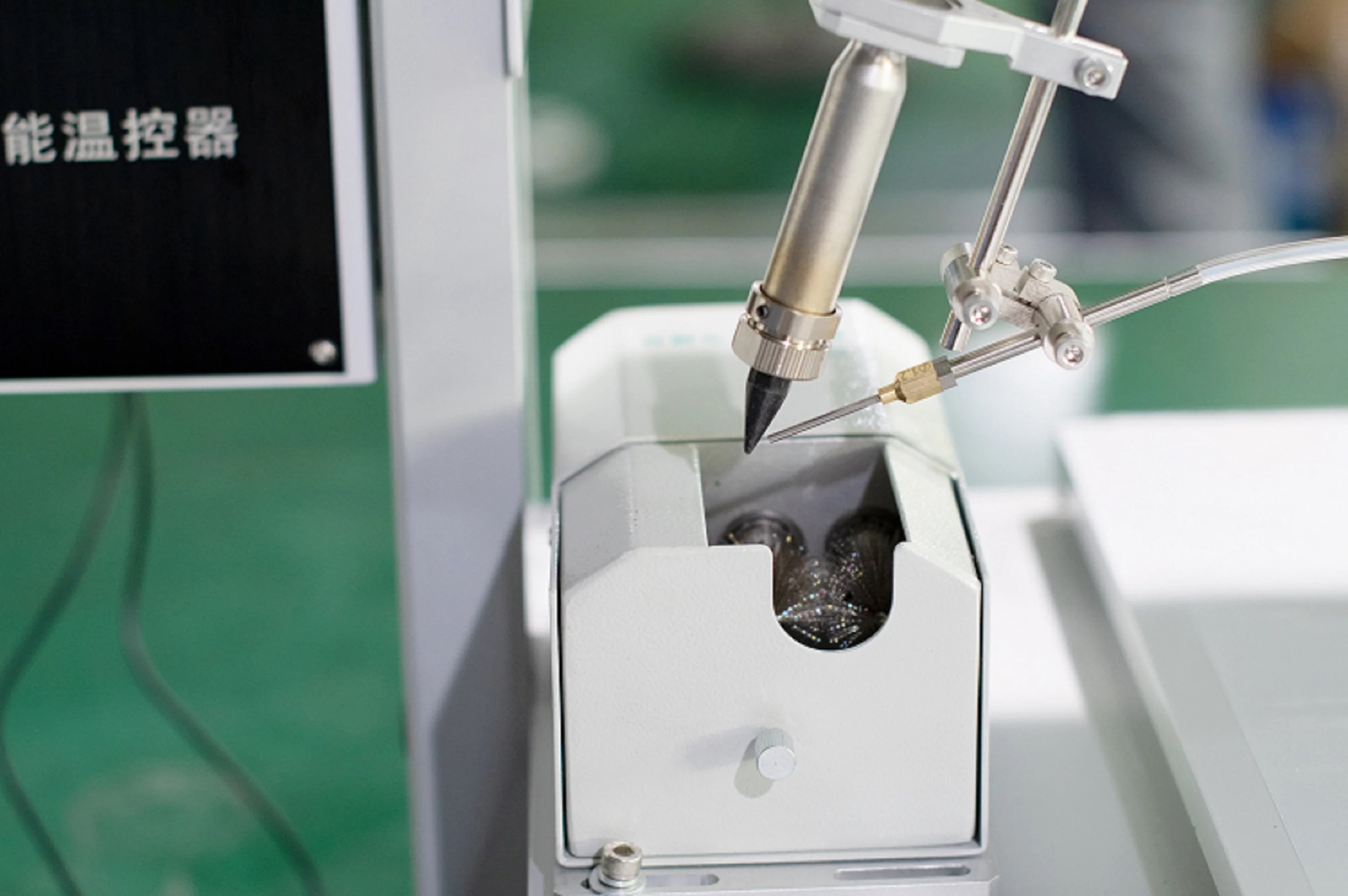

Soldering Robot Detail 4

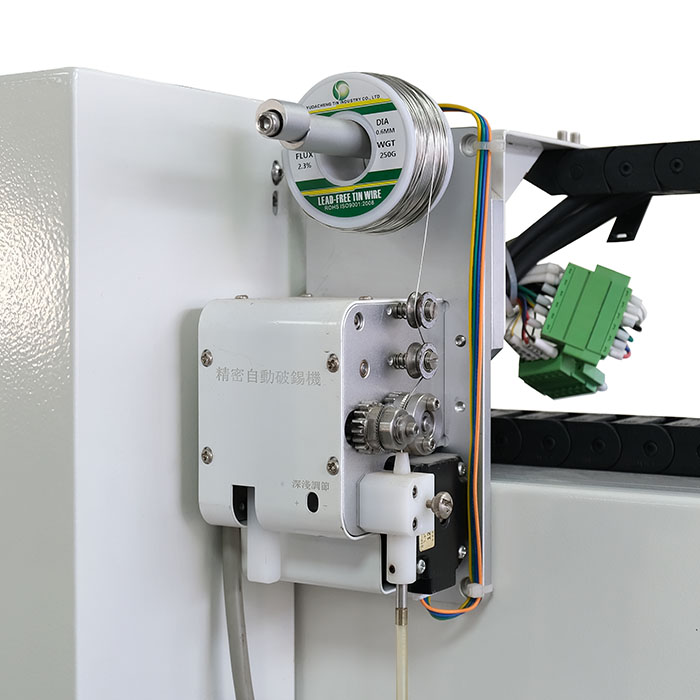

Soldering Robot Detail 5

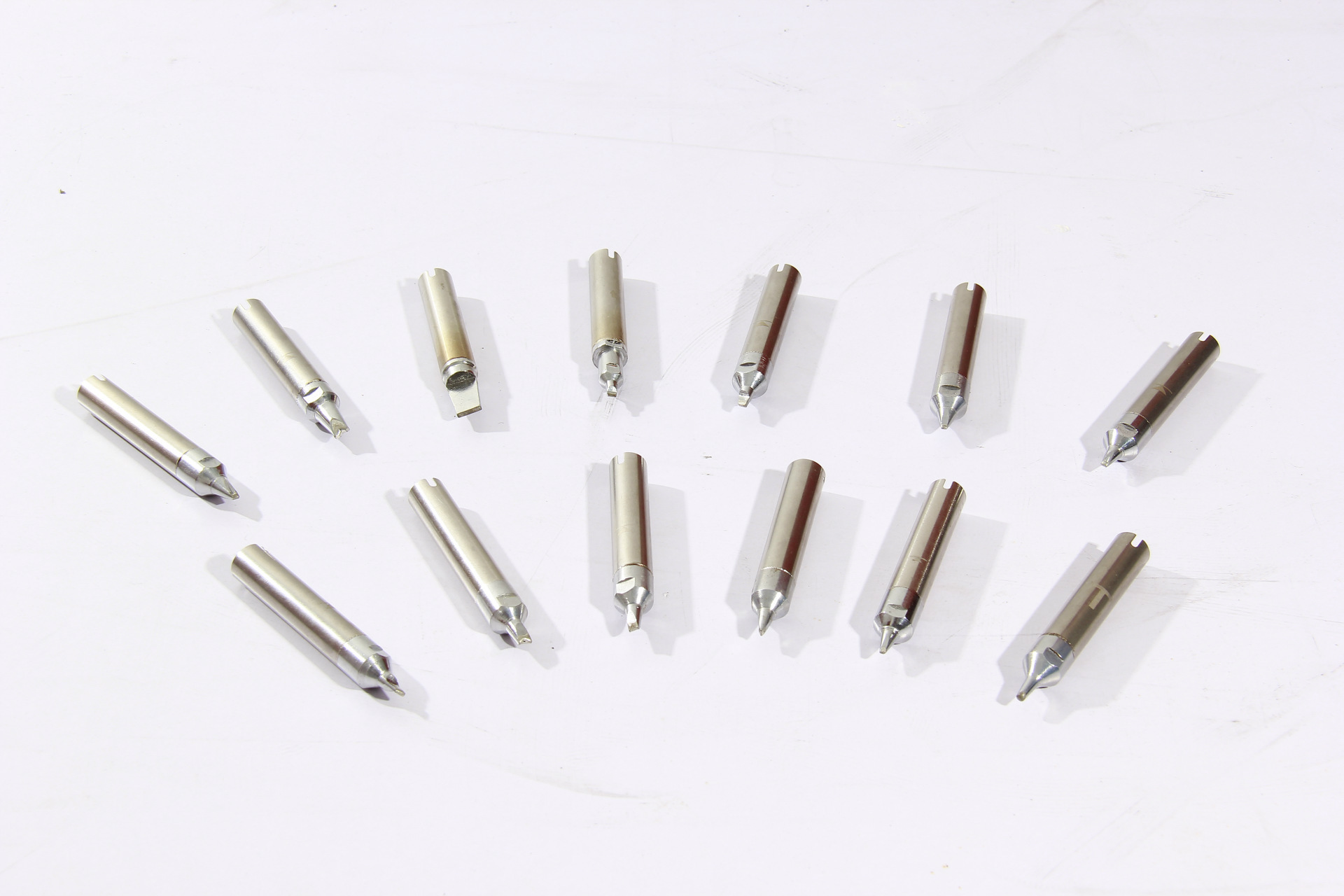

Soldering Robot Detail 6
Soldering Robot Detail 7

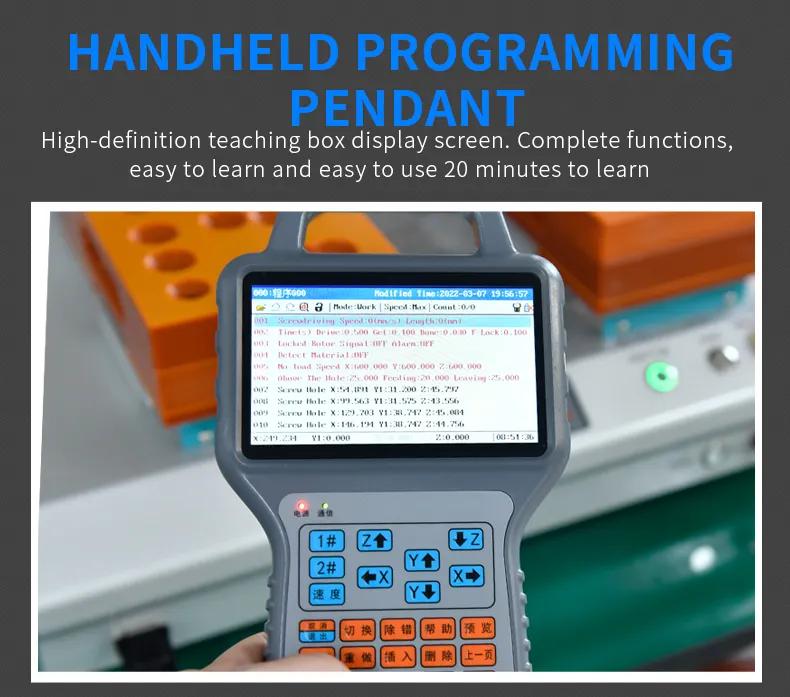

Soldering Robot Overview

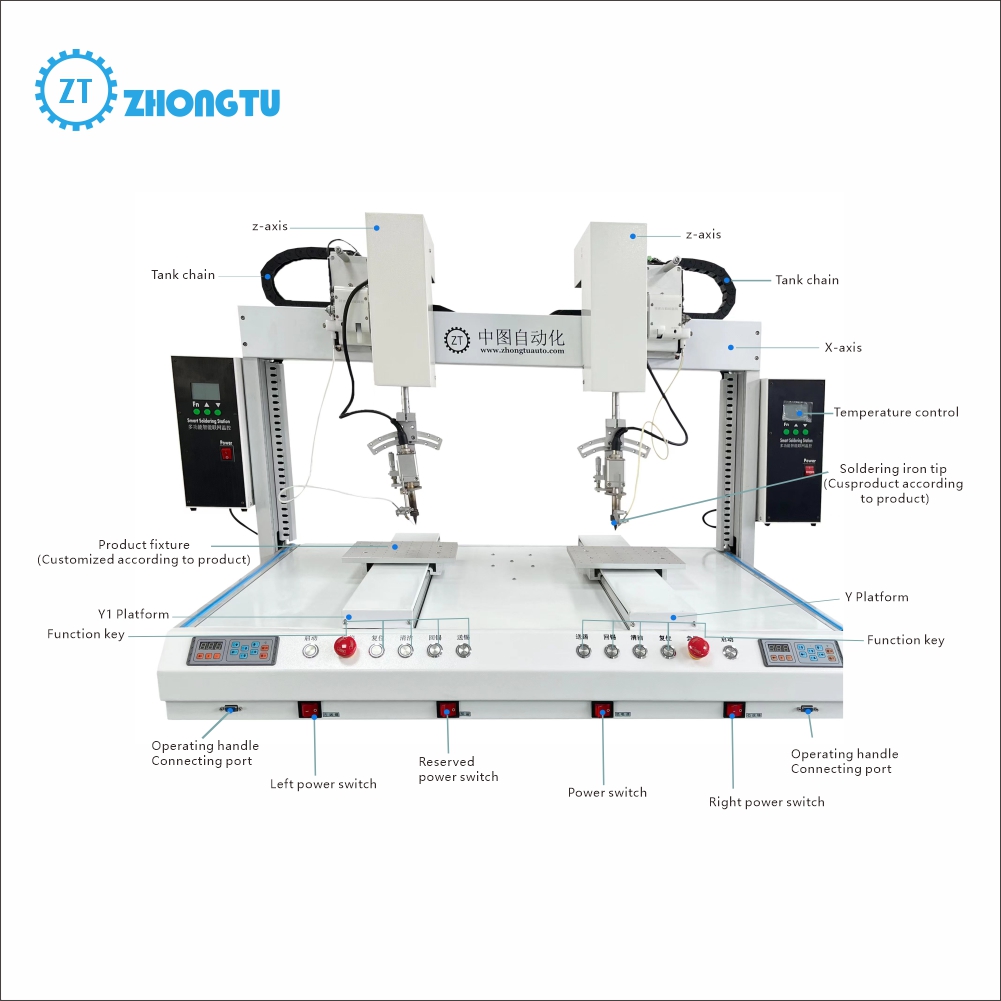

Soldering Machine System Diagram
