| Component Class | Technical parameters | Parameter specifications |
|---|---|---|
| Robot arm | Load capacity | 3-210KG |
| Arm span range | 540-3326mm | |
| Repeated positioning accuracy | ±0.05mm | |
| Welding system | Welds types | All-digital inverter welding machine compatible with MAG/MIG/TIG processes and fiber laser welding systems |
| Maximum current | Typically 400A, with some models reaching up to 500A | |
| Applicable materials | Carbon steel, stainless steel, aluminum alloy, etc | |
| Equipment size and weight | Equipment dimensions | Typically 1000*850*2500mm |
| Equipment weight | 200-700KG | |
| Control system | Programming mode | Supports drag teaching, offline programming, etc |
| Software functions | Features welding process management, human-machine interface, etc | |
| Else | Ingress protection rating | IP64 |
| Applicable environment | Capable of stable operation in complex environments; for example, the welding machine features lightning protection and wide voltage adaptation capabilities |

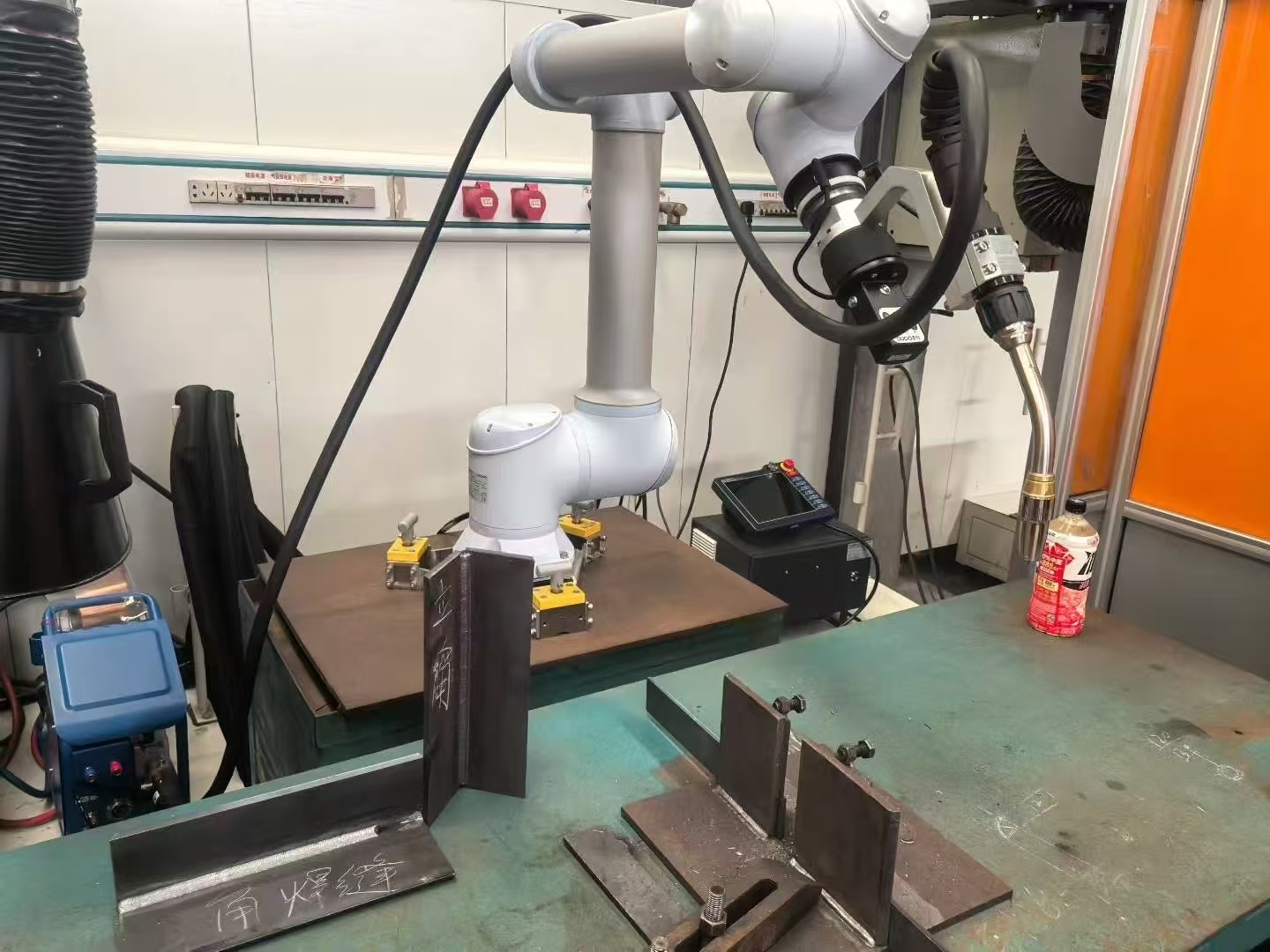

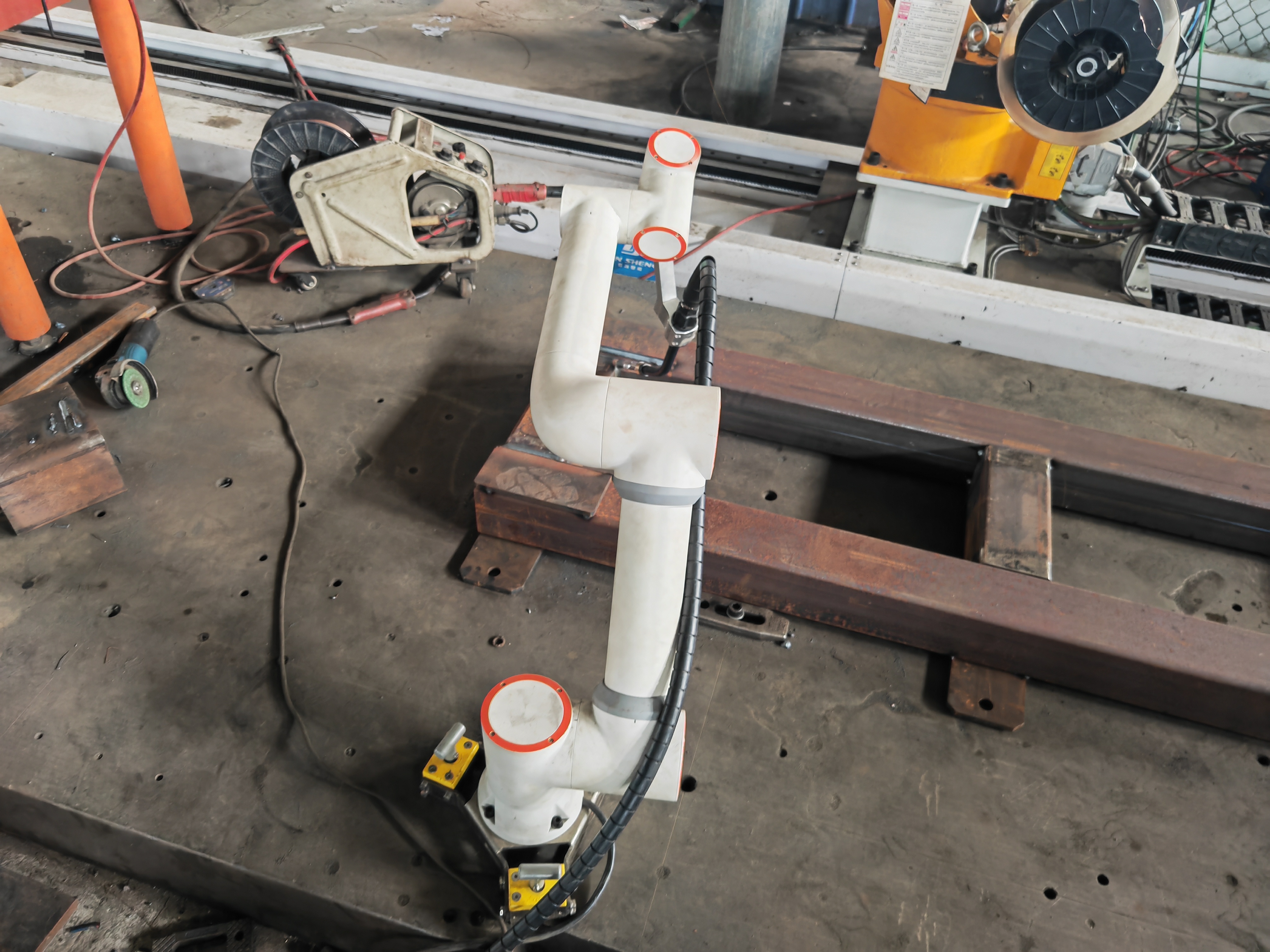

The dexterous welding workstation is mainly suitable for welding various metal materials, and is particularly good at handling the following materials:
Through standardized interfaces and parameter memory functions, tooling switching and program calling for different workpieces can be completed within a few minutes without complicated debugging. For multi-variety products, the production changeover time is reduced by more than 80%, meeting the flexible production needs of multiple batches and small quantities.

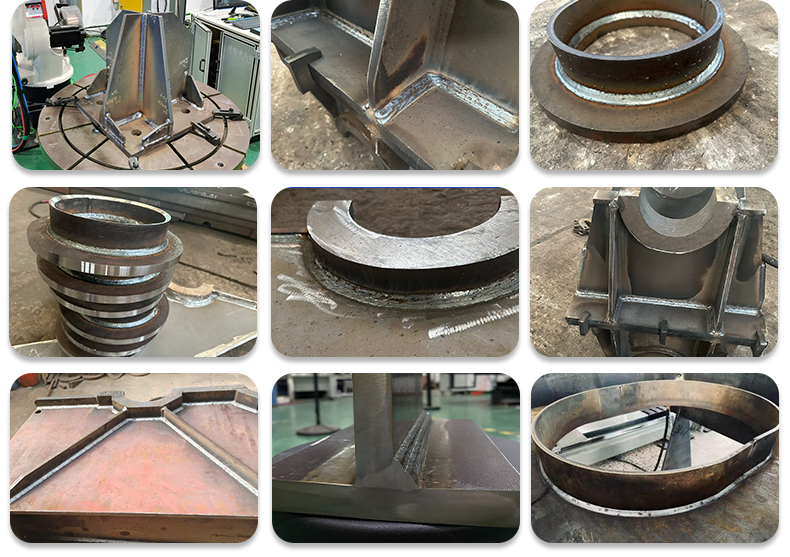

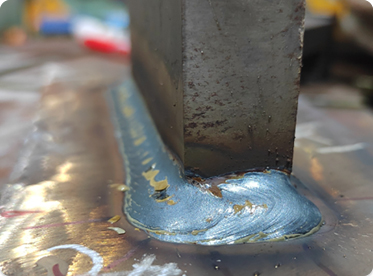

Optimize weld positions and significantly improve welding quality. In industry, a large number of workpieces involve complex structures such as welded polyhedrons, spatial curved surfaces, and intersecting welds.

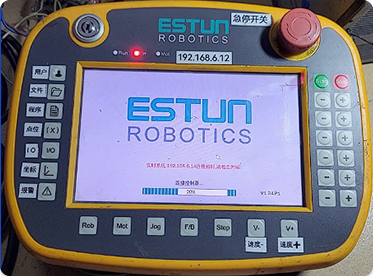

Equipped with a numerical control system (such as a PLC or industrial robot controller), the repeat positioning accuracy can reach ±0.1mm, and the angular positioning accuracy is ±0.05°. After one-time programming, the workpiece posture can be switched in seconds without repeated manual calibration.

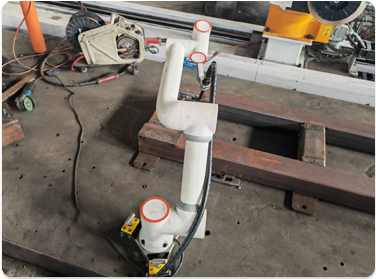

The workstation has a relatively small overall size (usually 3-10 m²) and can be flexibly placed according to the workshop layout, even embedded in the gaps of the production line. It is particularly suitable for small and medium-sized factories or scenarios with limited space.

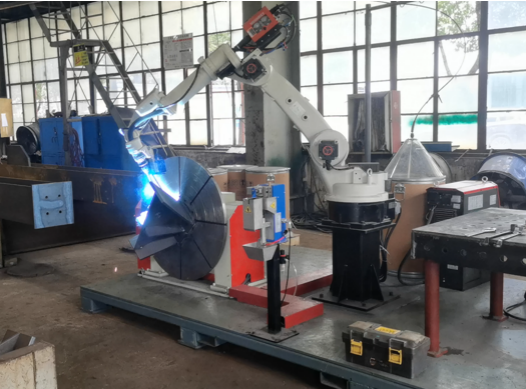

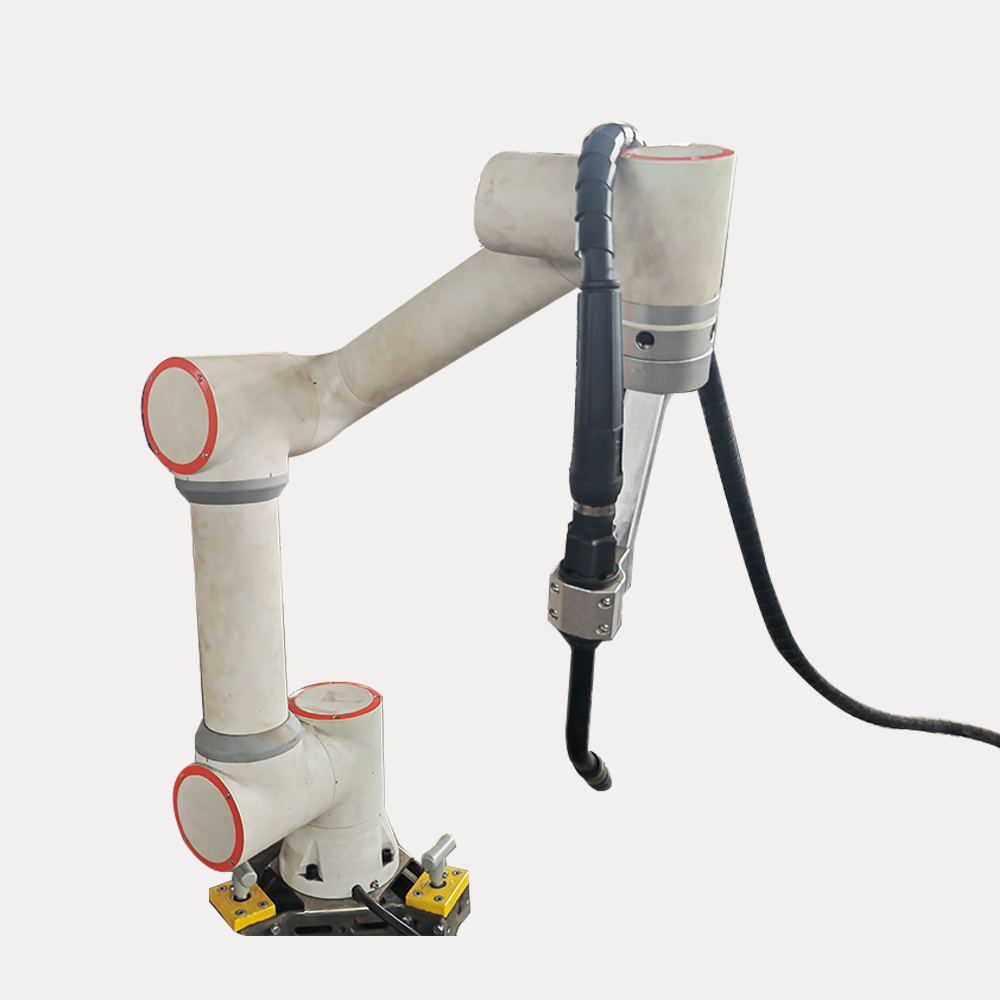

It is equipped with a graphical operation interface or a teach pendant, eliminating the need for professional robot engineers. Some high-end models support "drag-and-drop teaching", allowing users to directly pull the robot's end effector by hand to record paths, which further reduces the difficulty of operation.

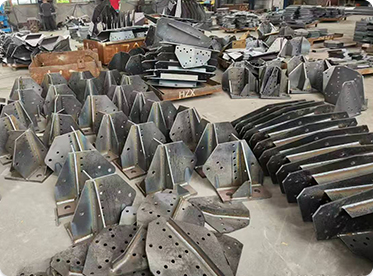

Flexible integration, capable of adapting to multi-variety production, handling complex processes, covering a wide range of operations, and being the core equipment for flexible production.

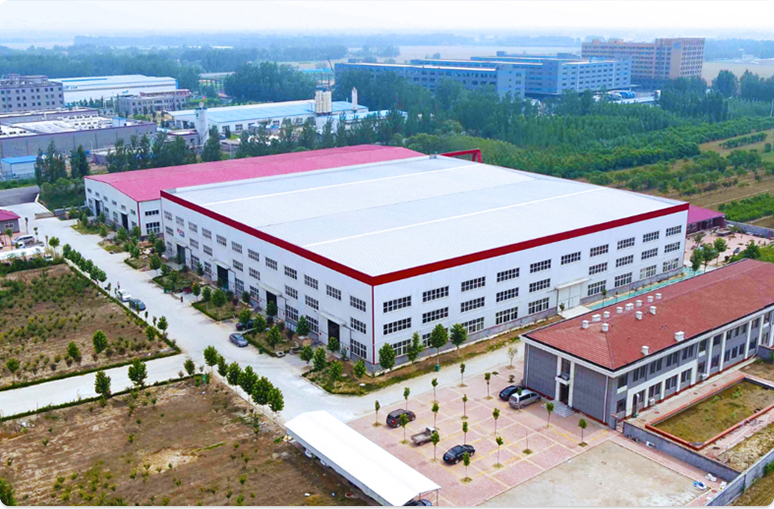

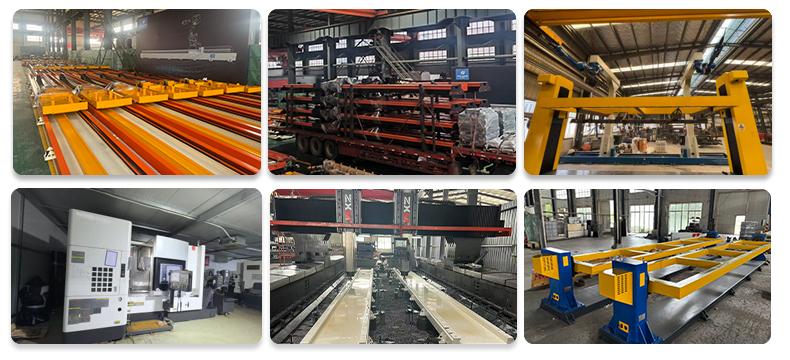

We are a National High-Tech Enterprise dedicated to the research, development, and manufacturing of intelligent equipment. Building upon a core foundation in precision mechanical parts processing, we specialize in the R&D, production, sales, and international trade of precision components and have evolved into a mature provider of integrated solutions for laser and automation equipment. Our modern manufacturing plant covers an area of 20,000 square meters. The facility is equipped with over 50 advanced imported high-precision CNC machining centers (including renowned brands from the USA and Japan) and large gantry machining centers, providing a robust hardware foundation for high-quality and high-precision products.
We possess an experienced technical team with over 15 years of expertise in mechanical processing technology. Leveraging more than a decade of profound accumulation in the R&D and manufacturing of laser and automation equipment, combined with the core team's solid background of over ten years in mechanical processing and over five years of practical experience in the market application of complete machines, we have developed formidable technical strength and process advantages. To ensure product quality and precision, all core components are processed in-house.
Our product portfolio primarily covers two major categories: laser cutting & welding equipment and industrial automation equipment, enabling us to provide customers with complete machines, precision parts, and professional services. Specific products encompass various laser tube cutting machines, tube & sheet integrated laser cutting machines, laser chucks, welding beds, and automatic loading and unloading devices in the laser cutting and welding category; and automatic welding robot production lines, handling and palletizing automatic lines, robot 7th linear axes (slide rail), and welding positioners in the industrial automation category.
As an established intelligent equipment manufacturer, we continuously deliver superior performance and higher-quality intelligent equipment and core components to our customers, backed by years of technological accumulation and mature production processes. From complete laser machines to precision components, we are committed to being your trusted long-term partner through our professional expertise, mature and reliable products, and responsive technical guidance and service.
