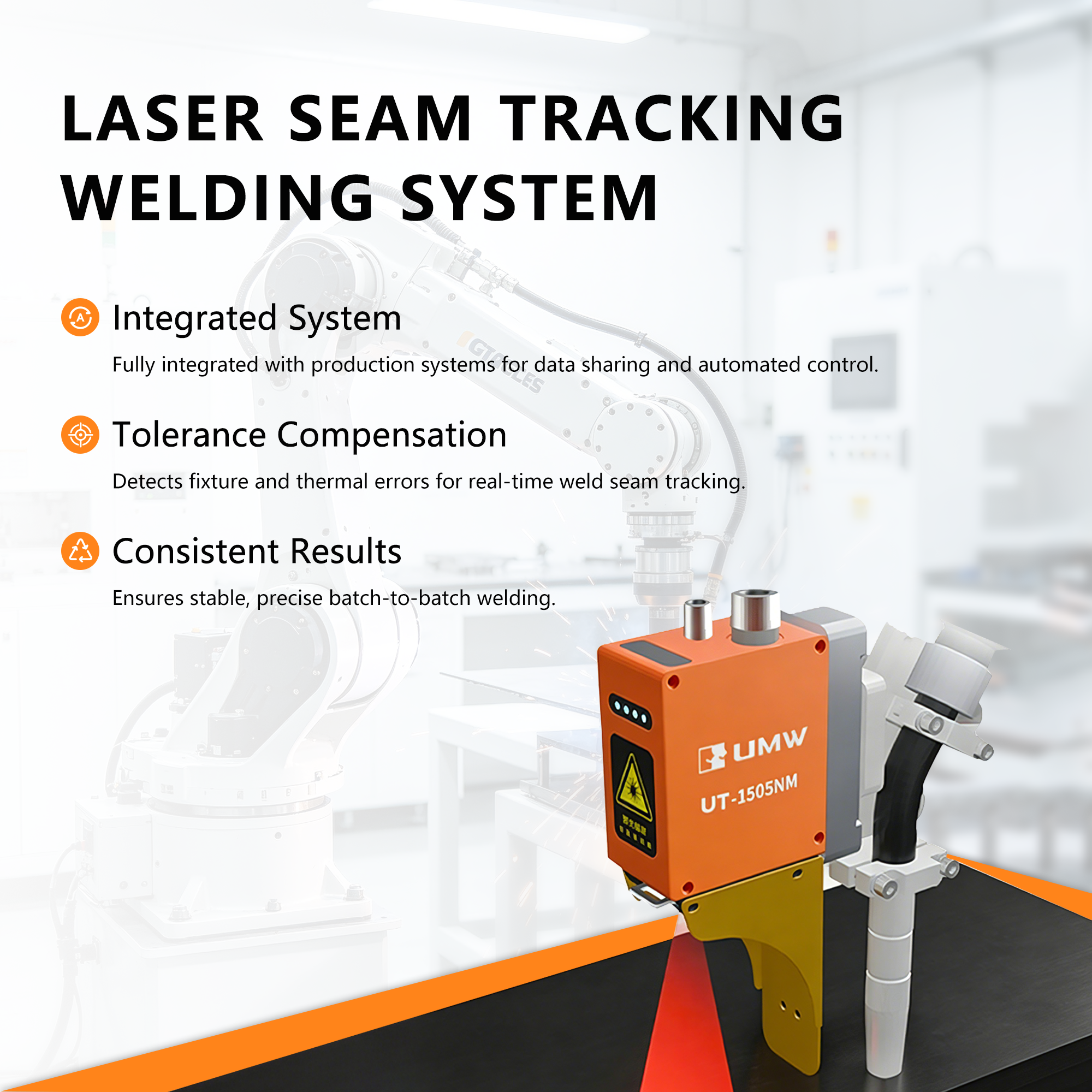

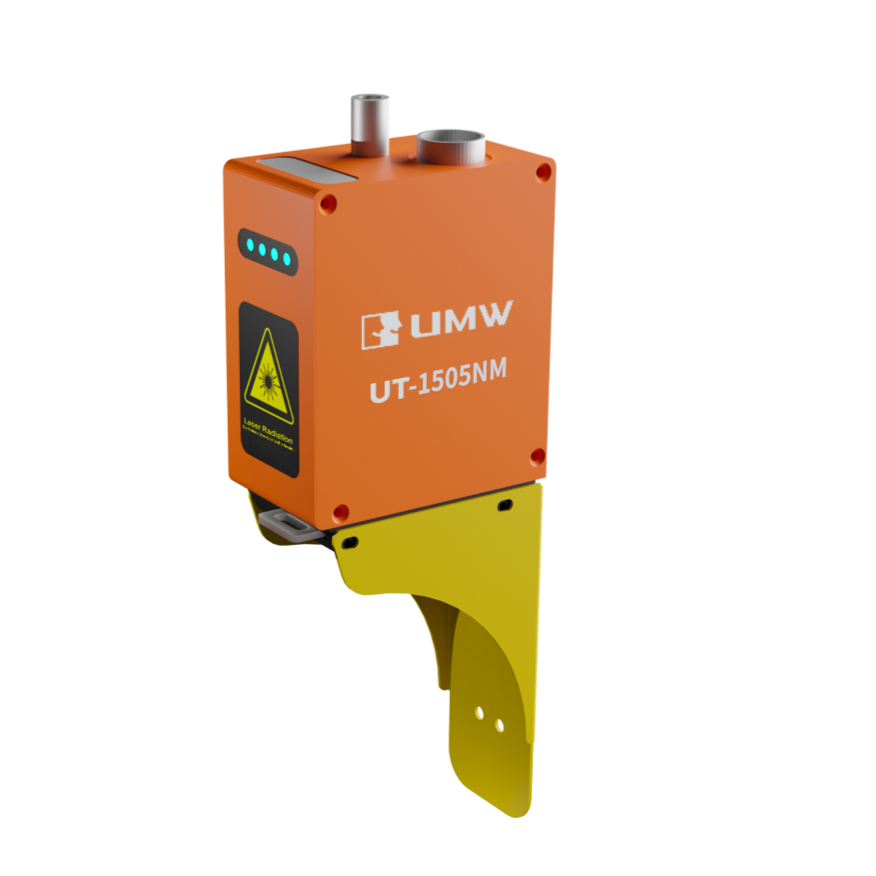

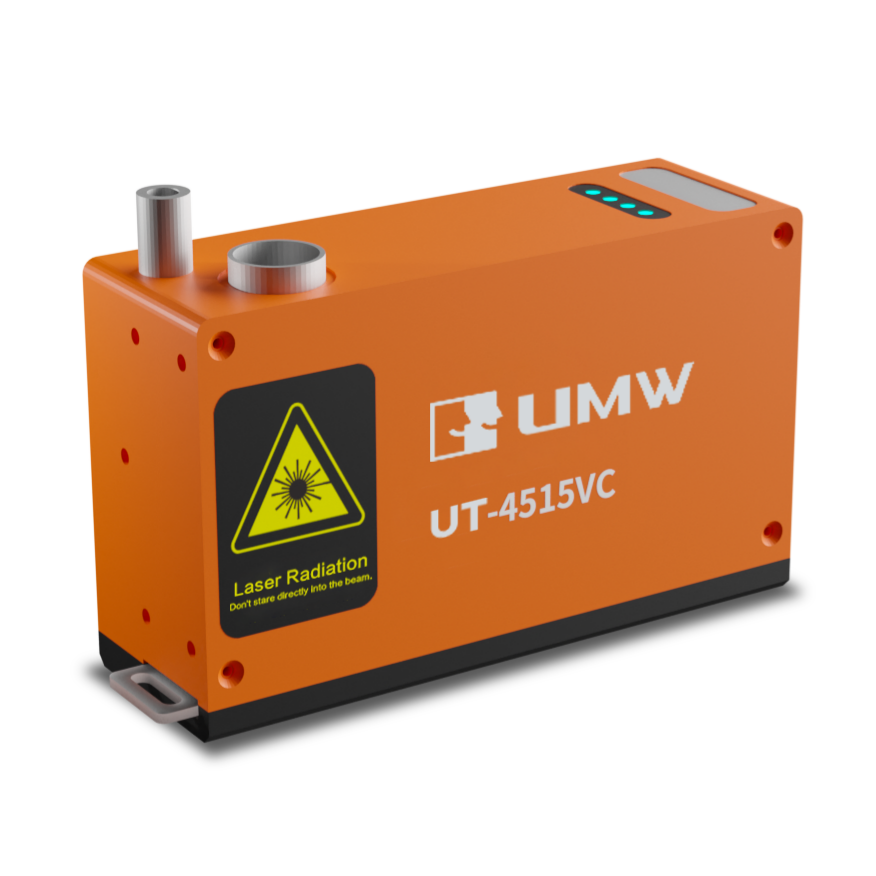

Advanced Laser Seam Tracking Welding System For Robotic Welding Automation

Product Highlights

✓ Digitalization and Integrated System: Highly integrated with production systems, enables data sharing and automated control.
✓ Tolerance Compensation: Accurately identifies errors from fixtures and thermal deformation, provides real-time weld seam tracking.
✓ Consistent and Repeatable Results: High stability with precise recognition, ensures batch-to-batch welding consistency.
✓ Simplified Programming: Eliminates need for precise point alignment, improves programming efficiency and reduces operator skill requirements.
✓ Zero Front Installation: Mounts directly on welding torch with no blind spots, ideal for high-precision applications.
✓ Multiple Weld Type Support: Online real-time detection and tracking for multiple weld types.

Product Description

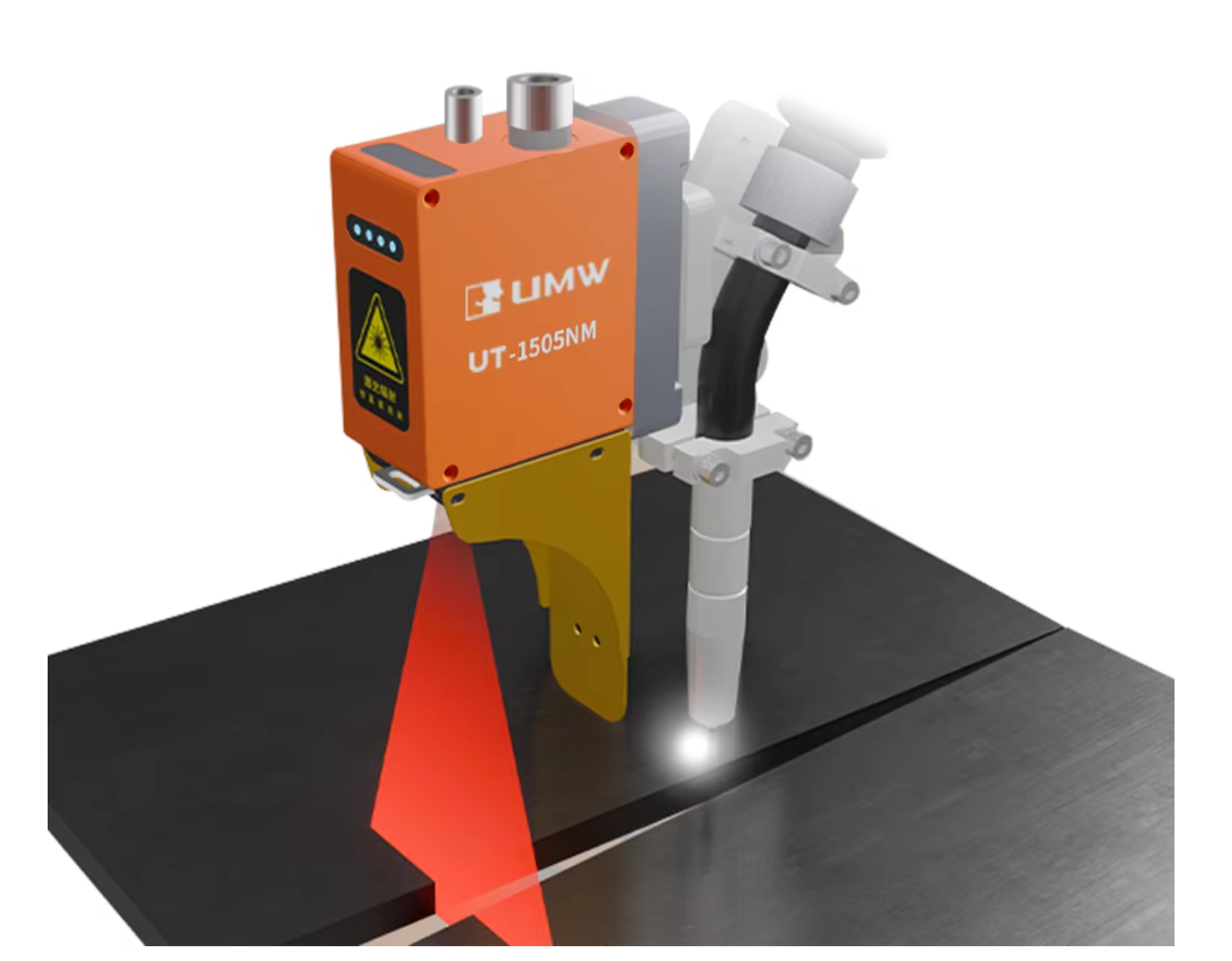

Advanced Laser Seam Tracking Welding System for Robotic Welding Automation

Providing Reliable Vision for Automated Welding

The laser vision seam tracking welding system features an embedded design that facilitates easy installation and deployment, allowing for rapid on-site configuration.

With its user-friendly and intuitive software interface, the system provides precise visual guidance for industrial robots and specialized automated welding machinery.

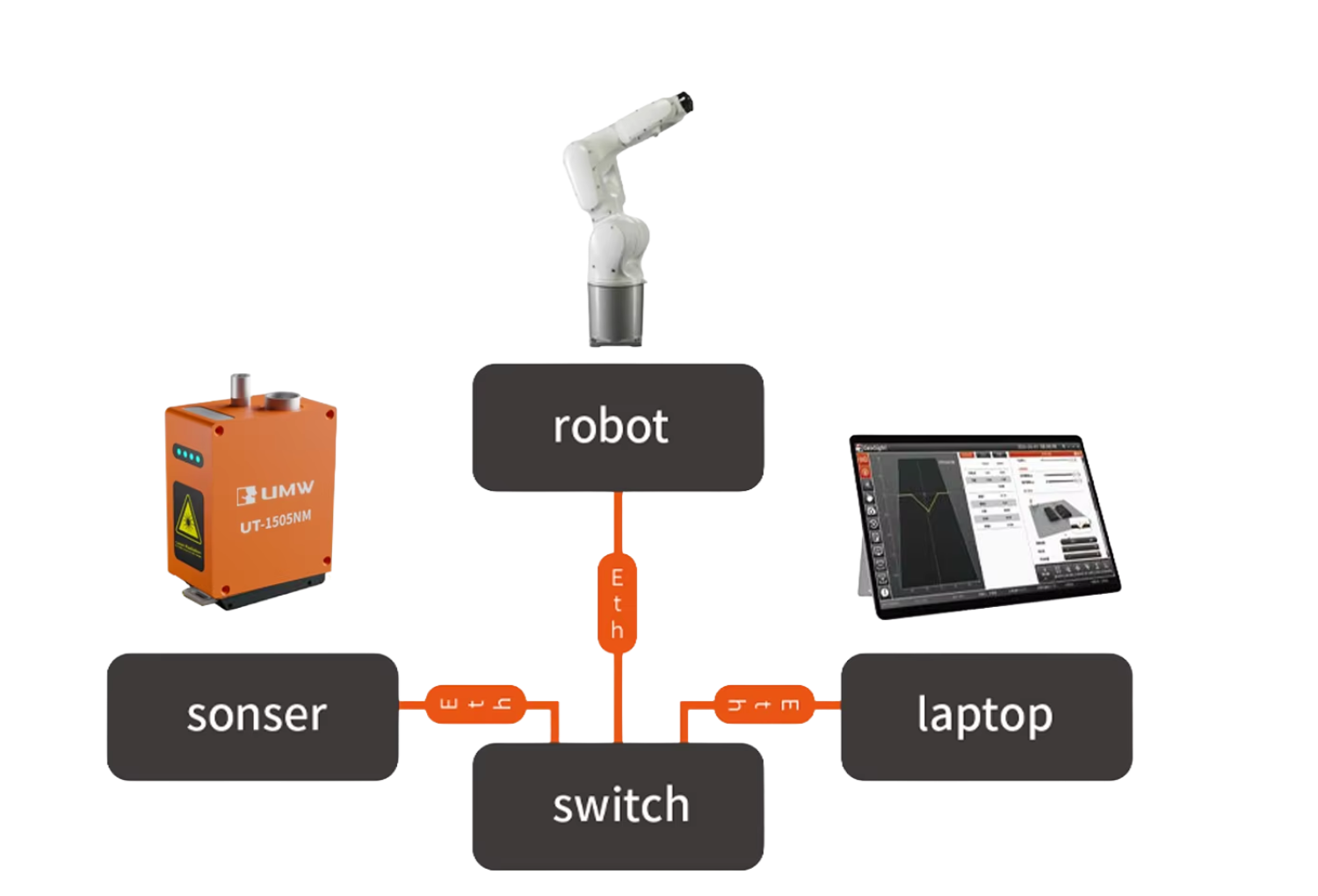

How the Seam Tracking System Works?

Vision Sensor: Collects weld seam information
Industrial Robot: Receiving Deviation Data
Network Switch: Enable data transmission and communication connections between various devices
Laptop / Host PC: Parameter Configuration, System Debugging, and Operational Monitoring

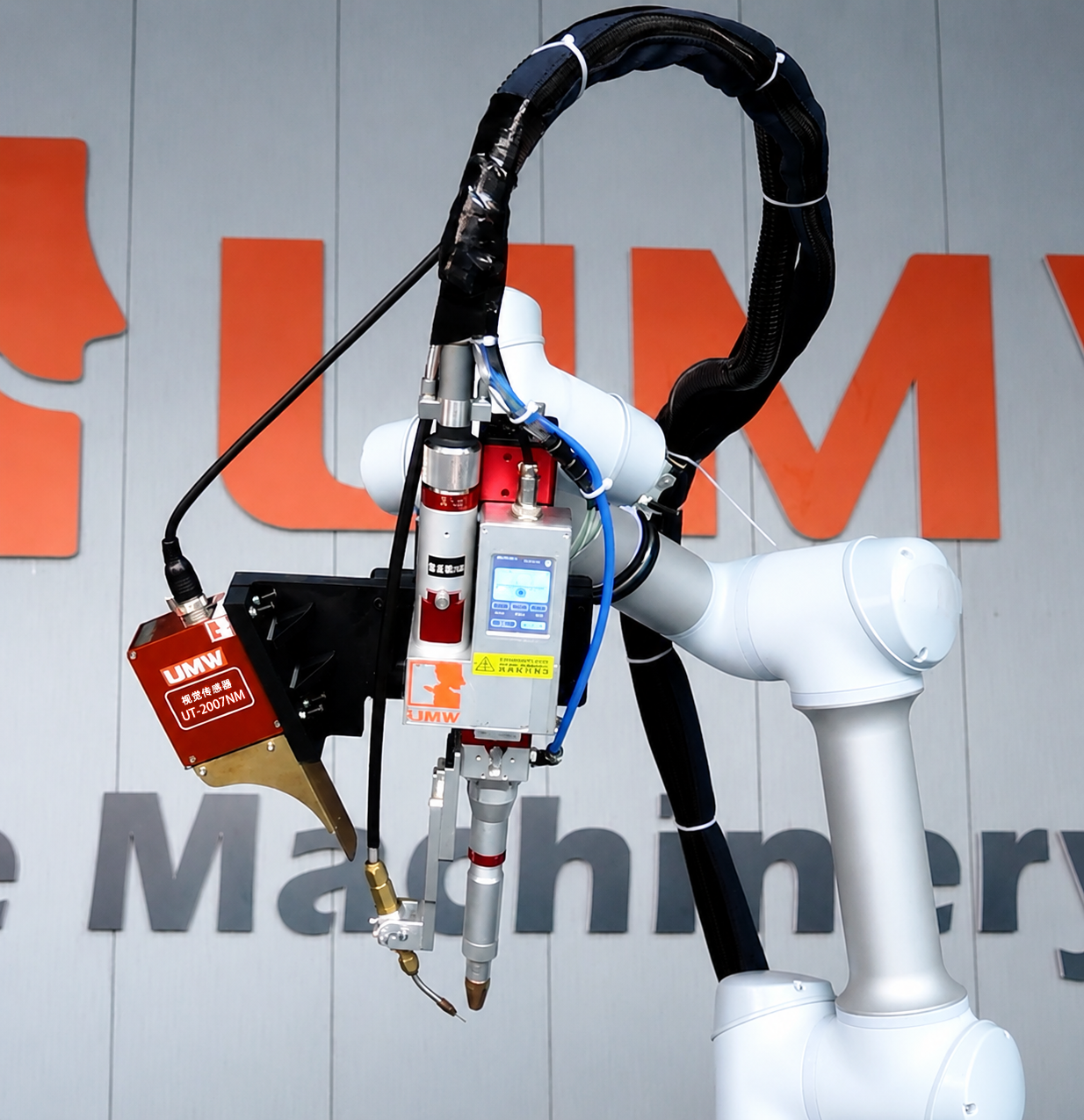

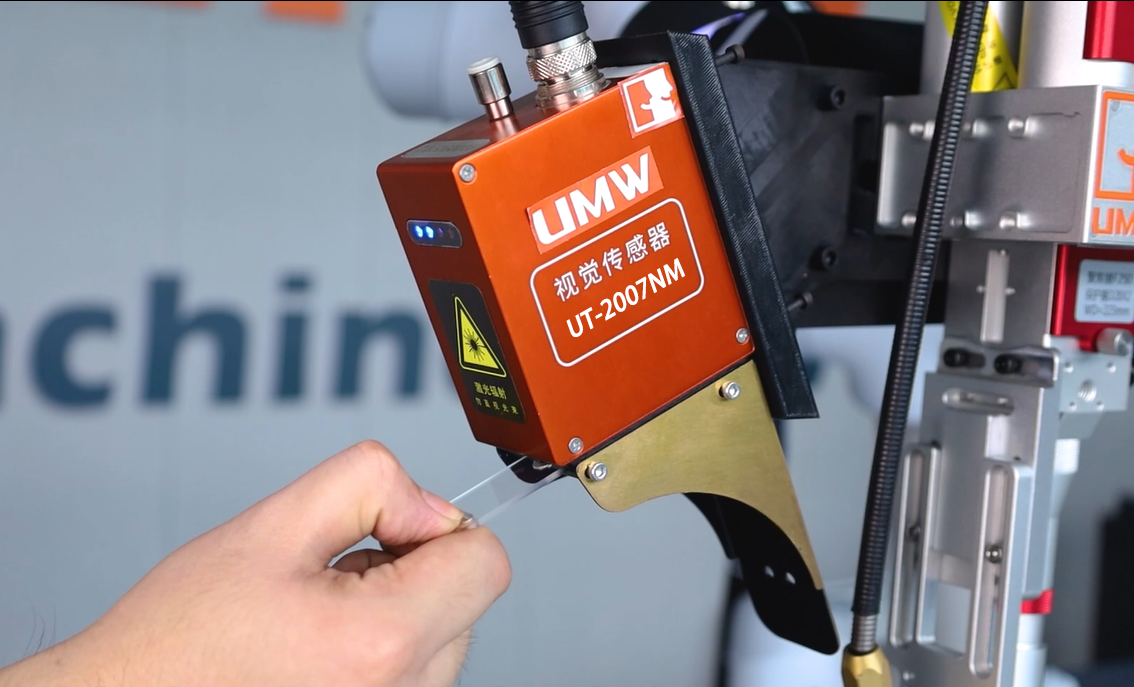

Scene Image

Key Advantages

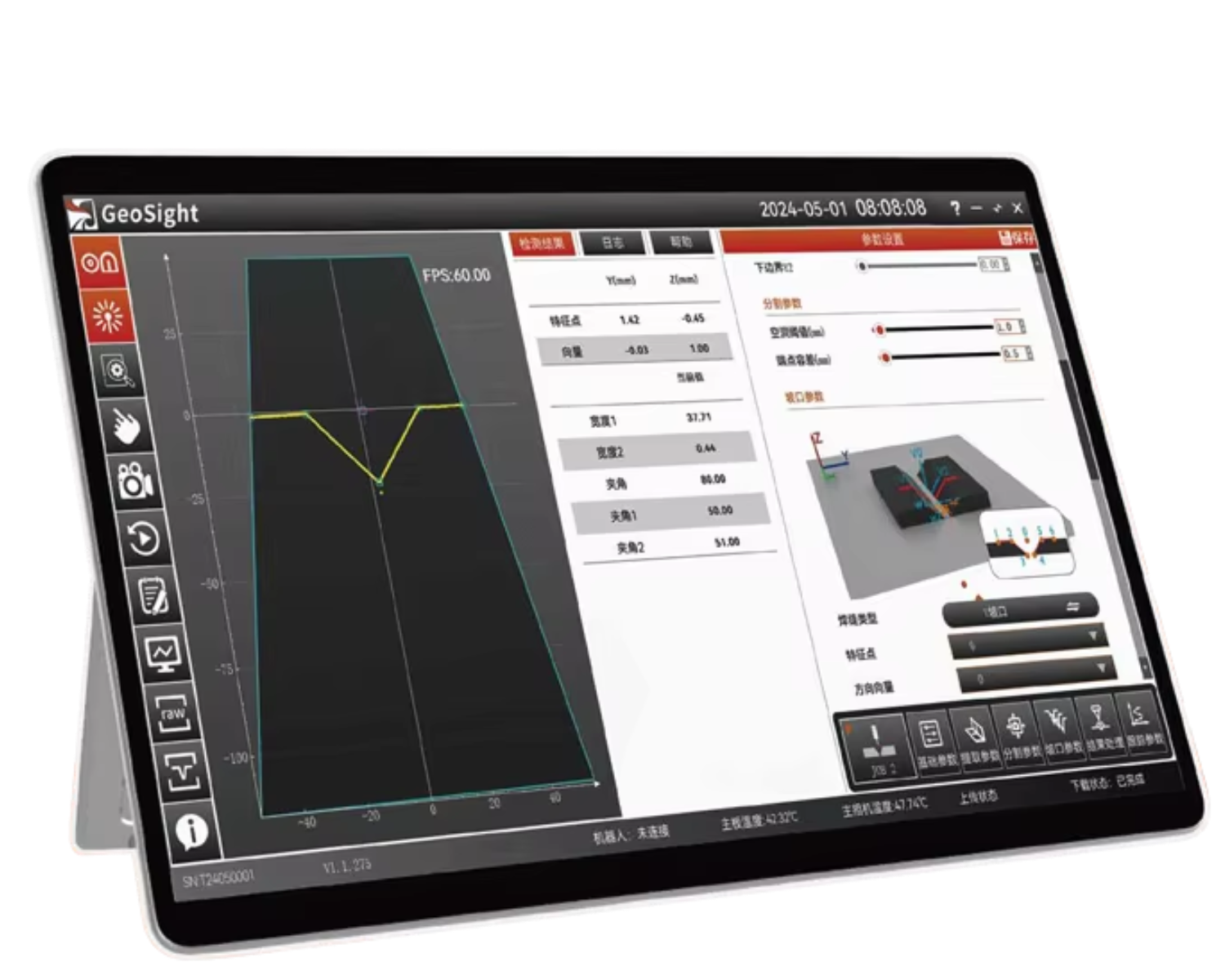

Intelligent Software Interface

Graphical interactive interface
Quick parameter navigation
Fast multi-feature switching
Rich diagnostic functions
Real time display of sensor status

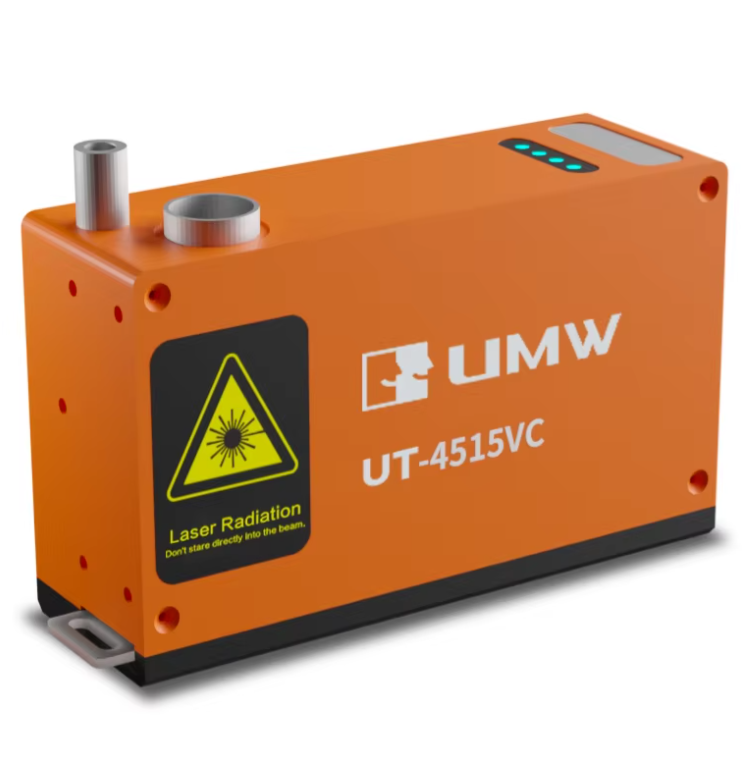

Robust Processing & Hardware

Powerful multi-core processors and FPGA
With up to 4T of AI computing power
Anti-electromagnetic interference capability
Multiple indicator light status display
High pressure air knife cleaning lens

Parameters of UT Blazing Series

Sensor Model	UT-1505NM-00	UT-2007NM-00	UT-4515NM-00	UT-4515VC-00
Z1 Optimum viewing (mm)	160	205	445	445
Working distance (mm)	121-231	152-282	317-595	317-595
Z2 Depth of field (mm)	110	130	278	278
V1 Field of view (mm)	50	68	150	150
Minimum gap (mm)	0.3	0.5	1	1
Y-resolution of central FOV	0.03	0.04	0.08	0.08
Average depth resolution	0.11	0.15	0.3	0.3
W/H/D (mm)	99.5X44X76	99.5X44X76	137 X45 X83	137 X45 X83
Color video surveillance	-	-	-	Yes

Upgraded Version

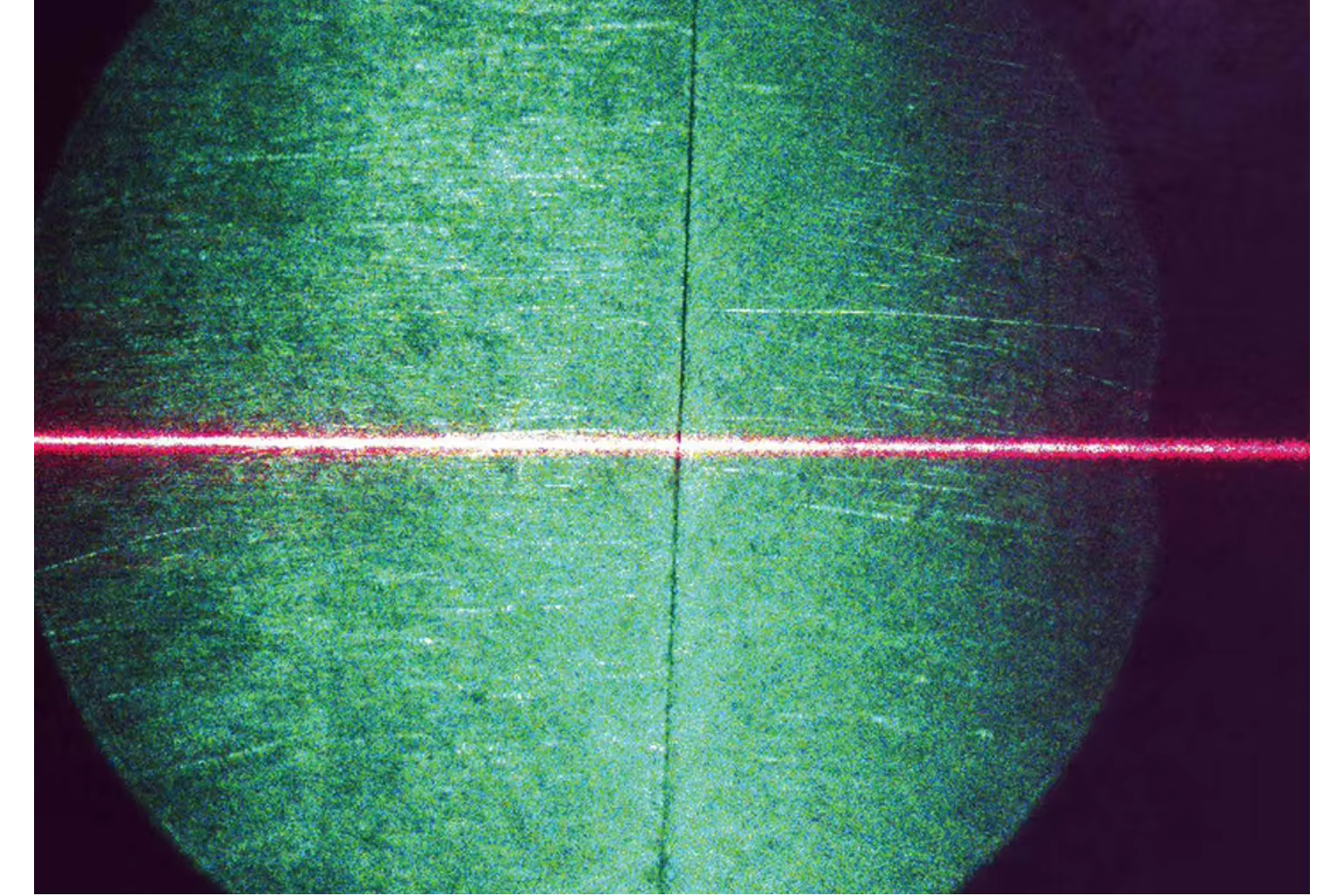

UT Blazing Series Fine Butt Welding Version

Integrates a secondary HD color camera with built-in lighting: Provide real-time, clear video monitoring, enabling remote teaching and safe operation in low-light or hard-to-access environments.
Higher Butt Welding Precision: Optimized specifically for fine butt joint welding with improved alignment accuracy.
Enhanced Detail Processing Ability: Better performance on small, thin, or high-precision components.

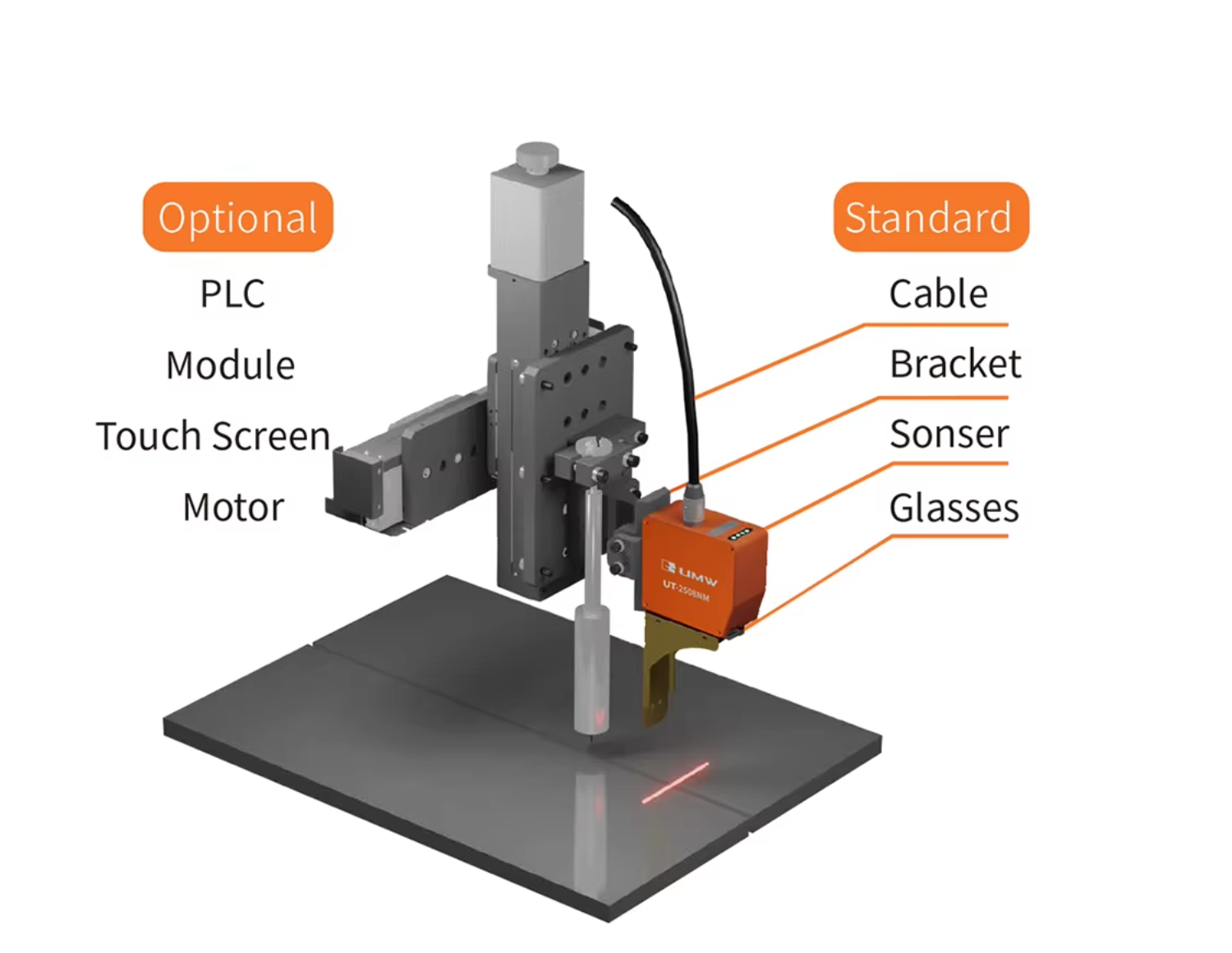

Laser Seam Tracking Welding UT Spark Series for XY Linear

Broader Motion Compatibility: Supports XY linear system integration for more flexible motion control.
Larger Working Range: Better suited for extended linear welding paths and larger workpieces.
Higher System Flexibility: More adaptable to general automated welding lines.
Improved Multi-Scenario Usage: Suitable for both standard seam tracking and linear rail welding applications.

Product Applications

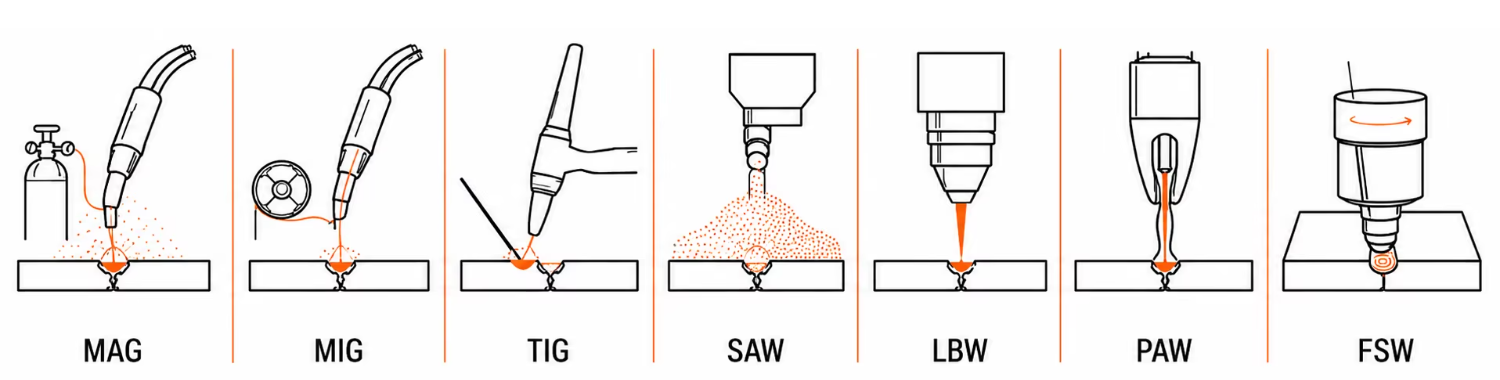

Suitable for Different Welding Processing Technology

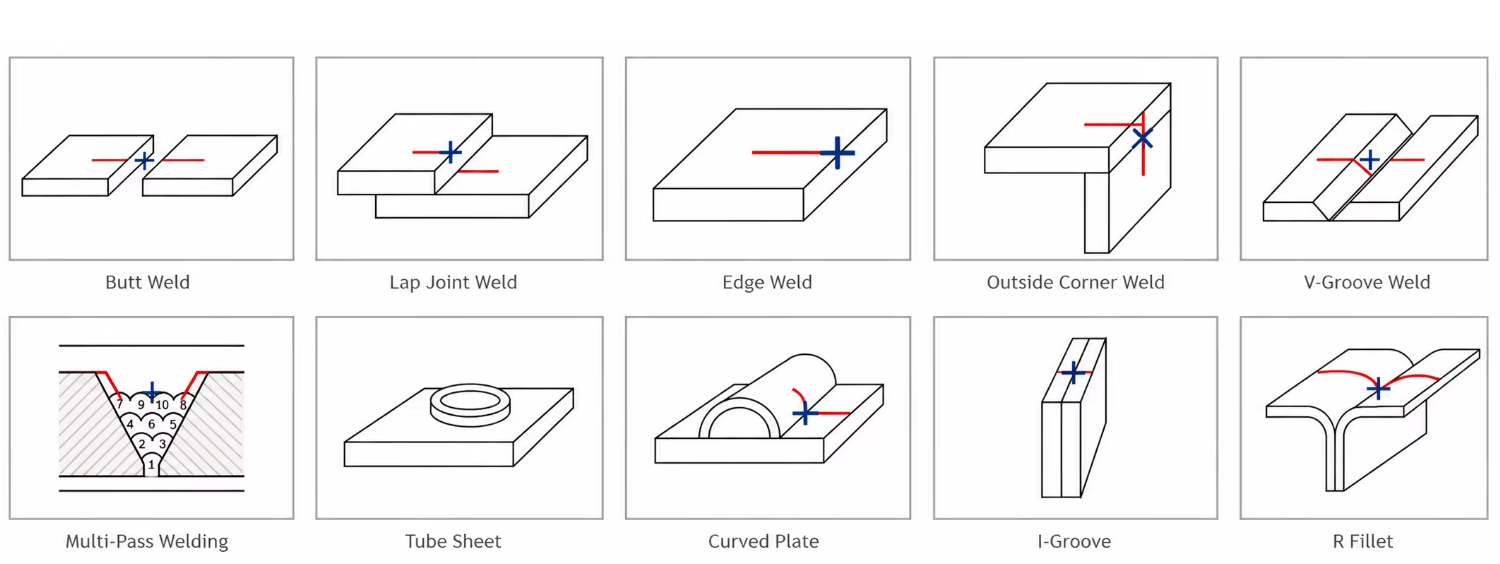

Adapt to Various Weld Joint Interfaces

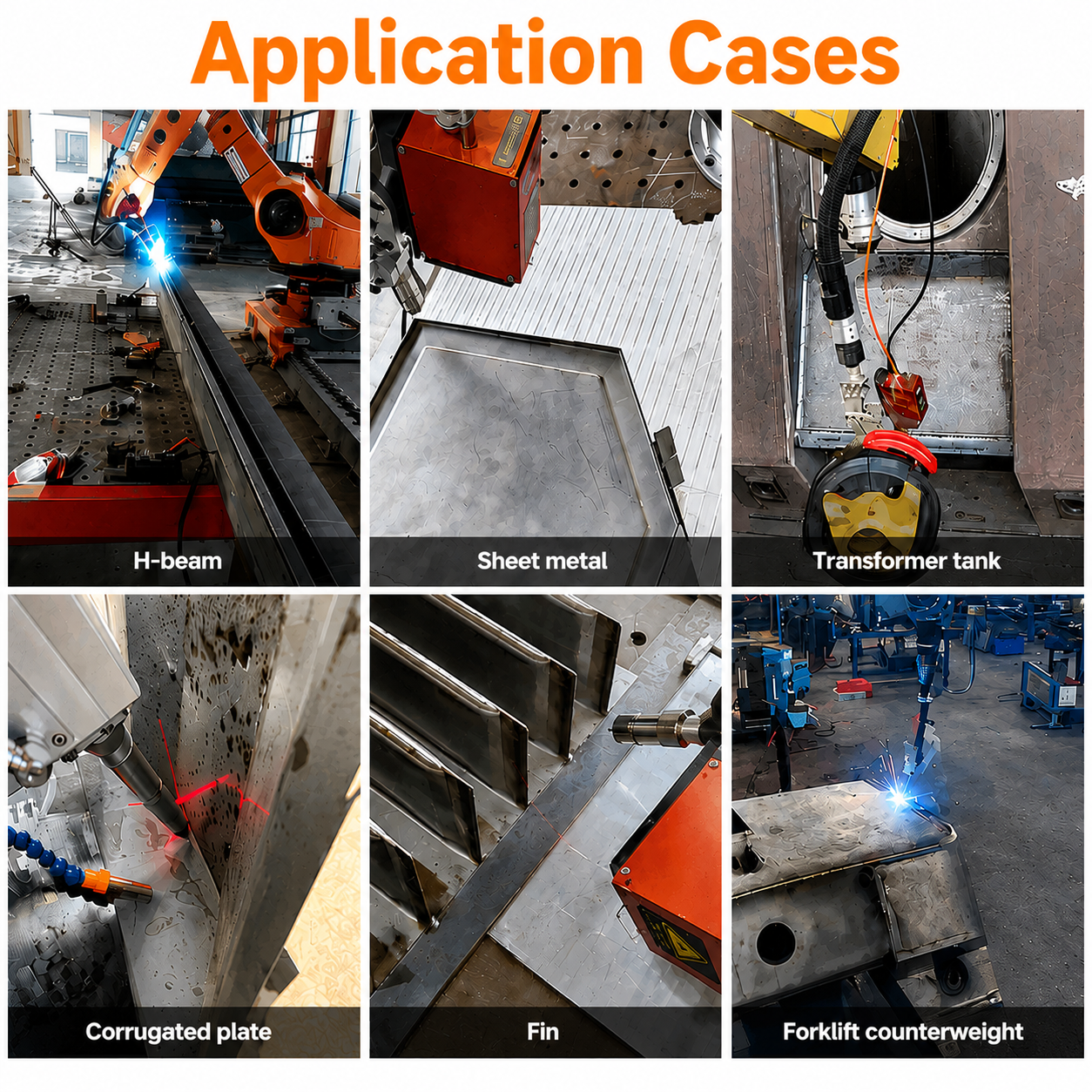

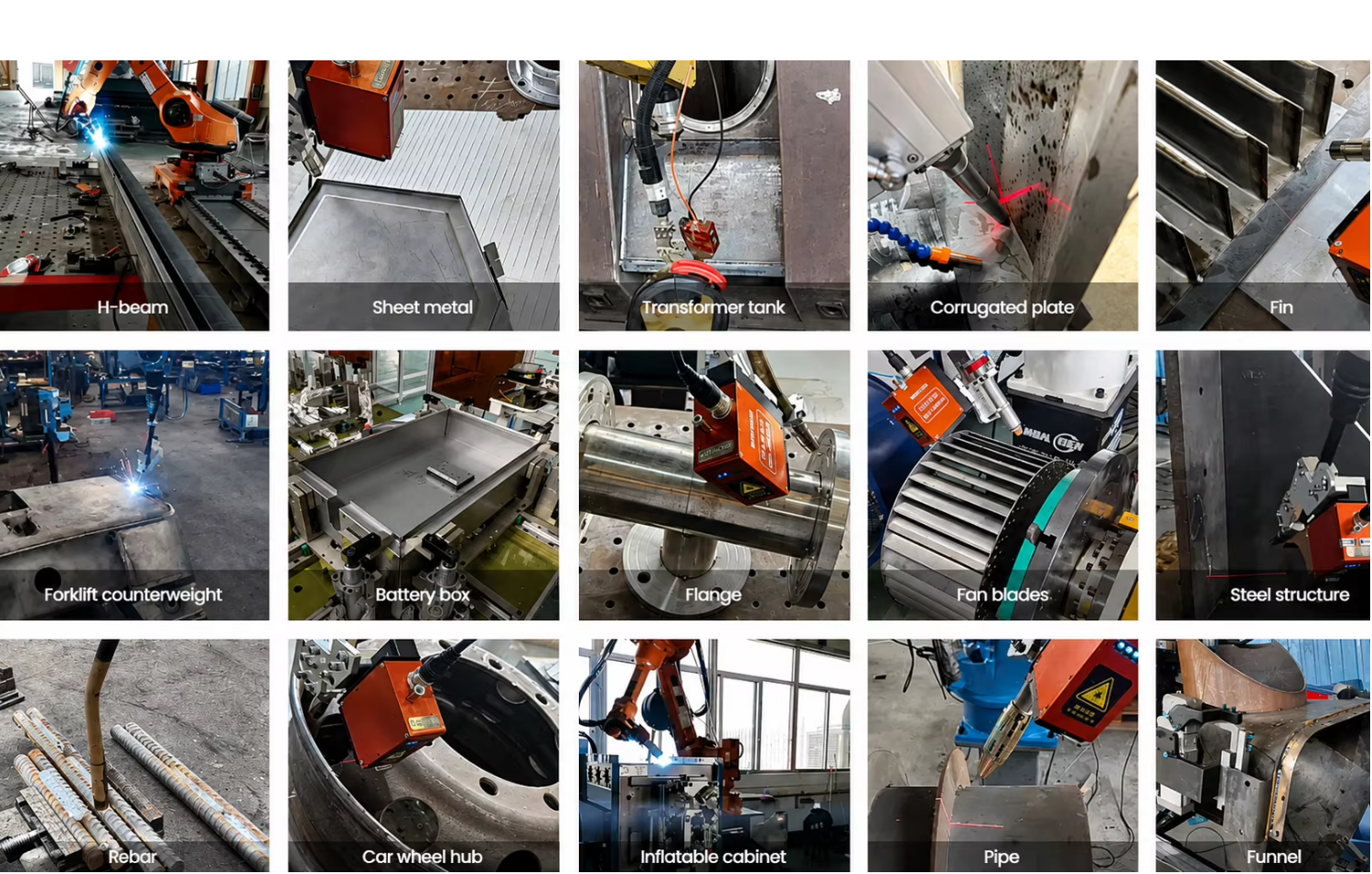

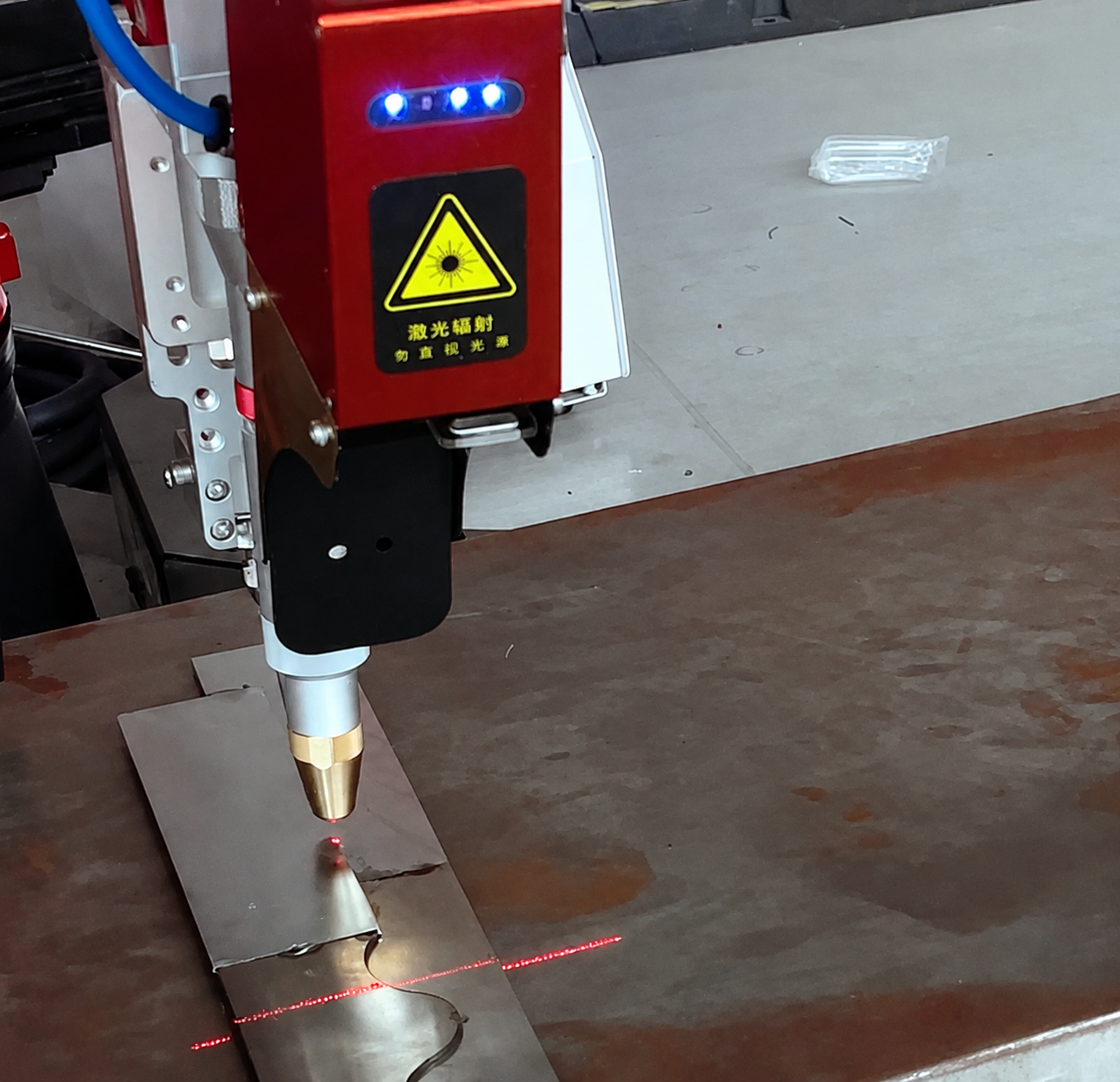

Laser Seam Tracking Welding System Application Cases

Accessory Packages

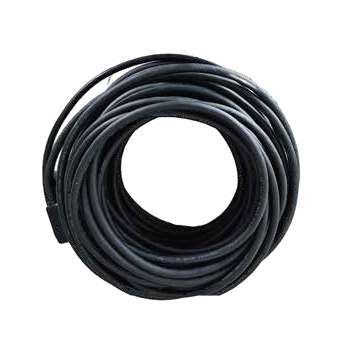

Cable

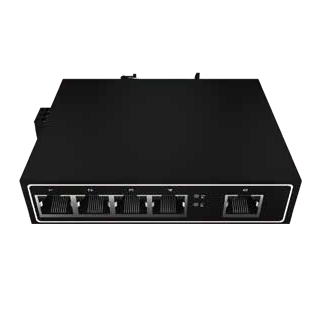

Switch

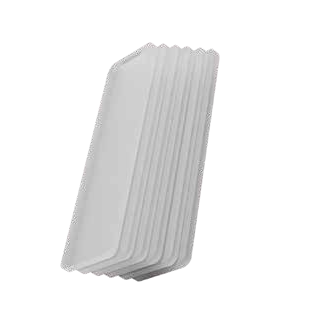

Splash guard

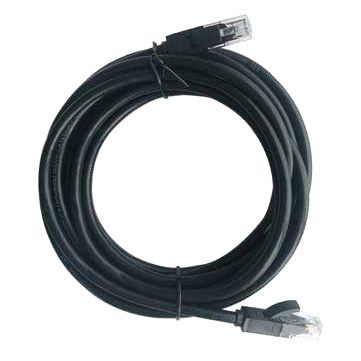

Network Cable

Certifications

After-Sales Service and Exhibitions

Why Clients Choose Us?

Cost Efficiency
30% longer machine lifespan than industry average.
Production-Ready
15-day rapid delivery for standard models.
Future-Proof
Free firmware upgrades & process optimization.

Frequently Asked Questions

What is the laser seam tracking system used for?

It is used to detect weld seams in real time and guide industrial robots for accurate automated welding.

Which robots is the system compatible with?

It supports most industrial welding robots and automated welding equipment with standard communication interfaces.

What are the main advantages of this system?

High precision seam tracking, real-time correction, strong anti-interference ability, and stable industrial performance.

What is the MOQ?

1 unit. Customized logos require 1 unit, color modifications require 5 units.

What payment and trade terms are available?

We accept credit/debit cards, bank transfer, L/C, Alibaba Trade Assurance, etc. Trade terms include EXW, FOB, CFR, CIF, DAP, DDP, etc.

How to get sample testing service?

We provide free test photos/videos if samples are in stock. For shipped or special material samples, customers cover shipping or material costs.
