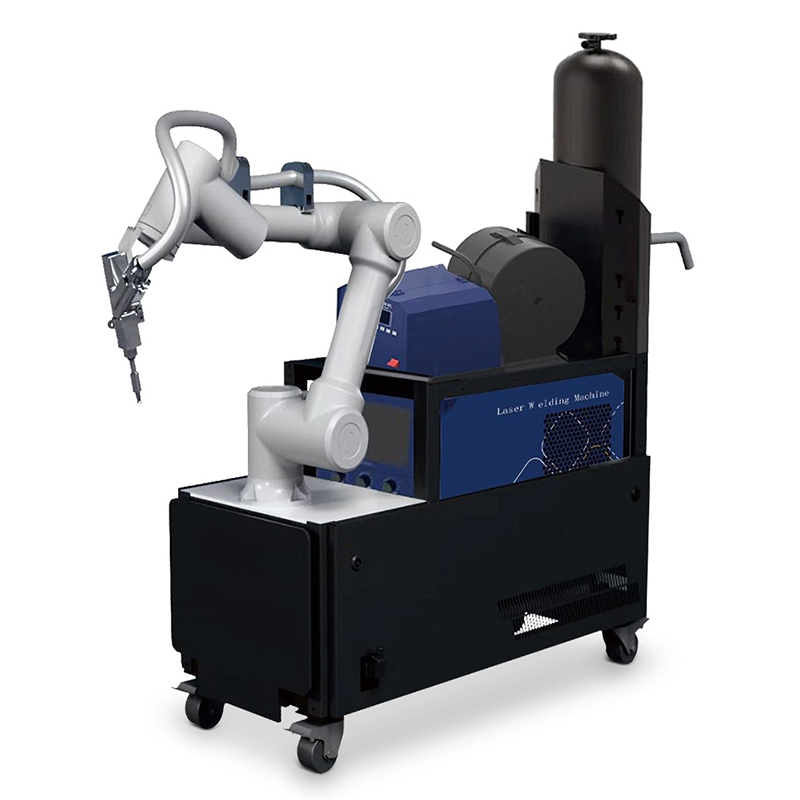

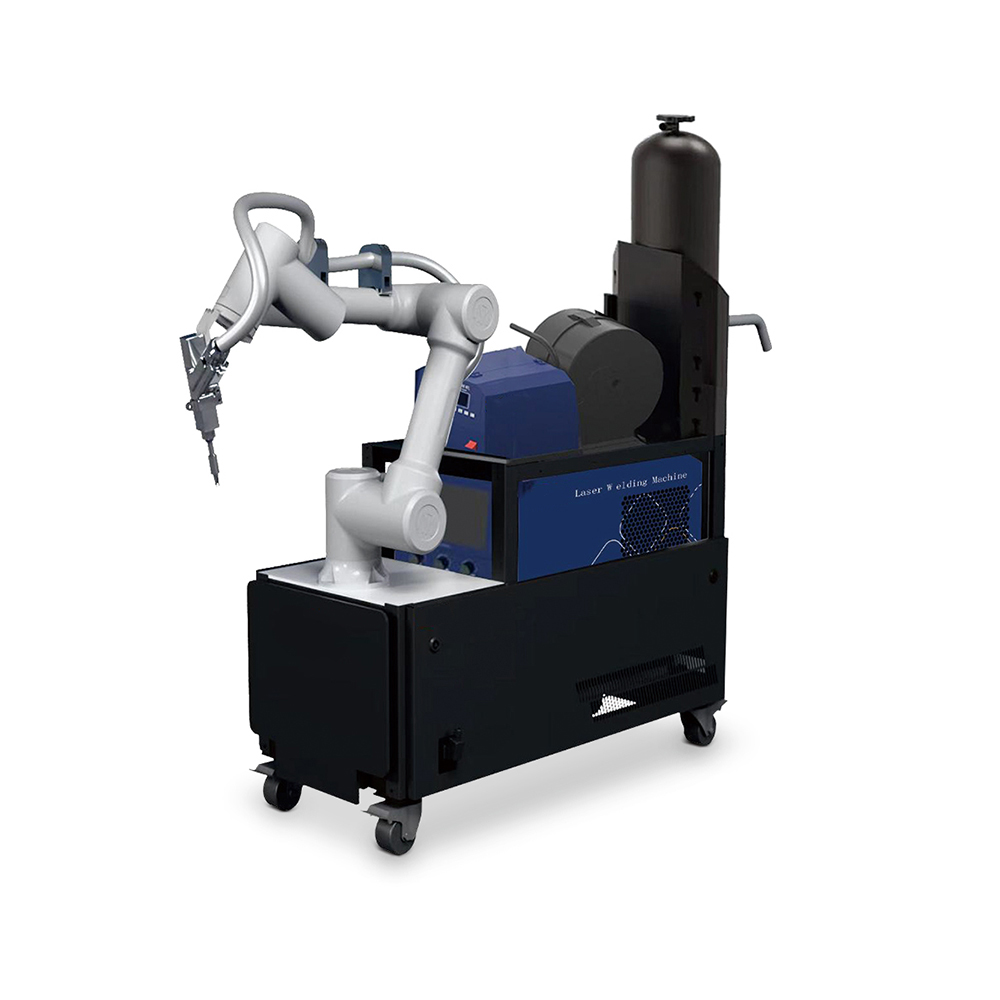

Air Cooling Platform Collaborative Laser Welding Machine
Parameters
Type
F52-A07
F52-A12
F52-A15
F52-20
Voltage
220V AC
Frequency
50/60Hz
Power
700W
1200W
1500W
2000W
Fiber length
10m
Laser output head
QBH
Wavelength
1080 nm
Cooling method
Air cooling
Load
5Kg
Working radius
900mm
Repeat positioning accuracy
0.02mm
Maximum speed
2.5m/s
Joint range of motion
±360°
Control box size
420*260*215.7mm
Operating Temperature Range
-10℃ ~ +60℃
Humidity
25% ~ 85%
Size (Gas bottle not included)
1294*500*1100mm
Weights (Gas bottle not included)
110Kg
115Kg
125Kg
135Kg
How to Choose the Power
The higher the power, the thicker the material can be welded and cut. And when welding and cutting the same thickness and cleaning the same surface, the higher the power, the faster the machine will be.

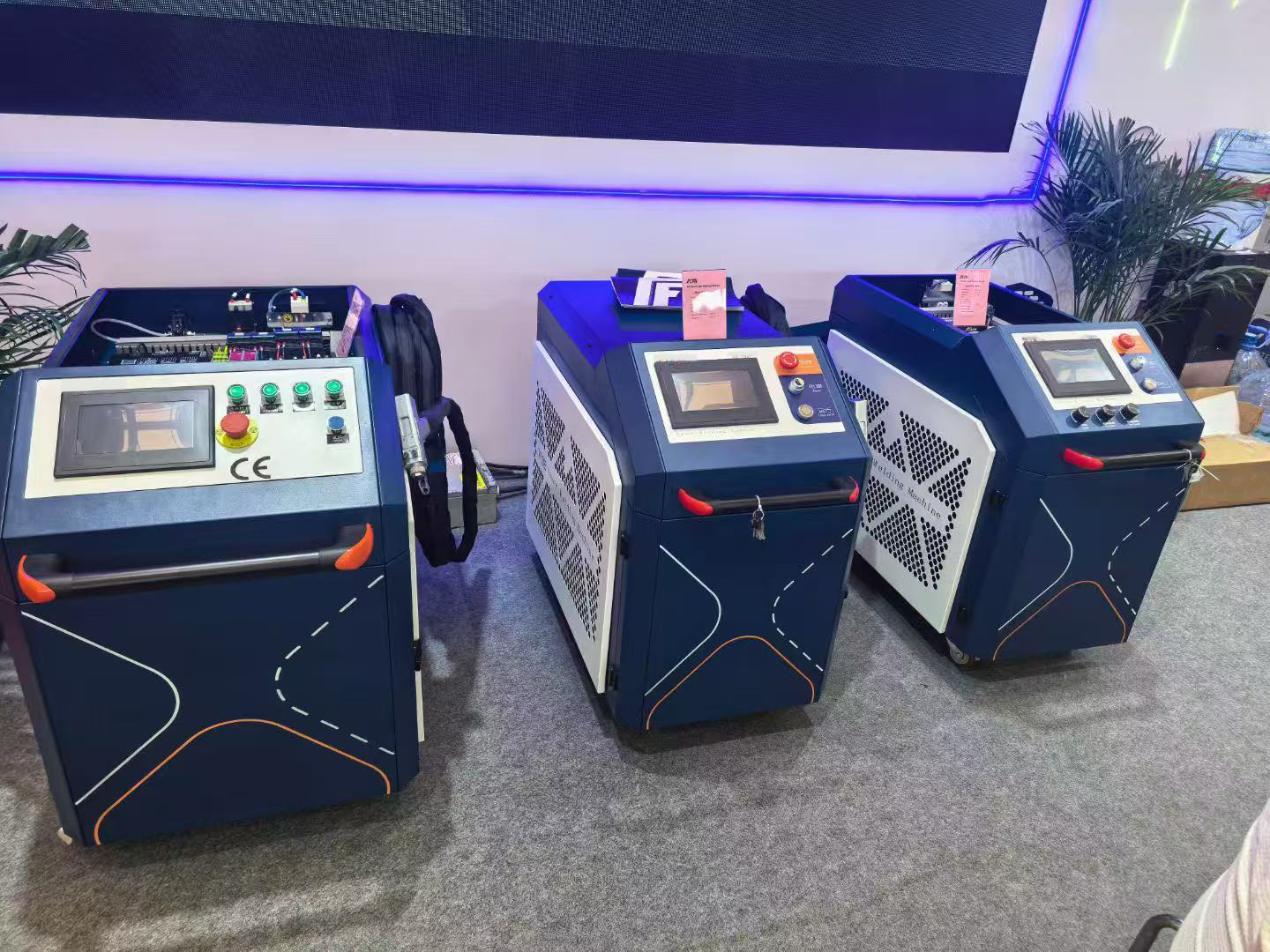

Inventory
Frequently Asked Questions
What is the cooling method used in this collaborative laser welding machine?
This machine features an air cooling system, eliminating the need for complex external water cooling solutions, which simplifies maintenance and ensures reliable performance.
How does laser power level affect the welding and cutting process?
Higher power allows you to weld and cut thicker materials. If you are working with the same material thickness or performing surface cleaning, a higher-power machine will operate significantly faster.
What power specifications are available for this series?
The series offers four models with different power capacities: 700W (Model F52-A07), 1200W (Model F52-A12), 1500W (Model F52-A15), and 2000W (Model F52-20).
What is the working radius and flexibility of the collaborative arm?
The machine features a working radius of 900mm and a joint range of motion of ±360°, providing extensive coverage and flexibility for complex welding trajectories.
What is the positioning accuracy of the system?
The platform delivers exceptional precision with a repeat positioning accuracy of 0.02mm, ensuring consistent quality across repetitive welding tasks.
What environmental conditions are recommended for operation?
The machine is designed to operate reliably in ambient temperatures ranging from -10℃ to +60℃, with a non-condensing relative humidity range of 25% to 85%.
