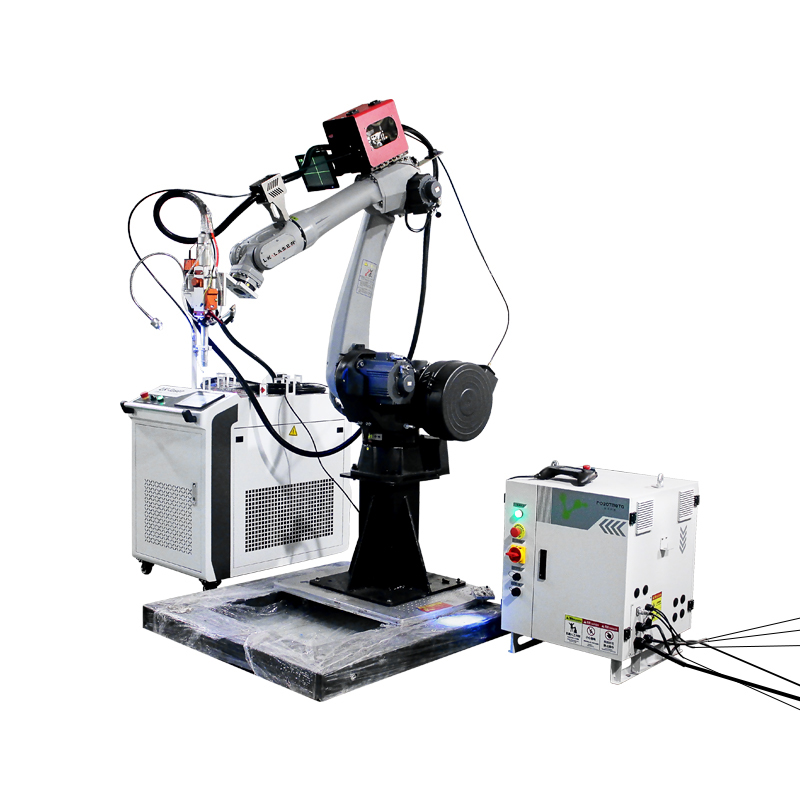

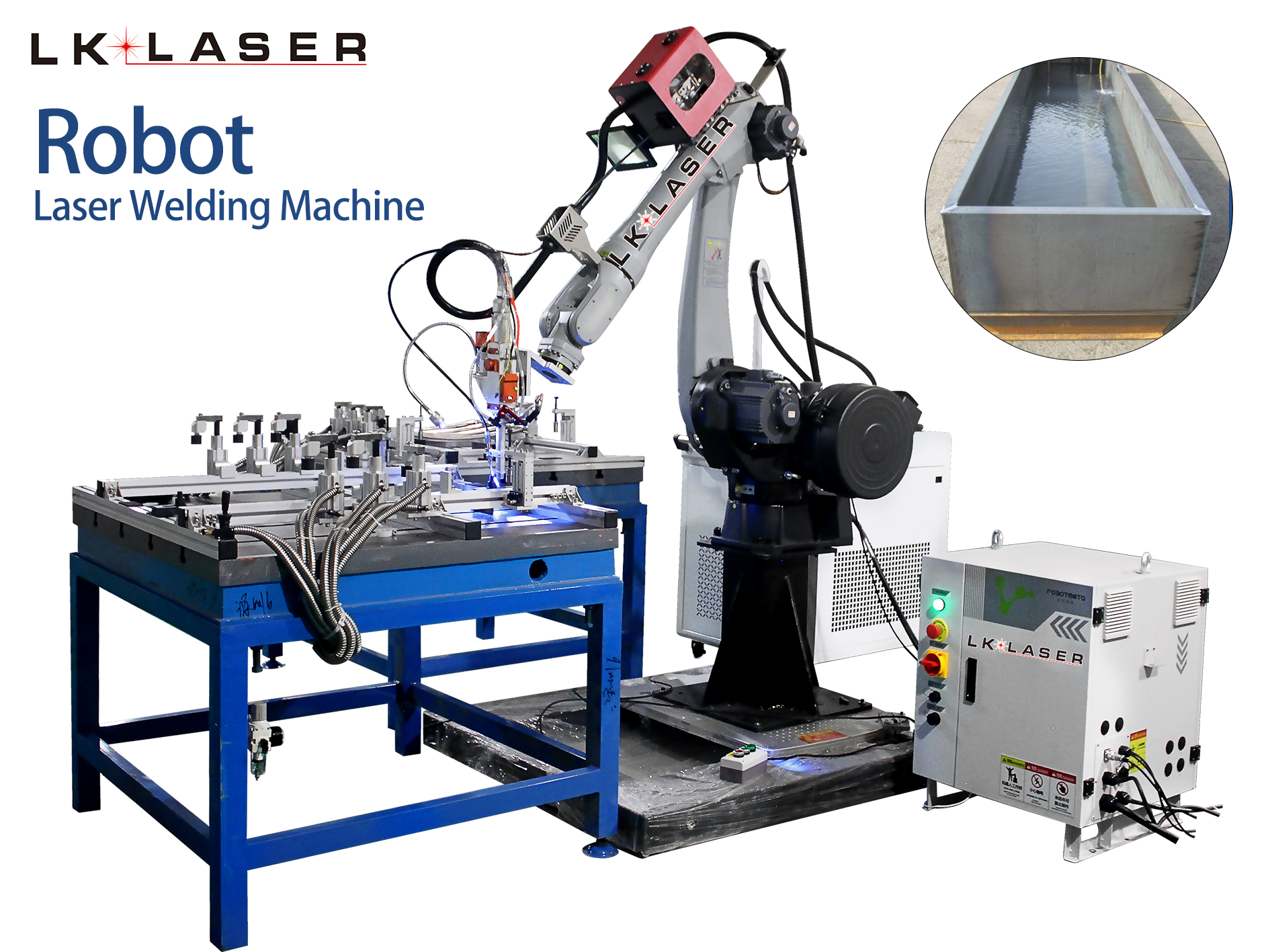

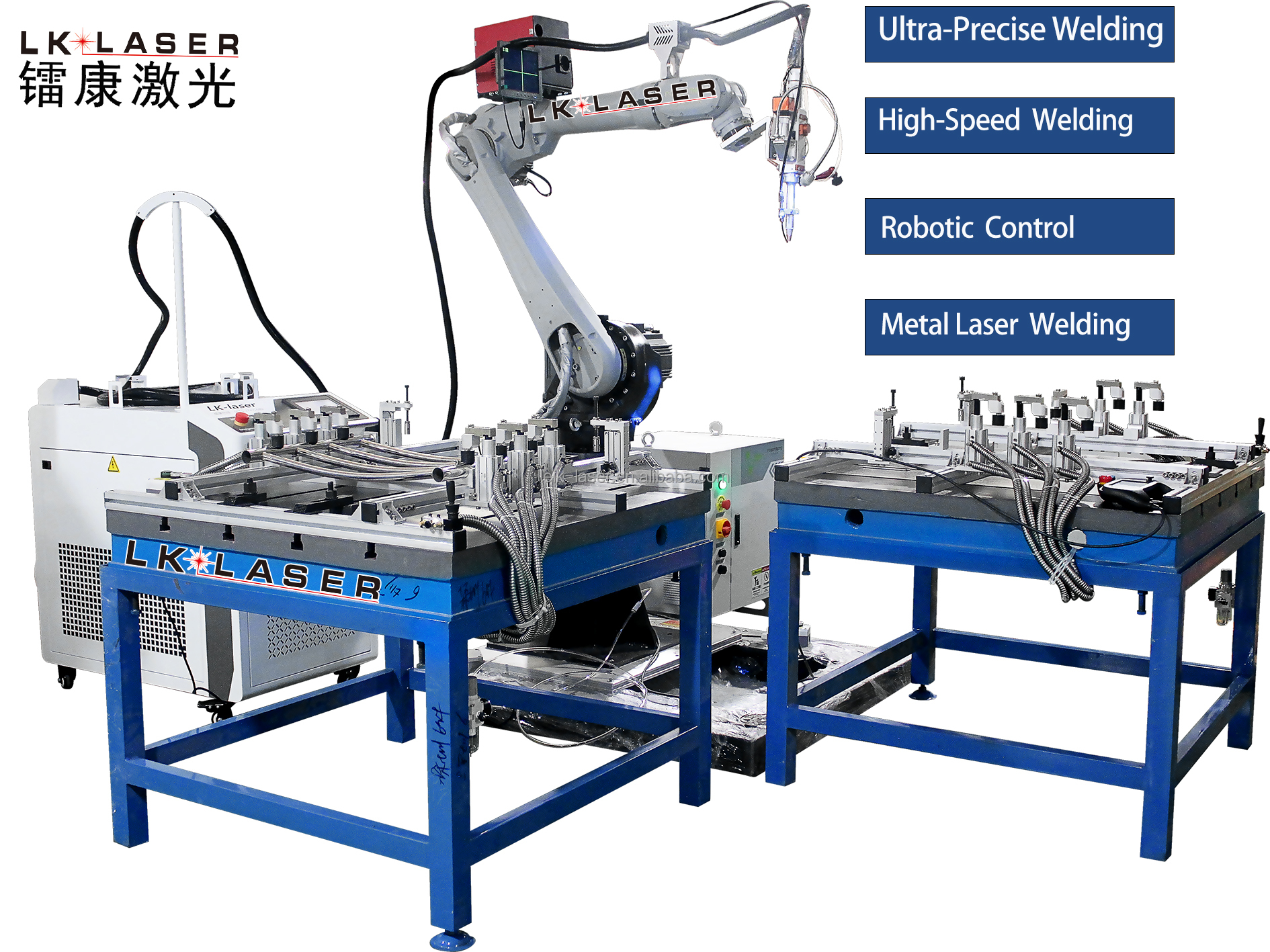

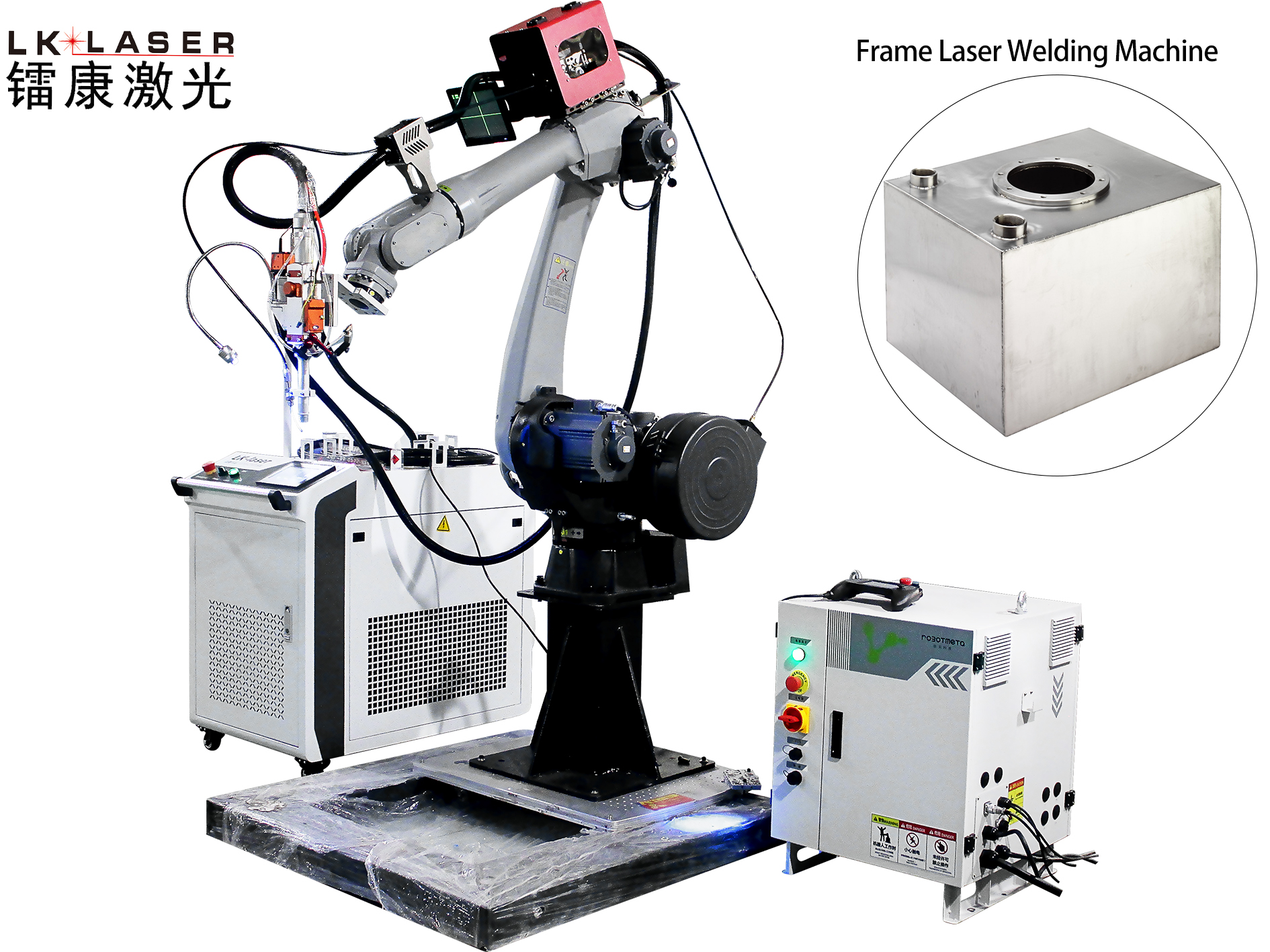

The laser welding robot consists of the robot body and the electrical cabinet, and is shipped with the laser welding software package. It is primarily used for applications such as laser welding, laser cutting, and laser cladding.
A specialized interface for laser welding, featuring controllable power, wire feeding, soft start and stop, pre-laser emission and decay, wire sticking detection, pre-wire extraction, and wire replenishment, etc. 6 Axis high precision +-0.05~0.08mm accuracy. It can control the wire feeding of servo or stepper motors. Using a vertical teaching pendant, the efficiency of robot programming is higher. Compact electrical cabinet, small in size, can be integrated into the laser host. Single-phase 220V input power supply, easy and quick to connect. Built-in UPS, supports power regeneration after outage.
Model
LK-GQH
Max. laser power
1000W/ 1500W/ 2000W/ 3000W/ 6000W (options)
Laser Type
Fiber Laser
Laser wavelength
1064um
Cooling methods
Water-cooling
Voltage
AC220V+-15%/50HZ/25A Single Phase / AC380V+-15%/50HZ/25A Single Phase /
Axis of robot
6 axis
Welding Accuracy
±0.05~0.08mm
Welding Methods
Remote control box/ offline programming/ PLC (options )
Robot radium
1554mm/ 1821mm/ 2015mm (options )
Perfectly combined with cutting edge & welding surface technology from fiber laser and CNC controlling, representing the most advanced laser cutting & welding technology.
Professional laser cutting & welding machine controlling system, computer operated, can guarantee cutting & welding quality, make cutting & welding work more convenient and easier to operate.
Attached with imported artificial intelligent robot, can do 3D cutting & welding, easy to operate, high degree of intelligence, can guarantee high speed, high precision and high reliability.
Equipped with imported laser head, high sensitivity, high accuracy, work with robot to avoid laser head crash against raw material, can guarantee focus point position and cutting quality.
Laser head can work under 1.0Mpa pressure, high pressure air circulation equipment, increase cutting & welding power for stainless steel.

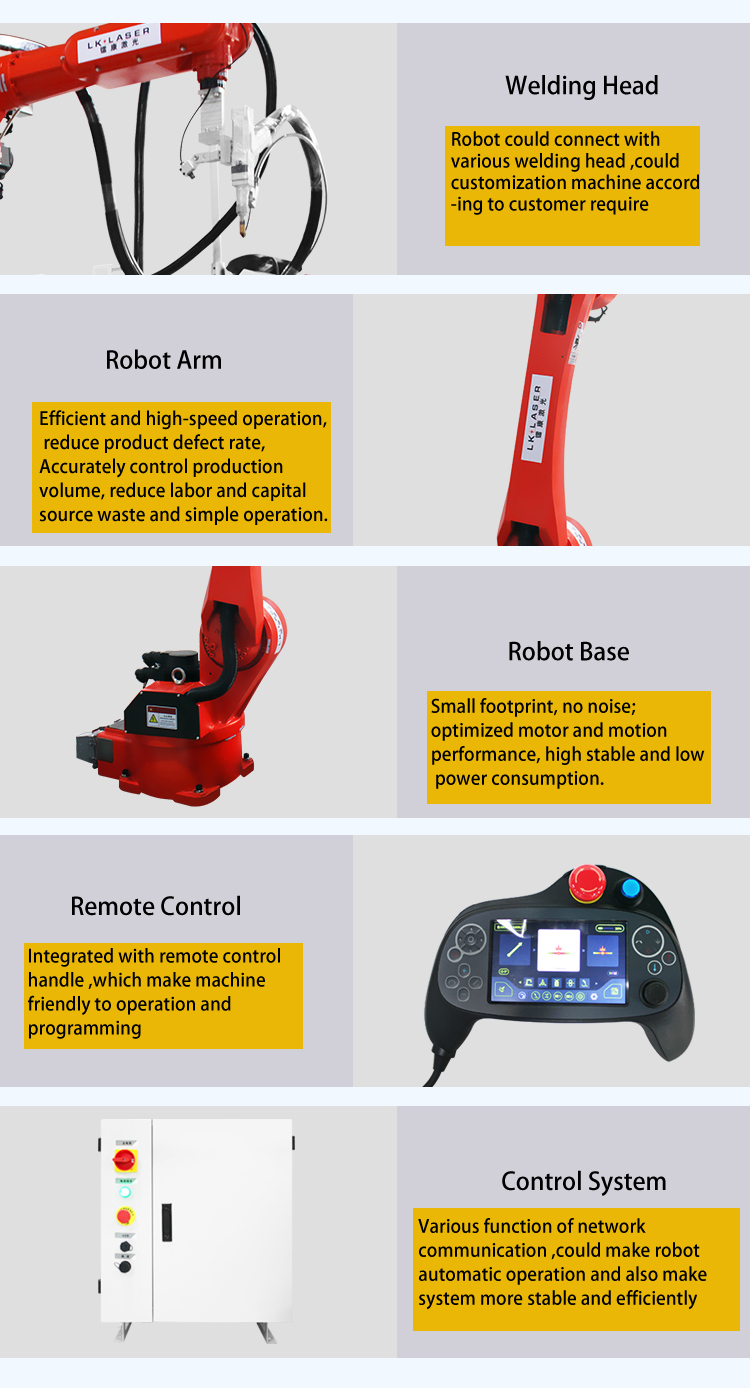

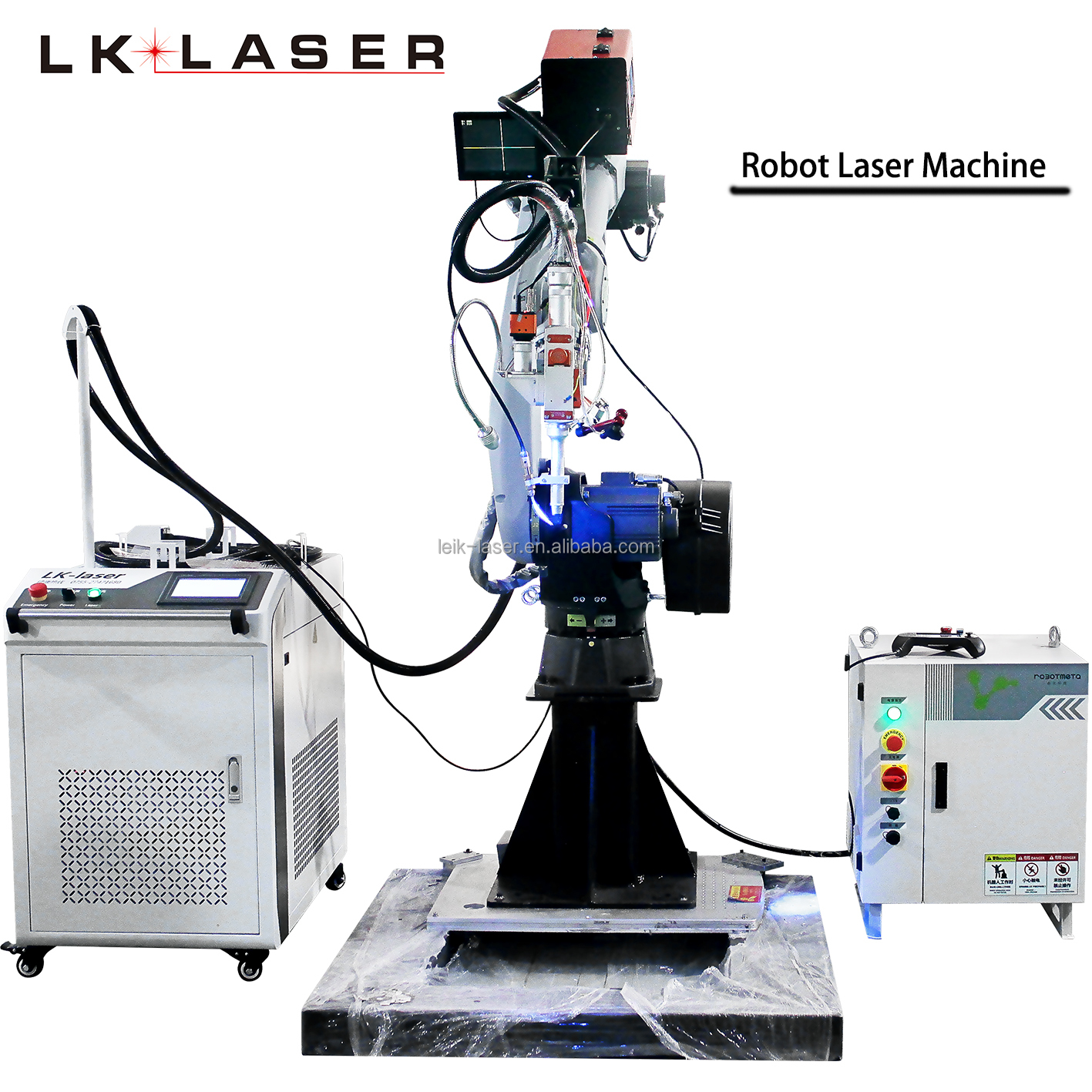

Details Images
Product Application
Metal Welding
Mainly used for cutting & welding carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet and so on.
Applied in auto industry, subway space parts, vessel parts, home electronics, decoration, Medical devices, kitchenware, etc.

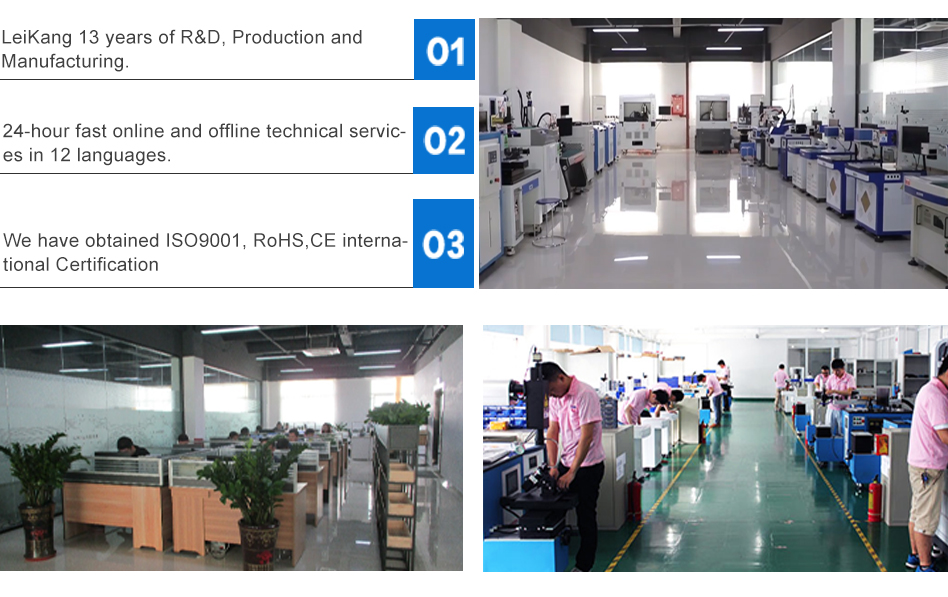

Company Profile
Welcome! Our team has 13 years of experience in laser welding, laser marking, laser cutting, laser cleaning, laser engraving and laser cladding.
We have the ability to independently develop, produce, supply and sell laser machines. We can provide customers with customized services, and provide an efficient and advanced laser production chain, which improves customers' production efficiency and production capacity. We continuously strive to improve quality, technological innovation and production improvement, and enjoy a high reputation in the international market. Our customers are all over the world, such as: Australia, Pakistan, the United States, Singapore, the Philippines, Italy, India, Brazil, Egypt...
After Sales Team
Production Process

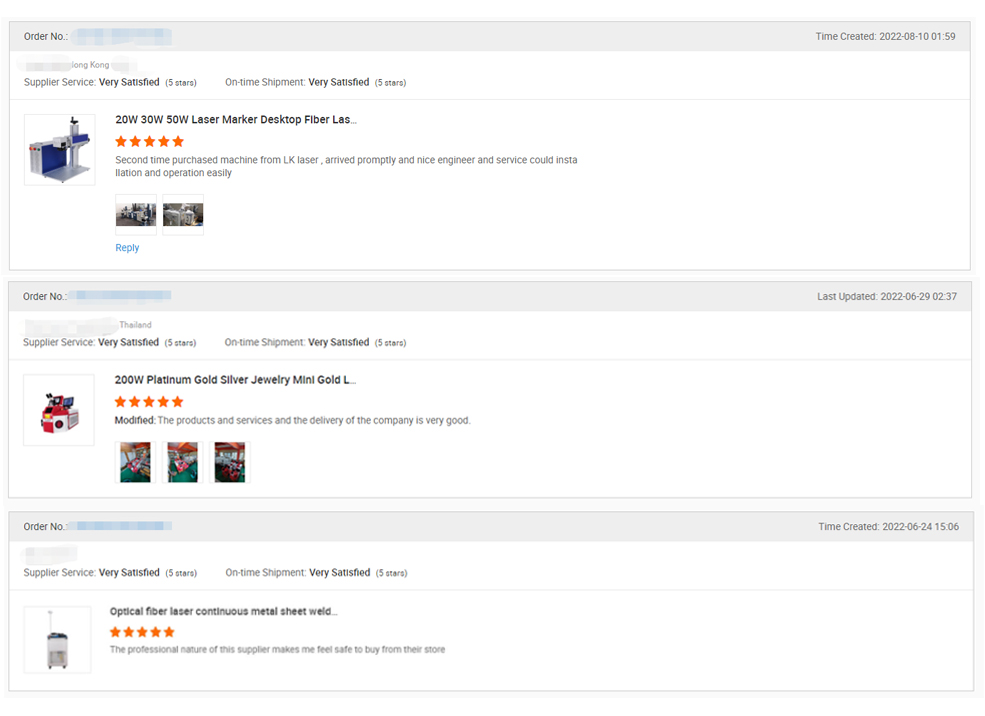

Customer Feedback
FAQ
Q1: I know nothing about the laser welding/marking/cutting machine, what kind of machine I should choose?
Just tell us what's your application with using this machine. The Material you want to weld/mark/cut and how you want to weld/mark/cut? And sending us a sample picture is better. Then we will send you a perfect solutions and suggestions.
Q2: When I get this machine, but I don' t know how to use it. What should i do?
We will send you the English manual and CD video for machine Using and maintaining with machine. If you still have some doubts, we can talk by telephone or online chat. Our engineer can also be sent to your country to install or adjust machine if necessary.
Q3: If some problems happened to this machine during warranty period, what should i do?
We will supply free parts for this machine during the warranty period if machine have any problems. We also supply free after-service forever. So any doubts, just let us know, we will give you solutions within 30 min.
Q4: How long is the delivery time?
Usually delivery time will be 5-7 days, and if customization machine will take 15-20 days.
Q5: How about the packaging?
Firstly, Packed the fiber laser machine with plastic sheet for clearing and damp proofing. Secondly, Then put the fiber laser machine in the plywood case for safety and clashing. Thirdly, Transport the plywood case into the container.
